USB Biometric Fingerprint Scanner ZK9500
- Category: >>>
- Supplier: Vanshui Enterprise Company Limited
Share on (1342240389):
Product Overview
Description
Products Description

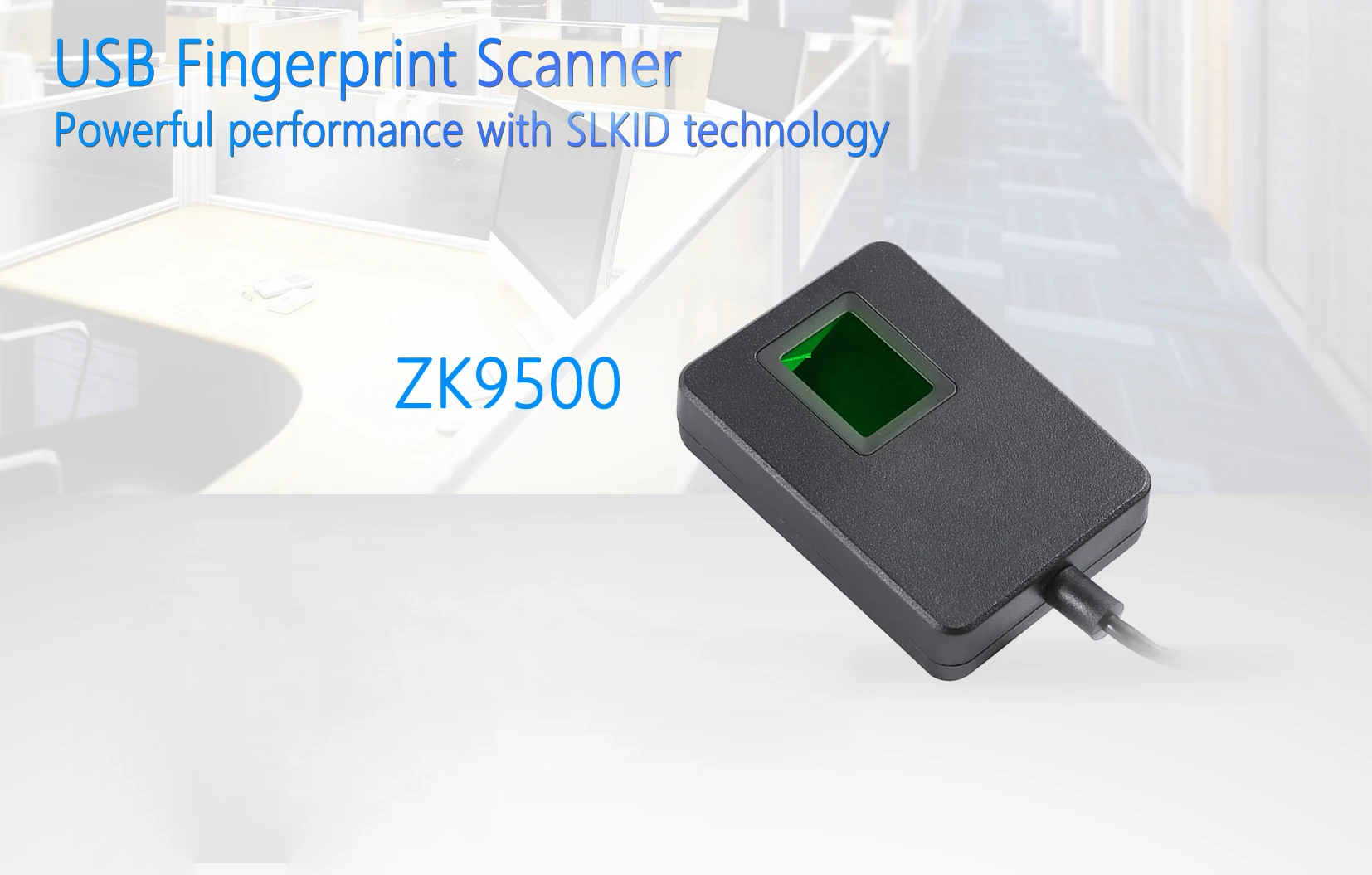

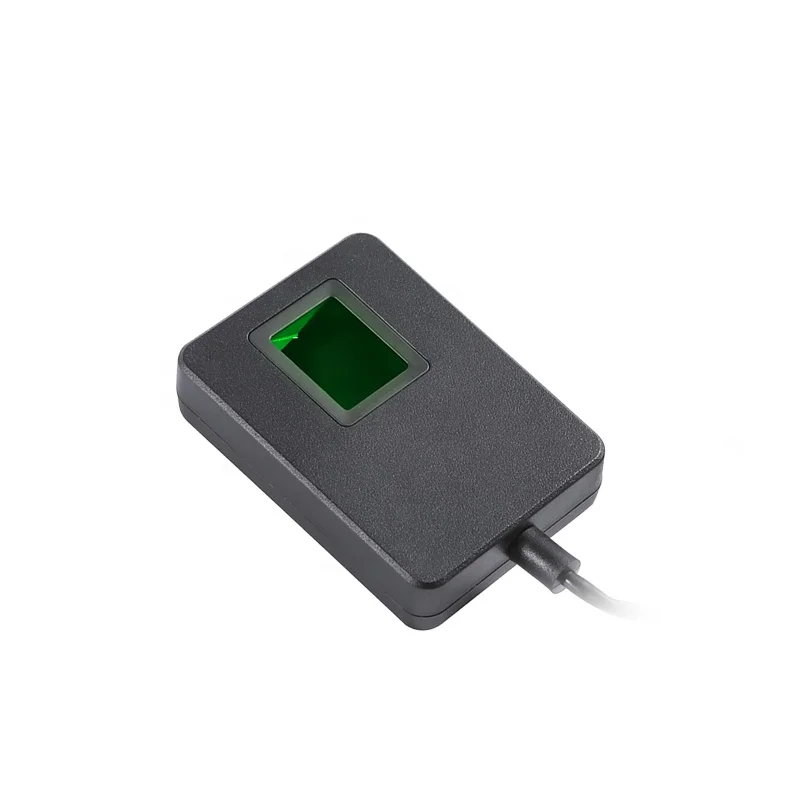

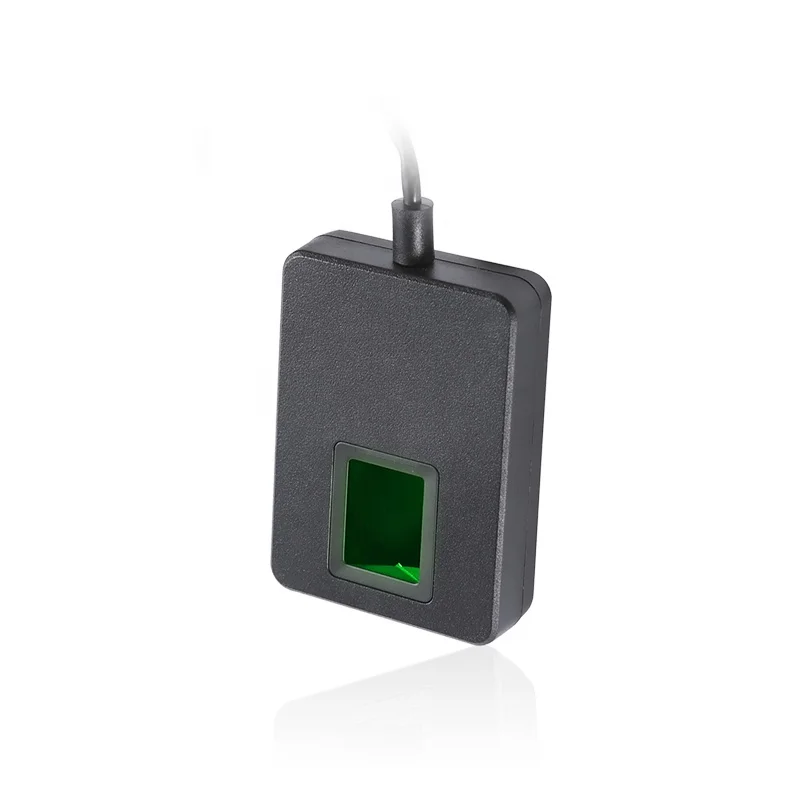

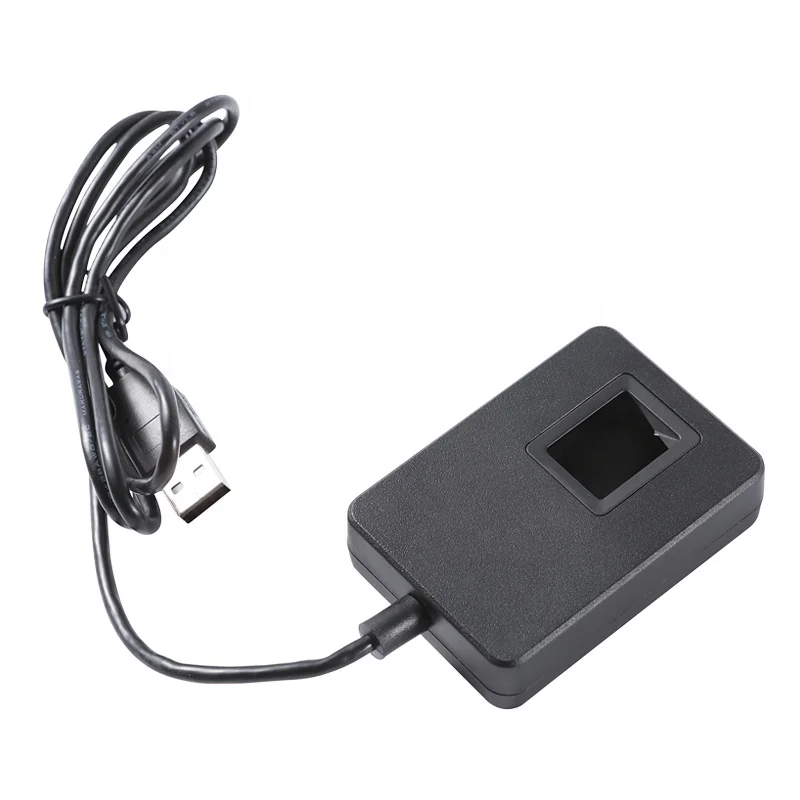

ZK9500 is a leading fingerprint scanner designed by USA laboratory which adopts the advanced optical design. It has a superior ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel image. It can be the most comfortable and affordable desktop enrollment and identification device.
Features
1/ Stable operation under strong light
2/ Support live fingerprint detection function
3/ Large fingerprint capture area and high image performance
4/ Quick recognition of dry, wet and rough fingerprints
5/ High Speed USB 2.0
6/ Low Power Idle Mode
7/ Available SDK for development
2/ Support live fingerprint detection function
3/ Large fingerprint capture area and high image performance
4/ Quick recognition of dry, wet and rough fingerprints
5/ High Speed USB 2.0
6/ Low Power Idle Mode
7/ Available SDK for development
Specification & Additional Models
Specification
Model | ZK9500 |
Prism Material | Optical glass |
CPU | 280MHz |
Flash | 16/32MB |
SDRAM | 16 MB |
SoC | RTOS |
CMOS | 2 Million pixels CMOS |
Encryption IC | YES |
Water Splash | no damage,make sure it can work |
Power Consumption | 5V:200mA scanning, 5V:60mA idle(waiting for finger) |
Power Voltage | 5V |
Power Current | 200mA |
Auto Switch IR | YES |
Interface Type | USB Type A |
Dimension(L*W*H) | 75.5*53.2*19 mm |
Sunlight Operation | YES,dark field and automatic gain/exposure |
Dry, moist, or rough fingerprints | Work well |
lllumination LED | Green |
Image Resolution | 500 dpi |
Effective Collecting Area | 15.24*20.32 mm(FAP20) |
Collecting Area | 16.5*23 mm |
Image Size | 300*400 pixel(FAP20) |
Image Format | BMP |
Live Detection | NO |
PIV | NO |
Gray Level | 256 |
Communication | USB 2.0/USB1.1 |
LED Indicator | Red,Green |
Template Size | <2KB,(ZKFinger V10.0); 1568 B(ISO 19794-2) |
Template | ZKFingerV10.0 |
ISO/ANSI Support | NA |
Certifications | FCC,CE,RoHS |
Weight | 0.1kg |
Operating Environment | -20℃～+50℃;90% r.h. |

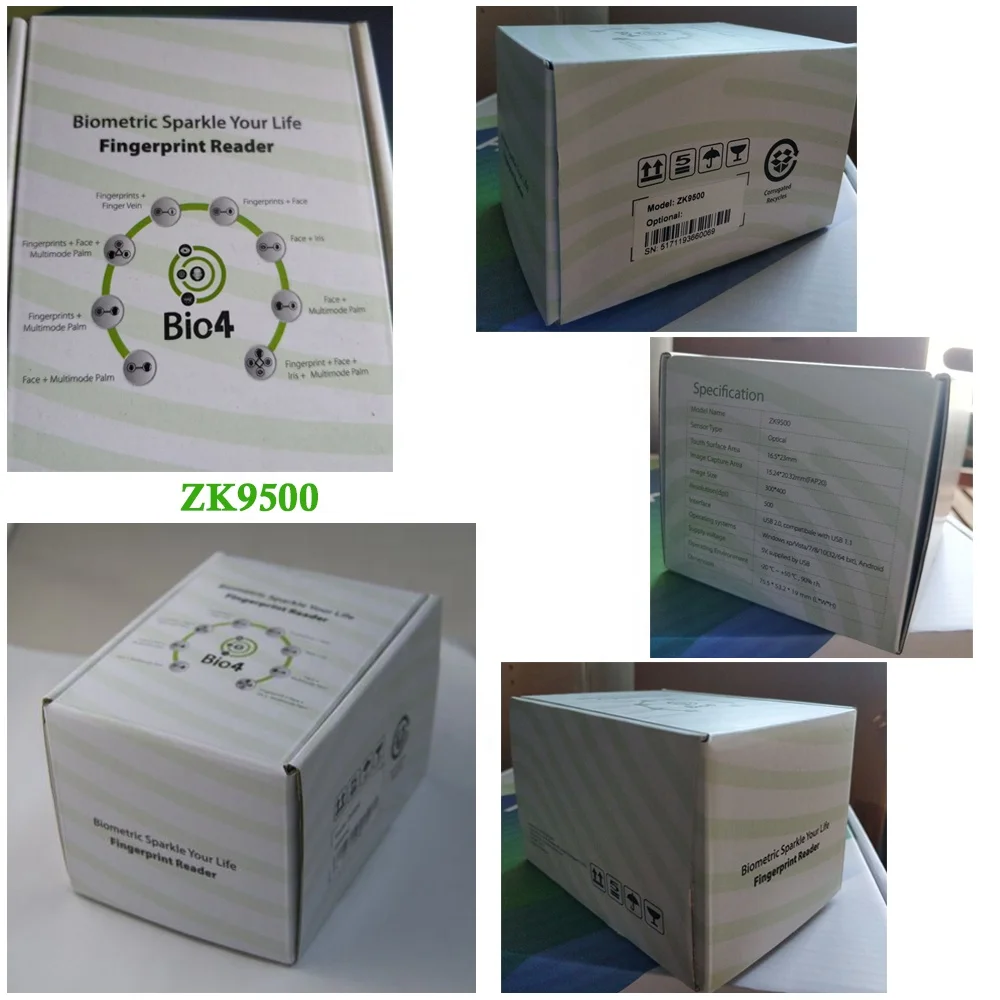

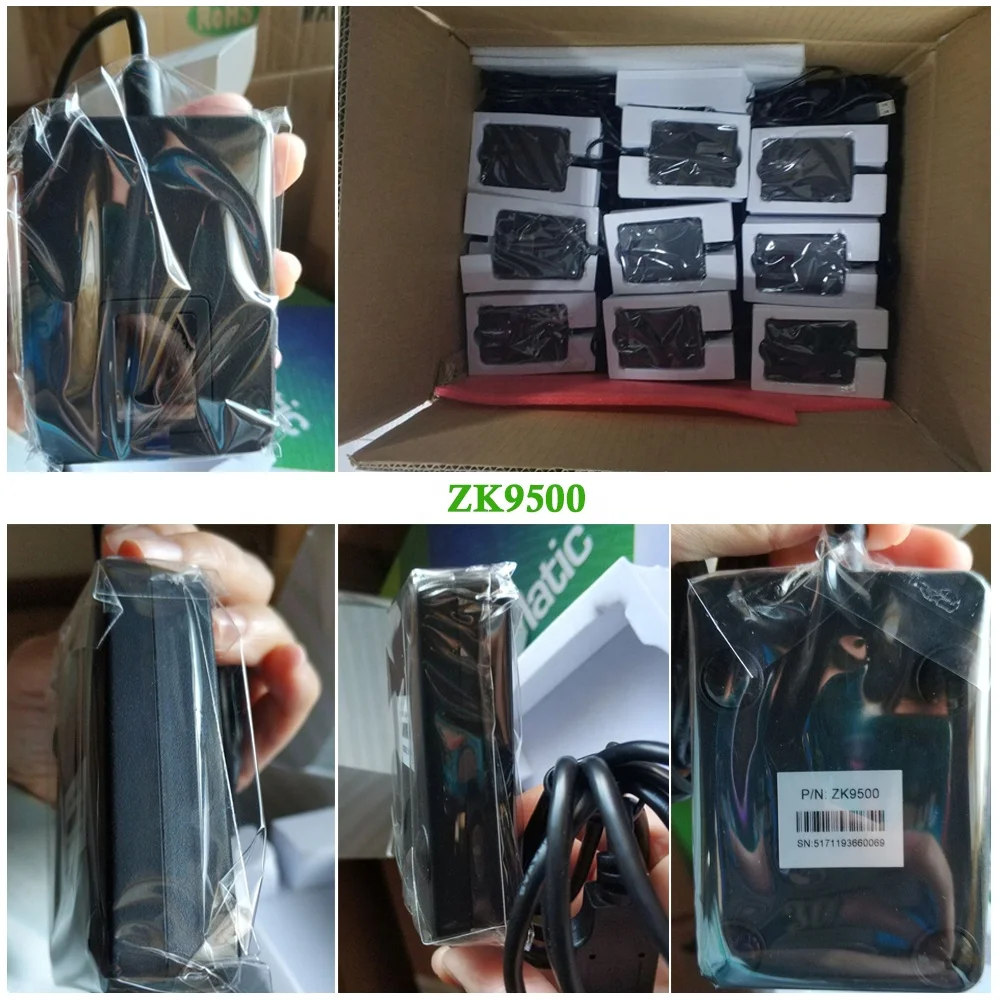

Details Images
