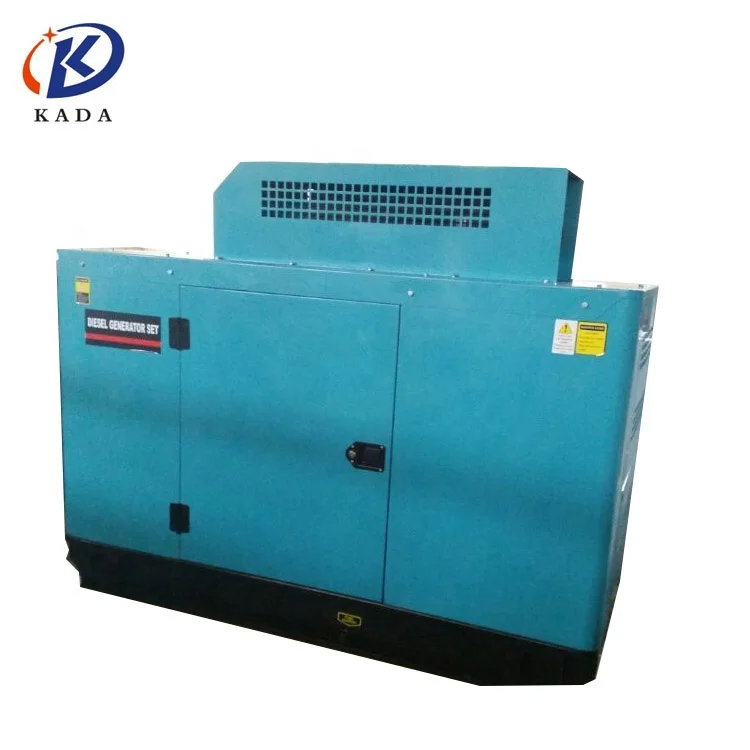

KADA 60kva power genset diesel genset generator manual

Product Overview

Description

Deutz Diesel Genset Deutz Generator Manual

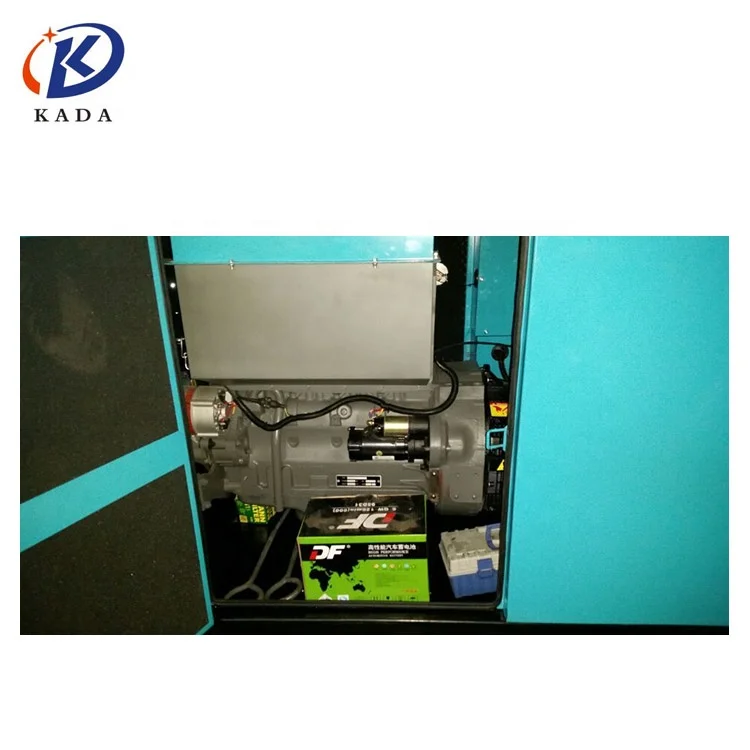

1), Heavy duty of Engine



a,Engine-Industrial 4strokes cooled diesel engine complete with air, fuel and oil filters,



b,electric starting and charging equipment, engine protection against oil low water level.



c, Cooling-Radiator and cooling fan complete with protection guards, designed to cool engine at specified output in air temperature up to 45°C,radiator suitable for higher temperature are available. Low water level protection fitted as standard.



d, Exhaust system-Heavy duty industrial exhaust silencer with flexible piping. Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.



Diesel Engine specification



Engine model	D226B-3D,TD226B-3D,TD226B-4D,TD226B-6D,TBD226B-6D,TBD226B-6D5
Type	water cooling, 4 strokes, direct injection
Air Intake type	naturally or turbocharged
Cylinder number	4,6
Piston speed	6m/s
Mechanical governor rate	≤5%
Electronical Governor rate	≤1%
Noise Level	≤96dBA



2), Reliable quality of alternator



a, Alternator-brushless, self exciting, self regulation, screen protected, drip proof rated in accordance with IEC60034.

b,Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity.

c, Available in the following voltages, 220V to 240V, and 380V-415V-440V-50HZ.



Alternator specification



KADA

Brushless, self excited, Class "H" insulation, Standard degree of protection is IP23

AVR self regulation, With fan cooling, Resist humid grease

AC excitation, roating, rectification tube, Stator frease insulation covered

Rotator balance is in accordance with BS5625 standard 12.5

High quality lubrication sealed long-time bearing

Rotator sillicon steel close tight



DEUTZ SERIES SPECIFICATION
Genset Model	50HZ,COSθ=0.8 400/230V 3P4W		Diesel engine	Alternator	Overall Size	Gross Weight
	Primepower (KW/KVA)	Standbypower (kw/kva)	Model	Model
D20GF	20/25	22/27.5	D226B-3D	KD184E	1650x650x1400	700KG
D25GF	25/31.25	27.5/34.4	D226B-3D	KD184G	1650x650x1400	700KG
D30GF	30/37.5	33/41.25	TD226B-3D	KD184H	1650x650x1400	700KG
D34GF	34/42.5	37.4/46.8	TD226B-3D	KD184J	1650x650x1400	700KG
D40GF	40/50	44/55	TD226B-3D	KD224D	1650x650x1400	750KG
D48GF	48/60	52.8/66	TD226B-4D	KD224E	1900x650x1400	800KG
D68GF	68/85	74.8/93.5	TD226B-6D	KD224G	2700x820x1500	1000KG
D80GF	80/100	88/110	TD226B-6D	KD274C	2700x820x1500	1000KG
D90GF	90/112.5	99/123.8	TBD226B-6D	KD274D	2700x820x1500	1300KG
D100GF	100/125	110/137.5	TBD226B-6D	KD274E	2700x820x1500	1300KG
D120GF	120/150	132/165	TBD226B-6D5	KD274F	2700x820x1500	1300KG





OEM Service



 1. Unique design and manufacture of generator as per your requirement.



 2. Customer logo printing or painting on the genset.



 3. Installation and Operation manual neutral or headings can be design according to customer  requirement.



 4. Full warranty cover to support the customers.
