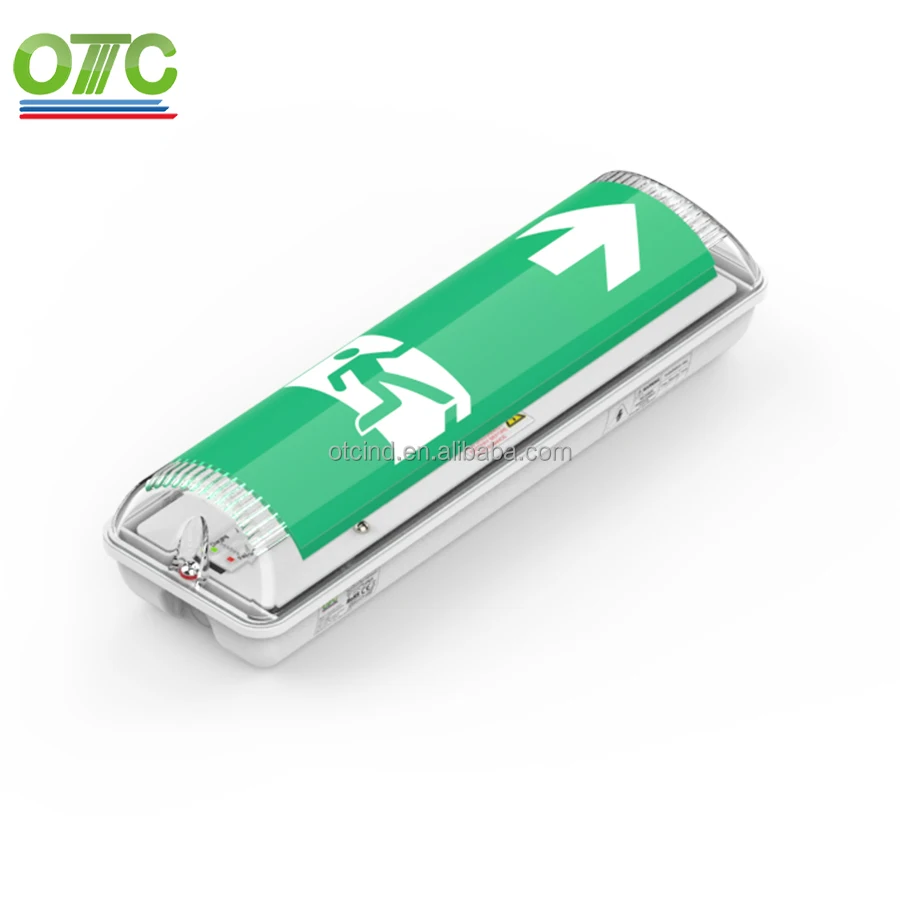

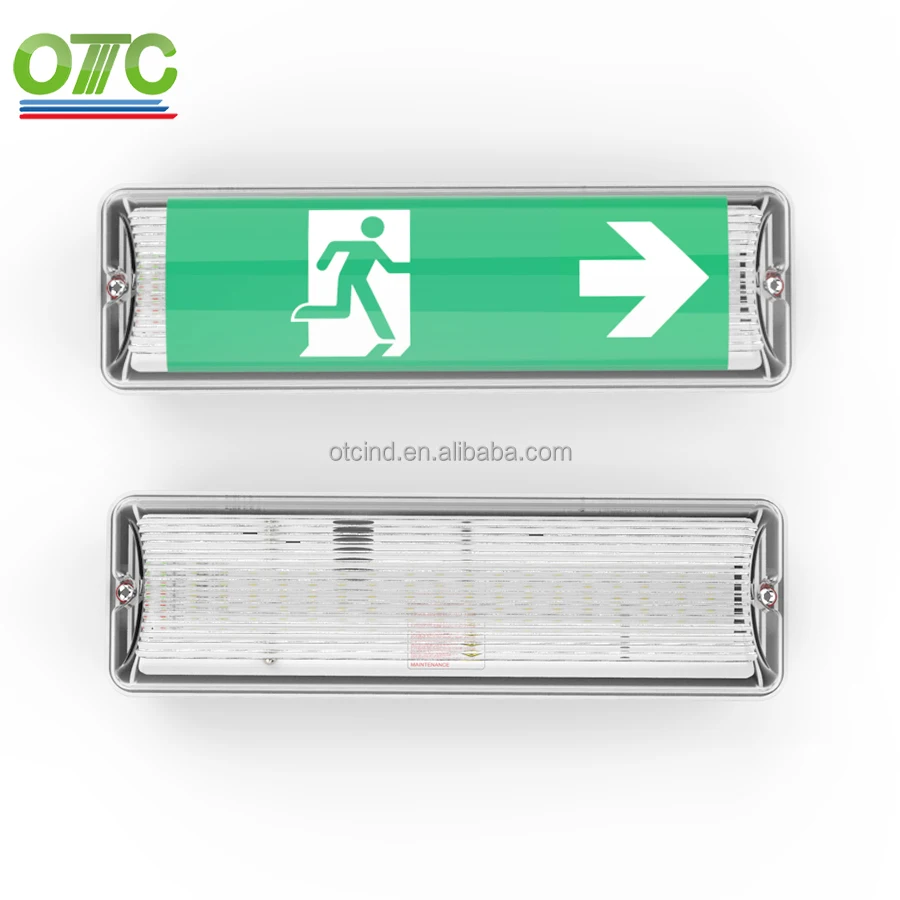

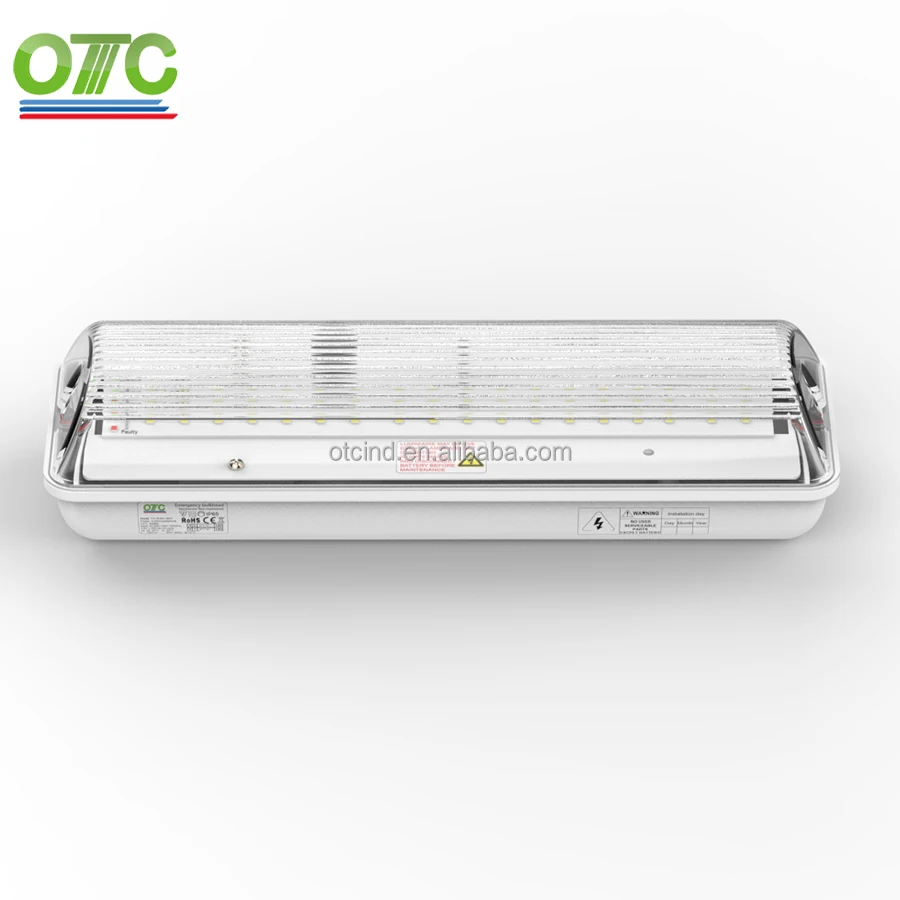

IEC60598 2 22 Classic 51 LED IP65 emergency light waterproof led emergency light

Product Overview

Description













Model	Art Nr. OT-HLB2 Self-test & remote Test series
	18N		18ST		18RST Item in the page
EM Working mode	Non-maintained	Mainained	Non-maintained	Mainained	Non-maintained	Mainained
Material	100%  polycarbonate
LED Chips	18pcs 2835
Input Voltage	AC200-240V 50/60HZ
Total Input Power	1.5W	4.5W	1.5W	4.5W	1.5W	4.5W
Luminous Flux In AC mode	OFF	200Lm	OFF	200Lm	OFF	200Lm
Luminous Flux In EM mode	100Lm	100Lm	100Lm	100Lm	100Lm	100Lm
Color Rendering Index	>80
CCT	3000/4000/6000 available
Battery pack	3.6V 1.2Ah
Degree of prtection	IP65
Power factor	0.5
Warm up time	<1S
LED lifespan	50,000 hrs
Bean angle	120°
Standard	60598-2-22:2014		60598-2-22:2014 &  EN62034

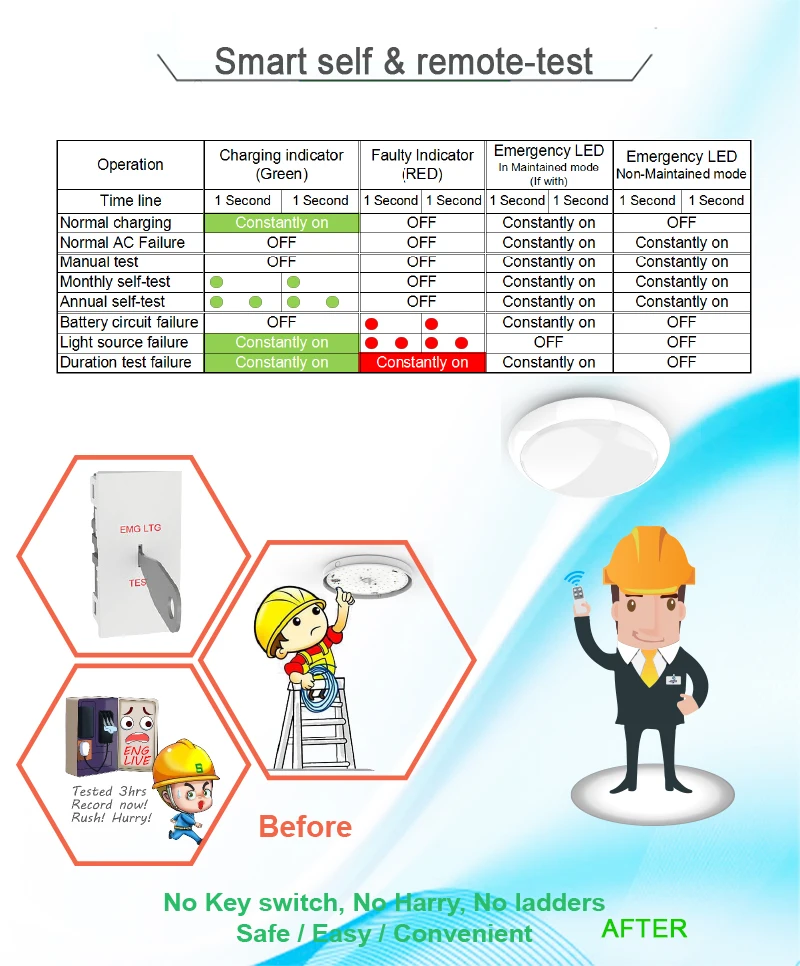

TEST	manual test		manual test +  self-test		manual +  self + remote test
Charging indicator	Green
Faulty indicator	No this indicator		RED
Guarantee	5 Years



















Packing information:



PACKING INFORMATION of this IP65 waterproof led emergency light :





Packing:	color gift box with polyfoam
Inner packing:	1pcs/inner box
Outer packing:	12PCS/CTN
Carton Size:	65x33x48cm
G.W.:	14KGS
N.W.:	12KGS





General instruction of Orientec Electronic:





1. Ningbo Orientec Electronic Co. is Branch of OTC IND.  This branch just specialize LED lighting.  It contains:

    A.  Low voltage version,  EMC and RoHS compliant.  For supermarket.

    B.  220V/110V industerial lighting.  EMC/ LVD/ RoHS compliant.  We work with famous

    C.  Emergency light for project only.  IEC60598-2-22 full compliant. This used for bid government project.

    D.  OTC Own the patent of some item in this website.





2. Orientec Elec. with separate R & D depart.  We apprecite you ideas about impove our current items.

     A.  The engin team in OTC proficent  ProE, UG, Auto CAD and Protel.

     B.   The Marketing team will show you the trend in LED field.

     C.   You can sent inquiry as followed chart.







   The products here all CE and IEC complaint.

   PS:  The engineer can remove your doubt based on IEC/ CE documents  clause by clause.



2. Q:  Does the R&D depart show solutons free of charge?



  A:  If just some doubt, Solutions are not needed. Free of charge.

           eg.  Why the sensor of my light run out so quickly,  How yours can confirm 2 years guarantee?

                   Why the battery of our emergency light die just 50 cycles.



   B:  If you need new solutions.



          Part 1;  Draft solution sheet is free.

                  a.   The construction solution sheet just with some Auto CAD 2D drawing.

                  b.   The PCB solution just with general description.



          Part 2;  Formal solution sheet cost need confirm with sales manager.

                  a.   The construction solution sheet together with 3D drawigns.

                  b.   The PCB in protel and show you the sample to prove the function



   C:  If solution confirmed.  and order placed. The solution charge will be refund.







3. Q: MOQ, main market

  A:  The MOQ is 1000pcs

  B,  The main market of OTC is Western Europe(especially UK and DE) and  US, AR, and AU.
