wholesale retail high temperature quartz resistant quartz glass tube
US $40.00-$50.00
Высокотемпературная прозрачная Плавленая кварцевая стеклянная трубка всех размеров
- Category: Quartz Tubes >>>
- Supplier: Lianyungang Inpu Quartz Co. Ltd.
Share on (1343076604):
Product Overview
Description
High temperature clear fused quartz glass tube with all dimension

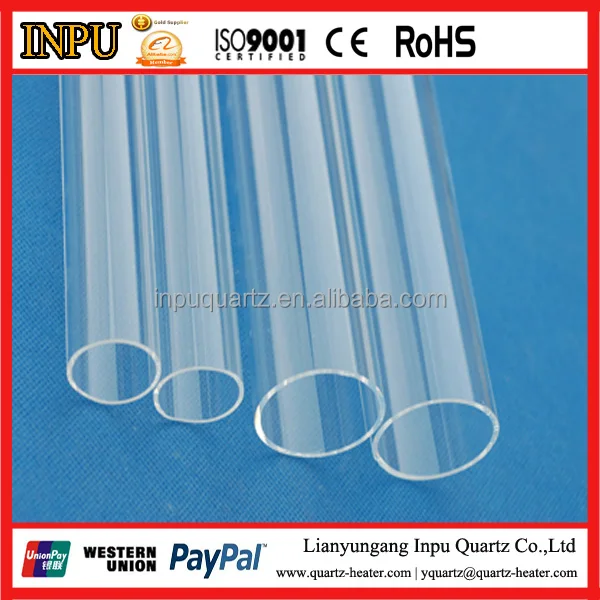

IP101 Clear quartz glass tube OD1.5mm to 300mm
| Product Feature | Application |
High purity Good thermal and mechanical property Accurate dimensional tolerance Lower OH (1-160ppm) | Halogen lamp Mercury lamp Print lamp tube Stage light Chemical tube Heat-resistant utensils etc |

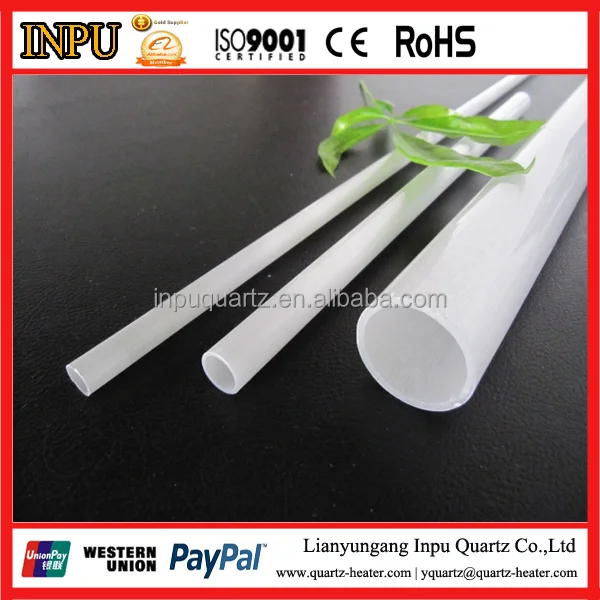

IP102 Milky quartz glass tube OD 5MM to 150mm
| Product Feature | Application |
White milk appearance Precise dimension Strong heat resistance | It is extensively applied at far infrared heating, such as: Heater Sterilization tank Micro-wave oven Electric oven etc |
IP103 Uv stop quartz tube OD 3mm to OD200mm
| Feature | Application |
cerium-doped silica glasses tube Can prevent all the radiation of UV-B and UV-C and most of UV-A Best transparent performance | UV Stop halogen lamp UV stop mercury lamp The Sleeve for UV stop metal halide lamp |
IP104 Far Infrared quartz glass tube OD 8mm to OD 19mm
| Feature | Application |
.Clear quartz tube doped with trace elements .Prevent all the UV rays and part visible lights .Make the good use of infrared rays .Lustrous appearance, brilliant color .Has the same property of heat resistance with GE214 | It is another good material for far infrared heating, and also for stage light |
IP105 Ozone free quartz tube OD 3mm to OD200mm
| Feature | Application |
Clear quartz tube doped wit Ti Has strong ability to prevent dense UV radiation but release no ozone | It is used for all kinds of germicidal lamps and has a strong function of decoration.
|

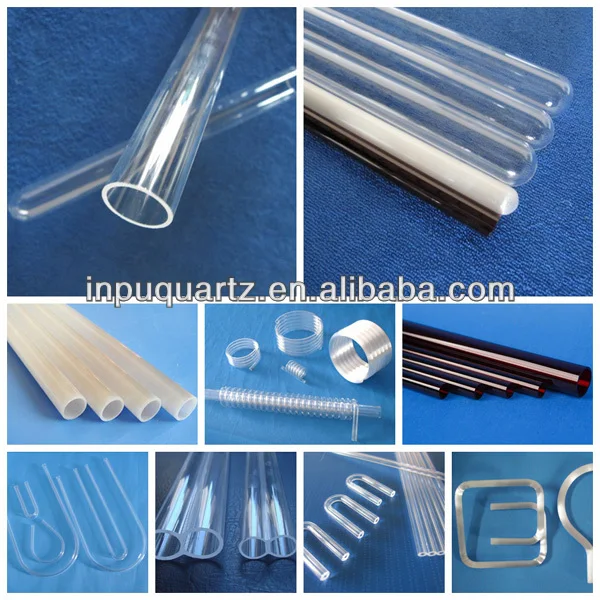

IP106 Further Processing Quartz Tube

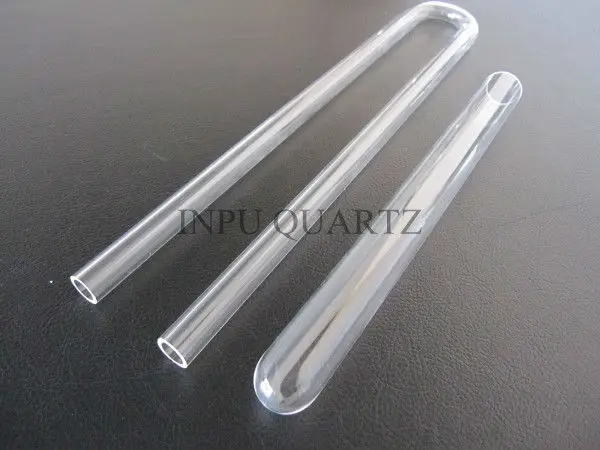

U Shape quartz tube: main used in heater, beautiful characteristic; bearing high temperature, no rusty
Bending tube:Used in heater, chemical test ,lighting
Lamp body: Half production for quartz bulb, used in JC,JD lamp
Closing tube: Closing at one end or two ends for clear quartz tube or milky tube. Used in heater, lighting, chemical test
Polishing tube: Can be done at one end or two ends for trimming cutting quartz tube according to the demand of customer.
Spiral tube: Can be done as customer’s demand, mainly used in heater.
IP107 Quartz plate /slide /window
Quartz glass tube phsical properties
Physical Properties
Density | 2.2±0.05 (g/cm³) |
1.Thermal stability: cooling from 1100°C to 20°C for three times,No crack.
2.Heating to 1100°C for one hour ,No color change |
Hardness | 5.5-6.5 (Mohs') | |
Design Tensile Strength | 4.8X107(N/m²) | |
Design Compression Strength | >1.1X109 (N/m²) | |
Coefficient of Thermal Expansion(20°C-300°C) | 5.7X10-7 (cm/cm°C) | |
Thermal Conductivity (20°C) | 1.4 (W/M.°C) | |
Specific heat(20°C) | 670 (J/kg.°C) | |
Electrical Resistivity (350°C) | 7x107(Ω.cm) | |
Dielectric Constant | 3.75 | |
Dielectric Strength | 5x107(v/m) | |
Softening Point | 1680 (°C) | |
Annealing Point | 1210 (°C) | |
Strain point | 1120 (°C) | |
Short-period working temperature | 1300 (°C) | |
Long-period working temperature | 1100 (°C) |
Quartz glass tube Chemical elements composition :
Chemical Elements Composition (unit: ppm)
SiO2 | Al | B | Ca | Co | Cu | Fe | K | Li | Mg | Mn | Ni | Ti | Na |
99.97% | 20 | 0.2 | 2.0 | 0.5 | 0.3 | 1.0 | 3.5 | 1.0 | 0.5 | 0.5 | 0.5 | 2.0 | 3.5 |

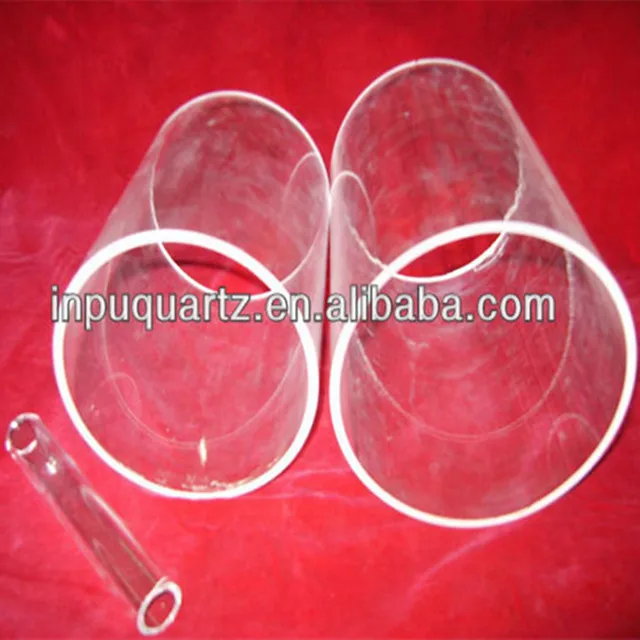

Large diameter quartz glass tube
Clear pure quatz glass tube
Capillary quartz glass tube
