Hydraulic Hammer Mini Excavator
- Category: Other Construction Machinery Attachments >>>
- Supplier: Yantai Jisan Heavy Industry Ltd. [Shandong China]Yantai
Share on (1344008391):
Product Overview
Description
Hydraulic Hammer Mini Excavator
Product Description
JISAN Hydraulic Breaker has 3 main types:
Side Type Hydraulic Breaker:
Versatile application including rock broken, paving road, building demolition etc.
Versatile application including rock broken, paving road, building demolition etc.
Top Type Hydraulic Breaker:
Applied to special operation that in large elevation angle.
Applied to special operation that in large elevation angle.
Silenced Hydraulic Breaker:
Low noise, saving energy and protecting environment.
Low noise, saving energy and protecting environment.
Specification
| Item/Model | Weight (Kg) |
Length (Mm) |
Pressure (Kg/cm2) |
Flux (L/Min) |
Rate (Bpm) |
Hose (Inch) |
Chisel (Mm) |
Suit (Ton) |
| JSB200T | 100/120 | 1100 | 90-120 | 15-25 | 700-1200 | 1/2 | 45/53 | 1.2-3.0 |
| JSB400T | 298 | 1347 | 110-140 | 25-45 | 500-900 | 1/2 | 68/70 | 3.0-5.5 |
| JSB600T | 421 | 1528 | 110-160 | 30-45 | 500-800 | 1/2 | 75 | 4.0-7.0 |
| JSB800T | 577 | 1920 | 120-170 | 45-85 | 400-700 | 3/4 | 85 | 7.0-14 |
| JSB900T | 973 | 2260 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |
| JSB1600T | 1855 | 2695 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |
| JSB1900T | 1989 | 2810 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
| JSB3500T | 2750 | 3152 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
| JSB4500T | 3160 | 3310 | 160-180 | 200-300 | 250-350 | 1.25 | 165 | 36-45 |
| JSB5000T | 4210 | 3400 | 160-180 | 210-290 | 200-350 | 1.25 | 175 | 40-55 |
| JSB5500T | 4720 | 3400 | 180-220 | 220-300 | 200-250 | 1.25 | 185 | 50-60 |
| JSB6000T | 4910 | 3420 | 180-220 | 230-320 | 180-200 | 1.25 | 190 | 55-65 |
| JSB6500T | 6100 | 3700 | 190-230 | 360-450 | 120-200 | 1.25 | 240 | 65-100 |
How to choose breaker model, please click here.
Feature Details
1. Selected raw material - high quality heavy duty wear resistant steel.
2. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
3. The device can adjust the flow fromexcavator and power source, so it can adjust the impact force and beat frequency according to different working situation.
4. High-quality and durable wear parts ,longer use, easy maintenance.
5. Strong " hydraulic + nitrogen " impact system, increase stability.
6. Advanced manufacturing facilities and technology, introduced from South Korea.
7. High energy and impact frequency, High-performance optimized hydraulic unit.
2. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
3. The device can adjust the flow fromexcavator and power source, so it can adjust the impact force and beat frequency according to different working situation.
4. High-quality and durable wear parts ,longer use, easy maintenance.
5. Strong " hydraulic + nitrogen " impact system, increase stability.
6. Advanced manufacturing facilities and technology, introduced from South Korea.
7. High energy and impact frequency, High-performance optimized hydraulic unit.
Applications
If you are interested, please click here.
Package
1. Inner is stretch film, outside is export wooden case or as customer's request.
2.The standard free spare parts: two Chisels, two hoses, one set of repair tools with tool box,one Nitrogen bottle, one Nitrogen pressure gauge and one brochure.
1 hammer
1 manual
1 nitrogen bottle
2 rods
1 N2 gauge
2 hoses
1 brochure
1 tool box
Accessories

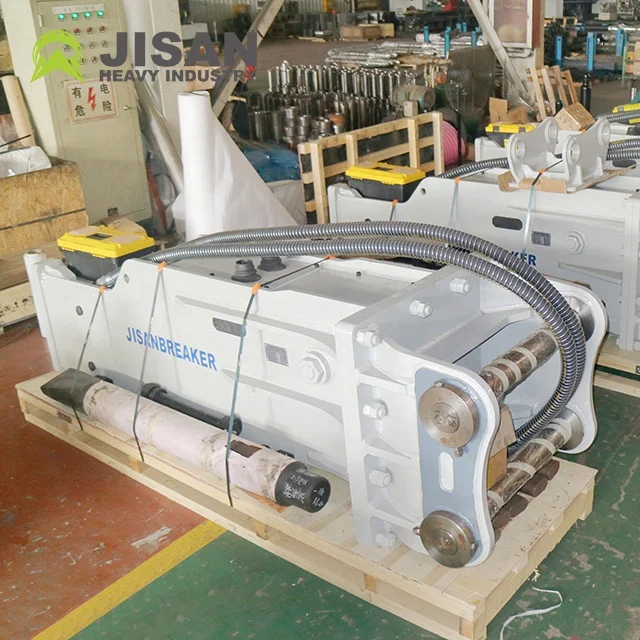

All products are thoroughly tested before shipment, especially for the main body-cylinder. We will check whether piston vibrates smoothly. Your satisfaction is our persistent pursuit!
Other Products
Why Choose Jisan Heavy Industry
1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 11 years experience, specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;
NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;
NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;

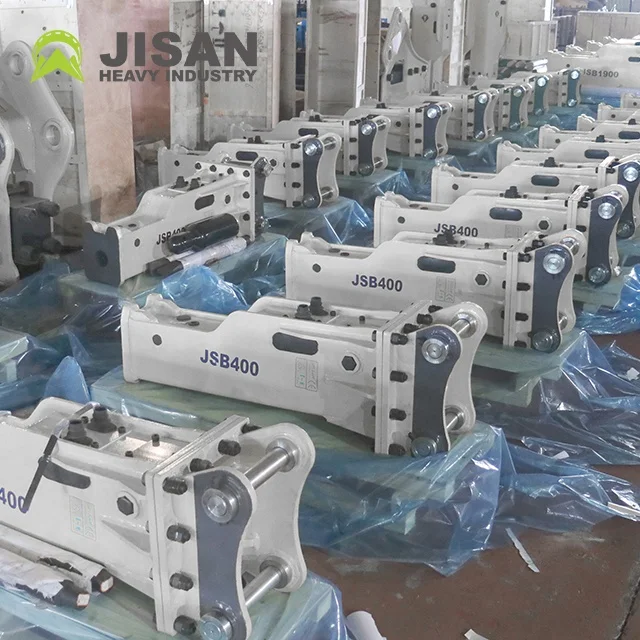

Company environment and equipment.
JISAN winned well recognition by clients from different countries on exhibition.
There is an excellent team to escort the product.
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
2. We can arrange ocean or air transportation according to your request from any port of China.
FAQ
1. After-sale Service
14 months warranty for hydraulic breakers. 24 hour on-line after-sales service to meet your demands.
2. Factory
Our factory was established in 2009. Mainly manufacturer of hydraulic breaker, excavator hydraulic attachments.
3. OEM accepted
Yes, we will provide OEM and ODM service.
4. Impact Test
Every hydraulic breaker will do impact test before sale.
5. Are you sure your product will fit my excavator?
A: Yes, we are professional attachments manufacturer, We make attachments according to your excavator bucket dimensions.
6. How to buy?
a. Let me know your excavator model
b. Let me know the operation weigh of your excavator
c. Let me know your ordering quantity
d. Let me know your destination port
14 months warranty for hydraulic breakers. 24 hour on-line after-sales service to meet your demands.
2. Factory
Our factory was established in 2009. Mainly manufacturer of hydraulic breaker, excavator hydraulic attachments.
3. OEM accepted
Yes, we will provide OEM and ODM service.
4. Impact Test
Every hydraulic breaker will do impact test before sale.
5. Are you sure your product will fit my excavator?
A: Yes, we are professional attachments manufacturer, We make attachments according to your excavator bucket dimensions.
6. How to buy?
a. Let me know your excavator model
b. Let me know the operation weigh of your excavator
c. Let me know your ordering quantity
d. Let me know your destination port
