Free Samples 8 10 16 Positions BCD Encoder Rotary Switch
- Category: >>>
- Supplier: Shenzhen Eker Electronic Co. Ltd.
Share on (1344421911):
Product Overview
Description

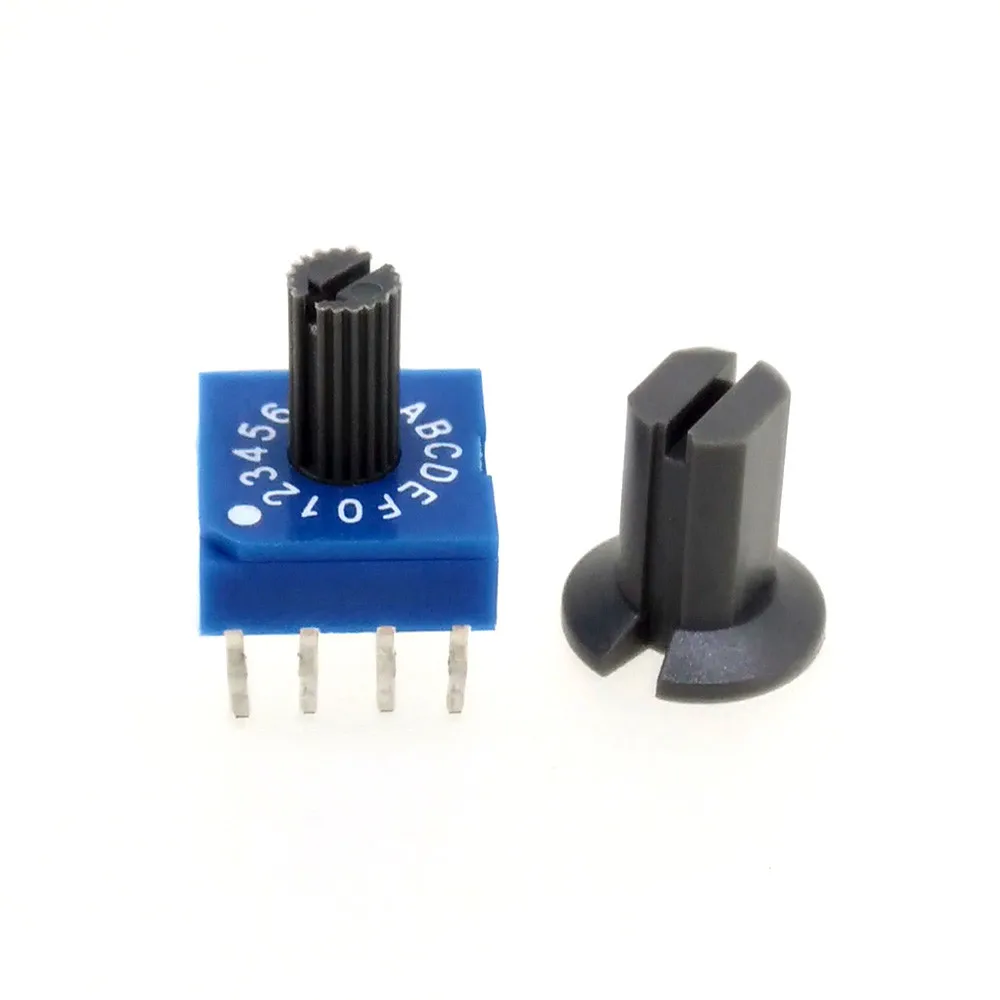

Free Samples 8 10 16 Positions BCD Encoder Rotary Switch
Free Samples 8 10 16 Positions BCD Encoder Rotary Switch | |
Mechanical | |
Steps Code | 4,8,10,16(BCD, HEX, DEC, Real or Complement codes) |
Dimensions | 10mm x 10mm(Length x Width) |
Rotor | Flat, 0.5mm, 3mm, 7mm and Wheel types |
Operation Force | 250fg/cm max. |
Operation Temp | - 25deg C to 85deg C |
Storage Temp | -40deg C to 85deg C |
Terminal | (3+2=5pin) Thru Hole Style |
Dustproof and Waterproof meet IP67 | |
ELECTRICAL | |
Electrical Life | 20,000steps |
Non-Switching Rating | 100mA , 50V DC |
Switching Rating | 5VDC, 20mA |
Circuit | SP4T,SP8T,SP10T,SP16T |
RoHS Compliant rotary code switch with high quality | |

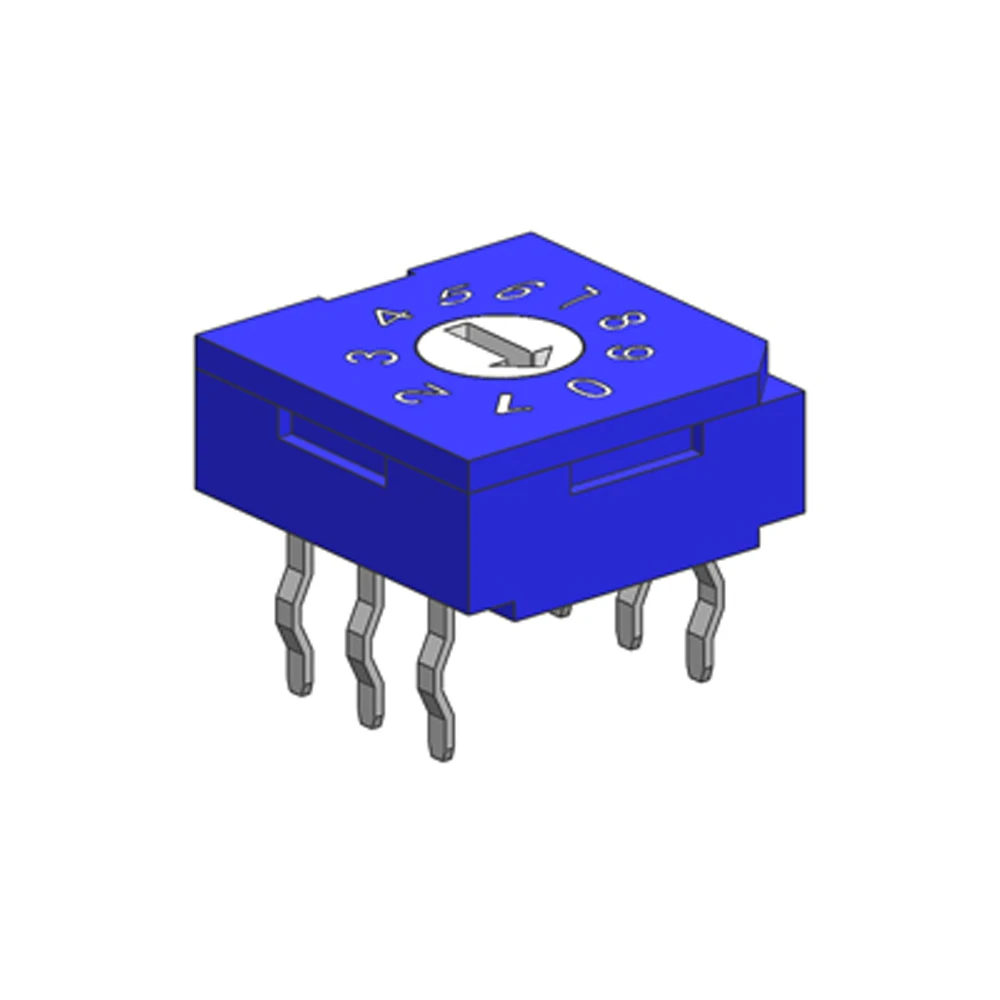

Free Samples 8 10 16 Positions BCD Encoder Rotary Switch
R9-H Series Description:
Rotary switches are nice for being able to select up to 16 different states in a small package.
With only 6 pins (2 of which are common), you can select 16 positions.
The switch is breadboard compatible and has a nice solid feel to it.

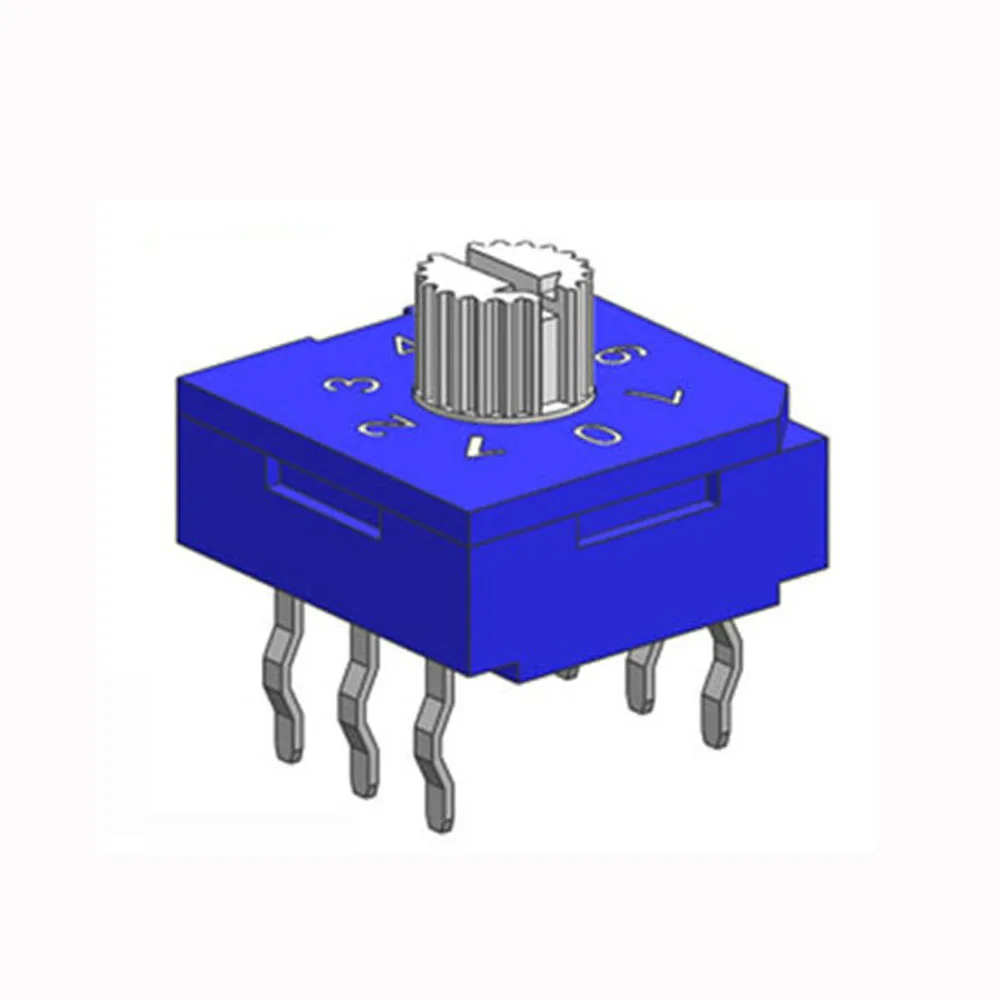

Free Samples 8 10 16 Positions BCD Encoder Rotary Switch
Features:
1.3+3 / 4+1 / 3+2 Terminal Layout 2.Completely Sealed for process compatibility.
3.4,6,8,10 or 16 Positions W/extensive Codings . 4.Precision designed detent action
5.Compact size 6.High reliability & long life
7.Colockwise or counterclockwise settable . 8.solder coated terminals

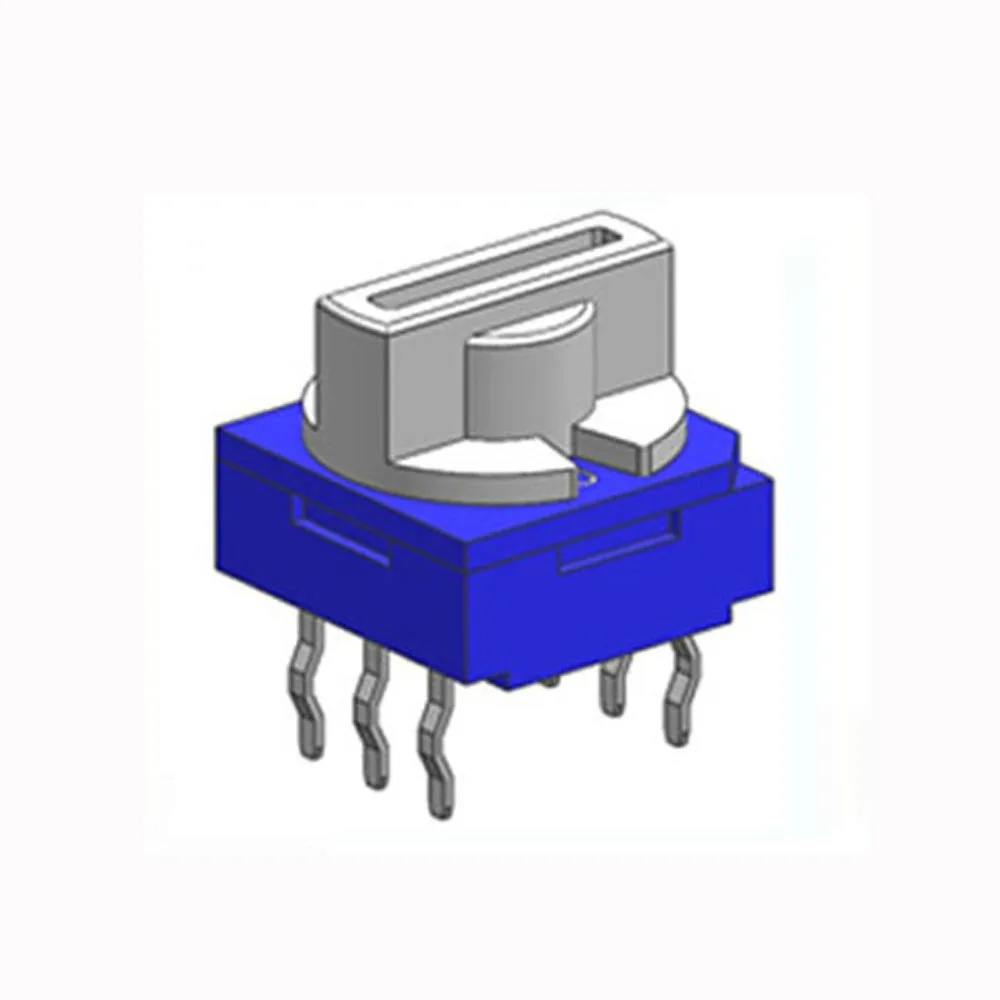

Free Samples 8 10 16 Positions BCD Encoder Rotary Switch
More About Eker Switch.
1.25 Years' experience of Manufacture.
2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
3.Original manufacturer with direct factory price, Competitive & Fashionable.
4.High Standard management for quality control.
5.Small order acceptable: 1000pcs are welcome.
6.Safe payment terms: T/T, Western Union, Paypal are available.
7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
8.OEM available, Customers' designs are warmly welcome.
9.Excellent Service.
Free Samples 8 10 16 Positions BCD Encoder Rotary Switch
