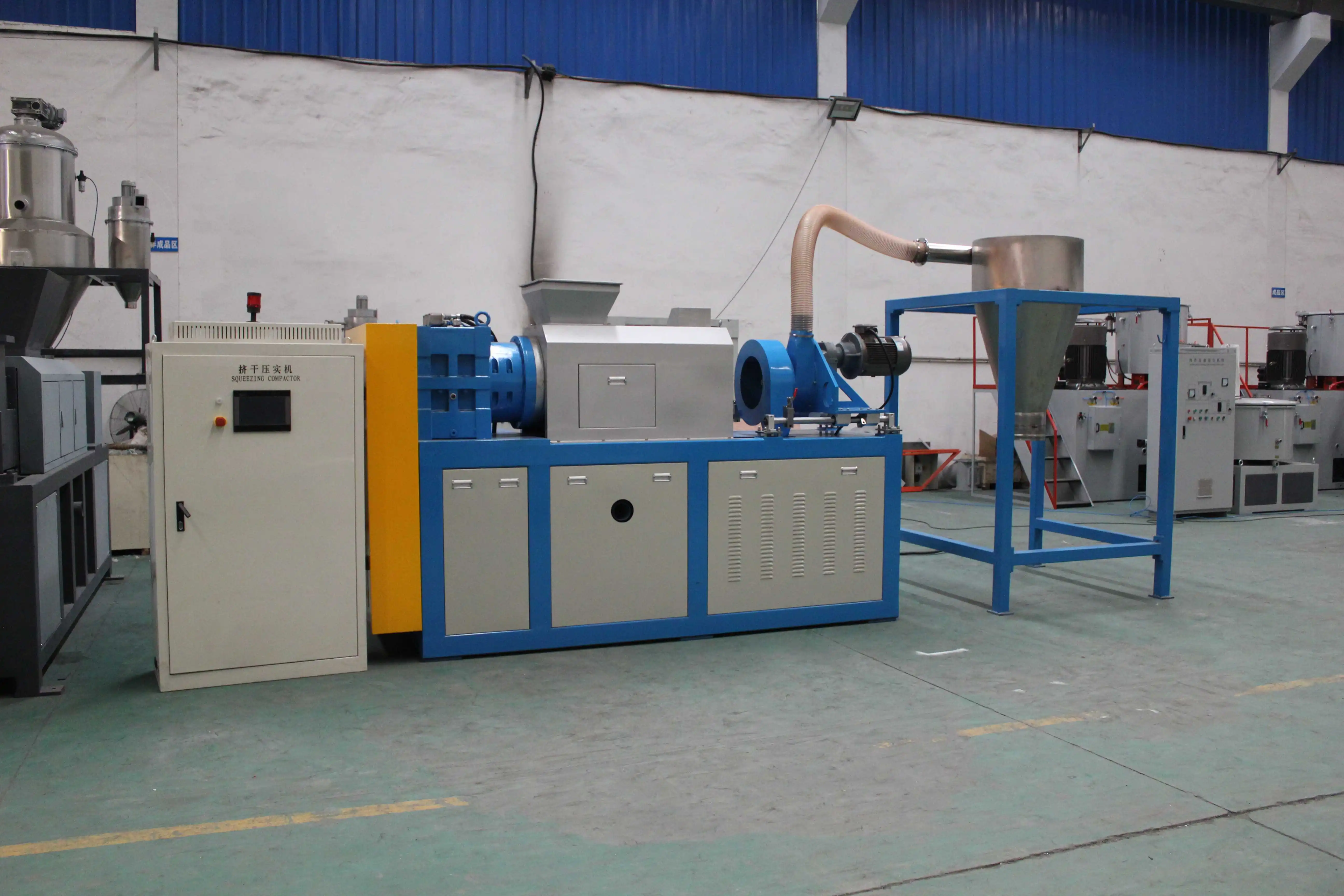

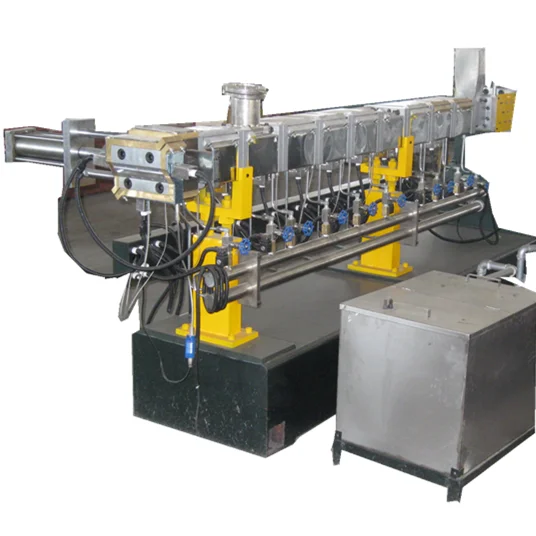

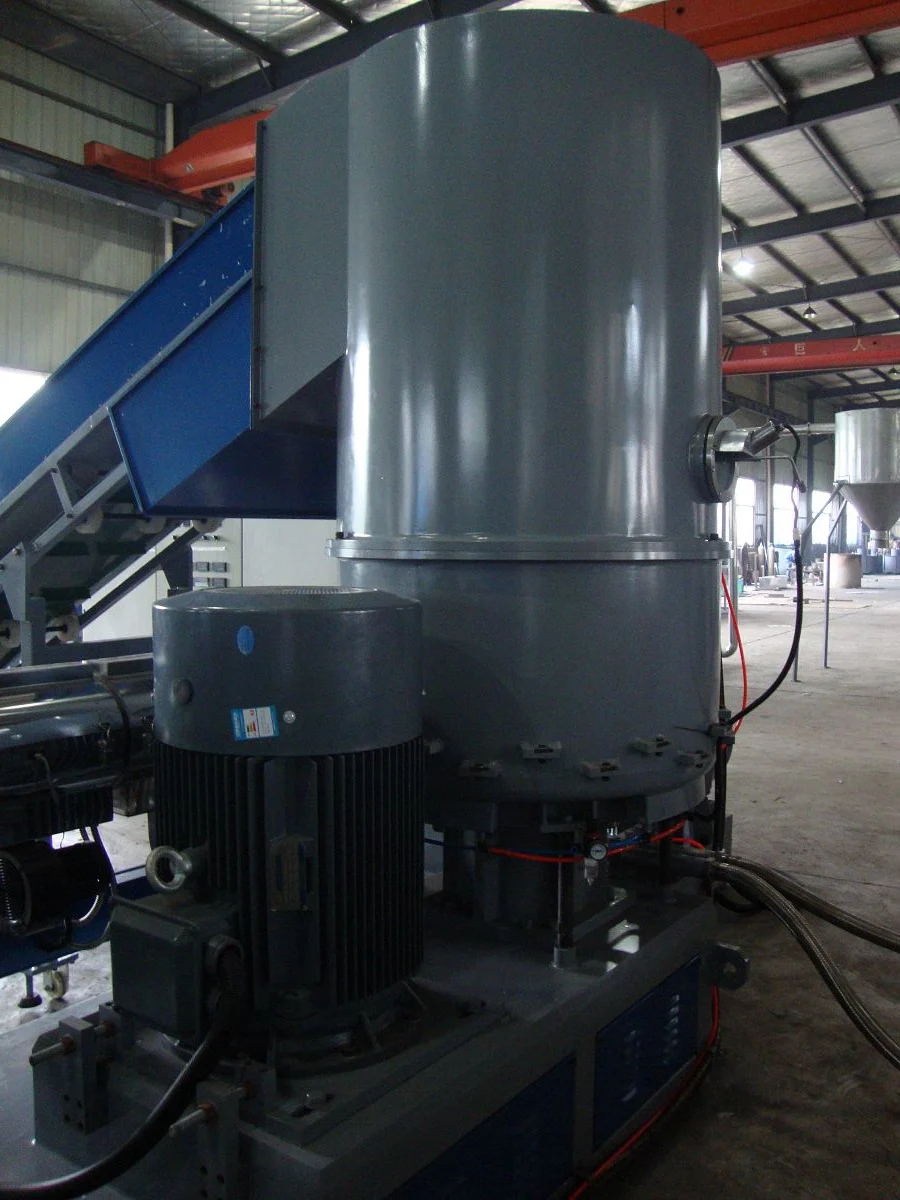

PVC hot cutting granulator/Recycle plastic granules making machine price
PVC hot cutting granulator/Recycle plastic granules making machine price
PVC hot cutting granulator/Recycle plastic granules making machine price
PVC hot cutting granulator/Recycle plastic granules making machine price
PVC hot cutting granulator/Recycle plastic granules making machine price
PVC hot cutting granulator/Recycle plastic granules making machine price
PVC hot cutting granulator/Recycle plastic granules making machine price

PVC hot cutting granulator/Recycle plastic granules making machine price

Share on (1344624177):


Price:$43,000.00

Quantity:


Product Overview

Description




Product Description










PVC  plastic pelletizing machine / recycle plastic granule making machine

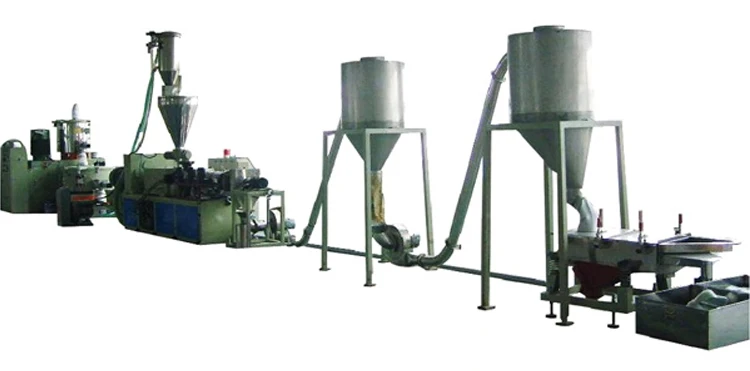

1.jpgpvc plastic pelletizing machine configuration reference

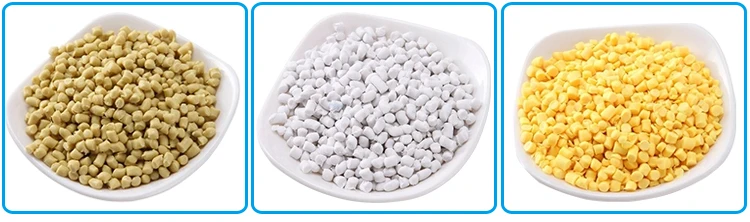

This pelletizing machine is composed by SJSZ series conical twin-screw extruder and correspondingly pelletizing auxiliary equipment; It is suitable for pelletizing PVC material. The pellets produced by this line are even, solid, elegance.

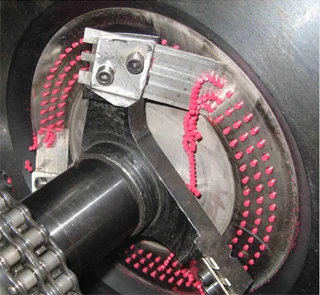

The pelletizing auxiliary equipment includes die face cutter, air transferring unit, vibration separating and cooling unit,with features of high automation and high production efficiency.


























































Extruder Model

SJSZ-51

SJSZ-55

SJSZ-65

SJSZ-80

SJSZ-92


Screw Dia.(mm)

Φ51/105

Φ55/110

Φ65/132

Φ80/156

Φ92/188


Main Motor(kw)

18.5

22

37

55

90


Cutting motor(kw)

1.1

1.1

1.5

1.5

2.2


Granules size(mm)

3

3

3

3

3


Output(kg/h)

80~100

100~150

150~250

250~380

380~700

















Product details

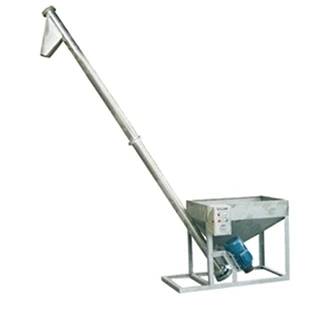

Screw Loader







Charging capacity:                 300kg/h
Material case volume:            150kg
Diameter of charging pipe:     102mm
Charging motor power:           1.5KW
Material contact part:               Made by stainless steel

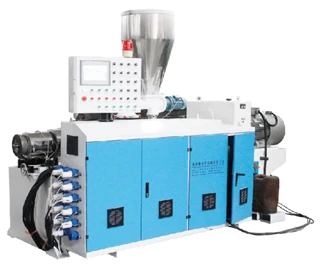

Conical Double-Screw Extruder



Screw Diameter:                Φ65/132mm
Screw Effective Length:     1430mm
Main Motor Power:             37KW SIEMENS BEIDE motor
Main electrics:                    Contactor: Schneider
                                           Air Switch: Schneider
                                           Relay: Omron
Vacuum exhaust system:   Adopt 2.2kw water loop vacuum pump, contain pressure box

Mould



Material:                              38CrMoAl
Mould surface treatment:    plating rigidity chrome


Air bower and Hopper





Blower power:        2.2KW
Blower pipe:           Made by Stainless steel

Hopper volume:     800L
Hopper Material:    Adopt 1.5mm thickness stainless steel








Company Profile



recycled water pipe production line







Our Advantages



recycled water pipe production line







Certificates



recycled water pipe production line







Trade Fair



recycled water pipe production line







Transportation



recycled water pipe production line

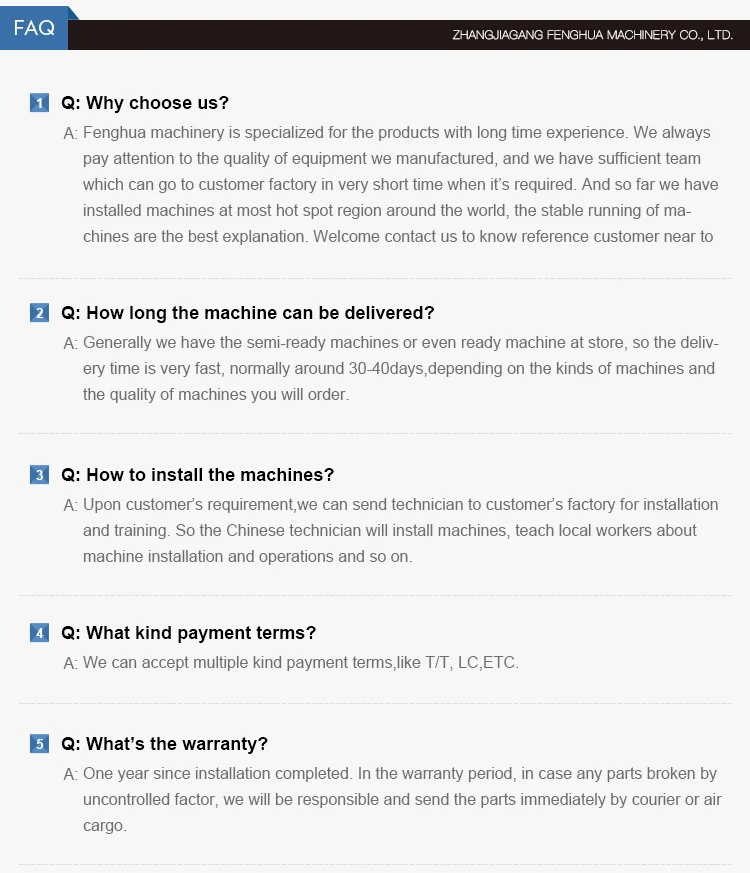

FAQ
