factory directly sales film faced plywood commercial plywood

Product Overview

Description

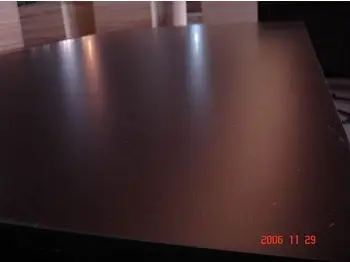

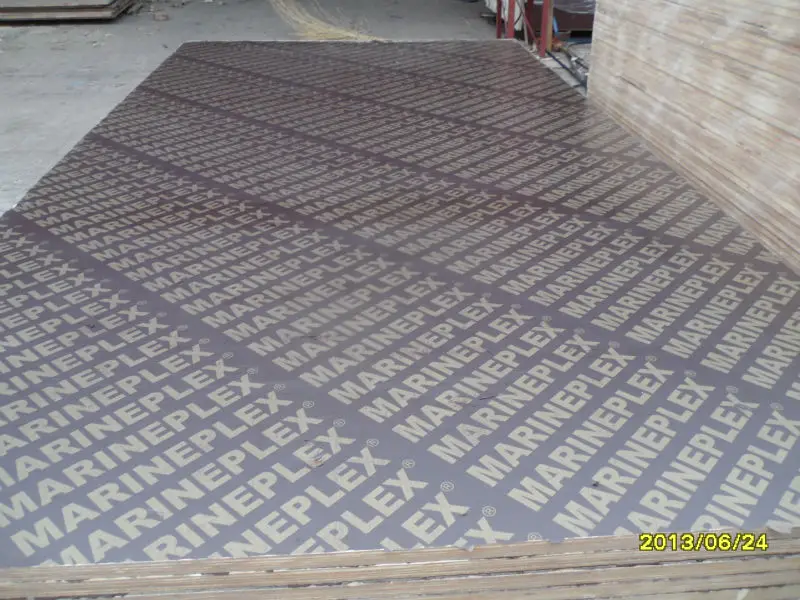

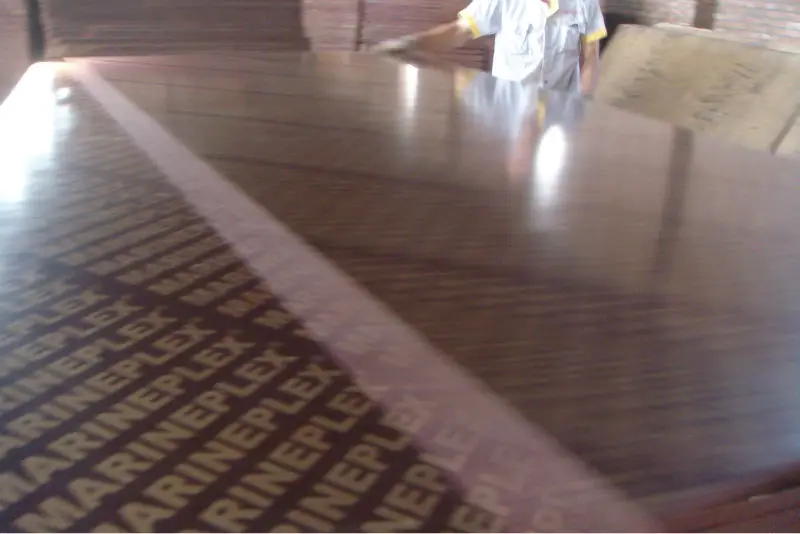

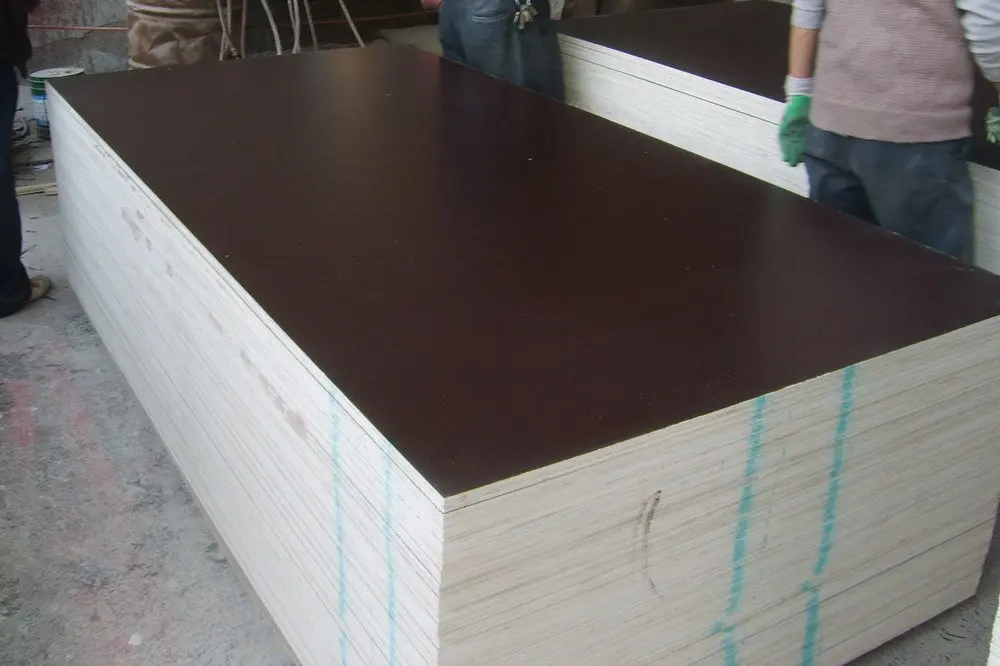

  Film Faced Plywood



Size	1220x2440.1250x2500
Thickness	12mm  ( 9ply + 2 layers Film)
	15mm  ( 11ply + 2 layers Film)
	18mm  ( 13ply + 2 layers Film)
	21mm  (15ply+ 2 layers Film)
	25mm  (17ply + 2 layers Film)
Film	125/40g Imported Brownish Film (Indonesia/Malaysia)
	180/60g Chinese Brownish Film (Made in China Film)
	250/80g Chinese Black Film (Made in China Film)
Core Veneer	Poplar / Birch / Combi (Poplar+Hardwood)
Glue	Type I WBP  (Water Boiling Proof)
	Type II MR   (Moisture Resistance)



                    PHYSICAL TEST

Moisture Contents	Less than 12%
Thickness Tolerance	0.5mm
Allowance in Width & Length	2.0mm
Diagonal Allowance	Max. 3.0mm
Adhesion	Type I: 4 hrs in boiling & 20 hrs drying at 60 C, 4 hrs in boiling again.
	Type II: 2 hrs boiling & 3 hrs drying at 60 C, Both
Tensile adhesion	0.7 N/mm2
Bending Strength	Min. 23.5 N/mm2
Bending Strength	Min. 19.5 N/mm2
Compressive Strengt	Min. 12.0 N/mm2
Compressive Strength	Min. 12.0 N/mm2
Warp	0.1%(1.22mm against 1220mm width, 2.44mm against 2440mm length)
	Free Sample Are Availiable.



If you need more info about our product, pls contact me freely.
