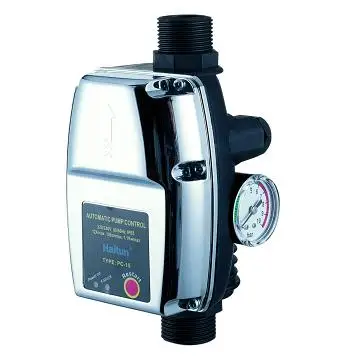

1.1KW press control water pump controllers(PC 15)

Product Overview

Description

electric water pump pressure controller





TECHNICAL DATA:

• Starting pressure:1.5bar or 2.2bar


• Max rated current:10A


• Max Allowable pressure:10bar


• Rated Voltage:110V-120V or 220V-240V


• Frequency:50/60hz


• Max Ambient Temperature:60°C


• Protection Degree:IP65

DESCRIPTIONS:



• Electric switch used in water systems


• It starts the electric pump automatically after a pressure decrease(taps opening)and stops it when the fluid flow interrupts at the maximum pressure level of the electirc pump(taps closed)


• Starting pressure is adjustable during installation,adjustment range:1.0-3.5bar.


• Joint screw:G1" male.


• Completely replaced traditional pump control system composed of pressure switch,pressure tank and check valve,etc.


• Stop the water pump in the case of water shortage.


• Automatic reset after a stop caused by dry running,standard time-interval 60min/1 tests.


•

OPTIONALS:



• Color


• Power cable length

PACKING SIZE:

• ONE CARTON:42*32.5*21.5CM


• 12PCS/CTN


• GROSS WEIGHT:8.62KGS


• NET WEIGHT:6.12KGS

MAIN MARKET:

• Europe


• Middle east


• South America


• Asia


•
