XLB 100T rubber compression molding machine

Product Overview

Description

 Rubber  Machine XLB-Y100T



1.function



1.High speed open/close molds, high production efficiency, low locking speed, protect mold.

2.Automatic in/out mold and ejector device, low labor strength.

3.Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.

4. The electric system adopt PLC programming control, which is easy to be operated.





 2.Main technical data:



Model		XLB-Y630	XLB-Y10003	XLB-Y1000A
Mold-locking forceKN		630	1000	1000
Max. working pressure(Mpa)		21	21	21
Block stroke(mm)		300	300	300
hermo-plate size(mm)	Electricity hot plate emigration	360*400	420*420	500*500
	pinban/liangan	360*400	420×420	500×500
Max.distance of thermo-plate(mm)		300	300-480	300-480
Motor power(kw)		4	4+2.2	4+2.2





Model		XLB-Y1600	XLB-Y2000	XLB-Y2500	XLB-Y3500
Mold-locking forceKN		1600	2000	2500	3500
Max. working pressure(Mpa)		23	21	21	23
Block stroke(mm)		300	300	400	500
hermo-plate size(mm)	Electricity hot plate emigration	520×540	600×600	650×650	1050×1000
	pinban/liangan	500×540	550×600	650×650	980×1000
Max.distance of thermo-plate(mm)		300-480	300-480	400	500
Motor power(kw)		4+2.2	5.5+3	5.5+3	5.5+5.5

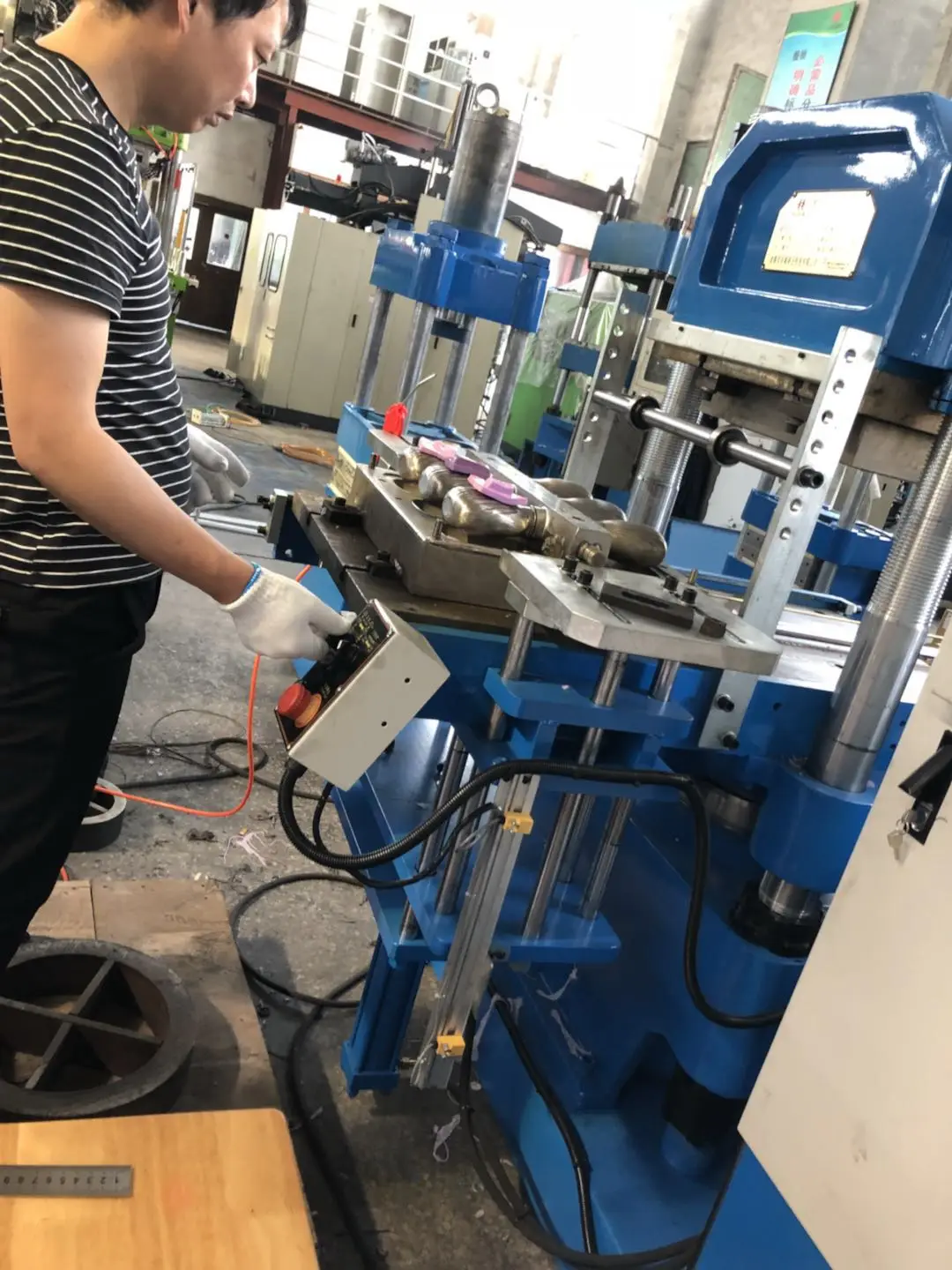

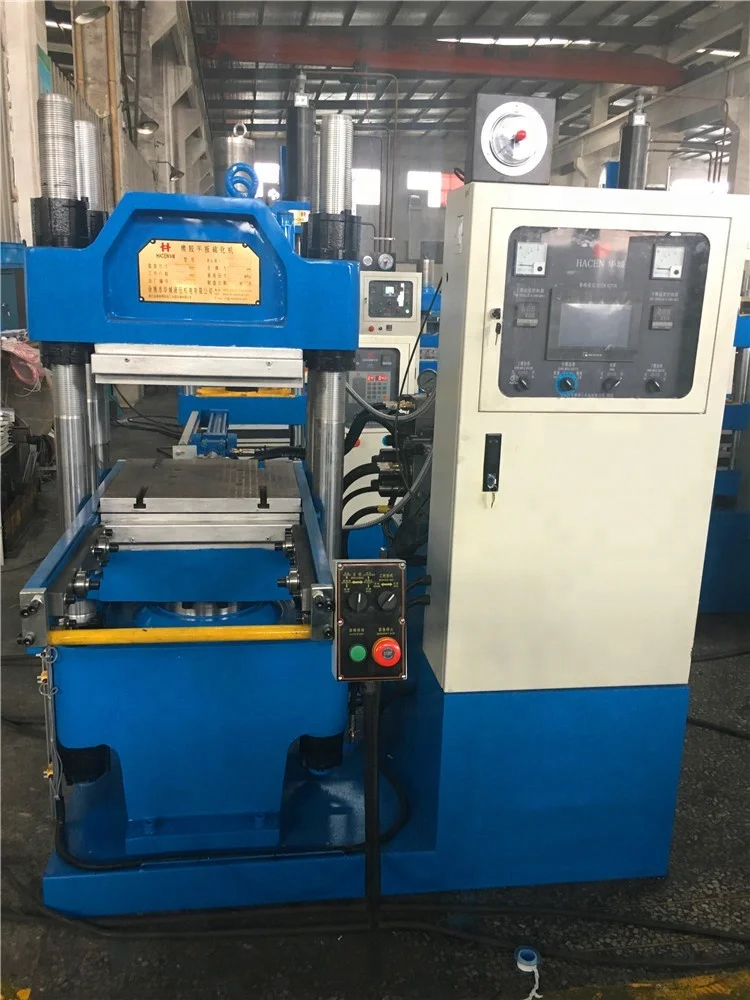

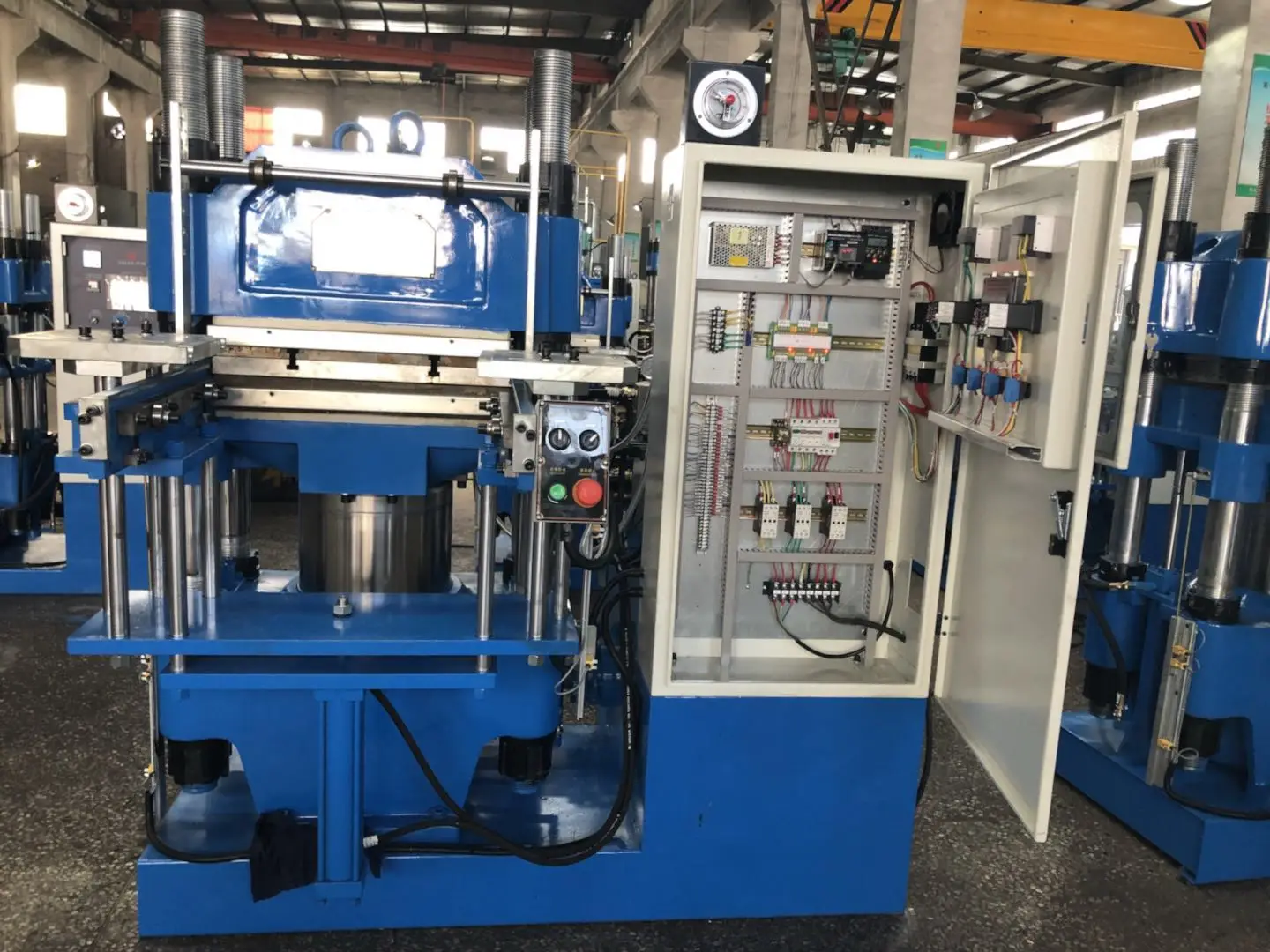

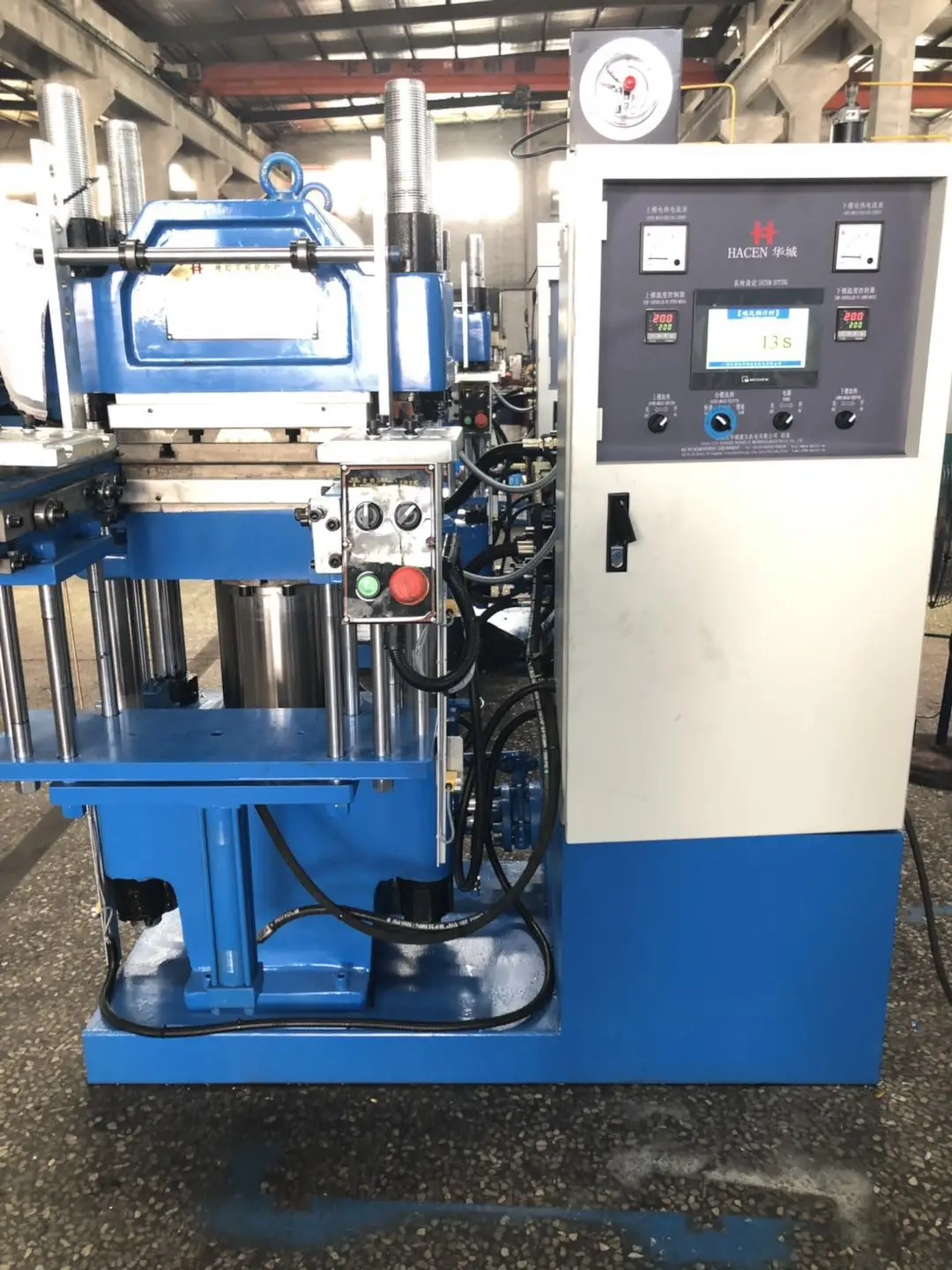

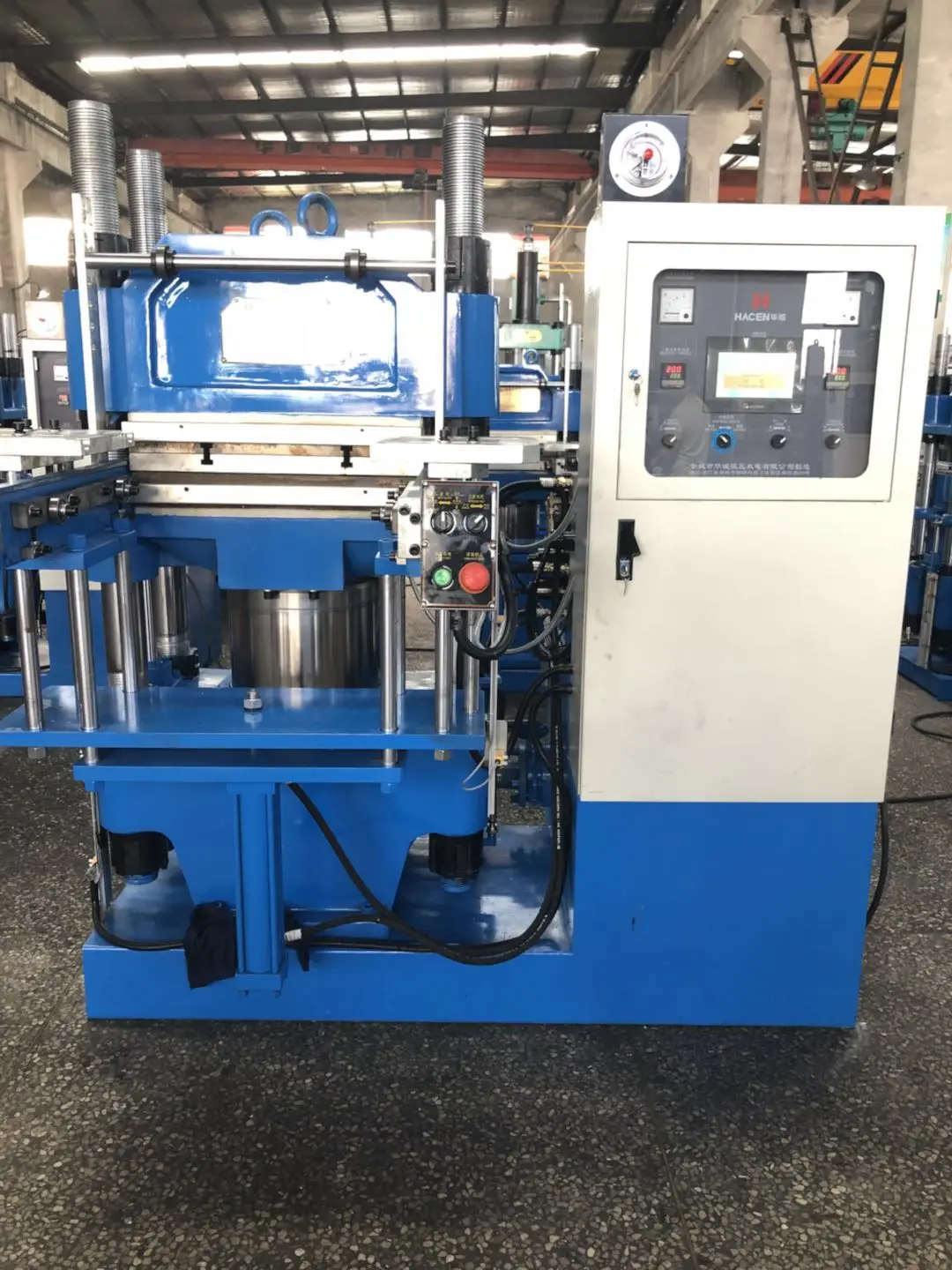

3.products and machine pictures :













4. packing pictures :







5. our exhibition :





6.The main service item on our machine



1. installation and debugging: Our engineers will teach you about the installation and debugging for free.
2. Technology training :         Our company will offer technology training for your operation.
3. After-sales service:             We will supply the free repairment on this machine for one year,

                         but will supply the maintenance lifetime. ( the service is only for natural damage)
