Weighing controller for batching scale LH86

Product Overview

Description

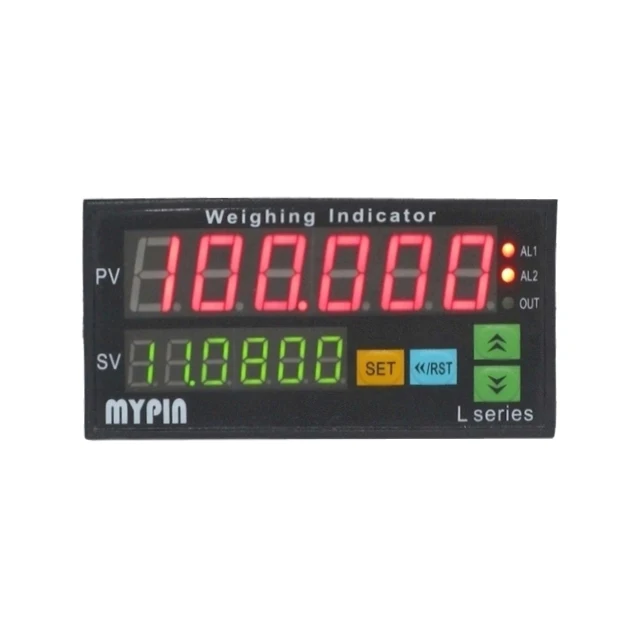

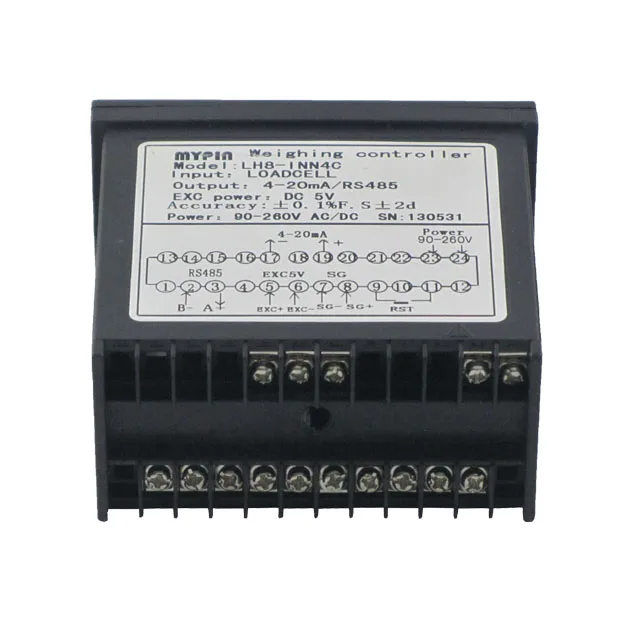

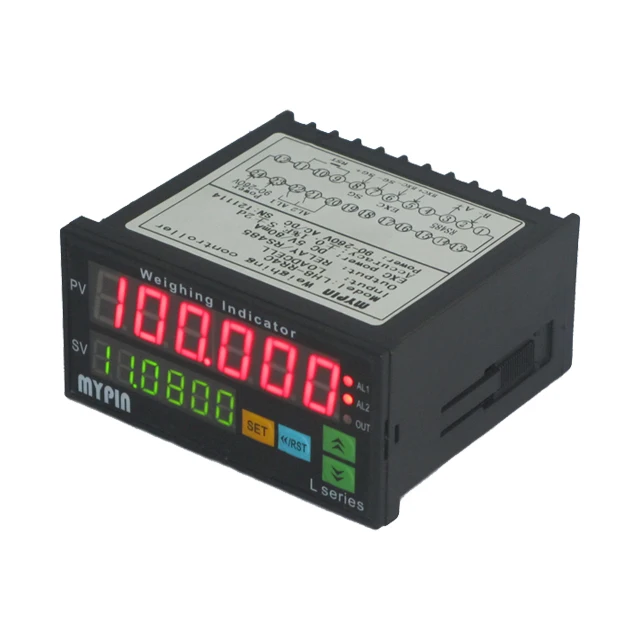

Weighing controller for batching scale LH86



For:--Industrial Weighing Application

        --Force, Pressure&Torgue Measurement







Features:



1, Applications: Work with loadcell /other sensors, the instrument has function of clearing zero &

    PV modification, up to 6 lines output control  with various control modes, such as Pause. Stop,

    Slow/Fast motion. etc. Rapid response, high precision, steady performance and easy to operate.

    Except for weight control, auto accumat/ mean for up/ down batch control can be applied in the

    industries of land weight/ cement/ food pakage/ chemical ingredients.

2, Input: 1/4 loadcell, or other signals such as 4-20mA,0-10V,0-75mV,etc..

3, Analog output: 0-10V/4-20mA,etc. output range adjustable by software.

    Digit output: up to 6 lines output for various ingrediants & weight control.

4, Aux.power: +12V/40mA, +12V/150mA, 2-wire 24V/30mA (for option).

5, Accuracy: 5 digits,  0.1%;   6 digits, 0.05%, Demical float setting, Steady & correct measurement..

6, Communication: standard RS232/RS485 interface, MODBUS RTU protocol, realize

    remote control by direct connection with PC/PLC/other equipment..





Model no.	Output	Alarm no(mode)	Communication	Size	Aux. power	Power supply
LH86-RRC	None	2 no.s(relay)	None	48*96*80mm	5V DC	90-260V AC/DC
LH86-IRR4C	4-20mA	2 no.s(relay)	RS485	48*96*80mm	5V DC	90-260V AC/DC
LH86E-NNC	None	None	None	48*96*80mm	5V DC	12V/24V DC
LH85-RRC	None	2 no.s(relay)	None	48*96*100mm	5V DC	90-260V AC/DC
LH85-VRRC	0-10V DC	2 no.s(relay)	None	48*96*100mm	5V DC	90-260V AC/DC
LH10-RR2C	None	2 no.s(relay)	RS232	160*80*100mm	5V DC	90-260V AC/DC
Power supply: 90-260V AC/DC or 12V DC  or 24V DC  Output: 4-20mA or 0-10V DC  Communication: RS485 or RS232, MODBUS PROTOCOL  Alam mode: SSR or Relay
