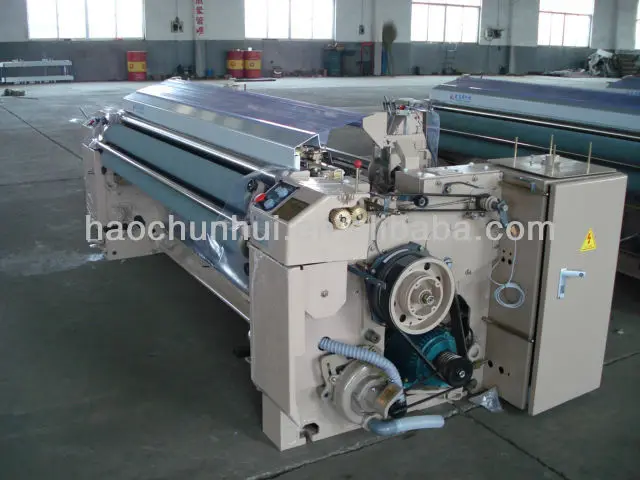

Sulzer weaving machine and staubli jacquard

Product Overview

Description

1)Loom color :red  green  brown

2)Head frame

a)Plain shedding:8 pcs max

b)dobby shedding:16 pcs max

3)Reed width :150,170,190,210,230,260,280,300,340,360cm

4)Power:2.2,2.8,3.5,4.5kw

5)Set off:Electronic set off (mechanical is optional )

6)Weft density range 5~60 picks/cm

7)Filling insertion :one/two pump ,double/three/four nozzle

8)  Rotational speed: 1,200 rpm max

9)ETU-ELO is optional

Yarn:
1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament
9) O.P. yarn
