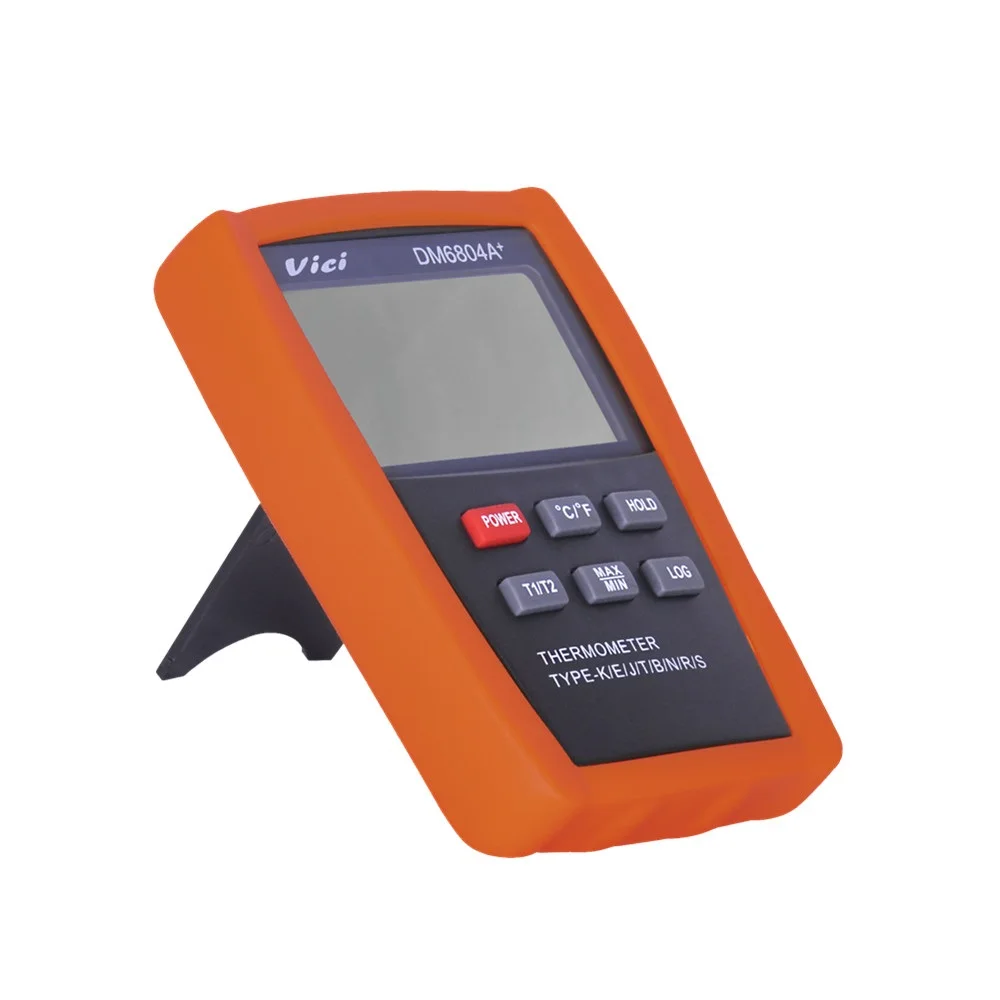

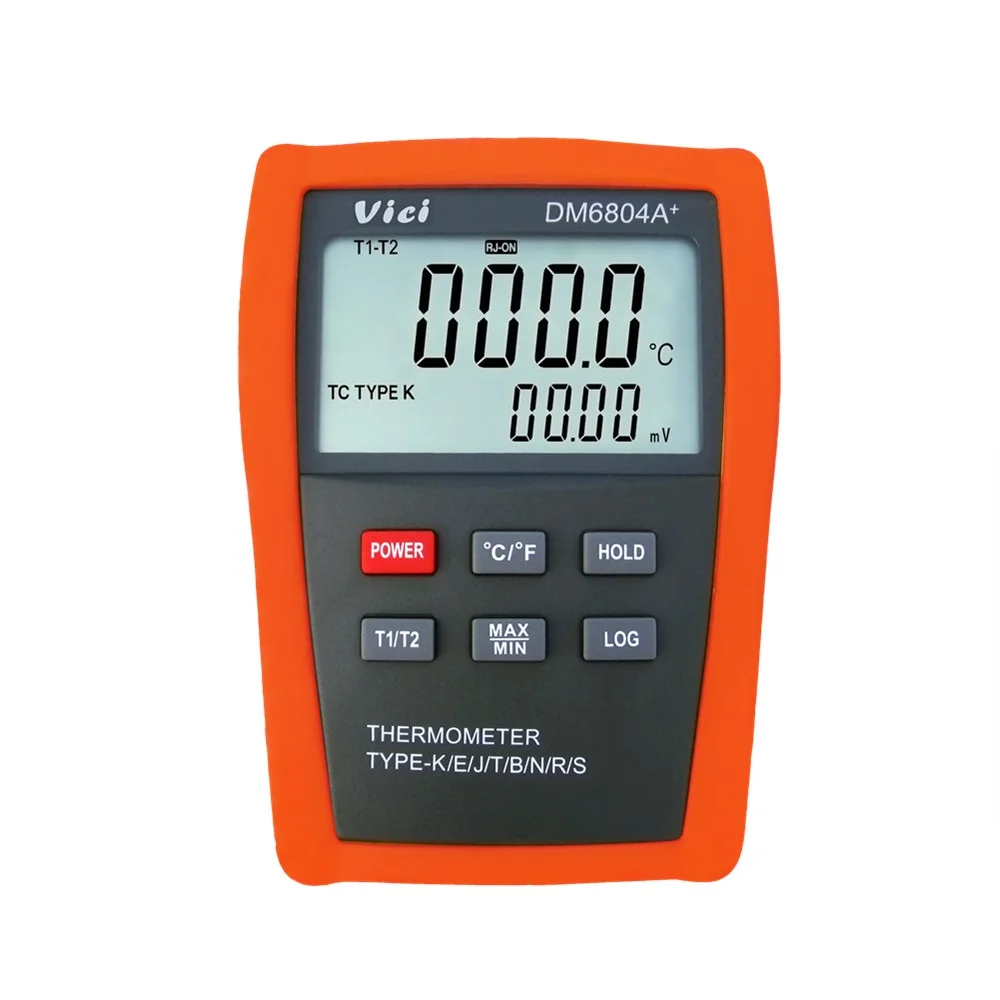

DM6804A Dual Channel Measuring Digital Thermometer Data Logger
- Category: >>>
- Supplier: Shenzhen Vicimeter Technology Co. Ltd.
Share on (1348495683):
Product Overview
Description

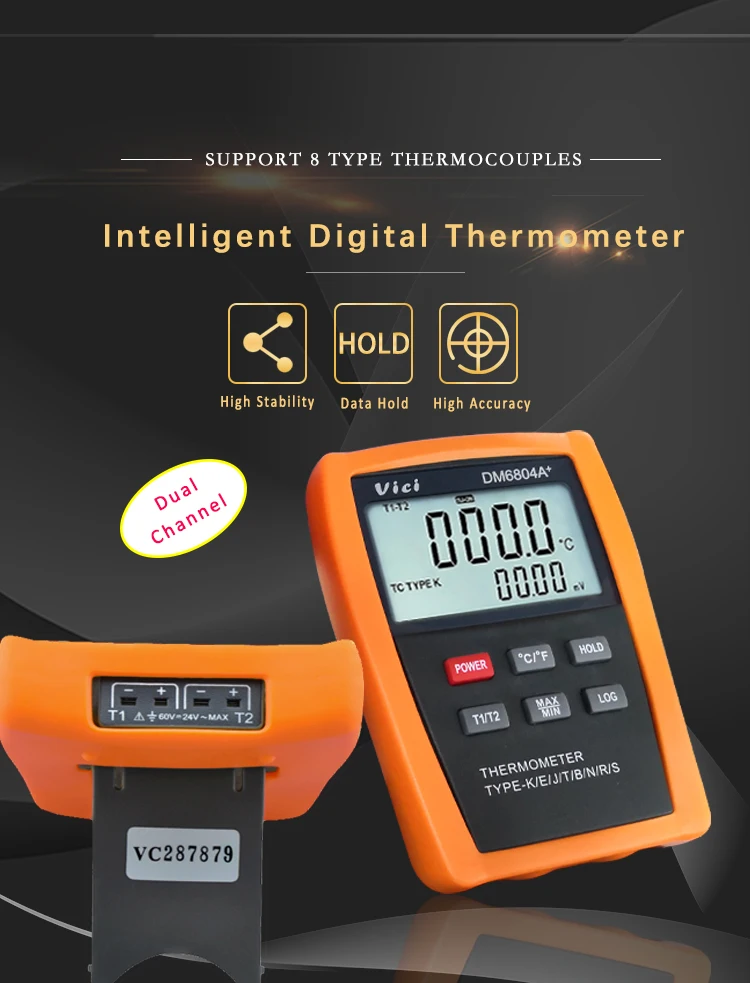

DM6804A+ Dual Channel Measuring Digital Thermometer Data Logger
Product Description
Features :

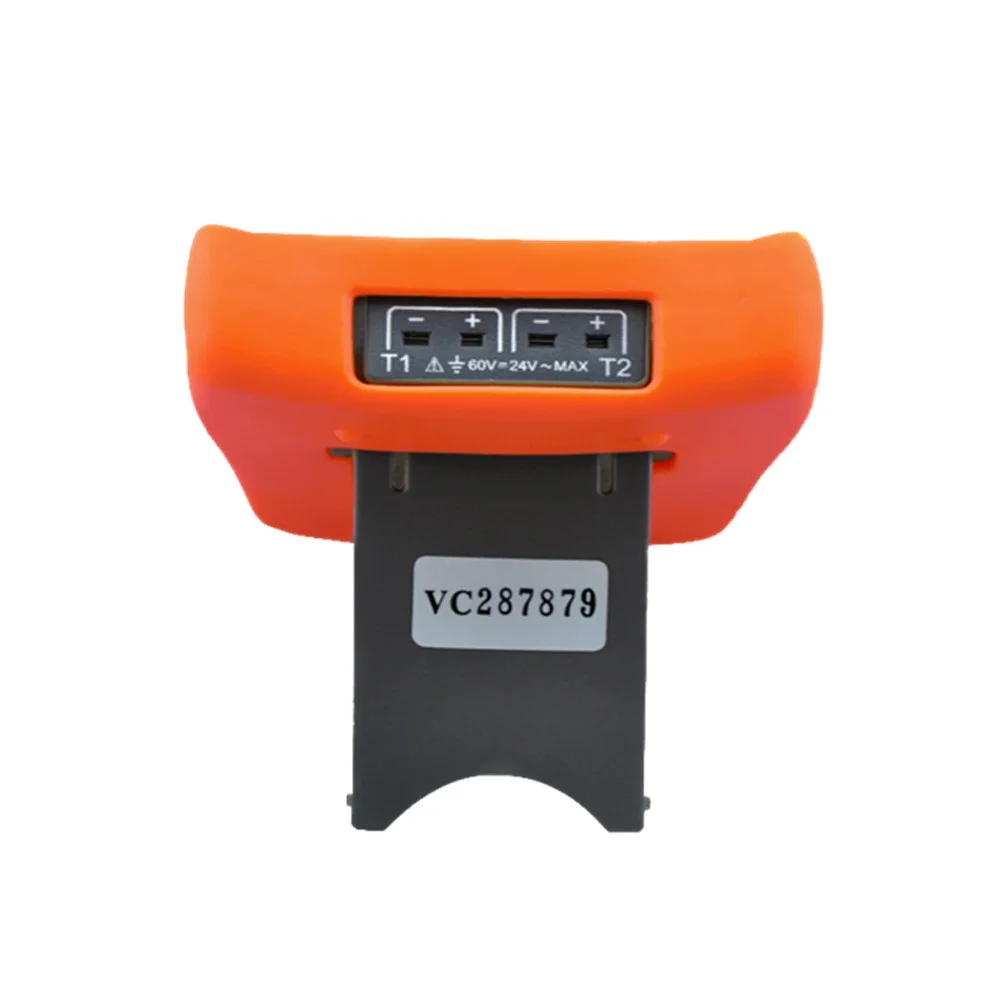

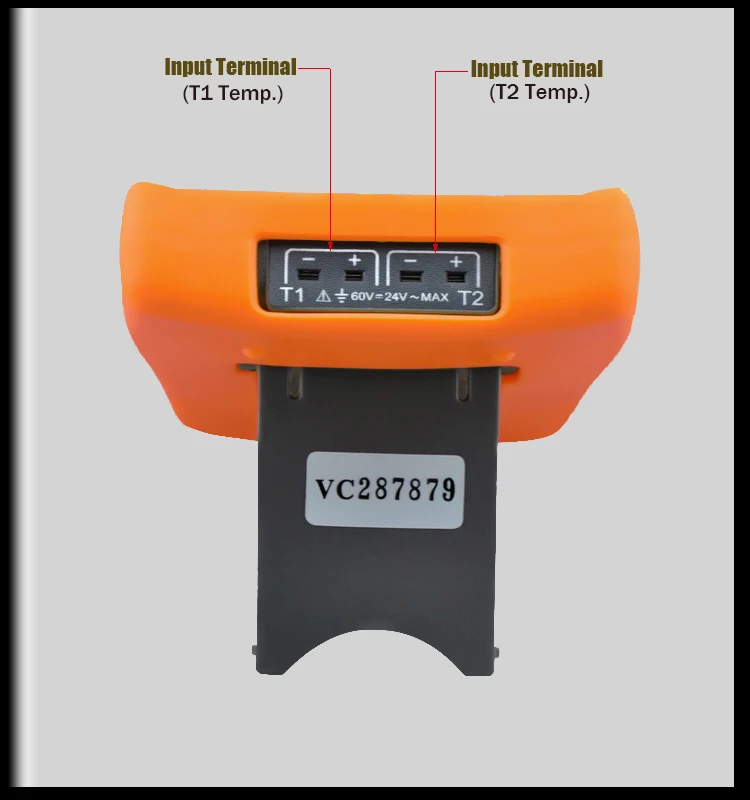

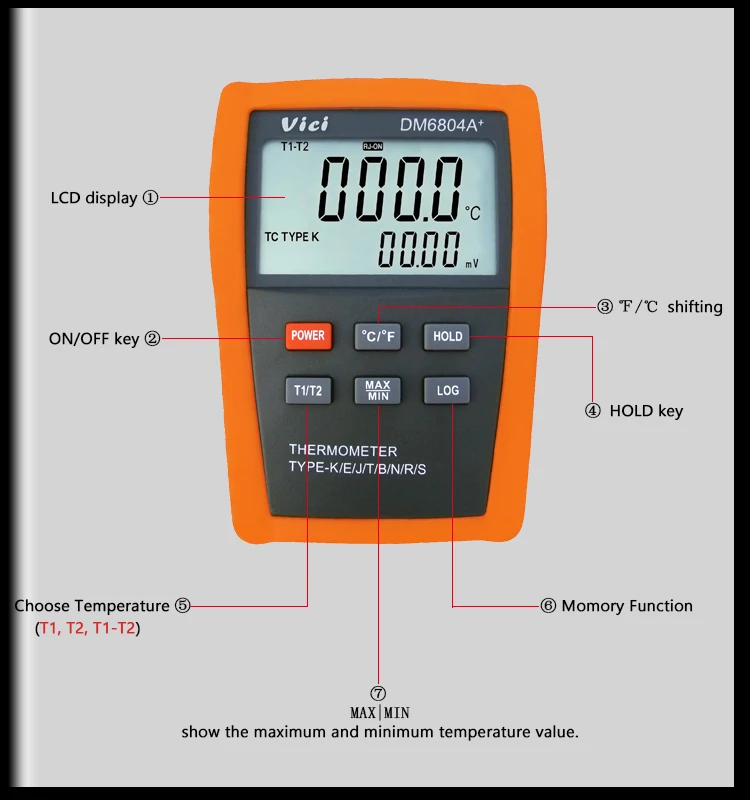

1. Dual channel temperature measuring(accuracy±0.3%),display T1,T2,T1-T2 .
2. Support K,E,J,T,N,B,R,S thermocouples.
3. It may set cold temperature automatic saving.
4. °C and °F display.
5. Dual display: display max .min and relative mV value of input temperature.
6. Record function: Support manual record 2500pcs temperature, automatic record 6000pcs temperature.Automatic record interval is adjusted, the longest continuity record time is 99 hours.
7. CE certified, OEM available.
Technical data:
Thermocouple type | Input range | Resolution | Accuracy | Remark |
R | -40~1760℃ | 1℃ | -40~500℃: ±(0.5%+2℃) 500℃~1760℃: ±(0.4%+2℃) |
T1-T2 accurate: ±[0.3%(T1-T2reading)+2]
Input resistance 1GΩ adopts ITS-90 thermometric scale.
|
S | -20~1760℃ | 1℃ | ||
B | 400~1800℃ | 1℃ | 400℃~800℃: ±(0.5%+2℃) 800℃~1000℃: ±(0.4%+2℃) 1000℃~1800℃:±(0.3%+2℃) | |
E | -200~1000℃ | 0.1℃ | -200℃~0℃: ±(0.3%+1℃) 0℃~500℃: ±(0.3%+2℃) | |
K | -200~1370℃ | 0.1℃ | -200~0℃: ±(0.3%+2℃) 0℃~800℃: ±(0.3%+1℃) 800℃~1370℃: ±(0.5%+2℃) | |
J | -200~1200℃ | 0.1℃ | -200~0℃: ±(0.3%+1℃) 0℃~1200℃: ±(0.3%+2℃) | |
T | -200~400℃ | 1℃ | -200~0℃: ±(0.3%+1℃) 0℃~400℃: ±(0.3%+2℃) | |
N | -200~1300℃ | 0.1℃ | -200~0℃: ±(0.5%+2℃) 0℃~1300℃: ±(0.3%+2℃) |
Special function | DM6804A+ |
Low battery indication | Approx. less than 7.5V |
Data hold | √ |
Unit symbol display | √ |
Function protect | √ |
Anti-shock protect | √ |
Sampling rate | 2.5 times/s |
Operation way | Manual range |
Max. display | 19999 |
LCD size | 67x40mm |

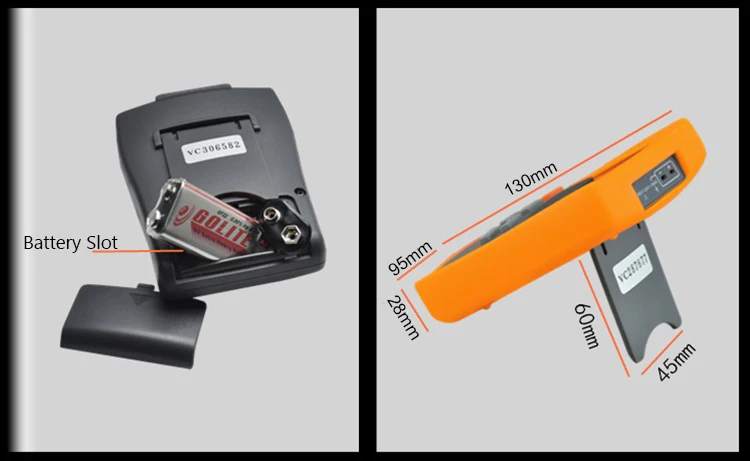

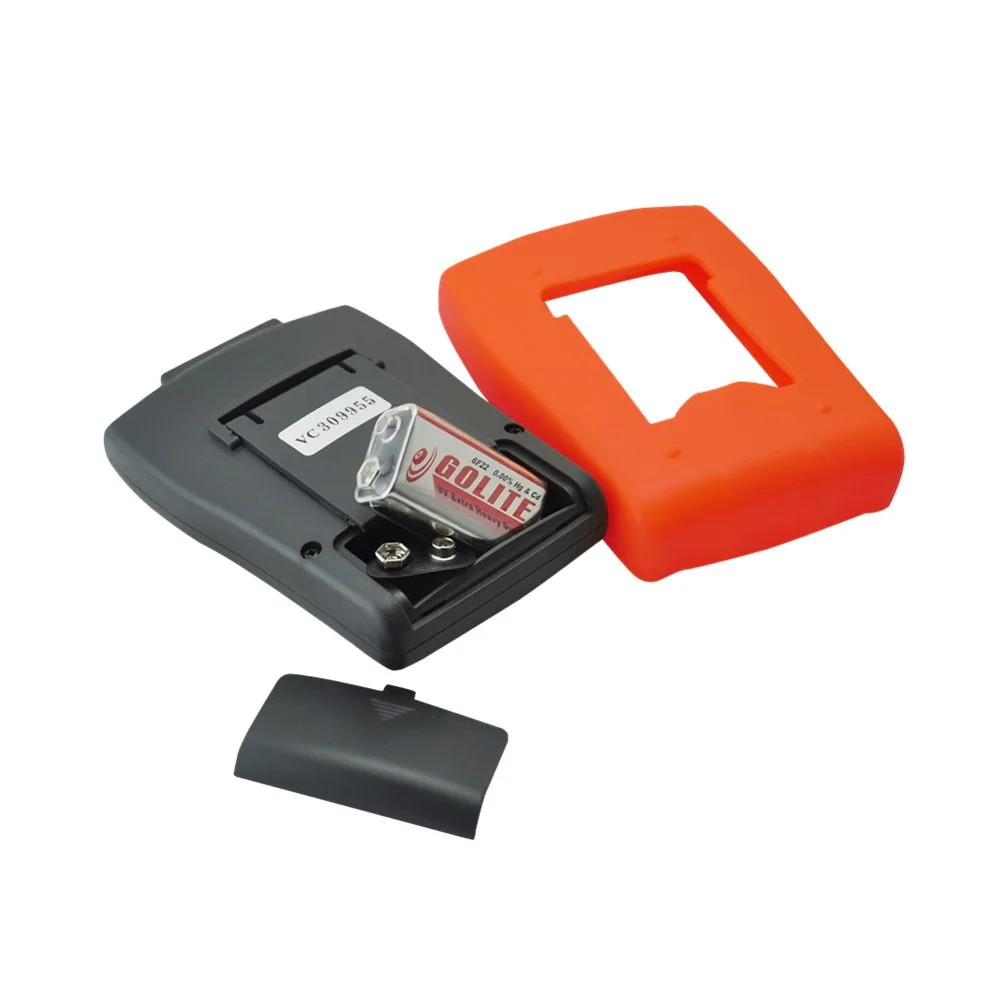

Battery | 9V (6F22) |
Power dissipation | Quiescent current approx. 3.5mA |
Color | Orange and Grey |
Weight | 250g(including battery) |
Meter size | 130×95×28mm |

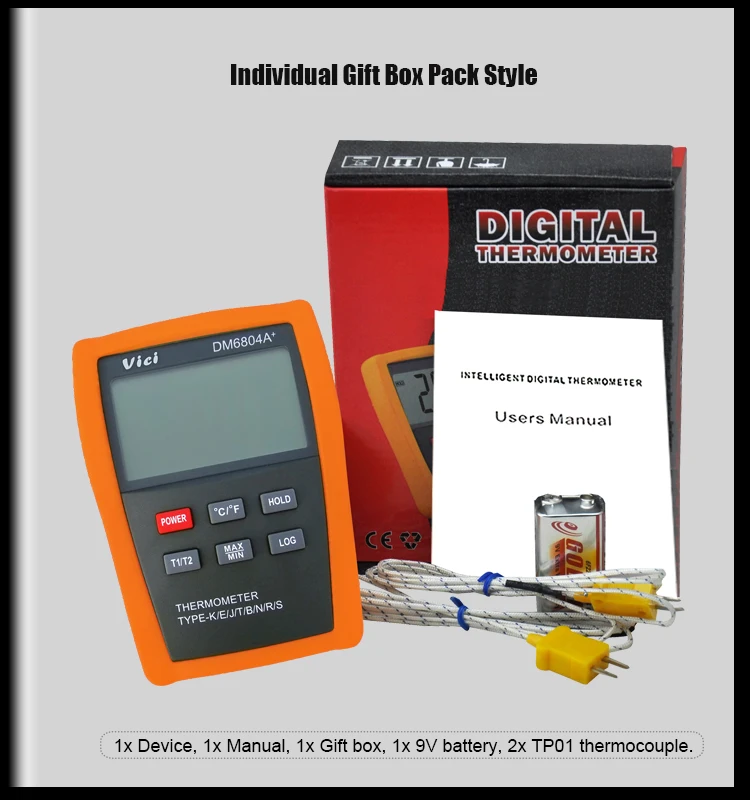

Standard accessory | Battery, manual, TP01 K type temperature probe |
Packing | Gift box |
Standard accessory | 60pcs |
Carton size | 45.5*32.5*43CM |
Standard G.W per carton | 20kg |
Contact
Thanks for visiting our this measurement digital meter.
Is this the right electronic instrument product you are looking for?
If any question/request, please feel free to tell us.
________________________________________
Skype:vicimeter
Tel: 86-755-27968602-614
Email: vici01(@)vicimeter.com
Website: //www.vicimeter.com
Mob/Whatsapp/Wechat: +86 13509696748

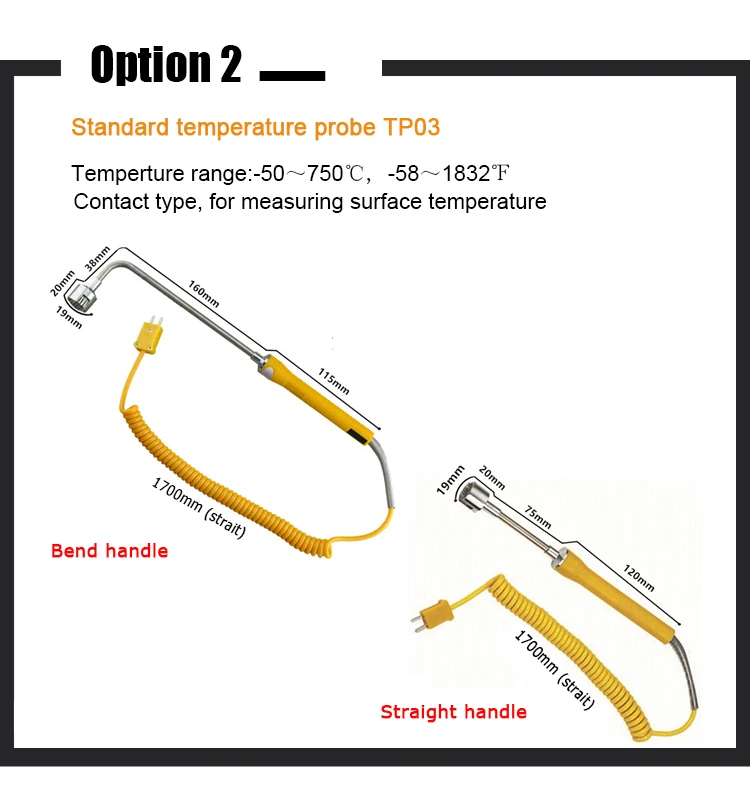

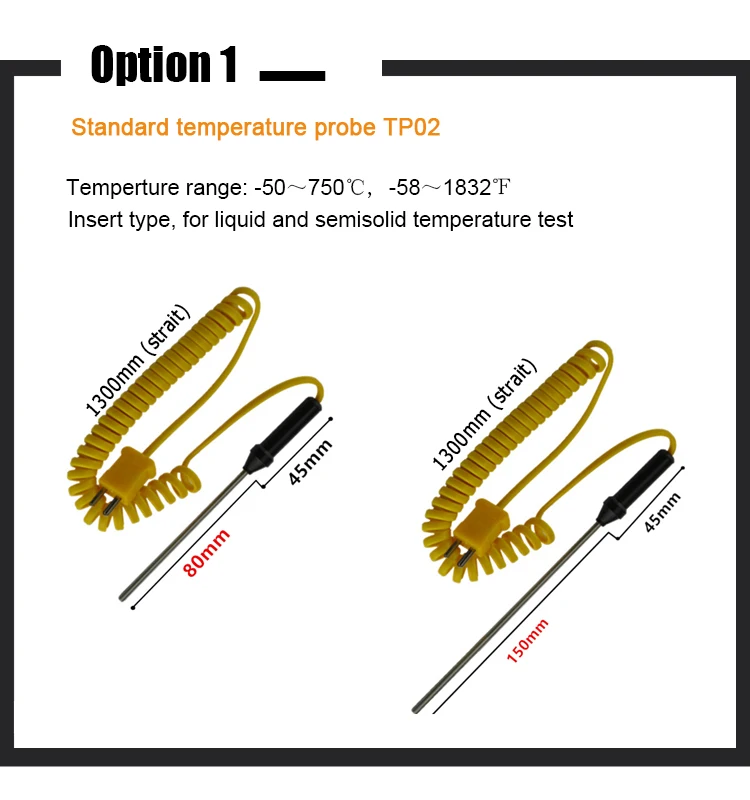

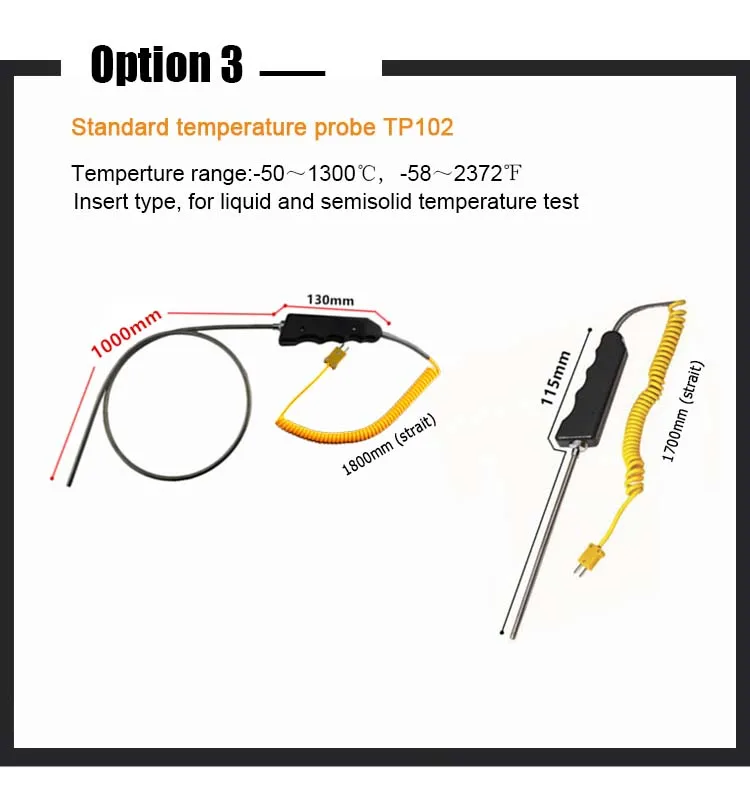

Other Suitable Thermocouple Models Choice
