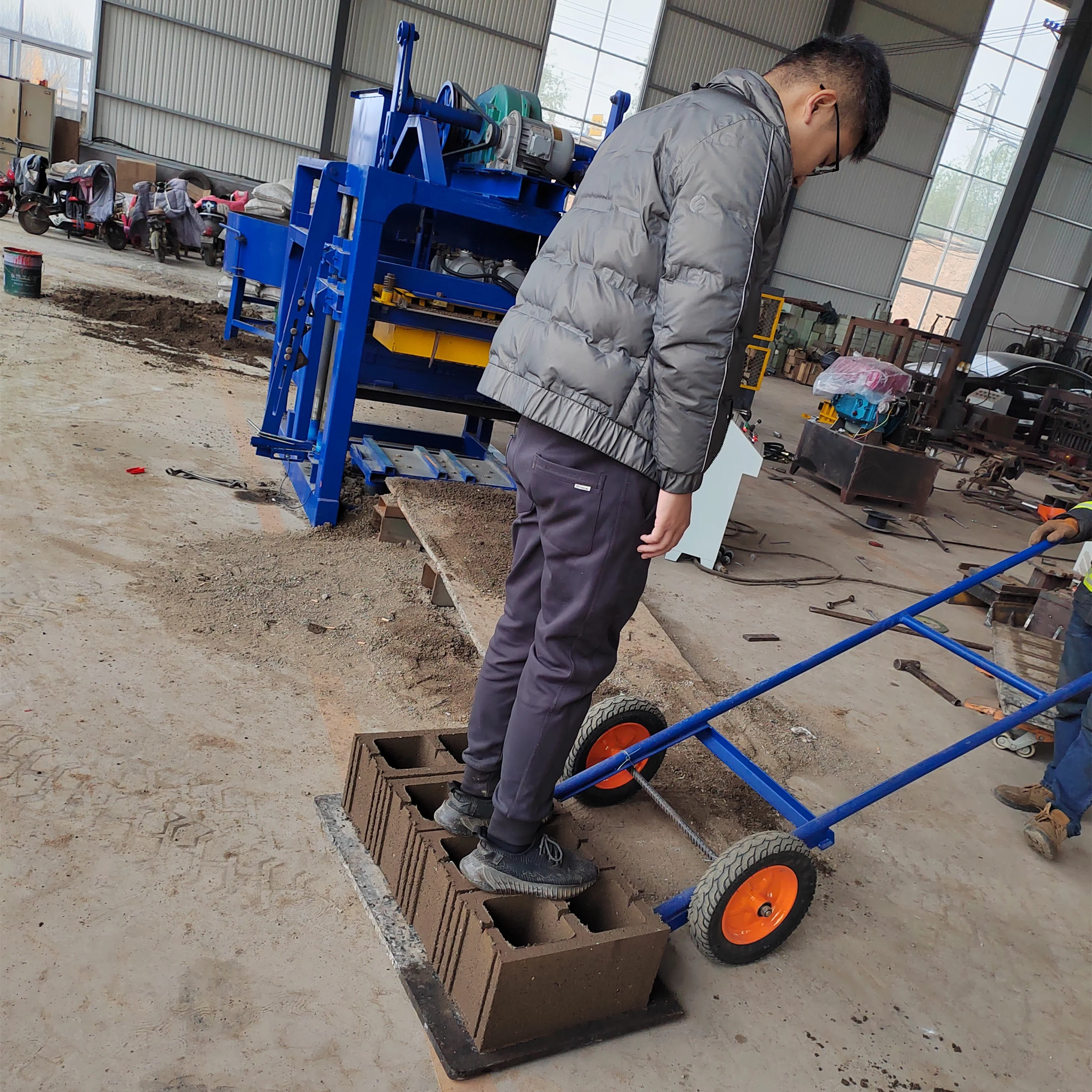

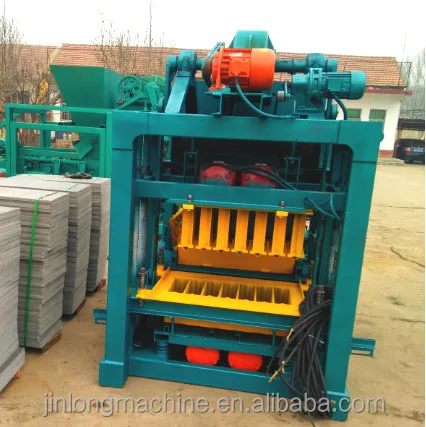

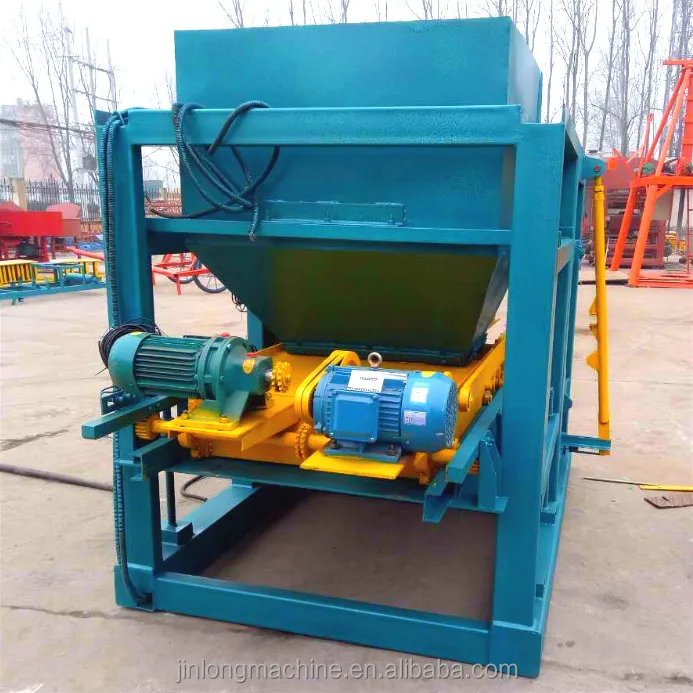

Cement hollow brick machine QT4 28 full automatic concrete block forming machine sells well in Africa

Product Overview

Description

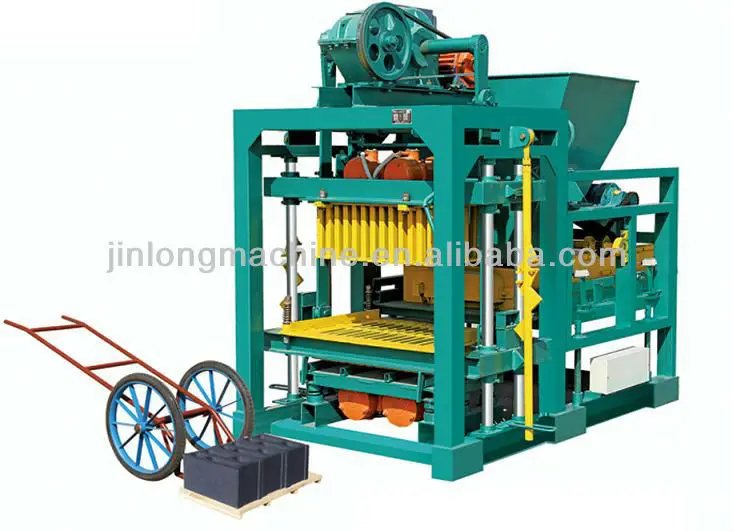

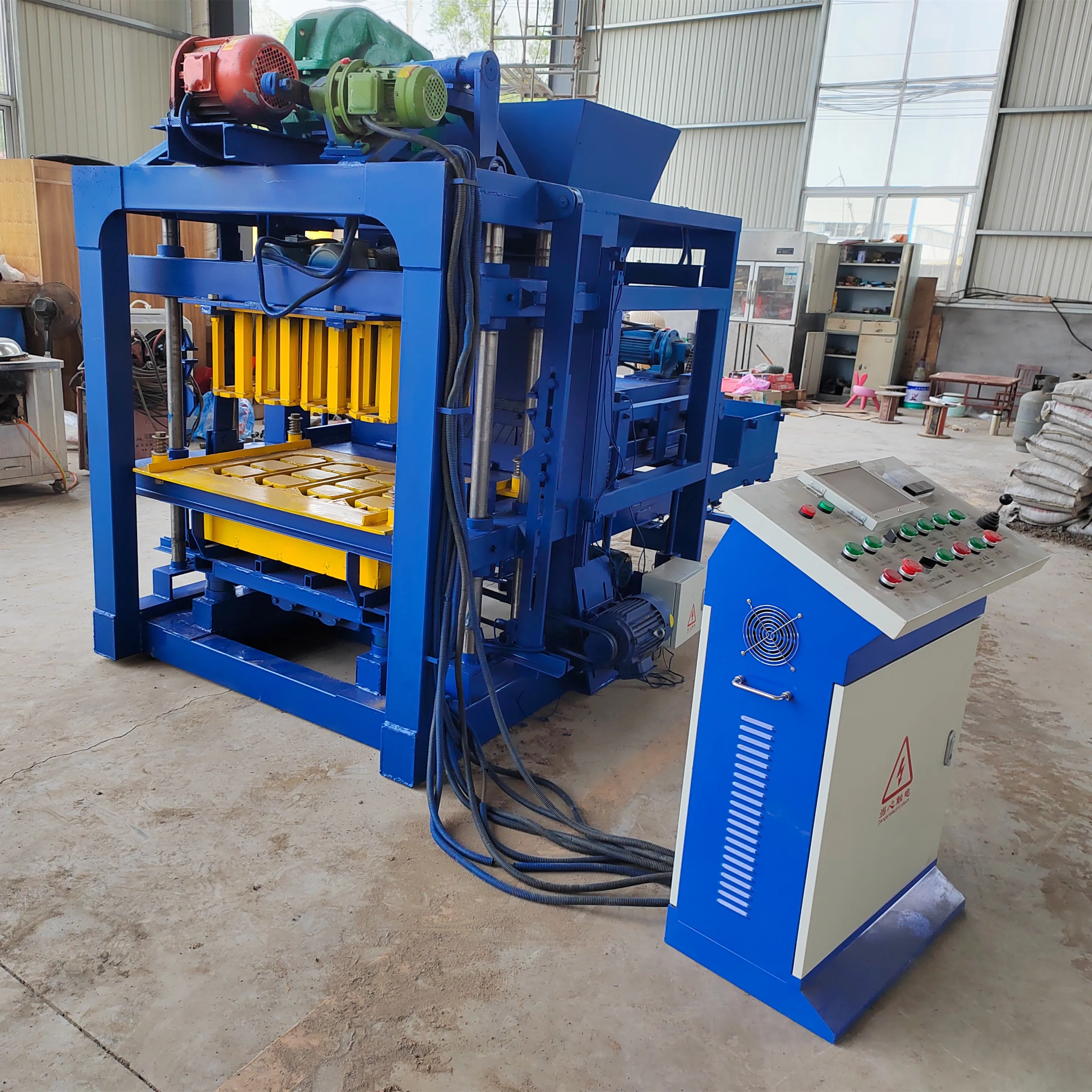

    QT4-28 automatic concrete block making machine

Description of QT4-28 concrete block making machine

1. Stable performance. Due to vertical vibration and converter brake .the after shock on machine can be eliminated at once.


2. Higher product density. There are double vibrators on the beam of the pressure head, which can make pressing from the bottom and top with strong vibrations. So, after shaping, the blocks can be piled up(to 4-5).


3. Less error. The quality tolerance of the finished product is 0.5mm, with hollow percentage over40%.

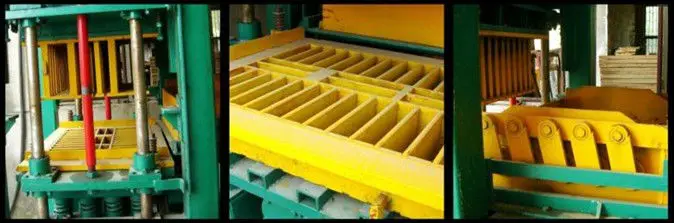

4. Multifunction in one machine. With different moulds, it can be used for producing the wall blocks with different shapes and sizes.

Technical data of QT4-28 concrete block making machine

Main Machine	400
Cycle	30S
Power	15kw
Weight	3T
Pallet size	850×450×25MM
Dimension	2580×1950×2200MM
standards	GB/T8533-2008





Production capacity of QT4-30 concrete block making machine

TIEM	size	Per day (8h)

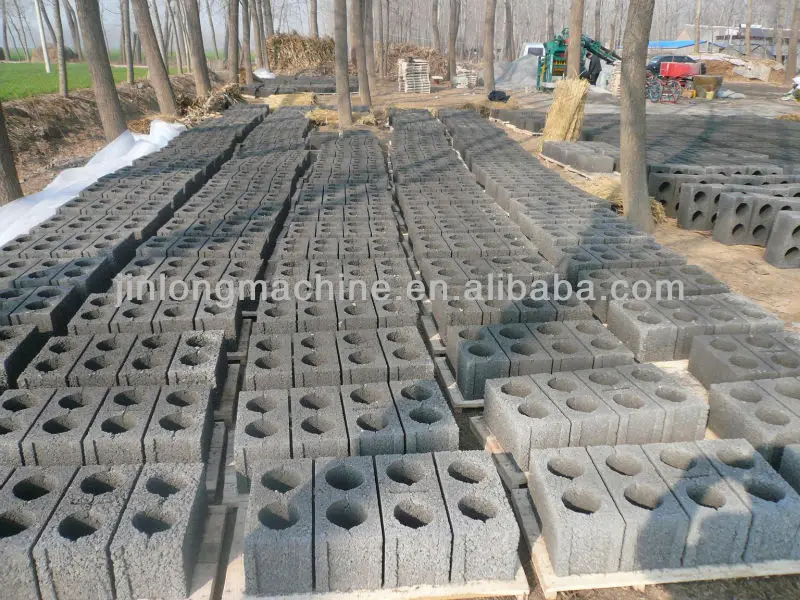

Hollow Bricks	390X190X190mm	5,800 pcs
Porous Blocks	240X180X90mm	14,000 pcs
Solid Bricks	240X115X53mm	33,000 pcs



Other information:

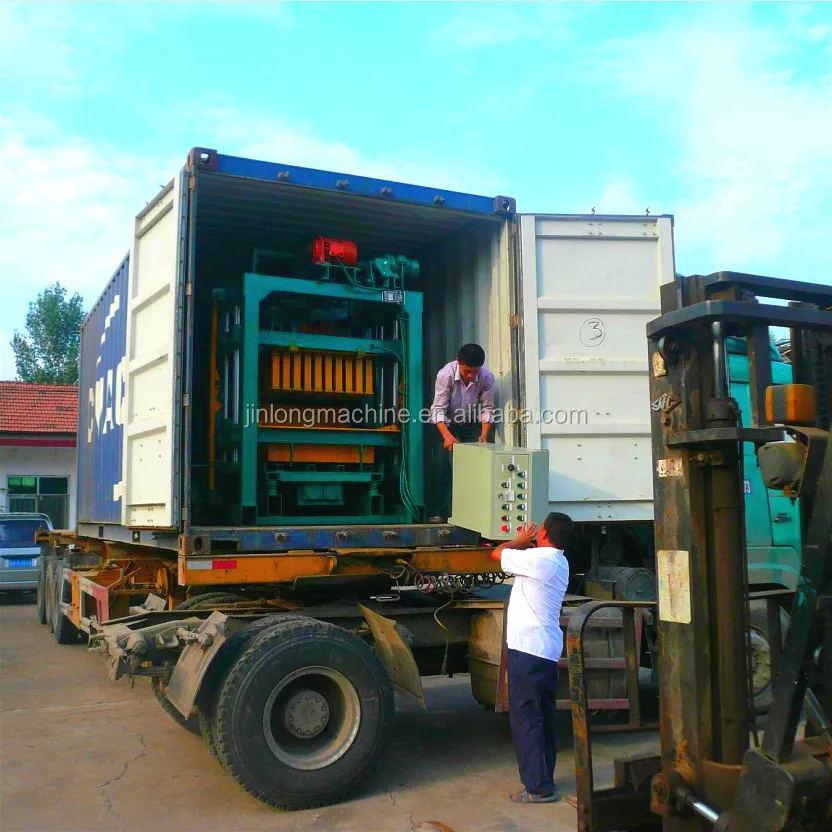

1.QT4-28 can be put into half a 1*20'gp,and QT4-28 with JS350mixer can be put into 1*20'gp.

2. need aera:workshop 40-50cbm,and total factory 800cbm,the bigger,the better.

3.we can supply spares for free if it is broken in one year.

4.payment term:tt or lc at sight

5.delivery:in 30 days

















Why choose us?

1.we are a professtional manufacturer,a factory for many years,not a trading company.

2.we use carton steel with higher quality,not worse steel.

3.we have special testing department to test machine after finishing production.

4.We can supply good after-sale service.
