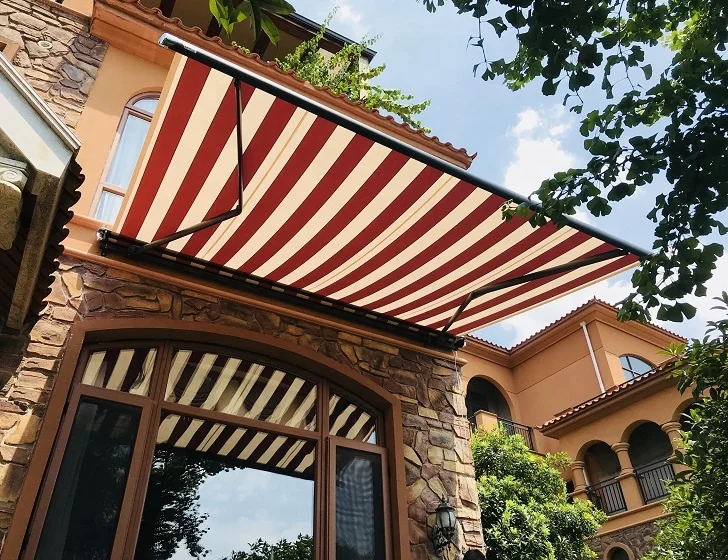

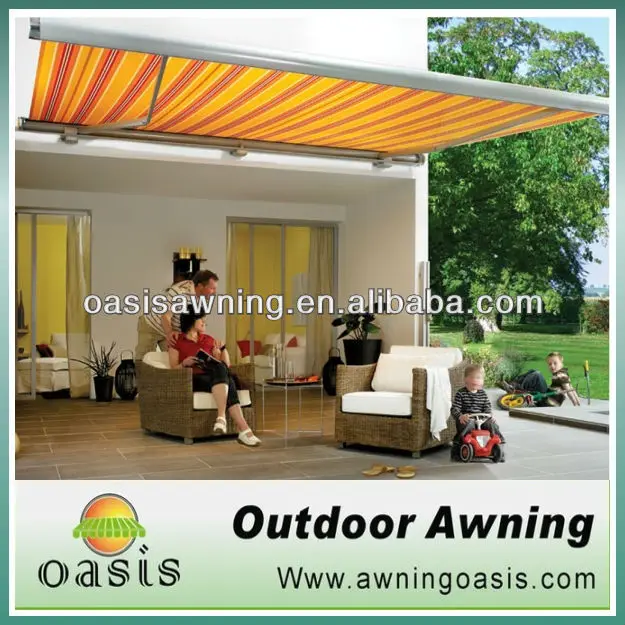

Retractable Rain Awning For Coffee Shop Retractable Canopy Awning Retractable Pergola Roof Awning
- Category: >>>
- Supplier: Guangzhou Royal Awning Co. Ltd.
Share on (1350501001):
Product Overview
Description
Product Description
Retractable Rain Awning For Coffee Shop Retractable Canopy Awning Retractable Pergola Roof Awning

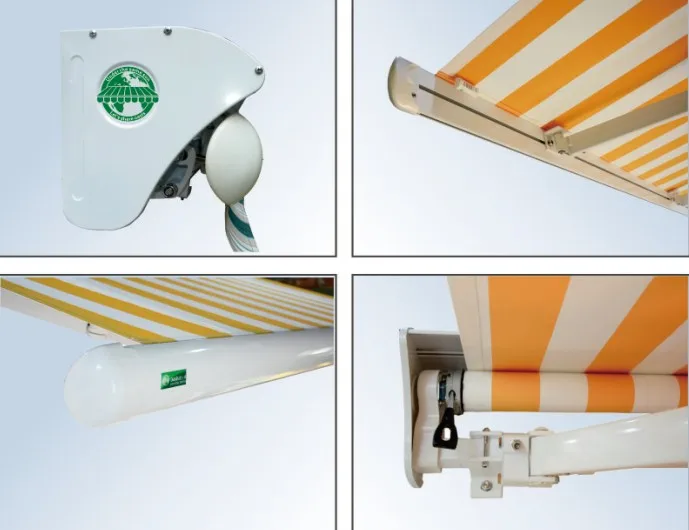

Details of L700
Retractable arm design, it use the space sensibly and increase much more projection spaces effectively

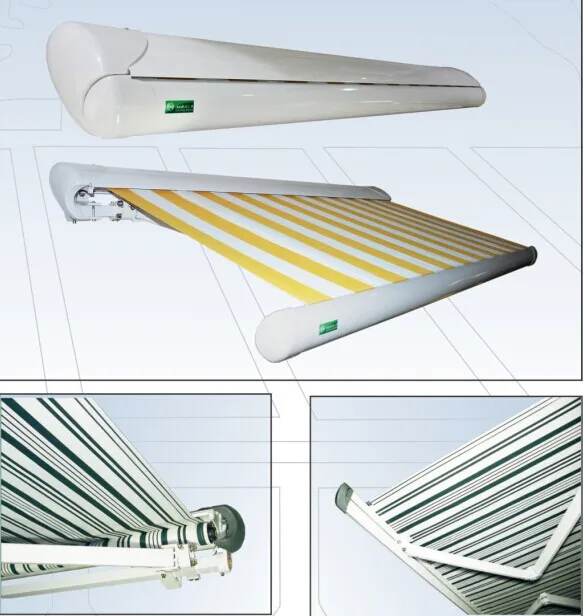

Description: Oasis full cassette awning
Model No.: L700
Frame: Top quality aluminum alloy and steel.
Finish: white powder-coated and dark grey powder-coated
Operation: manual, motorized(wire remote controller, wireless remote controller, wind,light and rain sensor.
Structure thickness:
Cassette cap:165×48×2.8mm Square tube: 40×40×1.5mm
Roller tube: 70×1.5mm Front arm tube:120×64×2.8mm
Aluminum arms:big arm 60×31x2.2m, small arm:51×26x2.2mm
Advantages:
Awning can reduce indoor 30% temperature and 50% air-conditioning consumption.
When close, fabric and arms are folded into the cassette to avoid dust corrosion.
1.Top-quality aluminum to offer High Strength and aound 20-year useful life.
2.Fabric colors and patterns can be customer-made, we have acrylic fabric and polyester fabric
the best one is from Spain, Sauleda,S,A., and Recacril which will not fade within 5 years while has more that 10 years useful life.
3.Our awnings have 2-year warranty time
4.Operate mode can either manual or motorized, or combination of the two.
5. Max size: 12m width * 4m projection, mix size: 2m width *1.5m projection
While some other awning factories are using low quality aluminium materials to reduce cost,we use
high quality aluminum to offer customers best quality & service.
Technical Specifications
| Fabric Type | |||
| Name of Fabric | Recacril® | ||
| Base Fabric | 100% Solution Dyed Acrylic | ||
| Characteristics | Tolerance | ||
| Weight | 9 oz. | +/- 5% | |
| Standard Put Ups | 65.64 yards | ||
| Finish | Fluorocarbon/Resin | ||
| Finished Widths | 59"/150 cm & 47"/120 cm | ||
| Styles | 58 solids / 78 Stripes | ||
| Limited Warranty | 5 years | ||
| Specifications | Test Method | Test Results | |
| UV Resistance | AATCC-16 | 1500 + hours | |
| Abrasion Rating | ASTM-4157 | 40,000 Rubs | |
| Hydrostatic | AATCC-127 Method B | 40.6 cm | |
| Puncture Strength | ASTM-751 | 38 lbs | |
| Warp | Fill | ||
| Tear Strength | ASTM D-2261 | 11.5 lbs | 7.7 lbs |
| Tensile Strength | ASTM D-5034 Grab | 287 lbs | 149 lbs |
| Shrinkage | Method 5804 | 0.10% | 0% |
| Stretch | ASTM D-2594 | 0% | 0% |
Acrylic fabric made in China
| Test item | Test Standard | Unit | Test Result | ||
| Color Fastness to water | AATCC107:2002 | Srain--Fading | Grade | 4-5 | 4-5 |
| GB/T5713-1997 | Srain--Fading | 4-5 | 4-5 | ||
| Color Fastness to perspiration | AATCC15:2002 | Srain--Fading | Grade | 4-5 | 4-5 |
| GB/T3922-1997 | Srain--Fading | 4-5 | 4-5 | ||
| Color Fastness to Washing | ISO 105-C03:1989 | Srain--Fading | Grade | 4-5 | 4-5 |
| GB/T3921.3-1997 | Srain--Fading | 4-5 | 4-5 | ||
| Color Fastness to light | ISO 105-B02:1997 | Xenon--Lamp | Grade | 5 | |
| GB/T8427-1998 | Xenon--Lamp | 5 | |||
| Color Fastness to Rubbing | AATCC8:2001 | Dry---Wet | Grade | 4-5 | 4-5 |
| GB/T3920-1997 | Dry---Wet | 4-5 | 4-5 | ||
| Tear strength | ASTM D2261 | Wrap--Filling | Kg | 12.1 | 10.7 |
| GB/T3917.2-1992 | Wrap--Filling | Kg | 9 | 13.6 | |
| Seam Slippage Strength | ASTM D434 | Wrap--Filling | Kg | 8.5 | 13.6 |
| GB/T13772.1-1992 | Wrap--Filling | Kg | 8.2 | 12.9 | |
| Seam Breaking Strength | ASTM D1683-04 | Wrap--Filling | Kg | 36.3 | 37.8 |
| GB/T 13773-1992 | Wrap--Filling | Kg | 32.3 | 28 | |
| Tensile strength | ASTM D5034-1995-1 | Wrap--Filling | Kg | 79.8 | 64 |
| GB/T3923.2-1997 | Wrap--Filling | Kg | 97 | 80.7 | |
| Burst strength | ASTM D3787 | cm² | Kg | 85 | |
| Abrasion Resistance | ASTM D4966-98 Martindale 12Kpa | Kg | Over 30000 | ||

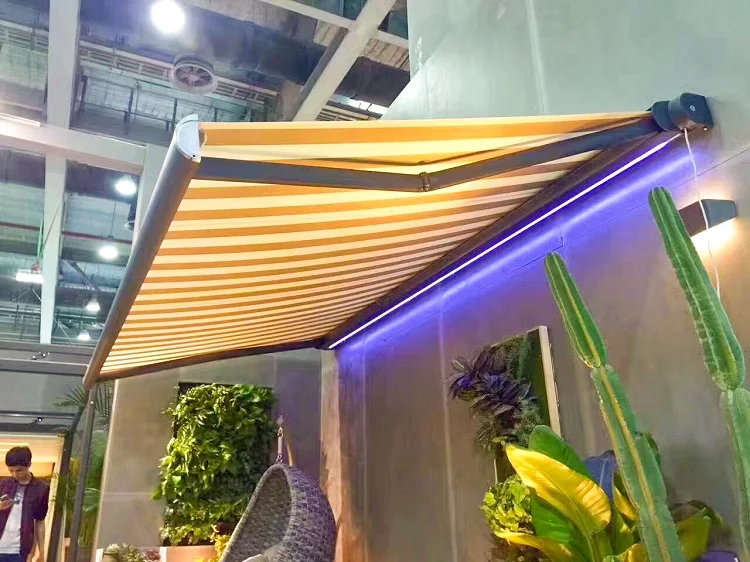

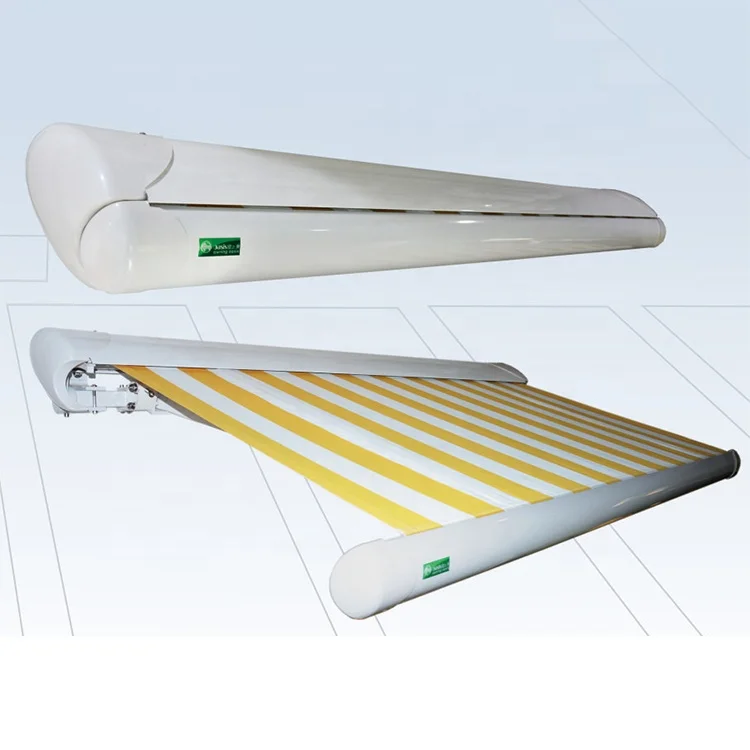

L700 Full cassette awning

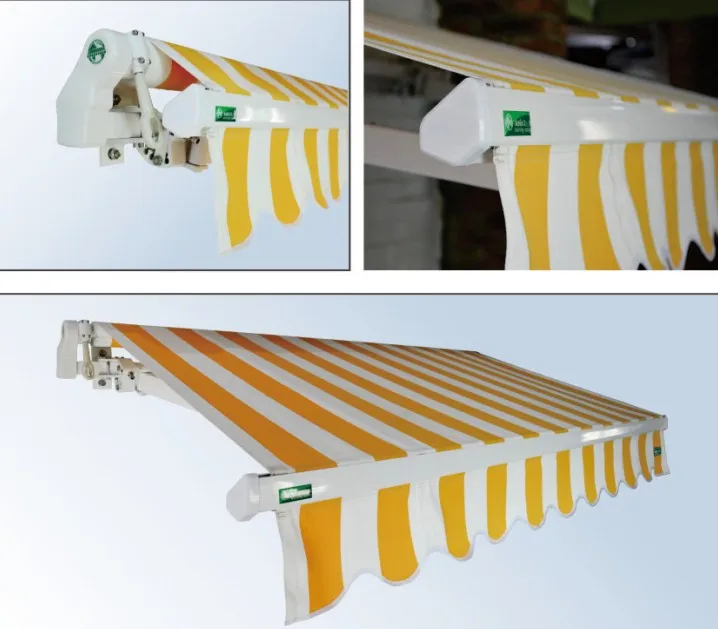

MODEL: L710 AWNING

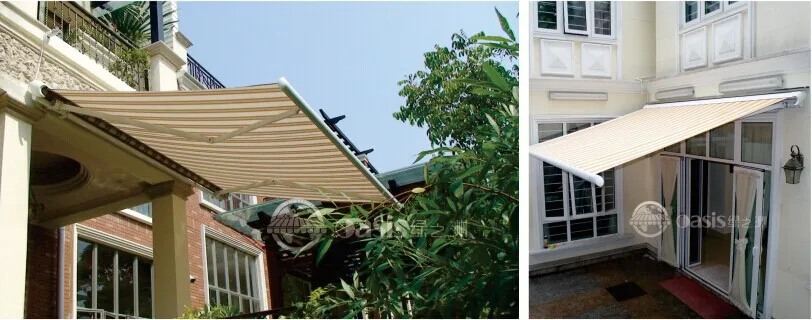

L981 AWNING
L99 AWNING

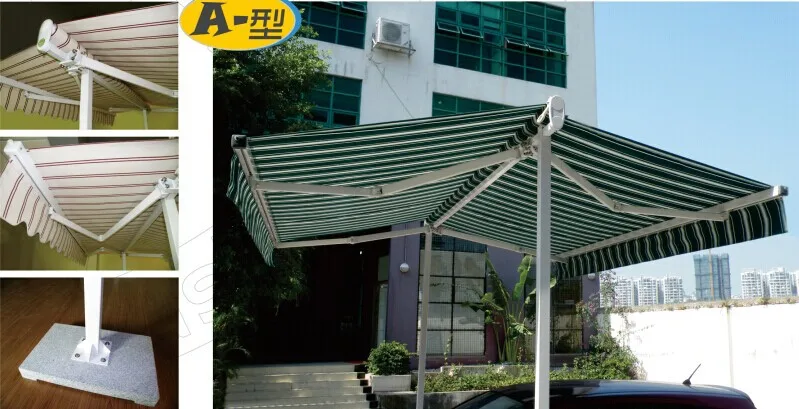

L220 DOUBLE SIDED AWNING
Fabric Brand
1.Dickson France solar fabric
2.Sauleda,S.A. Spanish Import Acrylic optional
Note: The above color numbers are only partial color. If you need to choose other colors, please contact us, we will send our electronic version of the color card for your reference.

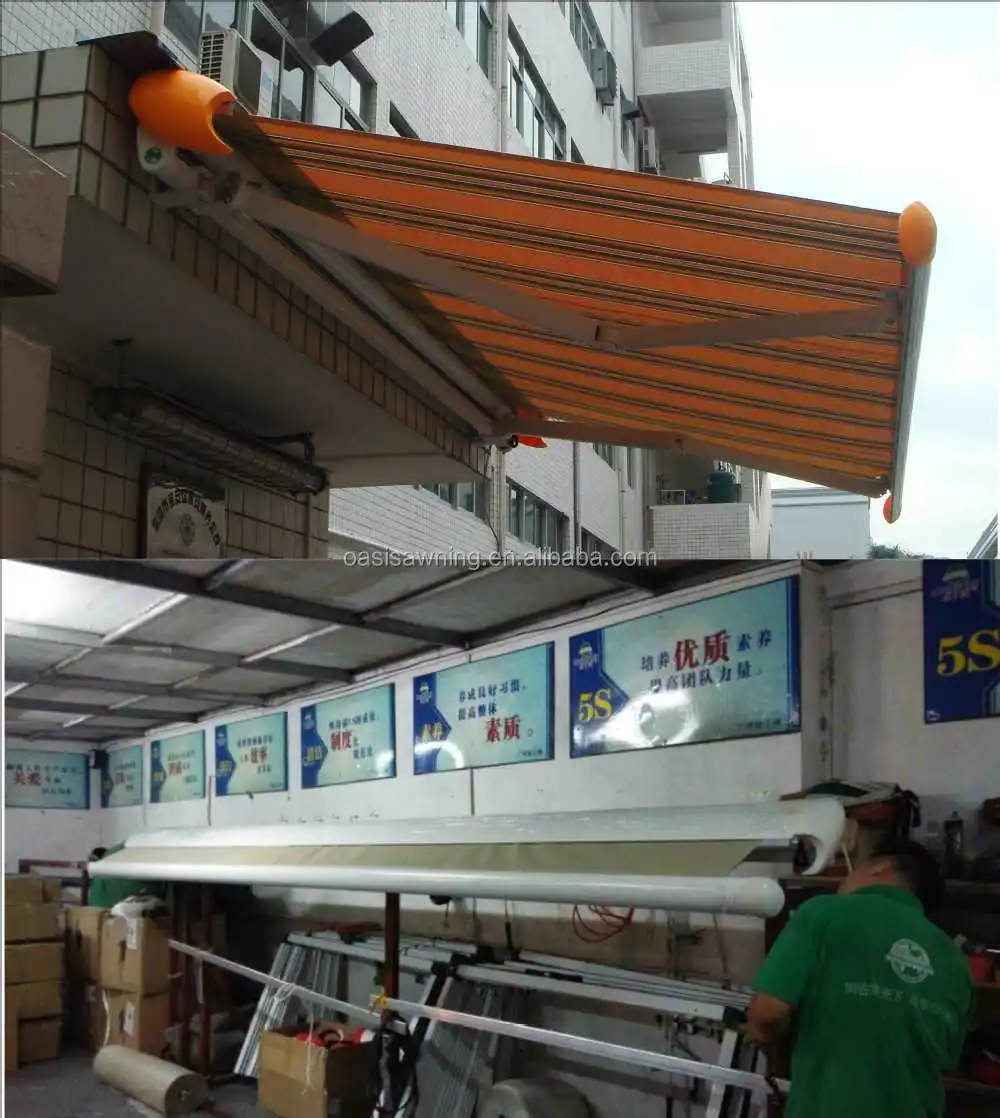

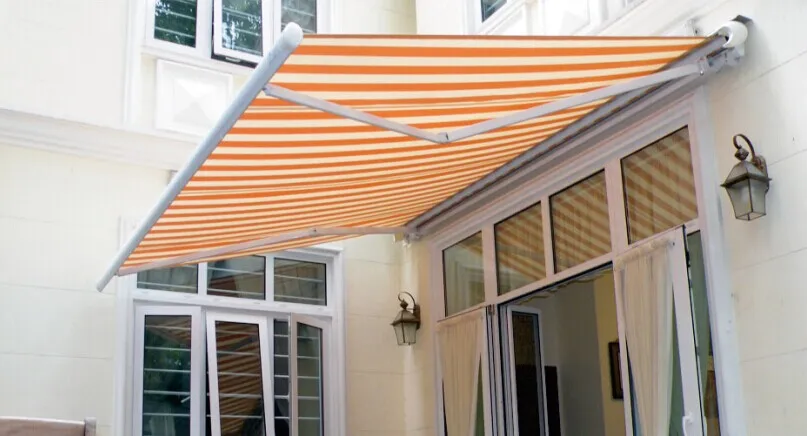

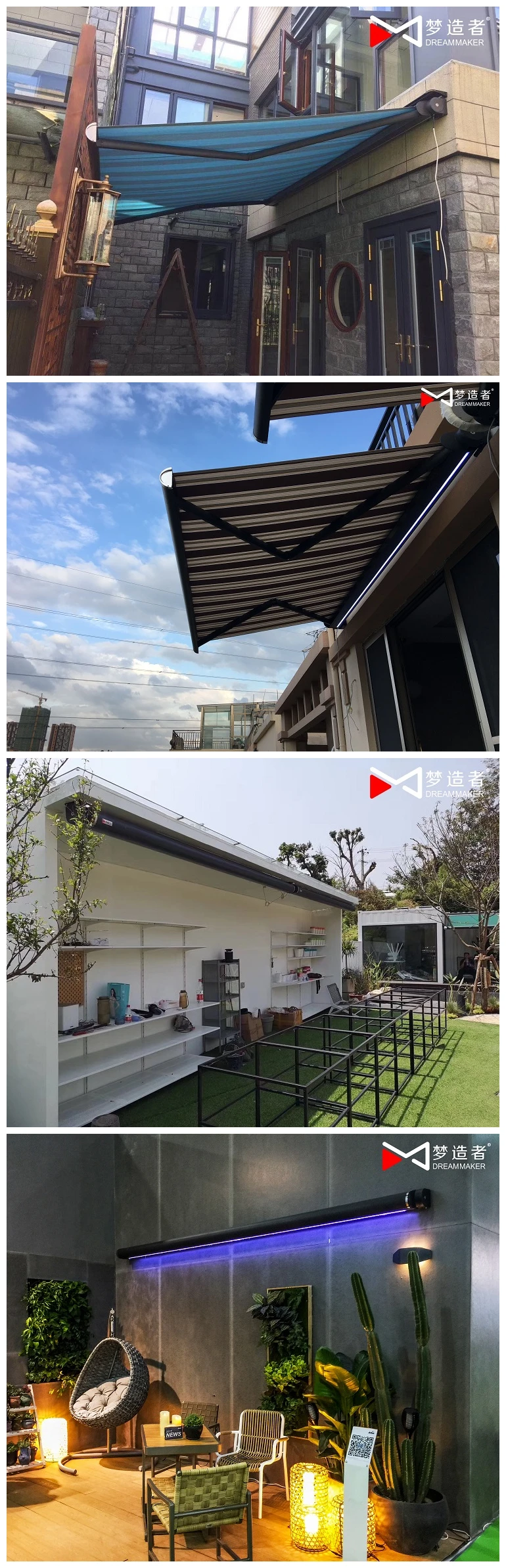

Project Case
Related Products
Company Information
Certifications
Packaging & Shipping
FAQ
Q1:How to guarantee the quality of the products?
We have our own QC team to control the products quality for all our clients'orders before loading.
Q2:How long does it take to install a roof /pergola?
No worry, it is easy to install and we have detailed installation instruction to guide you.
Bioclimatic Aluminium Pergola
Q3:How we do business?
Tell us the size you need, we will recommend the plan according to the size, design drawings for you
Take care of your prducts and serve your needs.
Contact us by E-mail or by phone.
Q4:Are you manufactory or trade Company?
We are the OEM manufactory specialized in awning, carport and tent more than 20 years.Our factory is located in Panyu district,Guangzhou city, it takes about 90 minutes by car from Guangzhou Baiyu airport, and 30 minutes from canton fair.
Rainproof Aluminum AwningRainproof Aluminum Awning
Q5: Why would I need an awning?
An awning can provide sun protection, rain protection or just make your home or business more aesthetically appealing. For commercial buildings, it also provides a place for prominent signage to bring attention to your business or increase your seating capacity with an outside eating area.
Q6:Do you sell accessories for product?
Yes, we not only offer finished products, but also components, disassembled or assembled as per your requirements.
Q7: what's your delivery time ?
Or small order, delivery time is 5 days,
for container order, delivery time is 20-30 days.
