Ce Standard Tomato Chili Sauce Honey Bottle Filling Capping And Labeling Machine Tomatoes Paste Water Filling Machine
- Category: >>>
- Supplier: Guangzhou ABCDPACK Machine Co. Ltd.
Share on (1351376226):
Product Overview
Description
Product Overview
Ce Standard Tomato Chili Sauce Honey Bottle Filling Capping And Labeling Machine Tomatoes Paste Water Filling Machine
ABCDPACK VARIOUS INDUCTION SEALING SOLUTION FOR YOUR CHOICE
For Industries: 1. Food 2. Beverage 3. Pharmaceutical 4. Cosmetics 5. Chemical 6. Daily Chemical 7. Others
Application

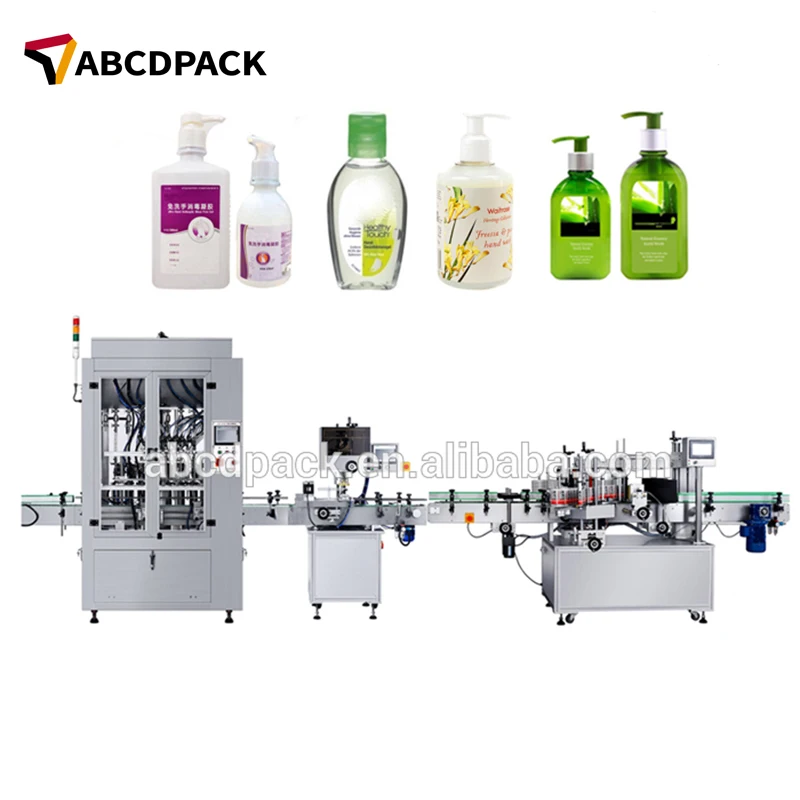

This production line can fill liquid,cap bottle lids and label stickers automatically,it is the ideal choice for producing drinks,cosmetics products or skin care products.The automated production can help you to reduce production cost and error,improve working efficiency and production quality.
Parameter
Main parameters of the machine | ||

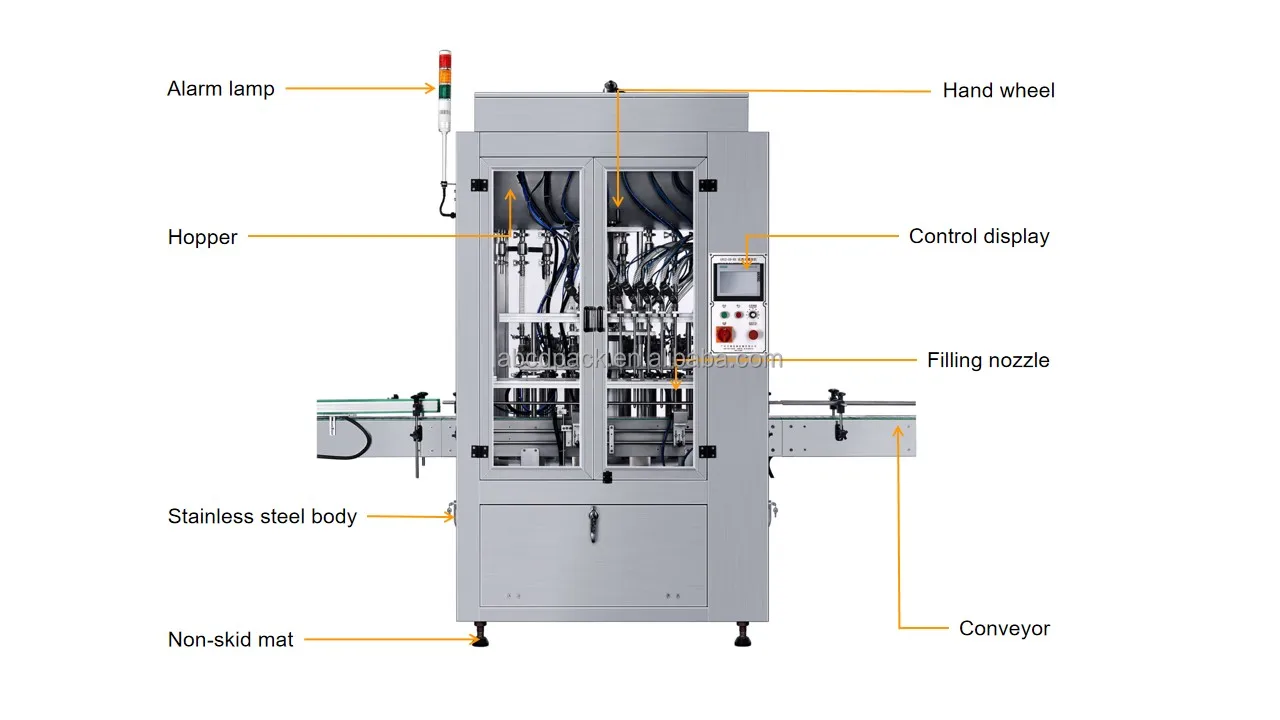

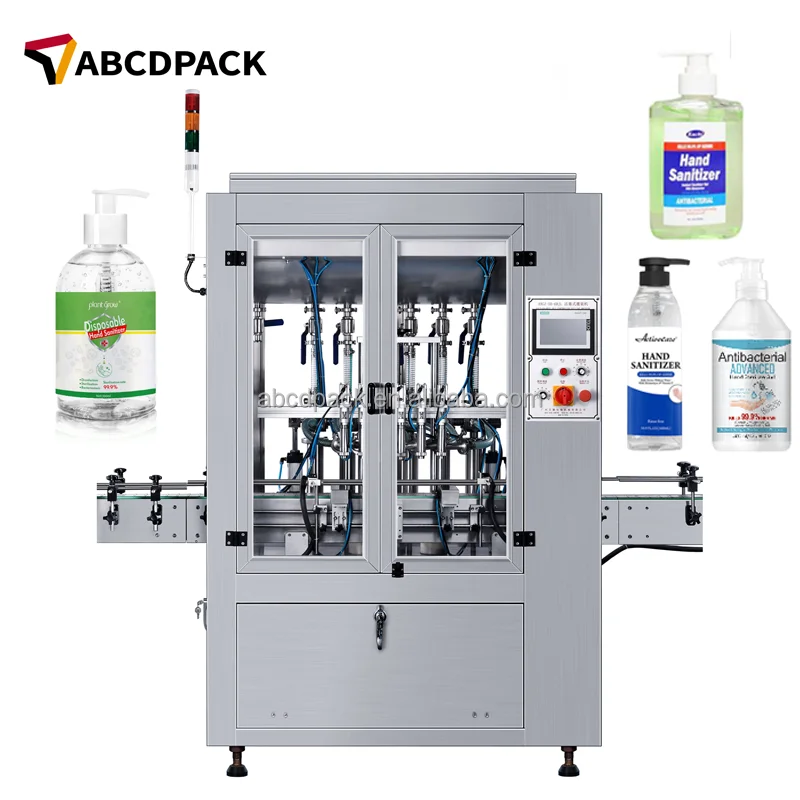

Name and model | AXGZ-SG-4 Computer piston filling machine | |
Labeling speed(max) | 0~30 bottles/min | |
Applicable bottle diameter size | Φ20 ≤D≤Φ100mm | |
Applicable bottle height size | 30≤H≤300 mm | |
Filling accuracy | ±1ml | |
Voltage | AC220V, single phase, 50/60HZ | |
Power | 1.0KW | |
Working pressure | 0.6MP | |
Air consumption | 1200L one hour | |
Net weight | 500 Kgs | |
Machine size(L*W*H) | 2000*1200*2100mm | |
Main construction and electrical products | ||
Object sensor | Keyence or Autonics or similar brand sensor | |
Cylinder | Airtac or similar china brand model | |
PLC | Siemens | |
Touch screen | Siemens or Samkoon | |
Basic construction | SUS304 stainless steel and anodized aluminum alloy, inner frame is normal steel | |
Main parameters of the machine | ||

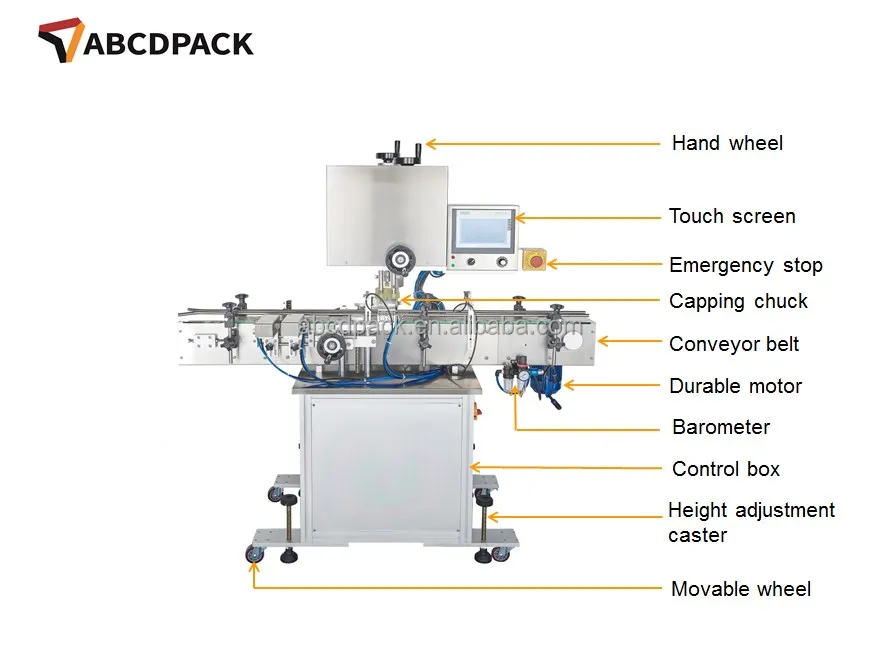

Name and model | XGS-100B Automatic capping machine | |
Closing cap motor | Panasonic servo motor | |
Cap closing speed | 0~50 caps / minute | |
Applicable cap diameter | Φ20mm≤D≤Φ80mm(Customized) | |
Applicable bottle | Φ20mm≤D≤Φ100mm | |
Applicable bottle height size | 40mm≤H≤300mm | |
Power | 1200W | |
Working pressure | 0.6MP | |
Voltage | AC220V, single phase, 50/60HZ | |
Air consumption | 600L one hour | |
Machine size(L*W*H) | 1500*700*1600mm | |
Products on conveyor —>put cap manual or feed cap automatically—>Automatic detect by sensor —> carry the bottle —> cap closing by four rubber rolls—> loose bottle—>finish | ||
Main construction and electrical products | ||
Display | Siemens or Samkoon | |
PLC | Siemens | |
Object sensor | Keyence or Autonics or similar brand sensor | |
Inverter | Siemens | |
Basic construction | SUS304 stainless steel and anodized aluminum alloy, inner frame is normal steel | |
Main parameters of the machine | ||

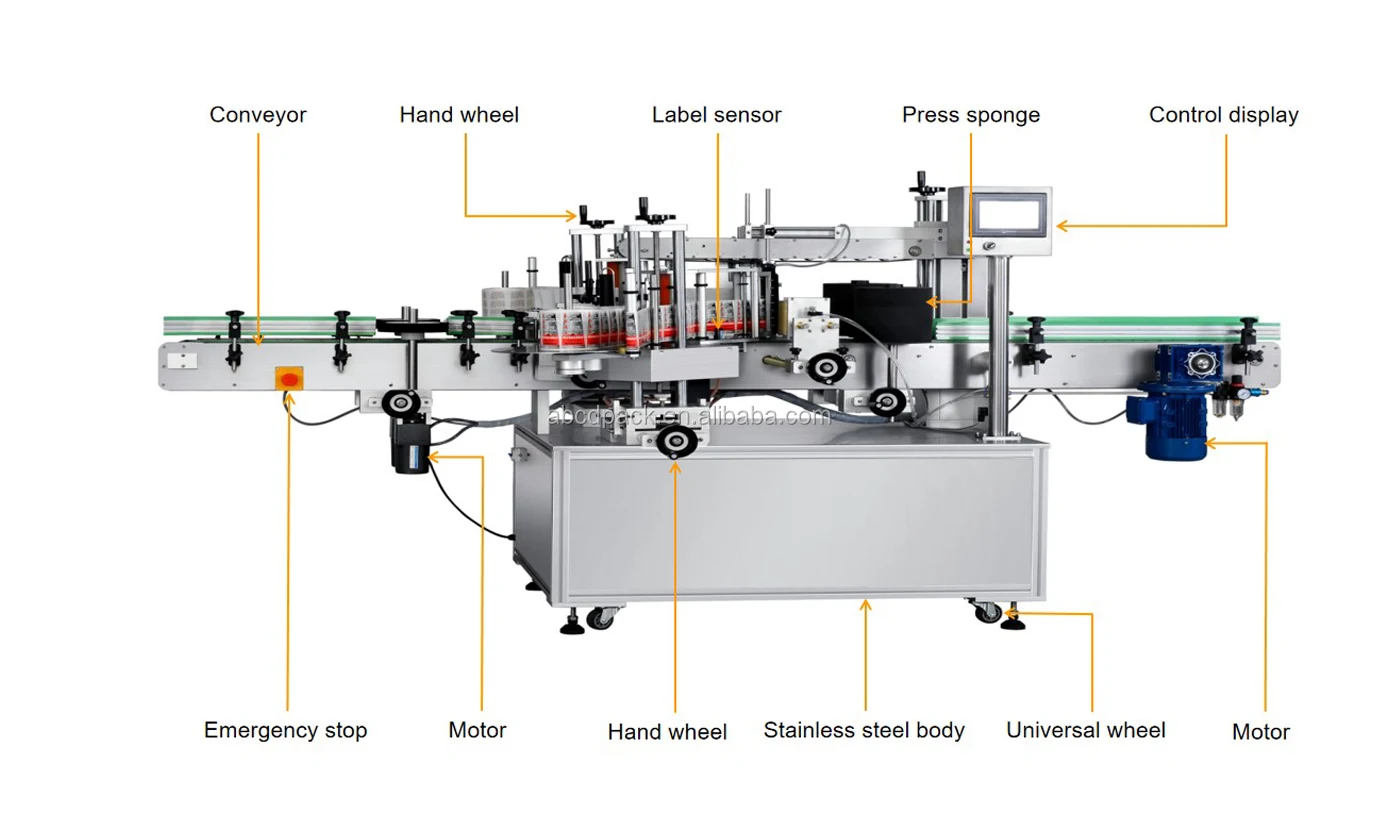

Name and model | AL-9180 Automatic double-sided labeling machine | |
Labeling speed(max) | 0-100 pcs/min | |
Label length | 10-300mm | |
Label width(max) | 180mm | |
Conveyor belt width | 101.6mm | |
Length: 40mm ~ 180mm Width: 30mm ~ 110mm Height: 50mm ~ 350mm | ||
Outside diameter of label roll(max) | Φ350mm | |
Inside diameter of label roll(max) | Φ76mm | |
Accuracy of labeling | ±1mm | |
Overall size(L*W*H) | 3000*1500*1600mm | |
Main construction and electrical products | ||
Label sensor | Sick or Micro-detector or similar brand sensor | |
Object sensor | Keyence or Autonics or similar brand sensor | |
Inverter | Siemens | |
Display | Siemens or Samkoon | |
PLC | Siemens | |
Cylinder | Airtac or similar china brand model | |
Basic construction | SUS304 stainless steel and anodized aluminum alloy, inner frame is normal steel | |
Product Details

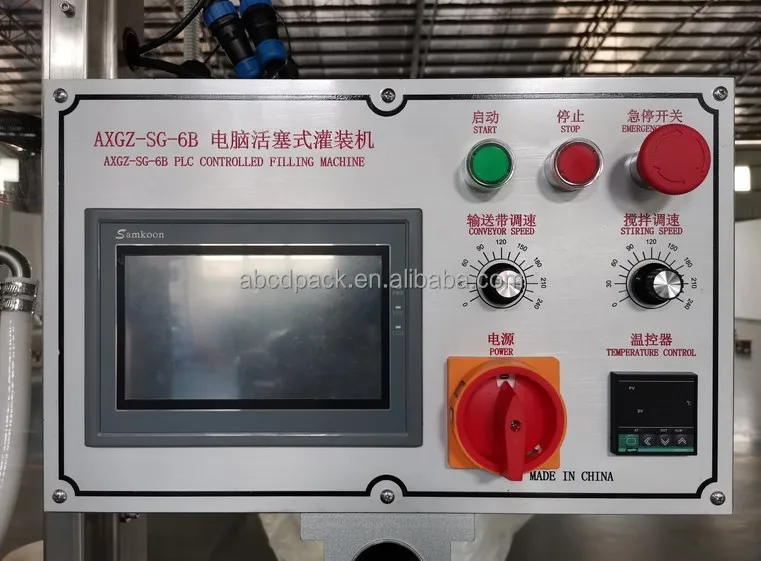

Touch screen

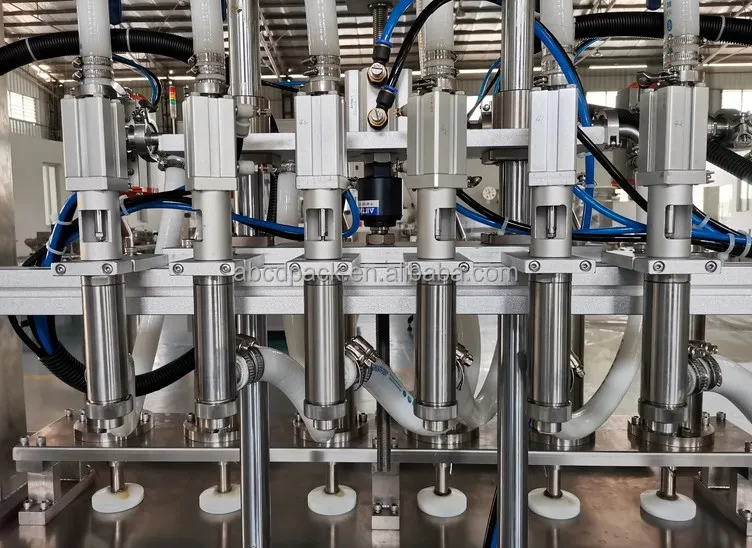

Filling nozzles

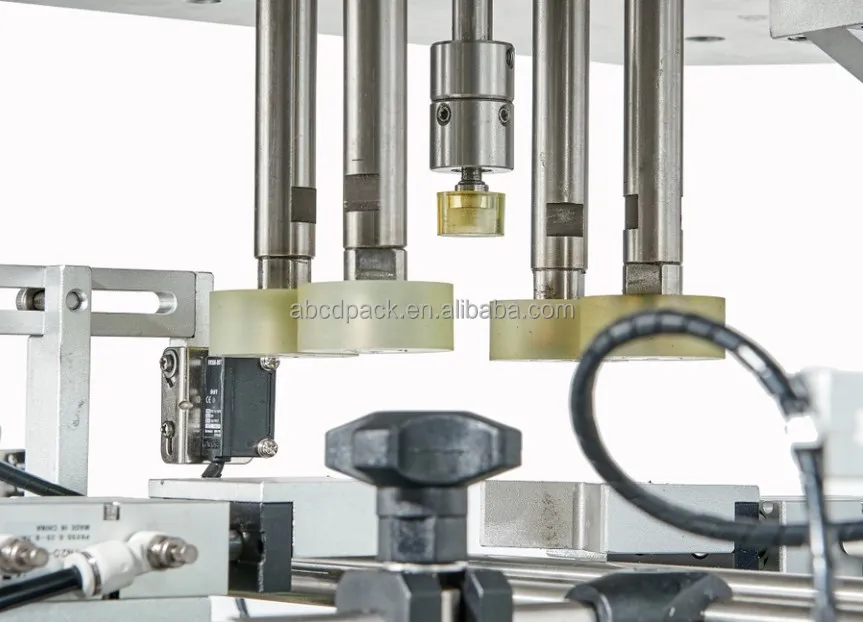

Capping Chuck

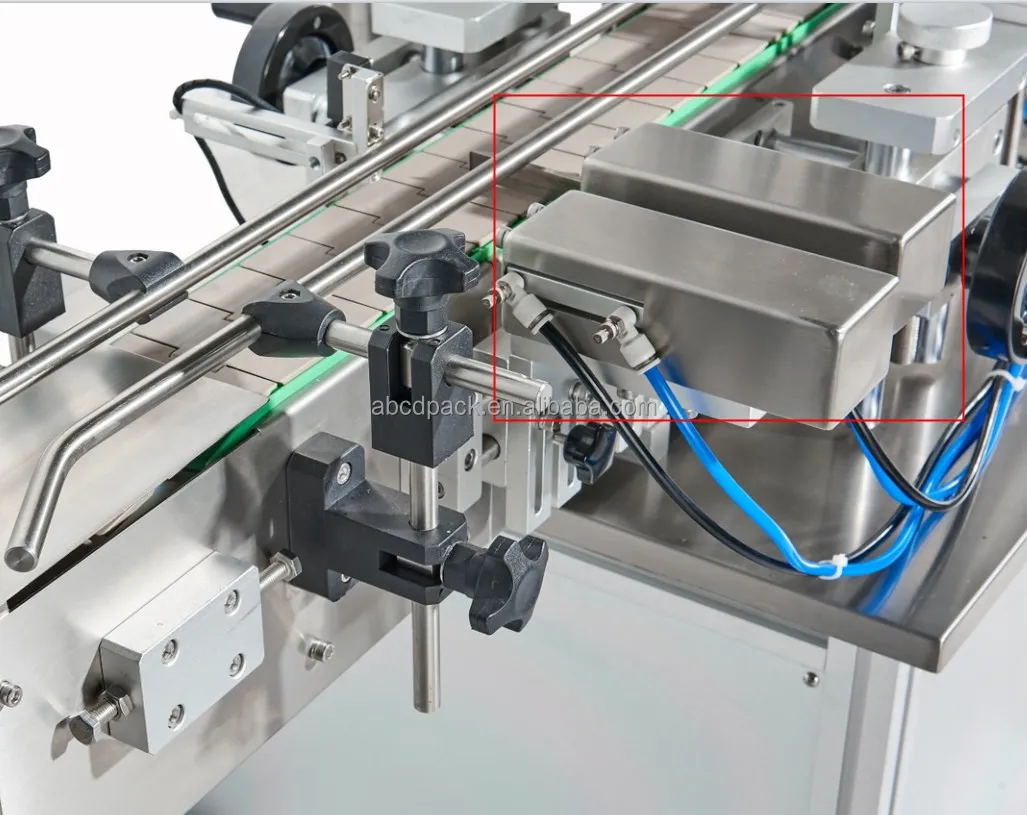

Bottle separate device
This device can be used for the bottle come in one by one on the conveyor as customers'need.
Flat Bottle Labeling
This machine is suitable for single side or double side labeling stickers on flat bottle like machine oil bottles,hand sanitizer bottles,laundry detergent bottles.
Round Bottle Labeling
With this roll is suitable for single side and double side labeling, accurate labeling without any blister.

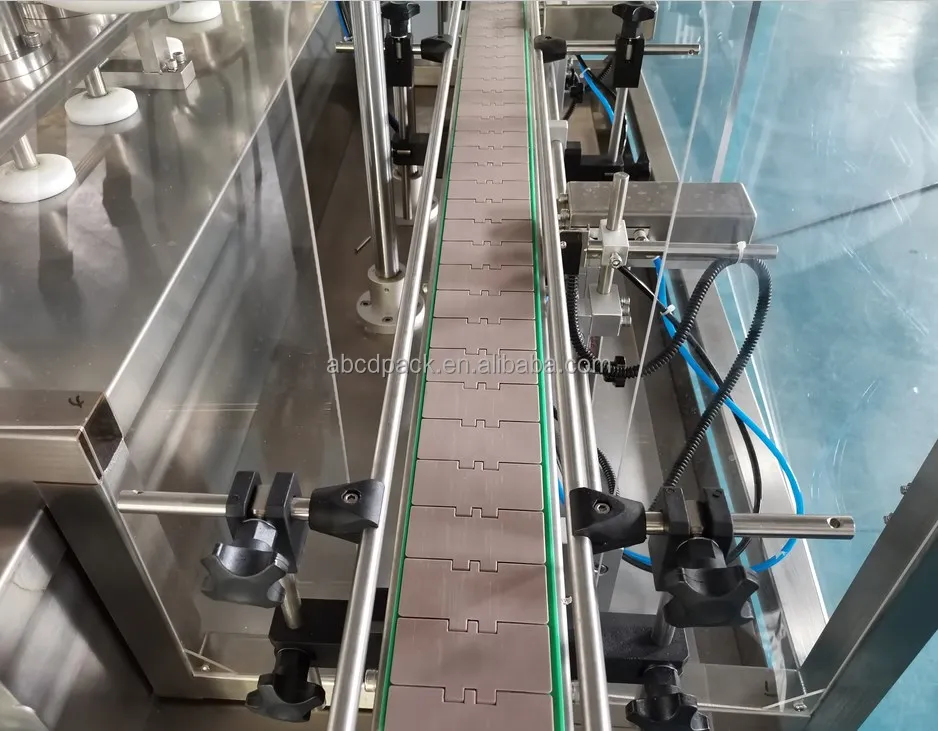

Conveyor system
Related Product
Production Process
Successful Project & Feedback
Product packaging
Packaging Details:
Port: Guangzhou
Lead Time : 10-30 working days after payment.
Company Profile
Guangzhou ABCDPACK Machine Co.Ltd
ABCDPACK LIMITED is an industry-leading manufacturer of automatic filling, capping, labeling ,induction sealing and packaging machinery. We have an experienced research and development team that specializes in customized solutions. Our factory builds its machines under the strict accordance of ISO 9001 and CE quality management system.
Our professional team provides clients with comprehensive tailored solutions to fit almost any application for all kinds of
beverage, food, cosmetics, daily chemical industrial etc, including liquid, paste, granules and powder type filling and packing machinery with mature technique and first-class quality.
Our product obtains high reputation from customer. They sell well in mainland China, as well as many countries in
Europe,America,Southeast Asia, the Middle East, because of high quality, lower prices, fast speed delivery and satisfying
services.
Our professional team provides clients with comprehensive tailored solutions to fit almost any application for all kinds of
beverage, food, cosmetics, daily chemical industrial etc, including liquid, paste, granules and powder type filling and packing machinery with mature technique and first-class quality.
Our product obtains high reputation from customer. They sell well in mainland China, as well as many countries in
Europe,America,Southeast Asia, the Middle East, because of high quality, lower prices, fast speed delivery and satisfying
services.
Pre-sales Services:
1.Over 1,000 professional Machine video,give you direct feeling about our machine.
2.Free Machine' solution from our chief engineer.
Medium-sales Services:
We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24hours.
3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year warrant, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. We also have an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
1.Over 1,000 professional Machine video,give you direct feeling about our machine.
2.Free Machine' solution from our chief engineer.
Medium-sales Services:
We have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24hours.
3. Our engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year warrant, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. We also have an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
FAQ
Q: What industry is your product suitable for?
A:The product line we develop and produce is suitable for the production of various, liquid, paste, powder, solid products. The specific product materials, functions, specifications and production capacity can be customized according to customers' products and requirements.
Q: Where is your factory location? How can I visit there?
A:Our factory is located in Guangzhou, China. You could visit us by high speed train or by plane). It’s only 20 minutes from our factory to Guangzhou South Train station .It’s only 45 minutes from our factory to Guangzhou Baiyun International Airport. then we could arrange a car to pick you up there.
Q: When can I get my machine after paid?
A: The delivery time of a production line is generally 40 days; the product is about 10-25 days.We will deliver it on time as the date we agreed both side.
Q: What’s the guarantee if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free and we do prepare for one set wearing part come with the machine.
A:The product line we develop and produce is suitable for the production of various, liquid, paste, powder, solid products. The specific product materials, functions, specifications and production capacity can be customized according to customers' products and requirements.
Q: Where is your factory location? How can I visit there?
A:Our factory is located in Guangzhou, China. You could visit us by high speed train or by plane). It’s only 20 minutes from our factory to Guangzhou South Train station .It’s only 45 minutes from our factory to Guangzhou Baiyun International Airport. then we could arrange a car to pick you up there.
Q: When can I get my machine after paid?
A: The delivery time of a production line is generally 40 days; the product is about 10-25 days.We will deliver it on time as the date we agreed both side.
Q: What’s the guarantee if we purchase from you?
A: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free and we do prepare for one set wearing part come with the machine.
Q: What payment do you accept?
A: We generally use T/T or L/C, and we can negotiate the payment method.
A: We generally use T/T or L/C, and we can negotiate the payment method.
