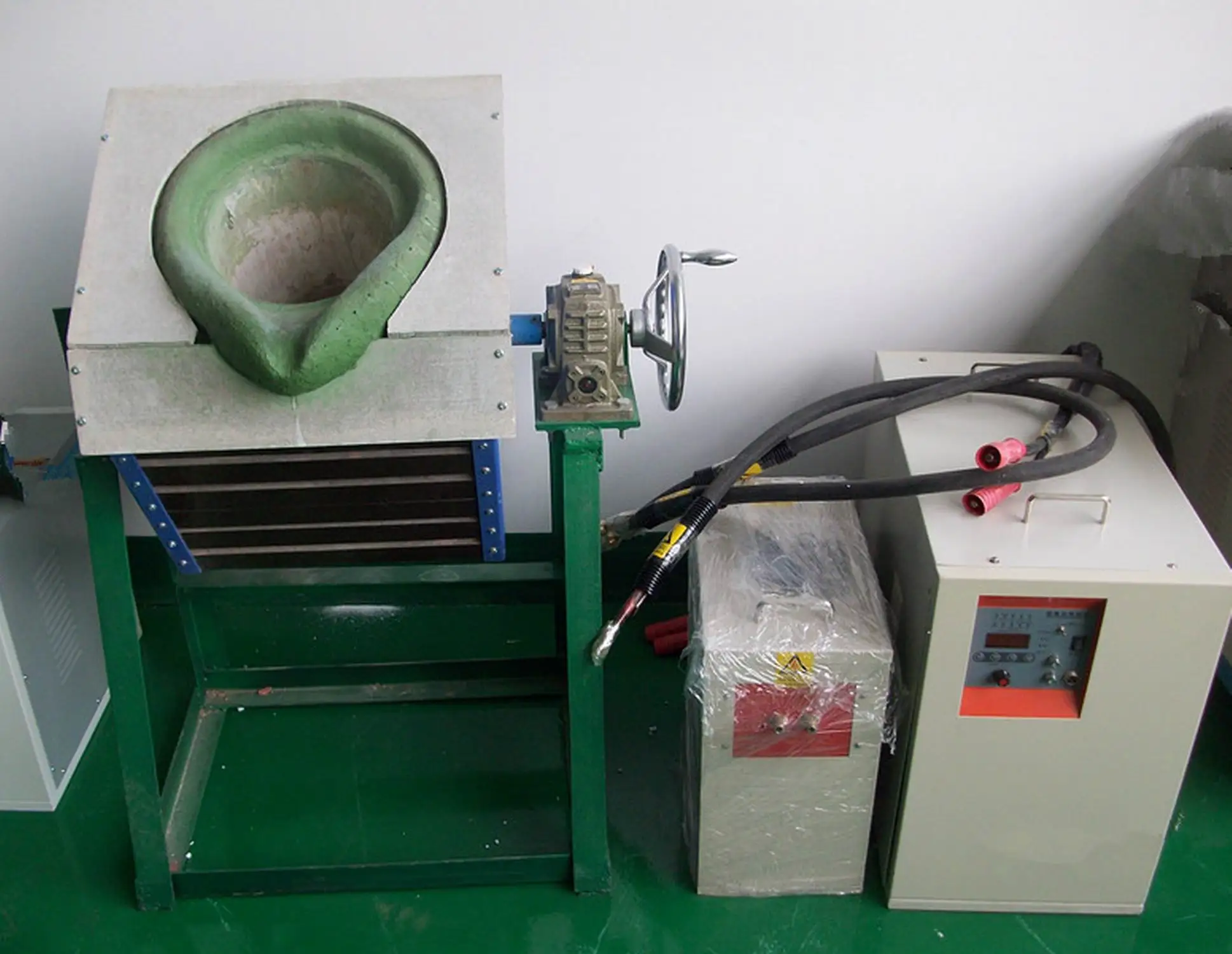

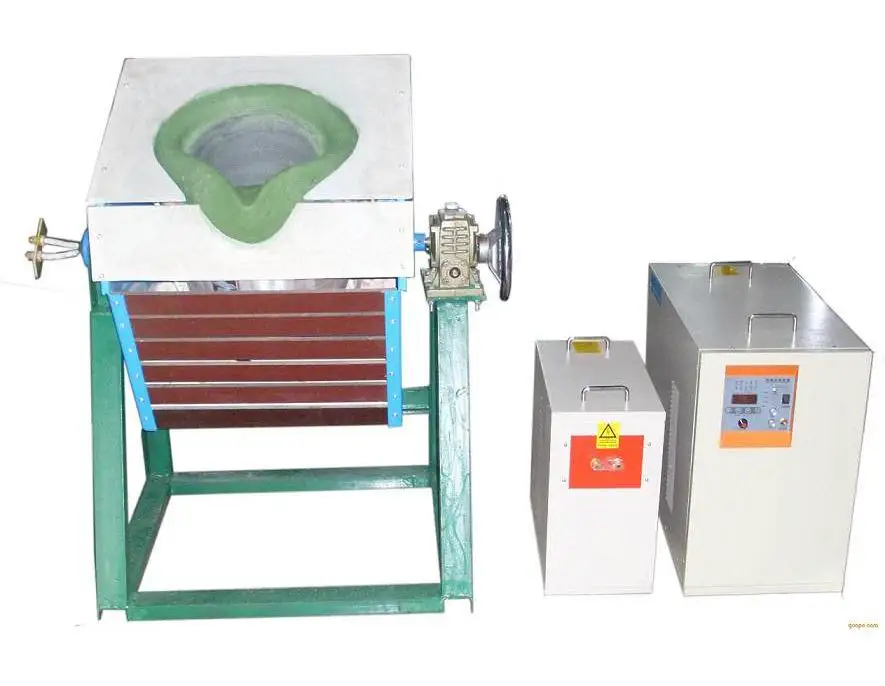

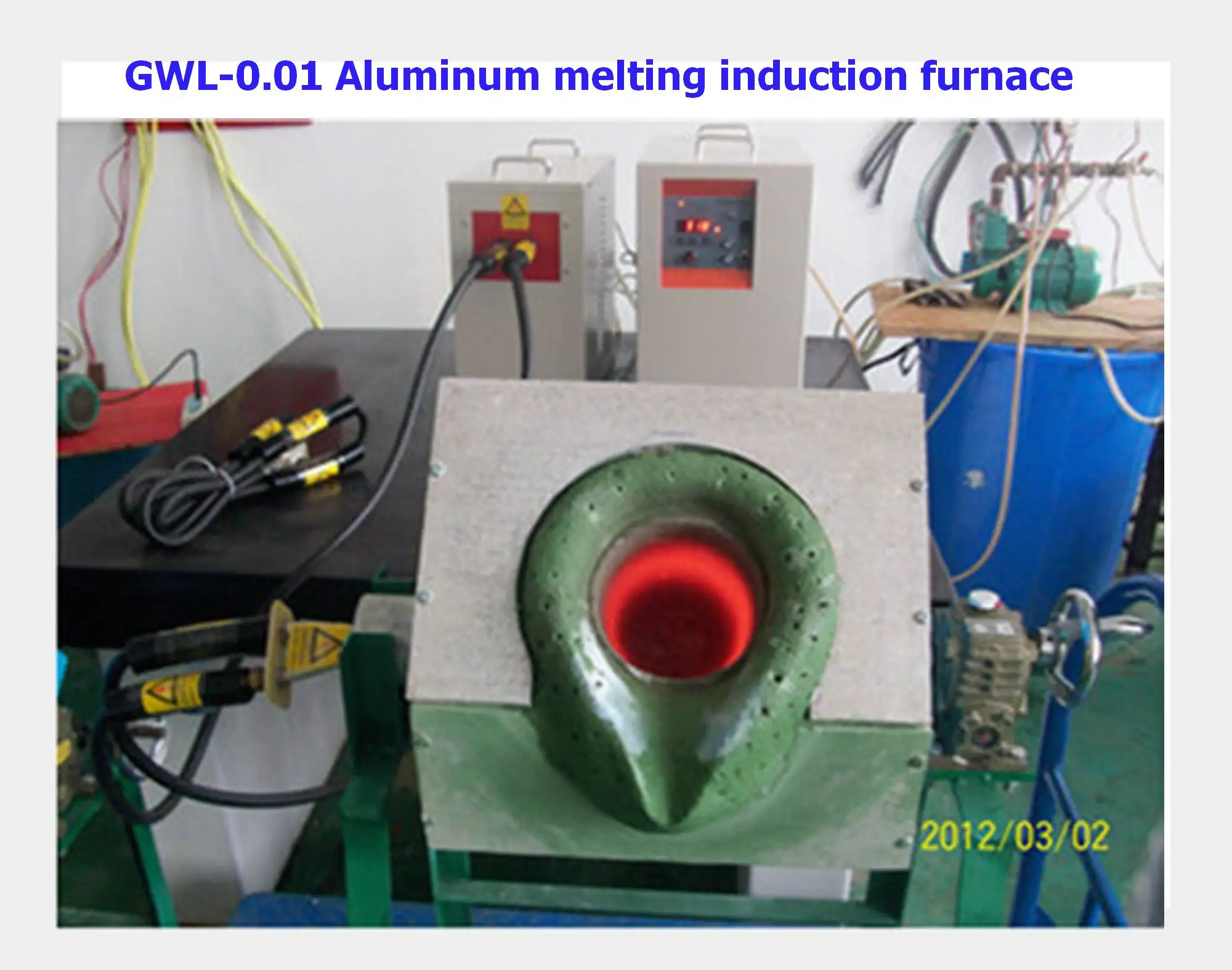

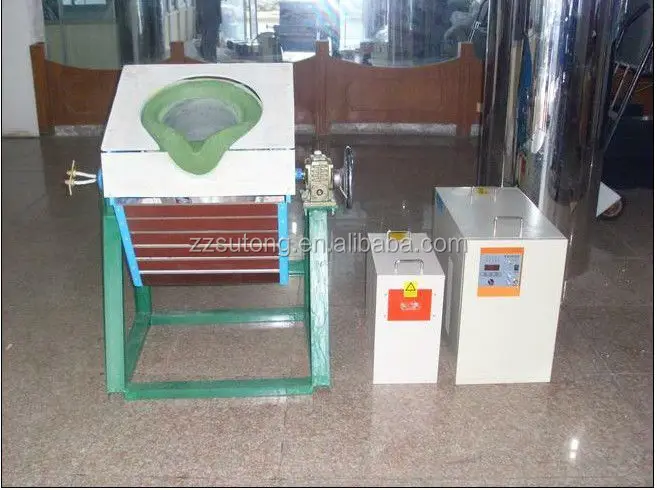

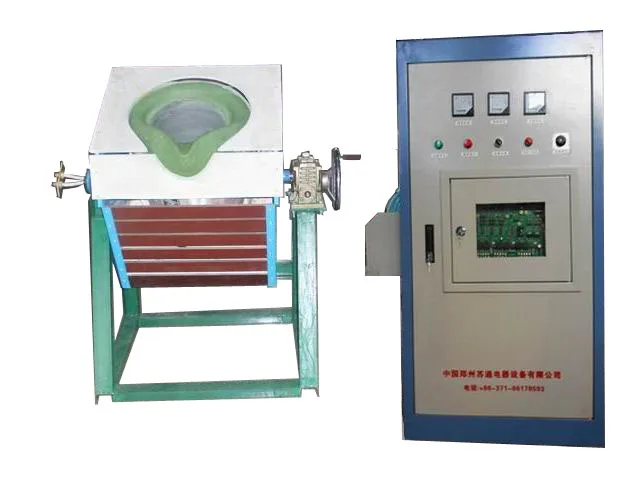

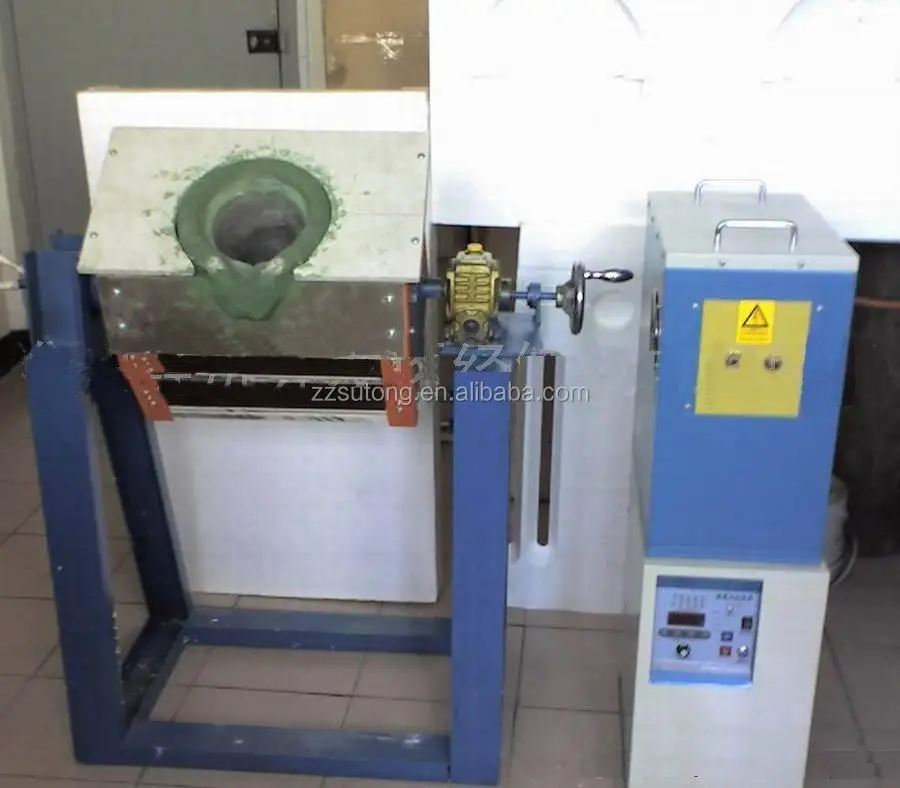

Capacity 10kg Electric Metal Melting Furnace for Heating Experiment
- Category: >>>
- Supplier: Zhengzhou Sutong Electric Equipment Co. Ltd.
Share on (1351568367):
Product Overview
Description
Capacity 10kg Electric Metal Melting Furnace for Heating Experiment
Metal melting electric furnace for sale
1.Max temperature:1100.C
2.Capacity:10Kg
3.With reducer tilting decive
The induction gold melting furnace is widely used in jewelry industry, such as bracelet, necklace, ring. etc.
Technical parameters of 10kg IGBT high frequency melting furnace:
Model | HF-10 |
Application | Melting Metal Materials. as such:Gold, Silver, Copper, Steel, Iron, Alloy, etc. |
Input power | 15 KW |
Input voltage | Three phase,380 V±10%, 50/60Hz (as your demands) |
Loading capacity | 8-10kg (For different metal materials) |
Melting rate | 30 - 50mins/batch (For different metal materials) |
Power consumption | 0.56 - 1.3KWh/ kg (For different metal materials) |
Highest temperature | 500.C to 1650.C (adjustable) |
Work frequency | 1000-25000HZ |
Power supply type | IGBT |
Furnace body tilting method | Handling gear reducer |
Cooling medium and QTY. | Tap water,300Kg/hour |
Warranty | Free for one year |
Certificate | Certificate CE. |
Total weight of furnace | 42Kg |
Induction Gold Melting System Composed
