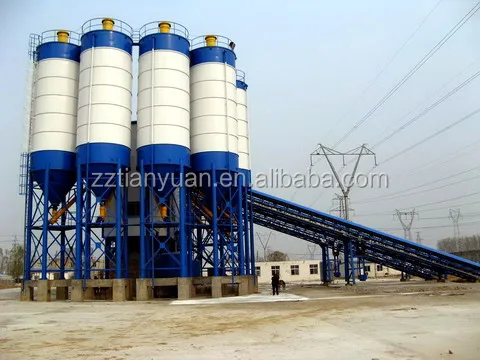

construction cement silo 50 ton , 60 ton

Product Overview

Description

construction cement silo 50 ton , 60 ton



1.Product Introductions
a.The ement silo produced by our company in line with the industry standard
b, cement silo Unloading height at 1.9 and 4.2m ,clso can custom make.
c,cement silo (cement silo) volume have 50t,60t,80t,100t,150t,200t,250t,300t,500t  etc.



2.Construction Cement Silos on sale Features:

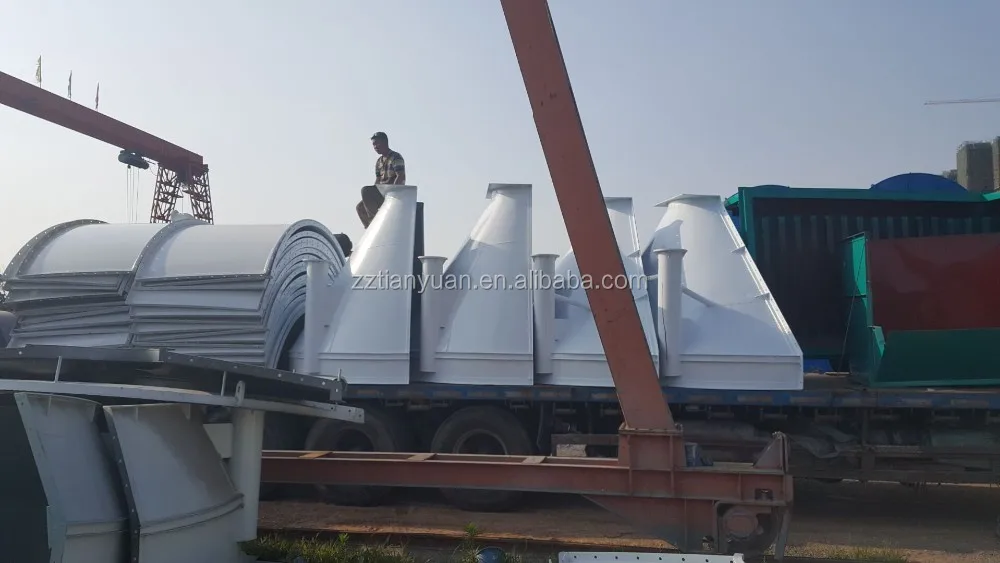

1). Our cement silo is detachable, so it is easy for transportation;

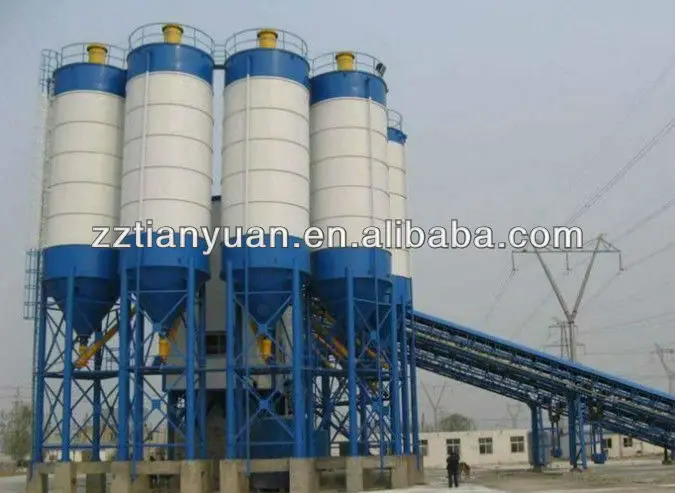

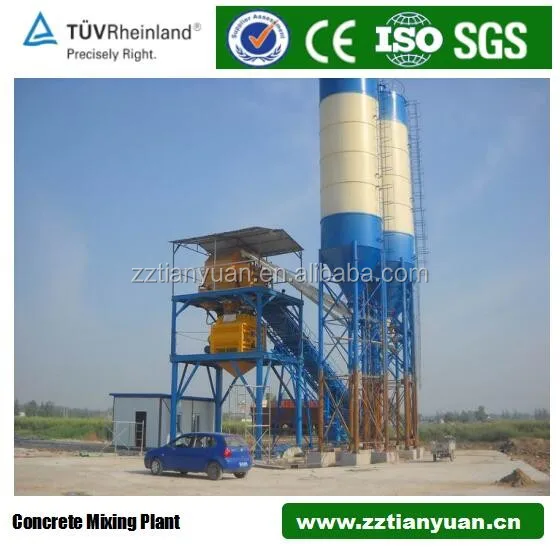

2). vertical concrete cement silo Mainly used as a cement storage tank of Concrete Mixing Plant;

3). It is a sealed silo for bulk storage object, suitable for storing grain, cement, fly ash, etc.

4). It can be equipped with level indicator so as to monitor the material level and amount.

5).With the screw conveyor, the materials can be conveyed to a certain position.

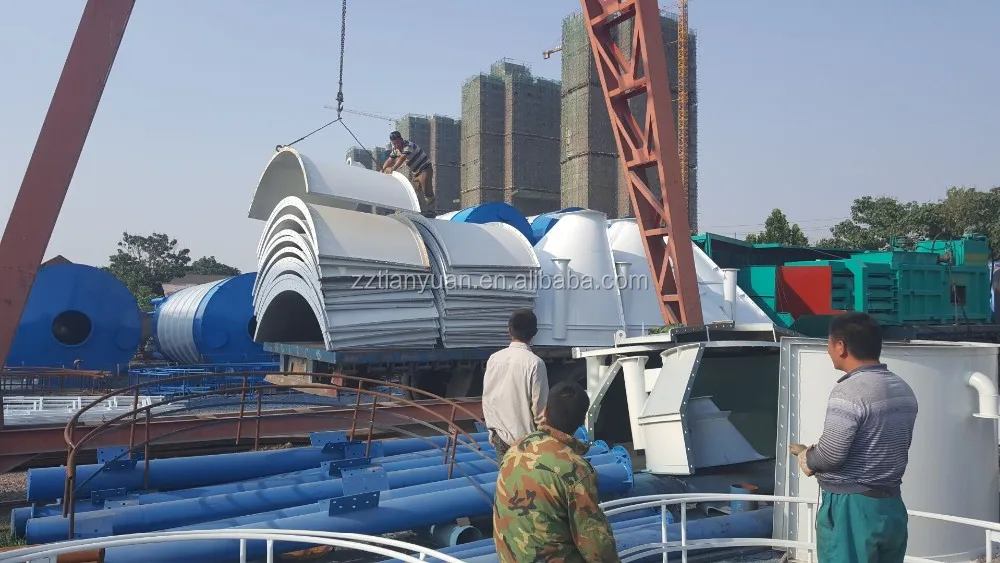

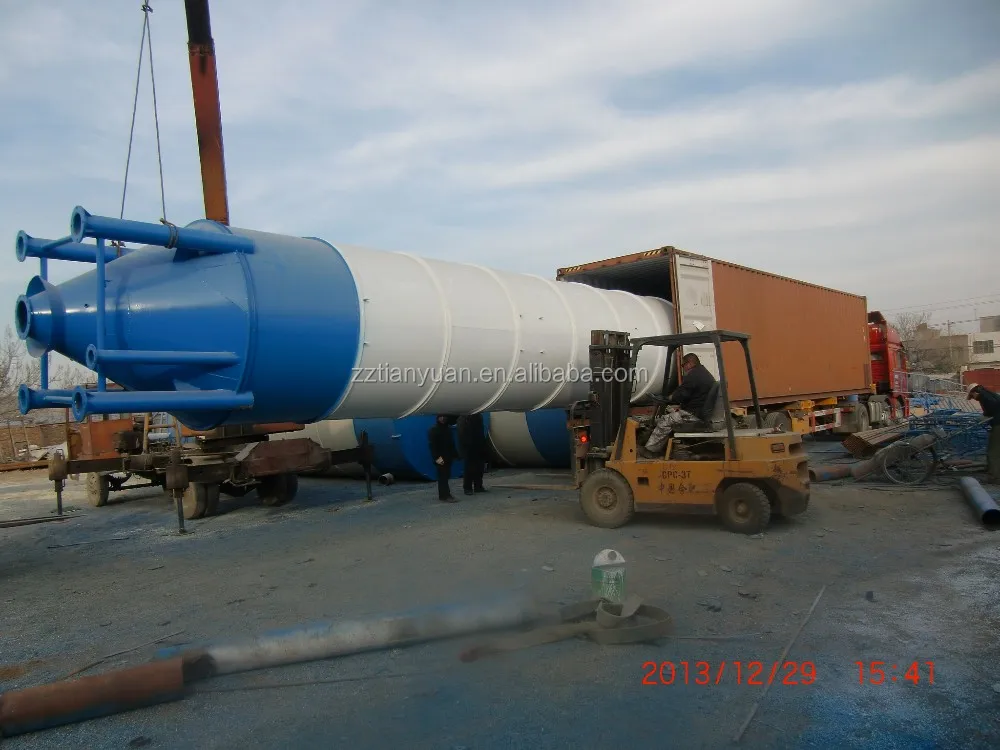

6).Suitable for loading into containers and exporting to overseas.

7).Screw connection in inner side, anti-corrosion;

8).Perfect sealing assure its efficient working performance.

3. Construction Cement Silos data parameter

Volume(T)	Body diameter (m)	length(m)	Unload height(m)	weight(t)
50	3	6.5	2	2.7
60	3	7.8	2	3.2
80	3	9	2	3.8
100	3	11·5	2	4.2
150	3.3	13.5	2	5.8
200	4.5	13	2	12
300	5.5	13	2	17.8



3.1The container require for transportation (for reference)

Type	One set	Two sets	Three sets	Four sets
50T	40’GP	40’HQ	1*40’HQ +1*20’GP	2*40’HQ
60T	40’GP	40’HQ	1*40’HQ +1*20’GP	2*40’HQ
100T	40’GP	40’HQ	1*40’HQ +1*20’GP	2*40’HQ
150T	40’HQ	40’HQ	1*40’HQ +1*20’GP	2*40’HQ
200T	40’HQ	1*40’HQ +1*20’GP	2*40’HQ +1*20’GP	3*40’HQ
300T	1*40’HQ+1*20’GP	2*40’HQ	3*40’HQ	4*40’HQ

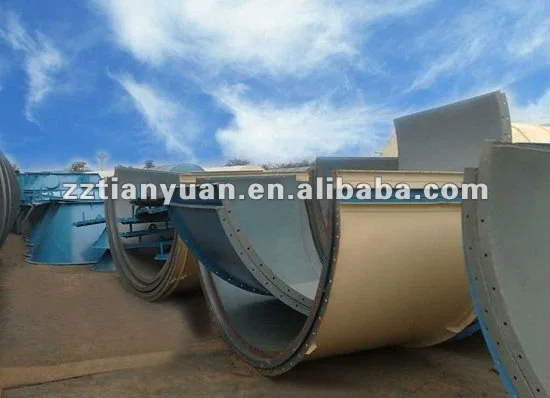

1. One-piece Type, Detachable Type( can be detached for transportation)

2. 20T~600T
