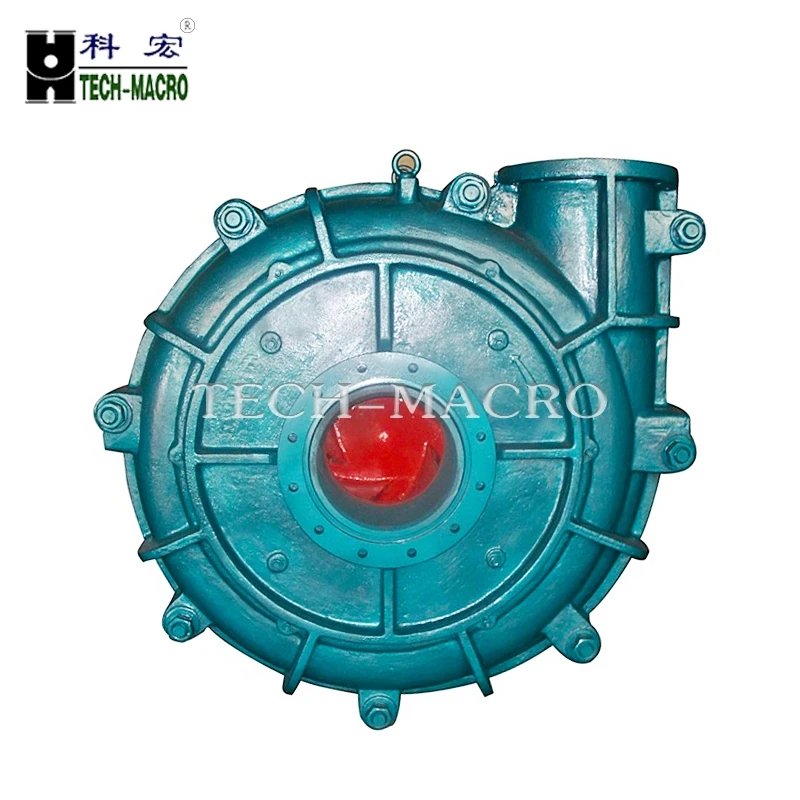

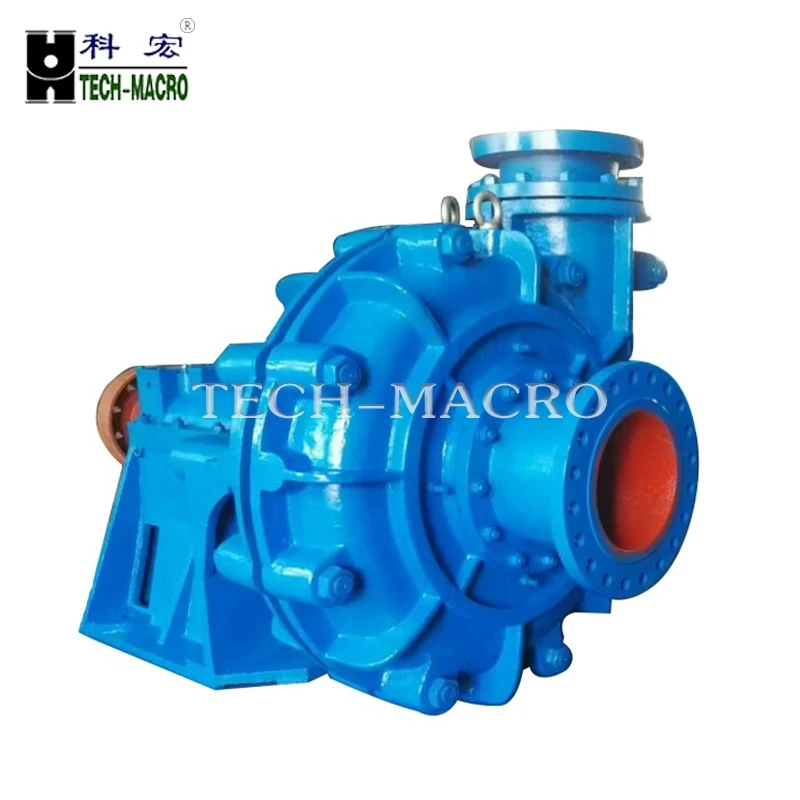

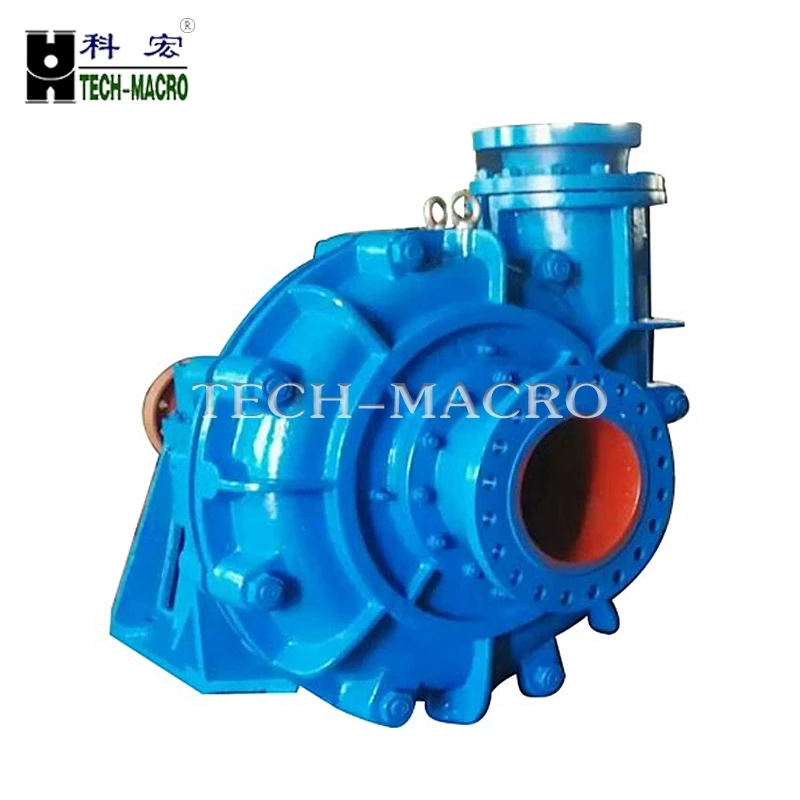

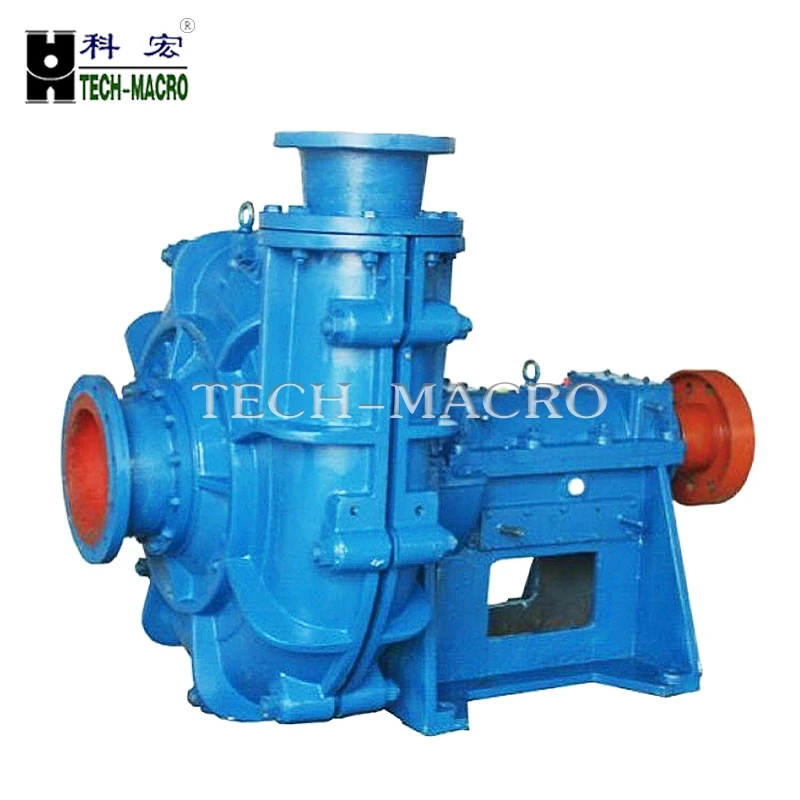

Ash lime slurry pump for caustic liquid double casing heavy duty slurry pump

The type ZGB(P) pump is of horizontal single-stage, single-suction, cantilever, double-casing, centrifugal slurry pump. Among them, the ZGBP pumps are for stage 3 or 4 pumps in multi-stages. The pump is suitable for handling abrasive and corrosive slurry, widely used in electric power, metallurgy ,mine, coal, constructional material and chemical industry departments especially for removing ash and sludge in electric power station.

Typical Application:
· Ore processing
· Removing ash and sludge in power plant
· Transferring lime-ash in power plant
· Metallurgy
· Building materials
· Ash removal of sea water
· Salt spray electronic chemistry
· Other anti-abrasive anti-corrosive working conditions

Main Features

1. High efficiency and low abrasion
2. Can be connected to the multi-step series under the allowable pressure (3.6MPa)
3. The bearings are lubricated with thin oil can work under low temperature by placing the lubrication and cooling system intelligently

Specifications

Model	150ZGB
Capacity	100-900m3/h
TDH	60-94m
Max. Allowable Motor Power	560Kw
Speed	980r/min or 1480r/min
Max. Efficiency	78%
Lubrication	Oil

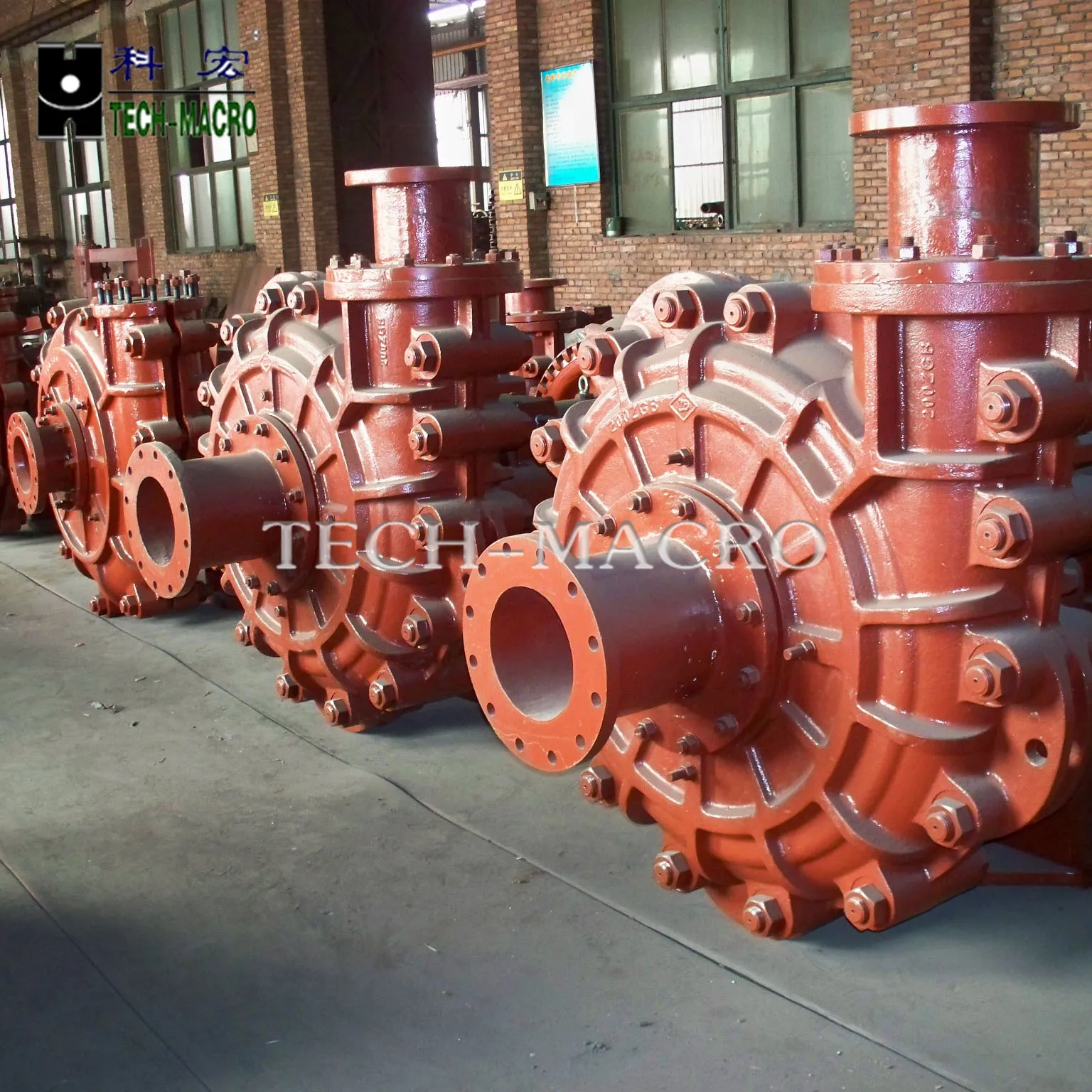

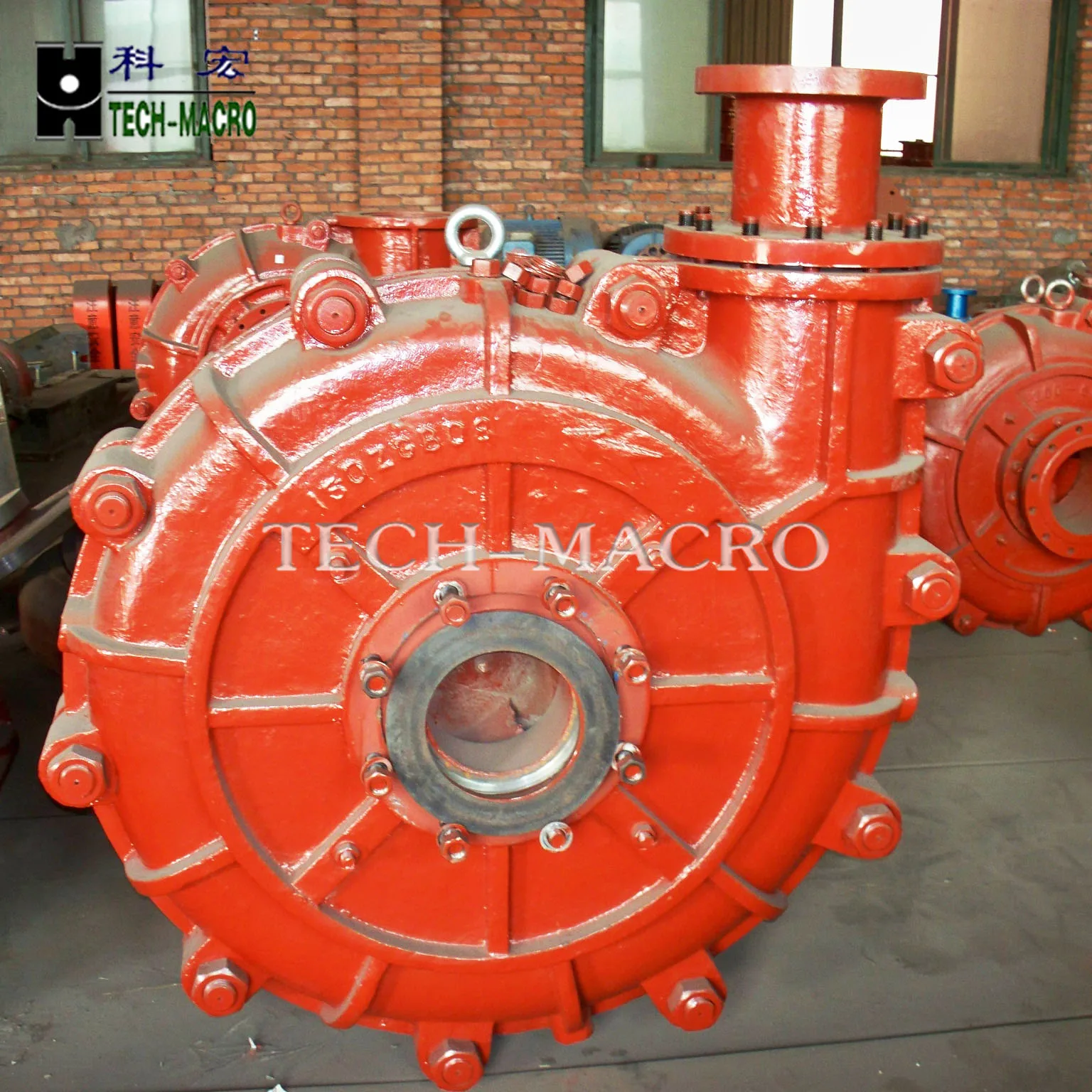

Detailed Images

Performance curve

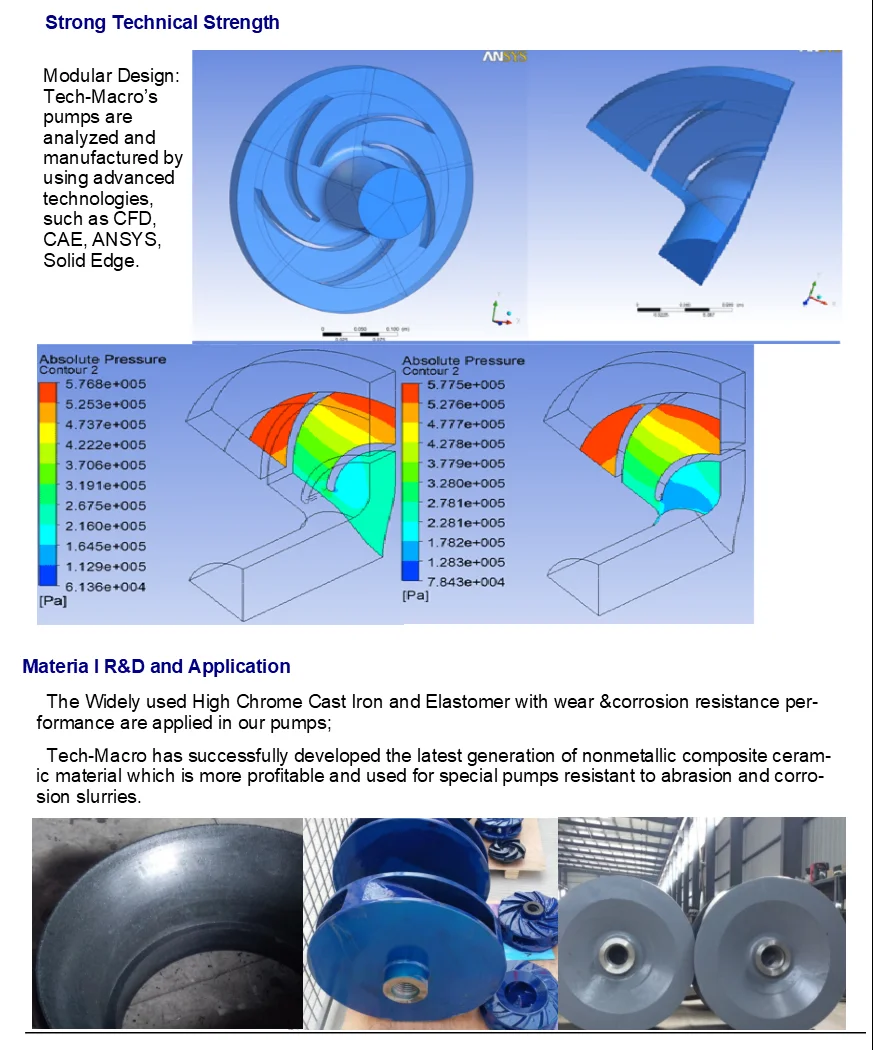

Material R&D

Ceramic Material

Tech-macro has successfully developed the latest generaion of nonmetallic composite ceramic material which is more profitable and used for special pumps resistant to abrasion and corrosion such as slurry pump, desulphrization pump. This material features at energy saving, environmental protection, and could be operated at room temperature, repair waste pars at the working site.

High chrome cast iron& natural rubber

The advanced high-cr white cast iron material is specially developed and designed for FGD desulfurizer. It shows a performance combined anti-corrosion of duplex stainless steel and anti-corrosion of high-cr white cast iron which make it have significant wear and corrosion resistance in the FGD process.
