12mmx2500mm metal sheet bending machine
- Category: >>>
- Supplier: Anhui Sanxin Heavy Industry Machinery Manufacturing Co. Ltd.
Share on (1353927458):
Product Overview
Description
Product Overview

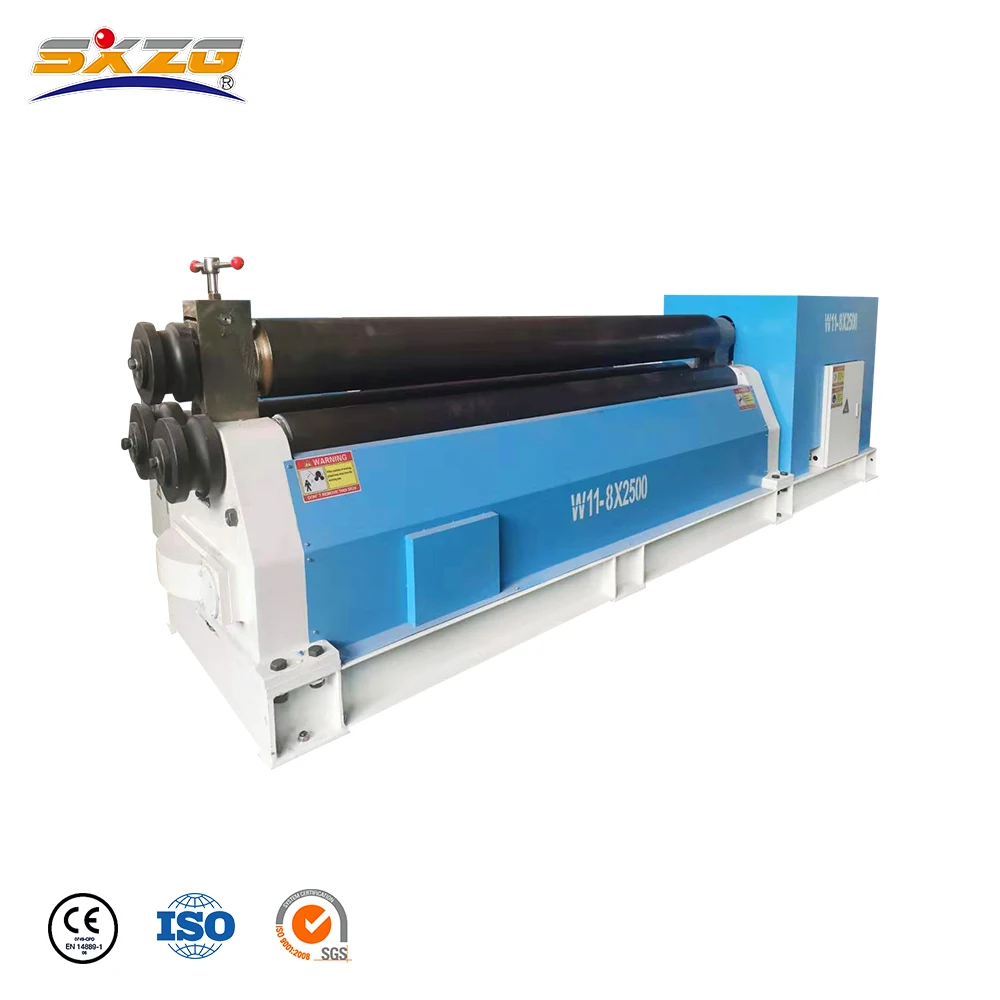

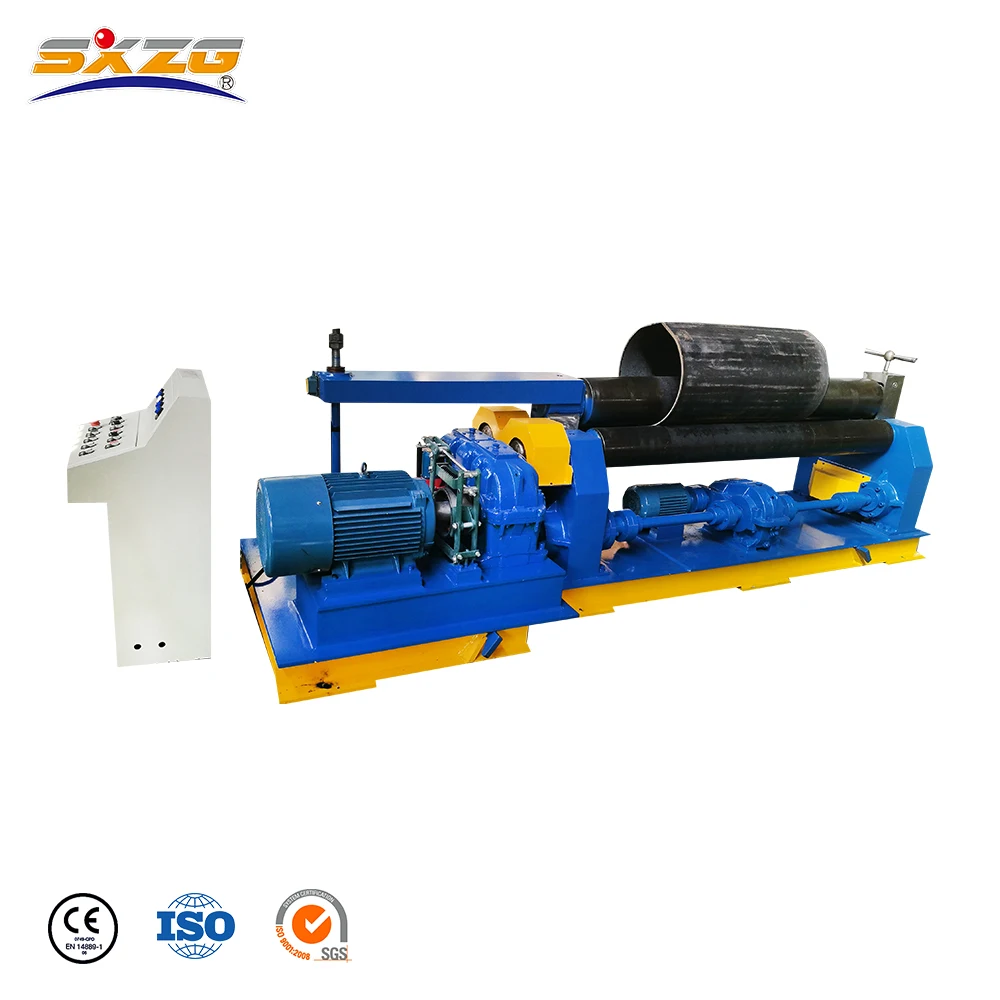

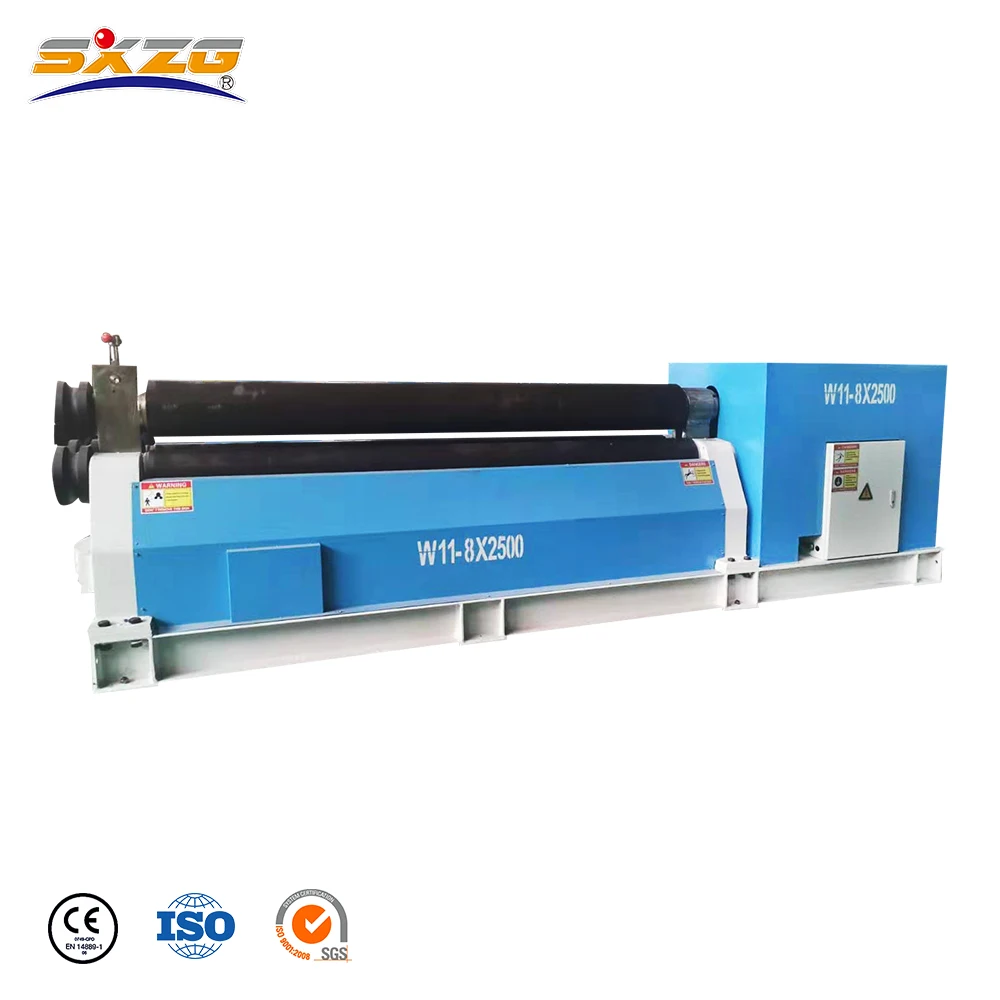

W11 mechanical rolling machine
1. W11 series plate rolling machine with mechanical drice. When take away workpieces, upper roller can be separated. Upon request, we can install kinds of side wheels to bend different types metal shet.
2. Note: 25*2500 adove specifications used hydraulic fell discharge
3. Special specifications can be customized: length of the 1000-4000mm optional.
2. Note: 25*2500 adove specifications used hydraulic fell discharge
3. Special specifications can be customized: length of the 1000-4000mm optional.
Detailed Images

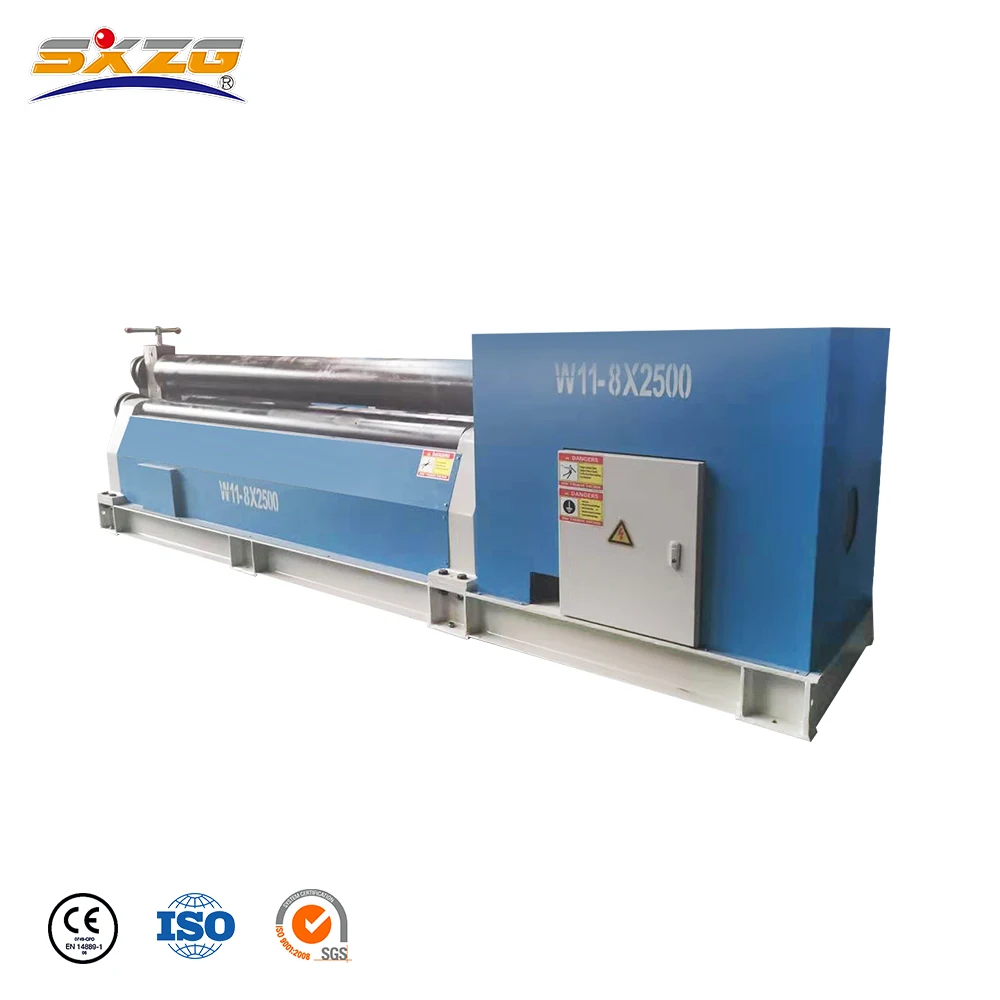

W11 rolling machine
The structure style of this machine is 3 roller symmetrical.
They rotate by the meshing between the output gear of the gearbox and the bottom roller and supply the torque for bending plate.
It’s compact easy operate and maintain.

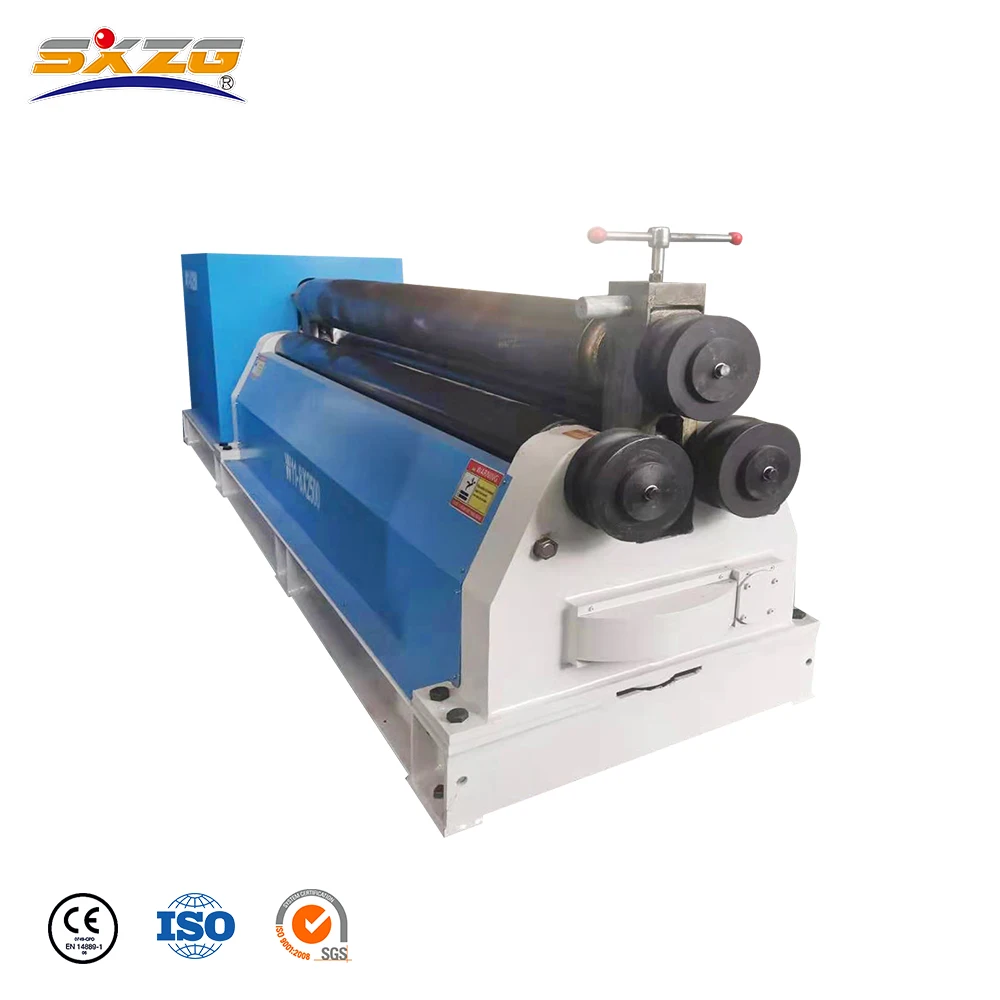

Extended shaft for profile bending.
They rotate by the meshing between the output gear of the gearbox and the bottom roller and supply the torque for bending plate.
It’s compact easy operate and maintain.
Extended shaft for profile bending.
Iron sheet rolling machine
Safety standards (2006/42 / EC) Open the electrical cabinet door to power off Domestic pedal switch ( safety grade 4 ) Body metal
safety rail conforms to CE standards Safety relay monitors the pedal switch, safety protection
safety rail conforms to CE standards Safety relay monitors the pedal switch, safety protection
Roller
The top roller do the movement of elevation in the central position of the two bottom rolls.
It is transmitted by screw nut and worm gear two bottom rolls are main drive rolls. Safety
It is transmitted by screw nut and worm gear two bottom rolls are main drive rolls. Safety
Optional section bending function
Also have optional cone bending function
Release device
The offloading device is used after the round cylinder have been finished. Before leaving the left bearing sear, raised the upper roller to standard height, and make the upper roller stop with balance pull rod at the bottom of upper roller. Then draw out pin shaft on the tilting bearing sear, overturn the tilting bearing seat,then the coiled product can emerge from one end of the upper roller.
Electrical cabinet
Main power:Chinese famous brand
Main electrical components : Chinese famous brand

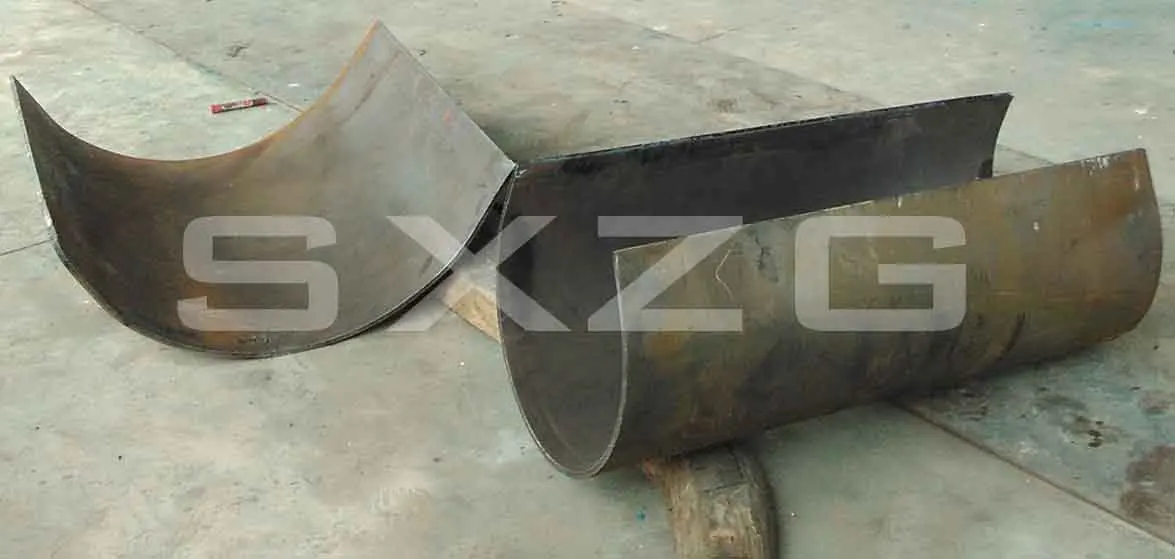

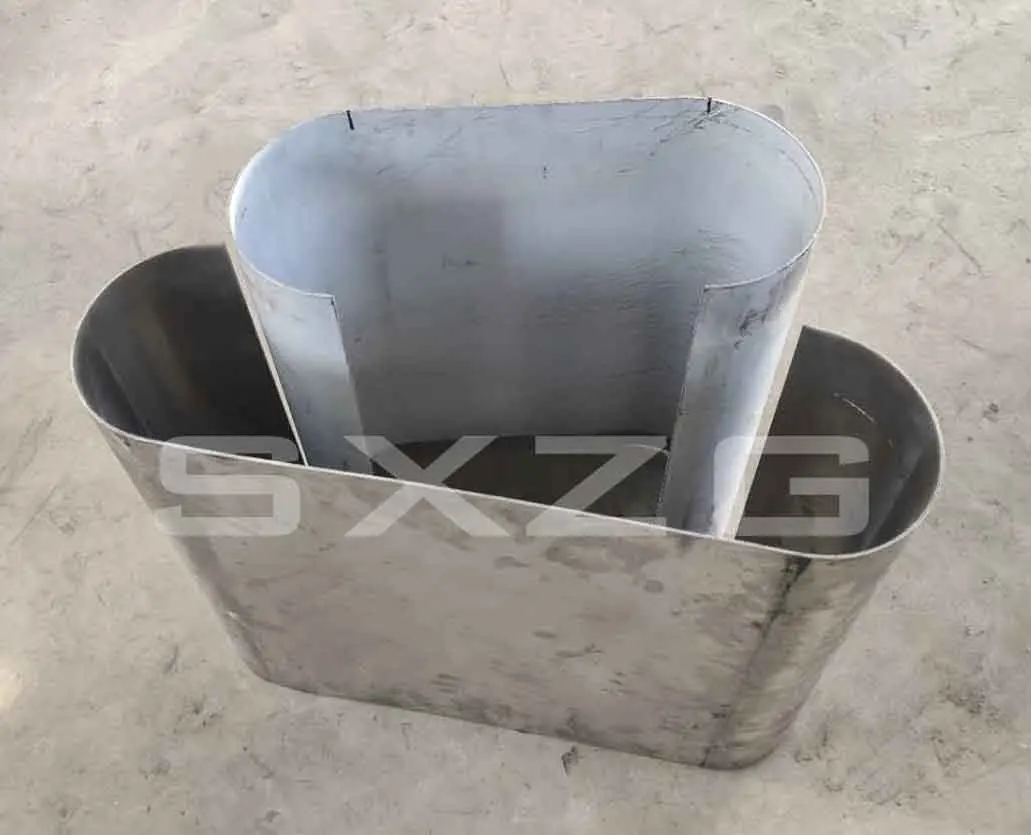

Workpiece Samples
Packaging and Delivery
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer of pipe tube processing.
Q2: How long is your delivery time?
A2: The standard model is 30 working days
Q3: How to choose the model of machines?
A3: -The width of plate
-The thickness of plate
-Plate material
Q2: How long is your delivery time?
A2: The standard model is 30 working days
Q3: How to choose the model of machines?
A3: -The width of plate
-The thickness of plate
-Plate material
Q4: What is your term of payment ?
A4: 30% T/T in advance, the balance before shipment.
A4: 30% T/T in advance, the balance before shipment.
