deep counterbore type, gear shaping tools, module shaving cutter

Product Overview

Description





                   We promise good service, high quality and quick delivery!



                                       Harbin Tool Works

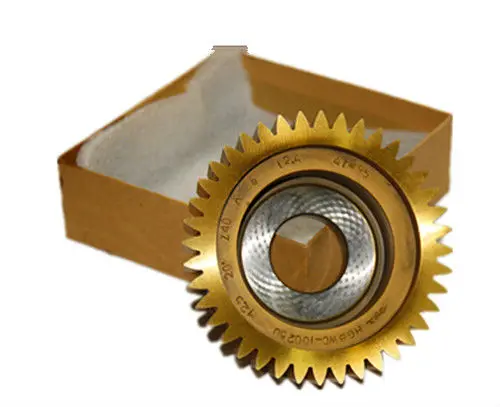

Deep counterbore type shaper cutter



There are four kids for your choice:

NOMINAL pitch diameter: Φ50mm, Φ75mm, Φ100mm, Φ125mm

class AA, A, B



SPECIFICATION

MODULE	PITCH DIA.MM	NO. OF TEETH	DIAMETER OF HOLE	THICKNESS
1.00	50.00	50	20	25
1.25		40
1.50	51.00	34
1.75	50.75	29
2.00	50.00	25
2.25	49.50	22
2.50	50.00	20
2.75	49.50	18
3.00	51.00	17		27
3.25	48.75	15
3.50	49.00	14





Relative products

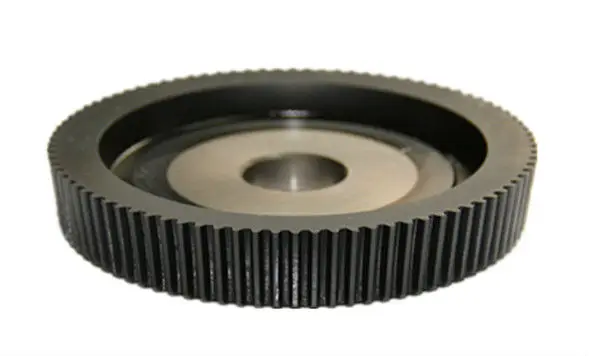

                               Disc type shaper cutter



                                                                     Involute spline type shaper cutter

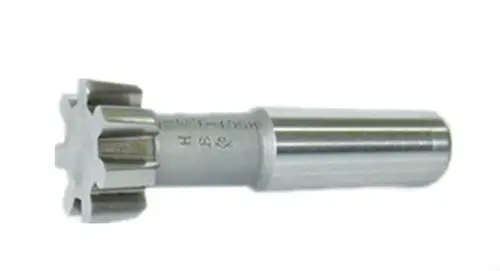

                           Taper shank type shaper cutter

HARBIN TOOL WORKS was set up in 1990, who is a modern enterprise mainly produces gear cutting tools. For more than 20 years’ continuous development, we have acquired powerful capability and adequate production facility.



We have got 13 national patents for invention and utility model. Some important operations in the production process are completed on sophisticated foreign facilities imported from Germany, Switzerland, Italy and Japan.



We adopt advanced technology from Germany into heat treatment process according to the material and specifications of different products. We have introduced the Swiss Balzers coating equipment, which can be used in various coatings to achieve dry cutting.



Tell us about……



Tell us the module, pressure angle, outside diameter, length, hole diameter, direction of turning and other specifications or send us the drawing sheet;





Tell us the material. We offer HSS m2, m35, m42, ASP 2030, 2052;





Tell us the coating: TiALN, TiN, ALCrN coating or uncoated





Tell us the accuracy level: class AA, A, B, C;





Tell us you need a standard or non-standard one.
