ABE Laser beam digital 3beams active infrared sensor detector

Product Overview

Description



Specifications:

1.Sealed structure

2.distance detecting:

Distance:50m,100m,150m,200m,250m(outdoor)

Distance:150m,300m,450m,600m,750m(indoor)



3.Anti-jamming jacket

4.Automatic Adjustable

5.MODEL: ABE-50,ABE-100,ABE-150,ABE-200,ABE-250





  Laser beam digital 3beams active infrared sensor detector ABE



Distance:50m,100m,150m,200m,250m(outdoor)

Distance:150m,300m,450m,600m,750m(indoor)

Operating voltage:13.8~24VDC 11~28VAC

Operating Current: 40-65mA

Induction speed:50~700m/sec

Anti-demolition output:NC

Enviroment temp:-20°C~+50°C

Alarm output:NO/NC

Level/Vertical adjustment:180°±90°/±10°

Material:PC Weight:2050g

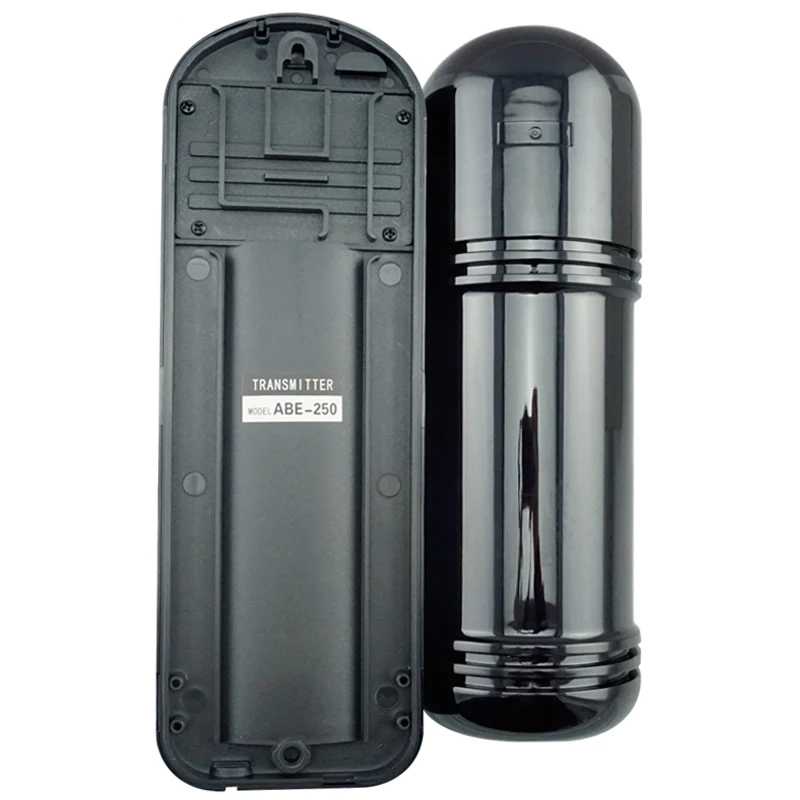

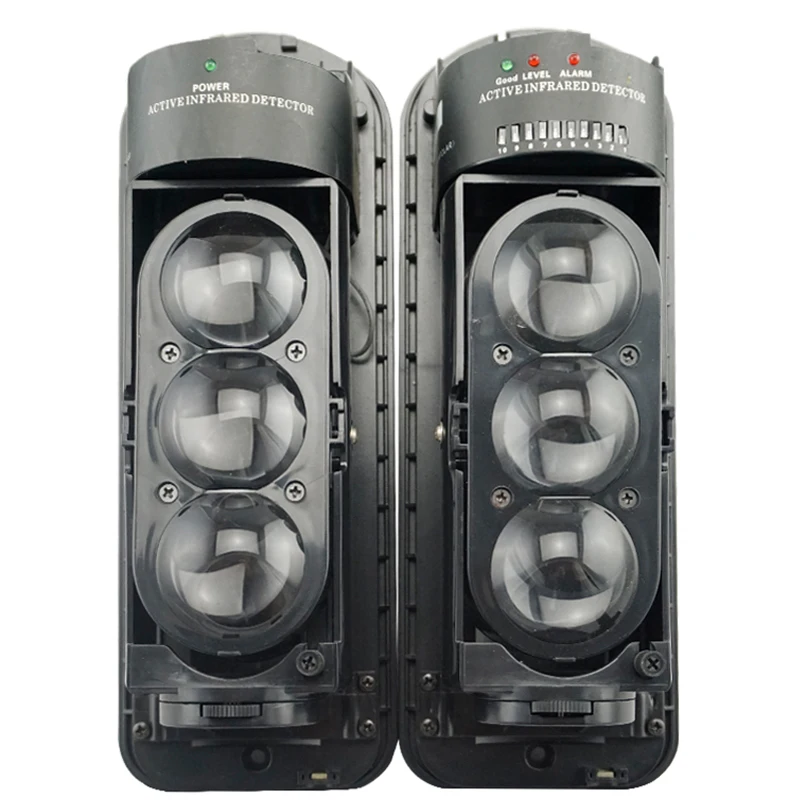

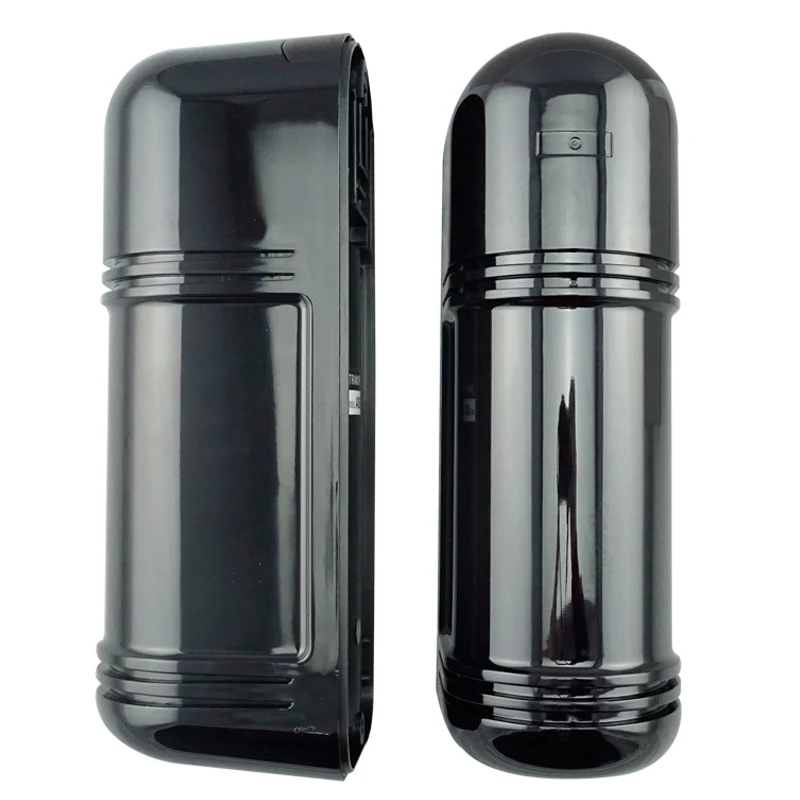

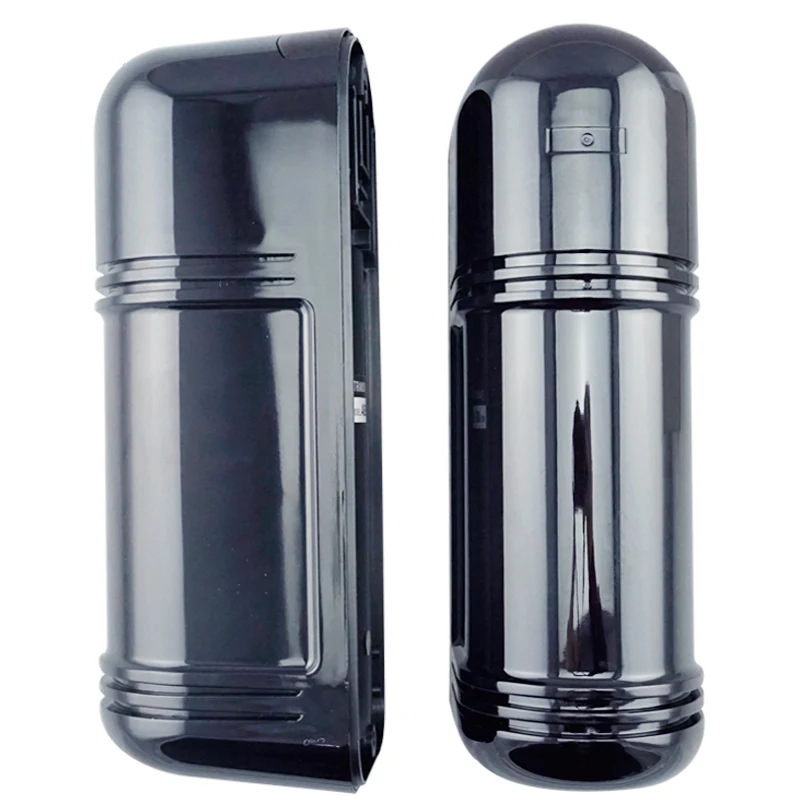

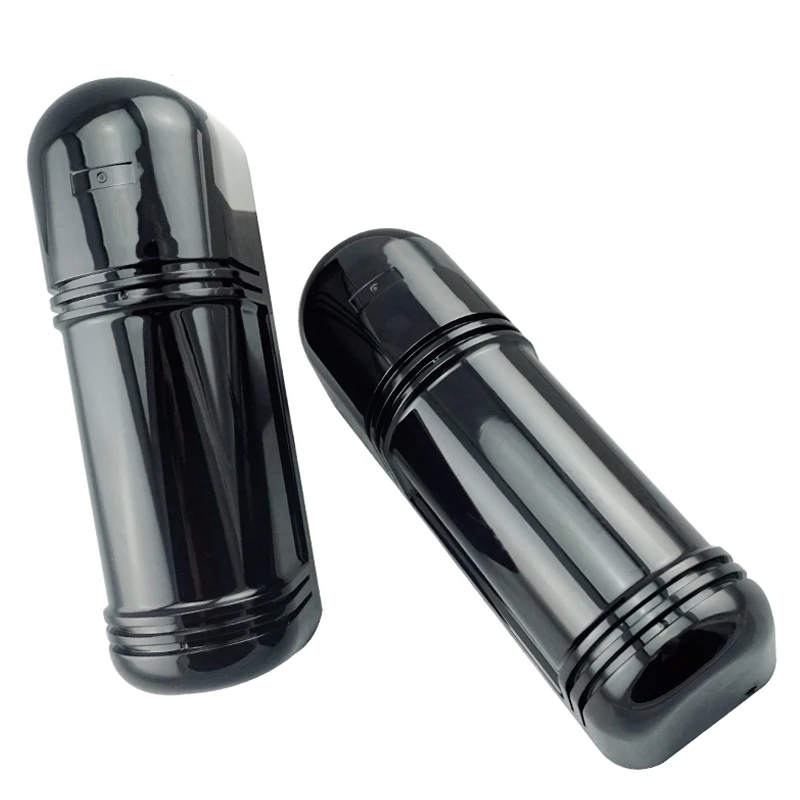

Product Pictures:









Product Features:

Main Features

1. Integrated structure designed to be able to work in harsh environment.

2. When confronted with fog or inclement weather, the detector will automatically increase the sensitivity (AGC circuit).

3. Horizontal/vertical Optical angle easy to adjust, easy to calibrate.

4. Built-in integration of optical telescopes, use the professional anti-jamming optical jacket.

5. Anti-lightning circuit design.

6. High Power Infrared receiver on the tube, Low-power digital.
