Product Overview

Description

ZR SERIES GREENHOUSE OR POULTRY HOUSE VENTILATION FAN/EXHAUST FAN:

 1. Exhaust Fan / Ventilation Fan /Box Fan / Cone Fan                                           2. Galvanized frame and stainless steel blade                                                     3.CE,ISO,SGS Certificated





ZR Series Ventilation Fan / Exhaust Fan / Ventilation Fan

ZR series push-pull centrifugal exhaust fan:



Model	Blade (MM)	Frequency (HZ)	Motor Speed (R/MIN)	Capacity  (CBM/H)	Power (HP)	Noise  (DB)	Voltage  (V)	Frame Size (MM)	Zinc Thickness
ZRP-1000	910(36'')	50/60	≥1400	35000	1.0	≤64	380/220	1000x1000x450	180g/m2
ZRP-1380	1270(50'')	50/60	≥1400	48000	1.5	≤64	380/220	1380x1380x450	180g/m2











ZR series heavy hammer exhaust fan:

Model	Blade /mm	Blade Speed (r/min)	Motor speed (r/min)	Capacity (cubic meters/h)	Noise (db)	Power /w	Voltage /v	Size  (mm)
								H	W	D
ZRH-1000	900	600	1400	32000	≤64	750	380	1000	1000	400
ZRH-1100	1000	600	1400	35000	≤64	750	380	1100	1100	400
ZRH-1220	1100	480	1400	40000	≤64	1100	380	1220	1220	400
ZRH-1380	1270	440	1400	44000	≤64	1100	380	1380	1380	400
ZRH-1530	1400	440	1400	55800	≤64	1500	380	1530	1530	400

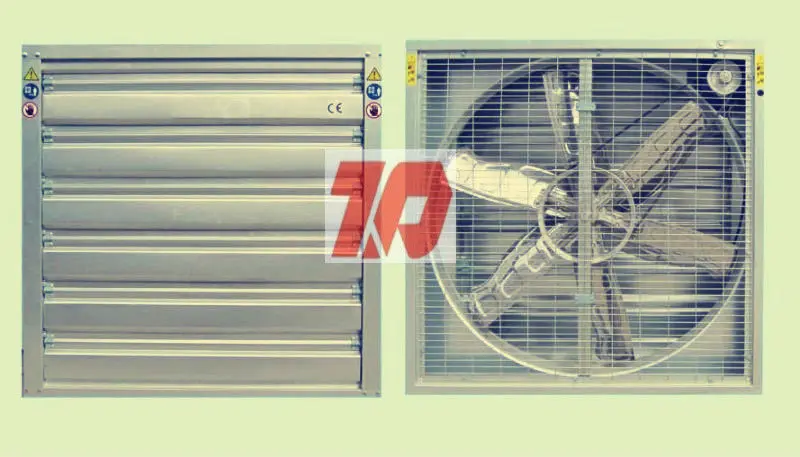

           ZR series Exhaust Fan / Ventilation Fan /Box Fan / Cone Fan details.



    1, Frame:  frames are made of galvanized board, thickness 1.0mm, galvanizing layer 180g/square meter.



    2, Blade:  6 pieces, material 430/201 stainless steel, mirror face.



    3, Impeller, casting aluminum alloy impeller.



    4, Bearing of impeller :permanently sealed bearing, size 633313.



    5, Venture: galvanized board, thickness 1.0mm.



    6, Blade tip clearance: 25mm, mirroe face.



    7, Inlet wind protecting net:  spraying paint steel wire, thickness 2.8mm.



    8, Electrical motor:  aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,



    9, Motor bearing, :national grade.



    10, Belt: V-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).



    11, Shutters, galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer ,120g/square meter.



    12, Opening system, nylon material, brown color and black color.



    13, Rivets: aluminum alloy and stainless steel rivets.



    14, Cable: 1 meter long, strong robber wire.



    15, Tensioner: plastic or aluminum.



    16, Warranty : 1 year for the whole machine.



    Other advantahes of  Exhaust Fan / Ventilation Fan /Box Fan / Cone Fan :



    A). Fans parts are manufactured by digital machines and precision system is assisted by computers, which maximizes the effectiveness of the fan.



    B), Ten strict testing procedures to keep good quality of the fan: 1), airflow test; 2), noise test; 3), libration test; 4), drive concentric test; 5),  blade RPM test; 6), electric current test; 7), whole machine efficiency test; 8), dynamic balance test; 9),  the thickness of the galvanized sheet test; 10), the size of the spare parts test.

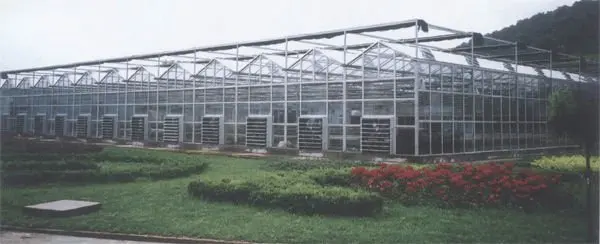

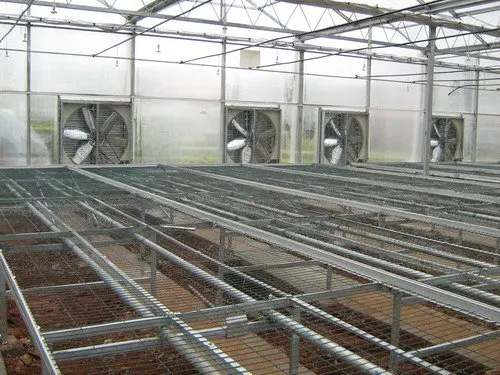

 Usage of the  greenhouse or pultry house Exhaust Fan / Ventilation Fan /Box Fan / Cone Fan :

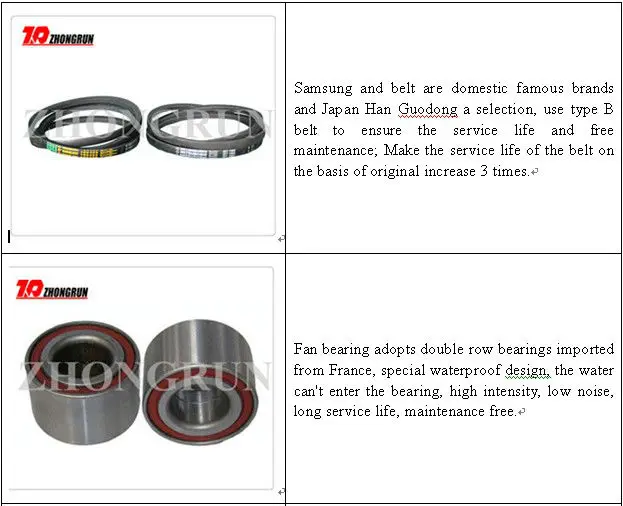

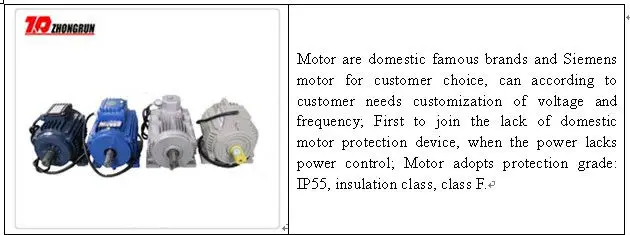

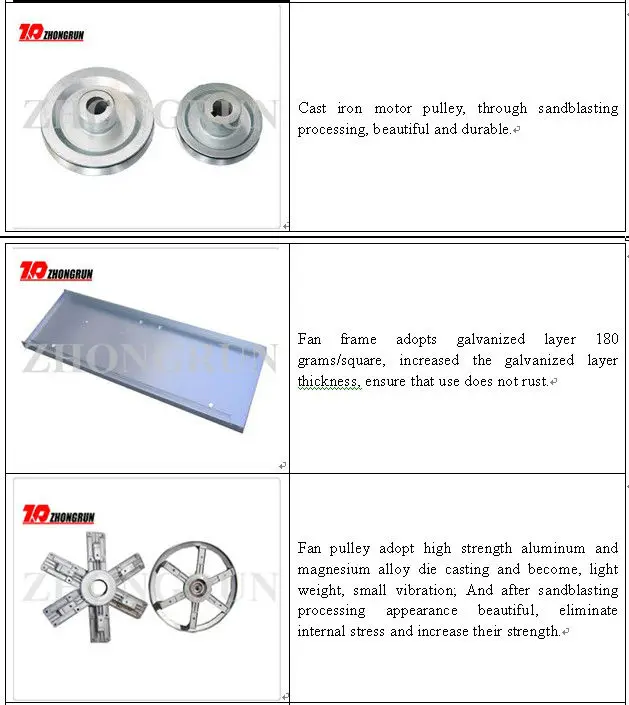

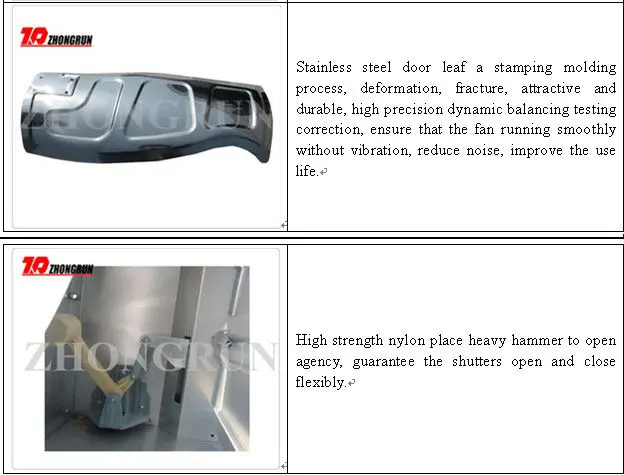

 Parts of the  greenhouse or pultry house Exhaust Fan / Ventilation Fan /Box Fan / Cone Fan :

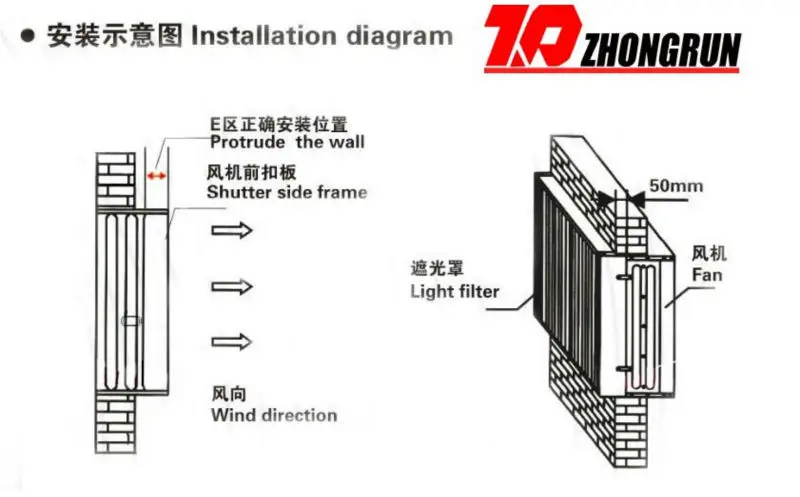

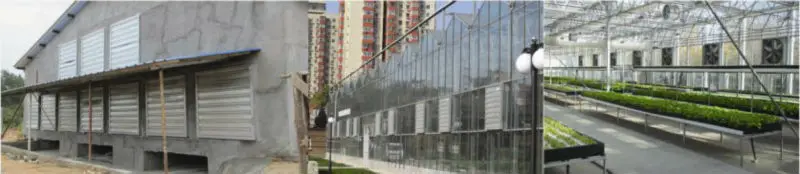

Installation of ZR exhaust fan:

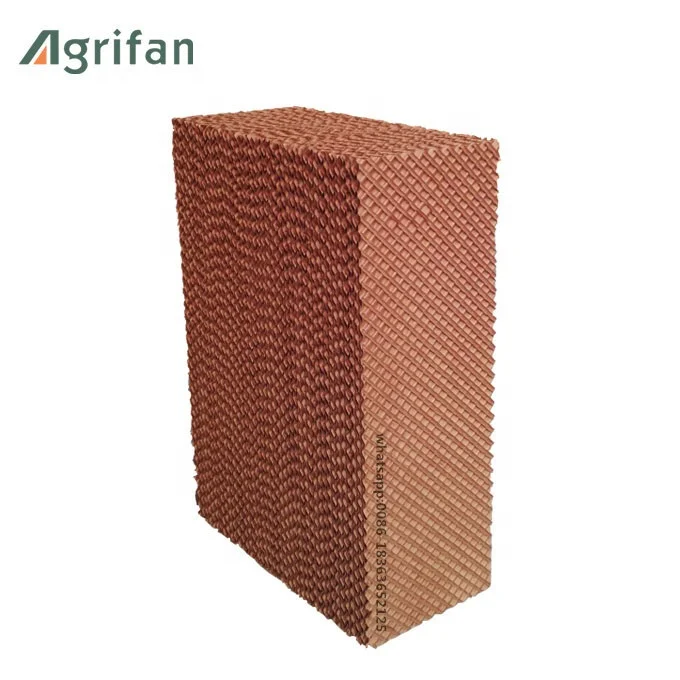

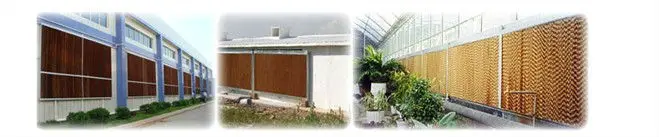

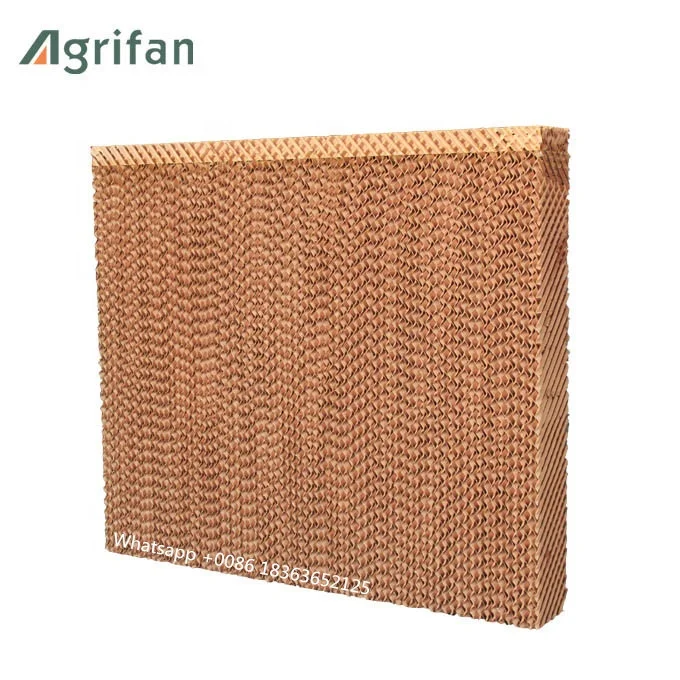

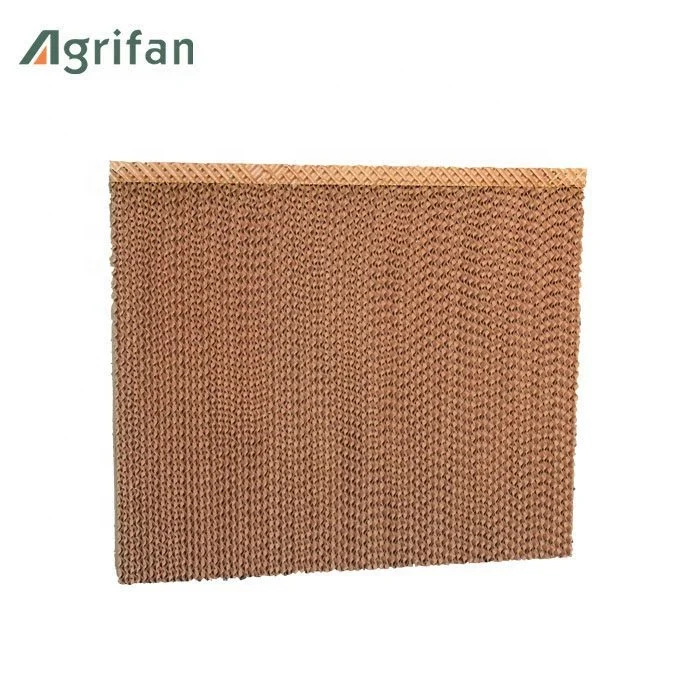

The accessories of ZR exhaust fan----cooling pad:



ZR series grrenhouse and poultry house exhaust fan certificate:

Good quality and Good price!
