US EU AU UK Japan Korea Plug 24W Switching Power Supply AC DC Adaptor 12V 2A 24V 1A Power Adapter With UL FCC CE GS PSE KC SAA

Product Overview

Description

US EU AU UK Japan Korea Plug 24W Switching Power Supply AC DC Adaptor 12V 2A 24V 1A Power Adapter With UL FCC CE GS PSE KC SAA

• 12vdc 2a or 24vdc 1a 24W output;


• UL,FCC,CEC VI;CE,GS;SAA,C-Tick;PSE;UKCA;KC;


• US AC PLUG for US and CA; CE/GS For EU Market;PSE for Japan;SAA,C-Tick for Australia;KC For Korea.


• Use for CCTV,Router,Monitor,Beauty intruments

Input	Rated Voltage	100~240VAC
	Voltage range	90-264VAC
	Frequency	50/60Hz
	Frequency range	47-63Hz
	Leakage current	<0.25mA at 240 V
Output	DC voltage	12VDC   or 24VDC
	Rated current	1A or 2A    24W
	Load regulation voltage	±5% (11.4-12.6)
	Ripple & Noise (max)	120mVp-p
	No load power consumption	<0.1W
	Efficiency	≥82.6% ,CECVI

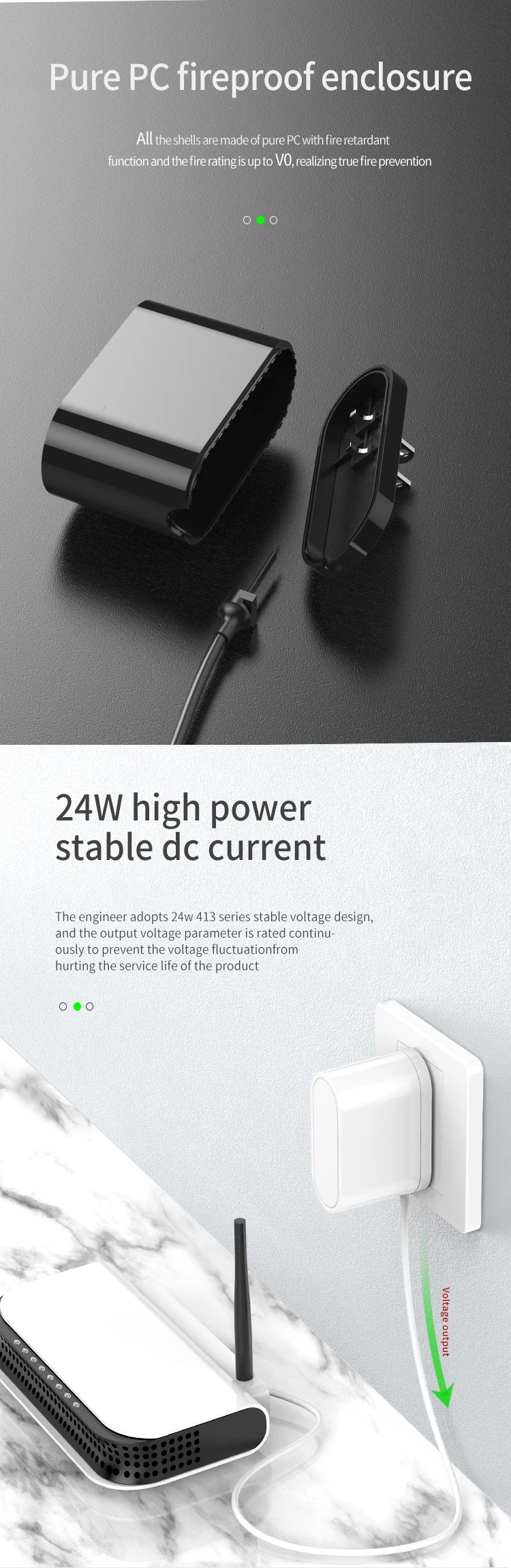

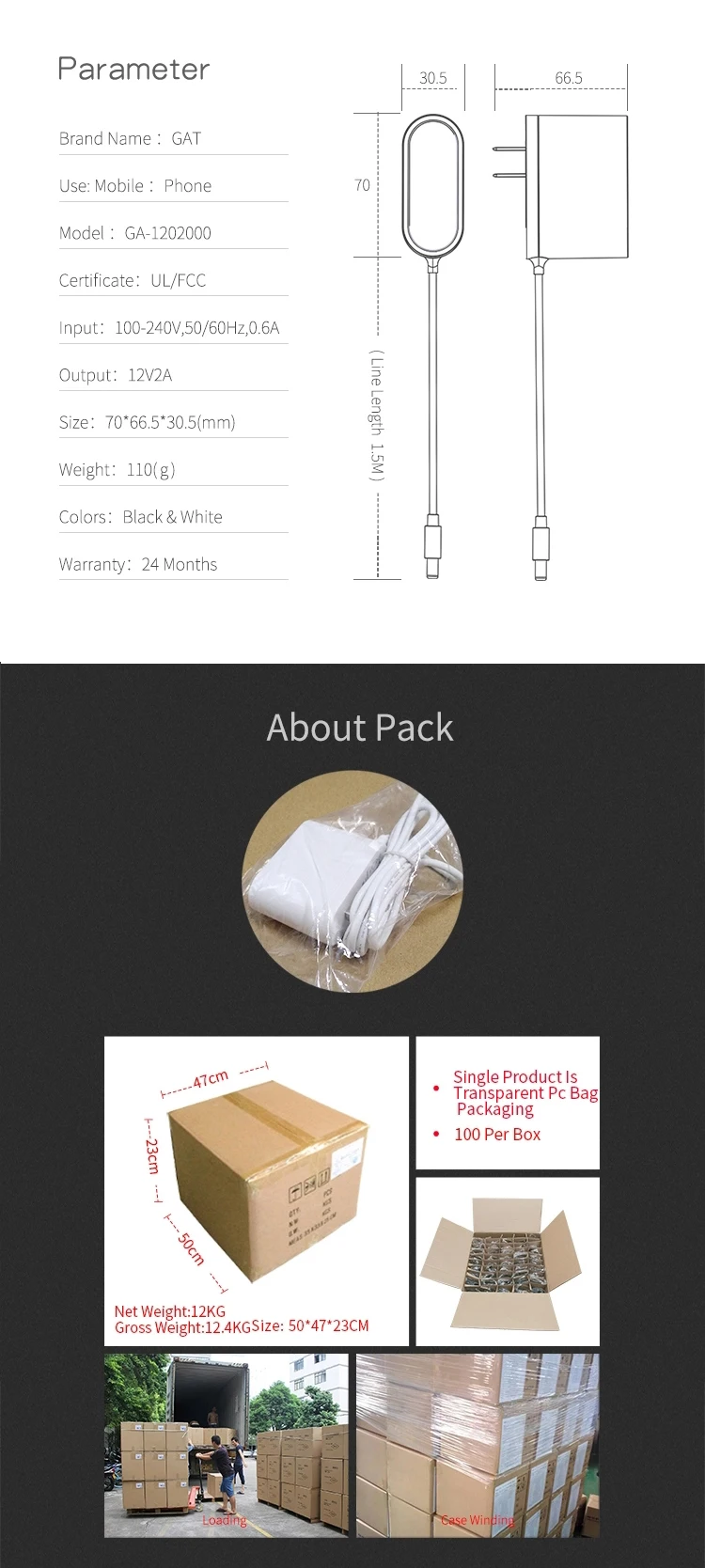

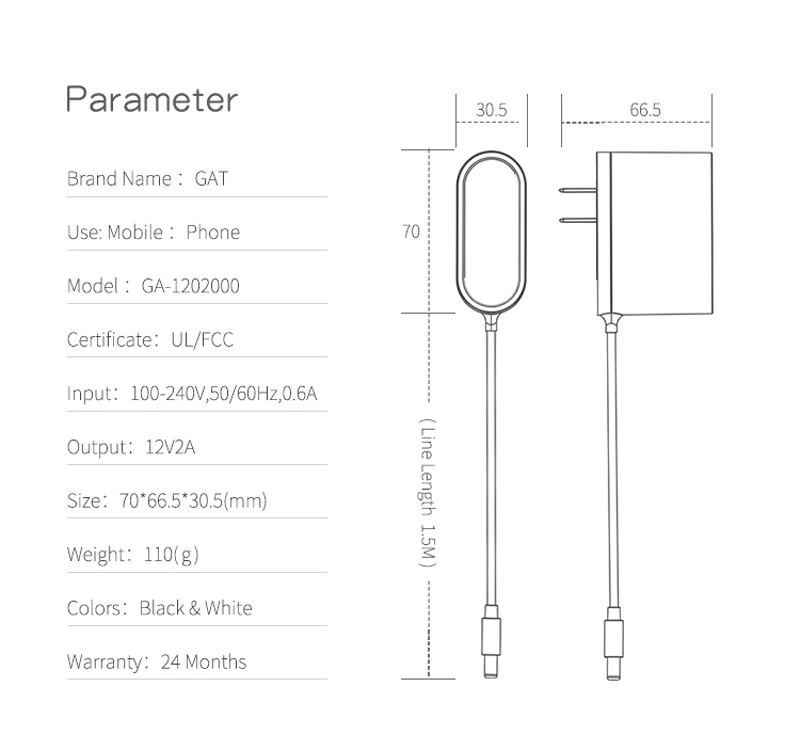

Size	PC(94V-0 fireproof)	70*66.5*30.5mm
Reliability	Hi-Pot Test	3KVAC 10ma 3s no damage @ Primary to Secondary
	Insulation resistance	10M ohm @ Primary to Secondary  @500VDC
	Burning in	2-4hours @normal input and load  25°C
	MTBF	≥20000 hours @full load 25°C
Protection	Short circuit protection
	Over voltage protection
	Over Current protection
Environment	Working temperature	0 ~+45°C, Full load working well.
	Working humidity	10% ~90%, 72Hours full load working well
	Storage temp	-20°C to 85°C with enclosure
	Cooling mode	Natural cooling
Safety	Certification	UL,FCC
Customized	AC Plug	US AC Plug
	DC connector	5.5*2.1mm or 5.5*2.5m or customized

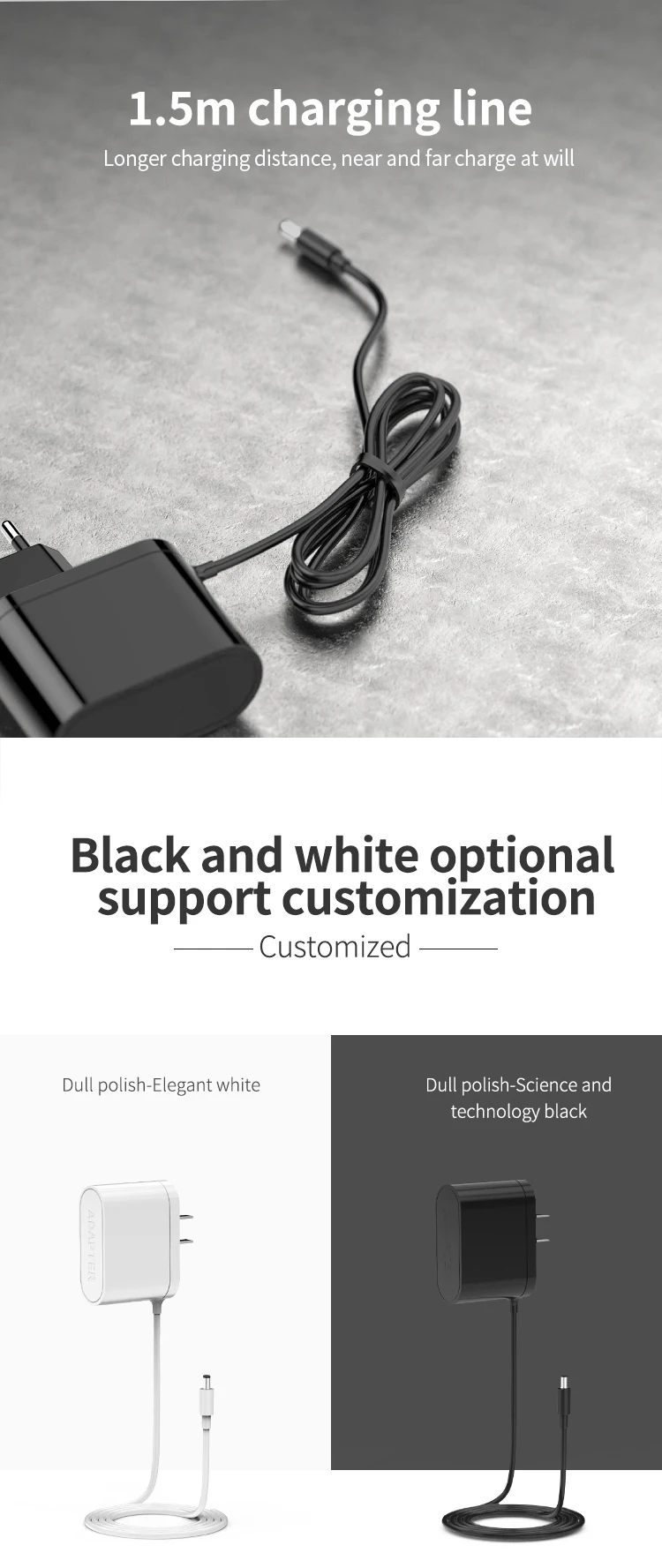

	DC Cord length	1.5M or customized
