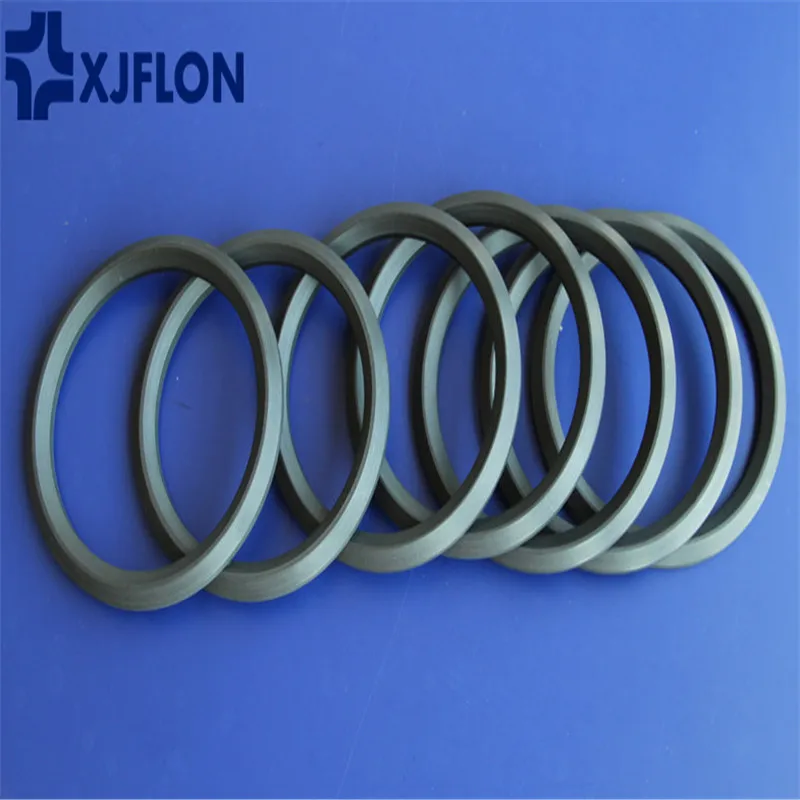

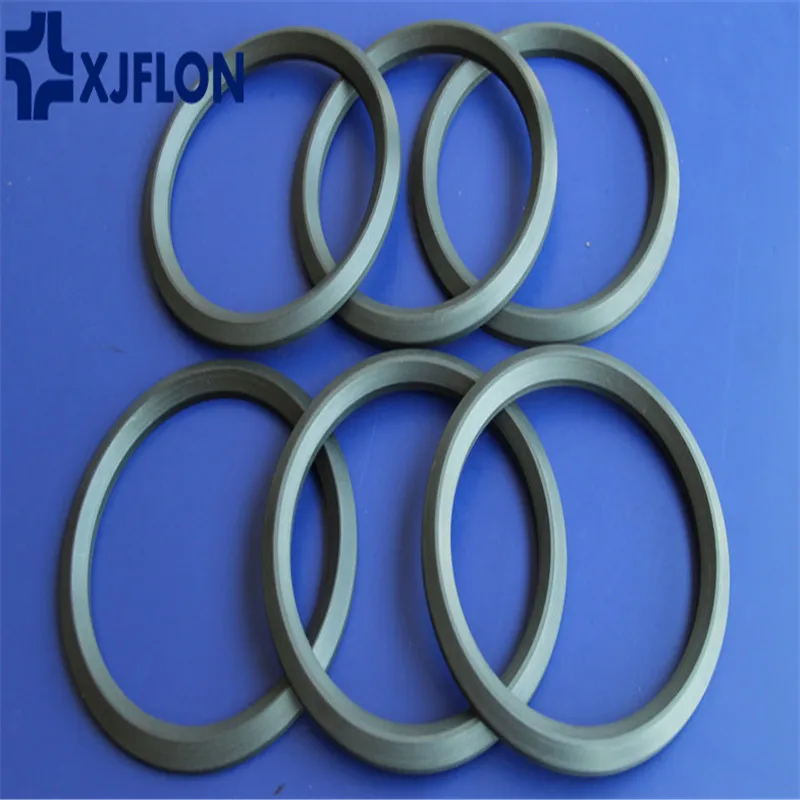

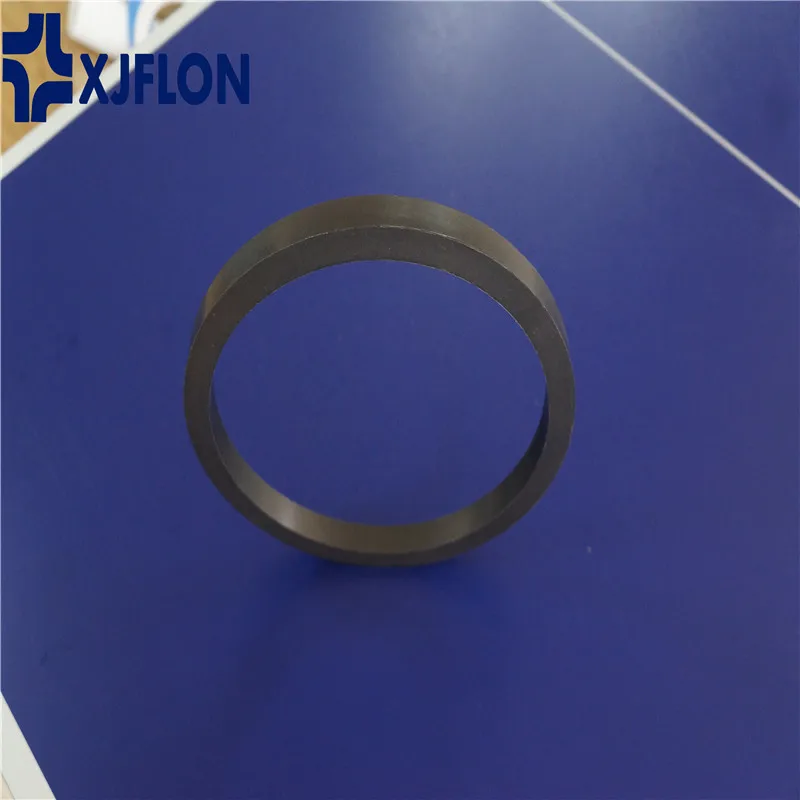

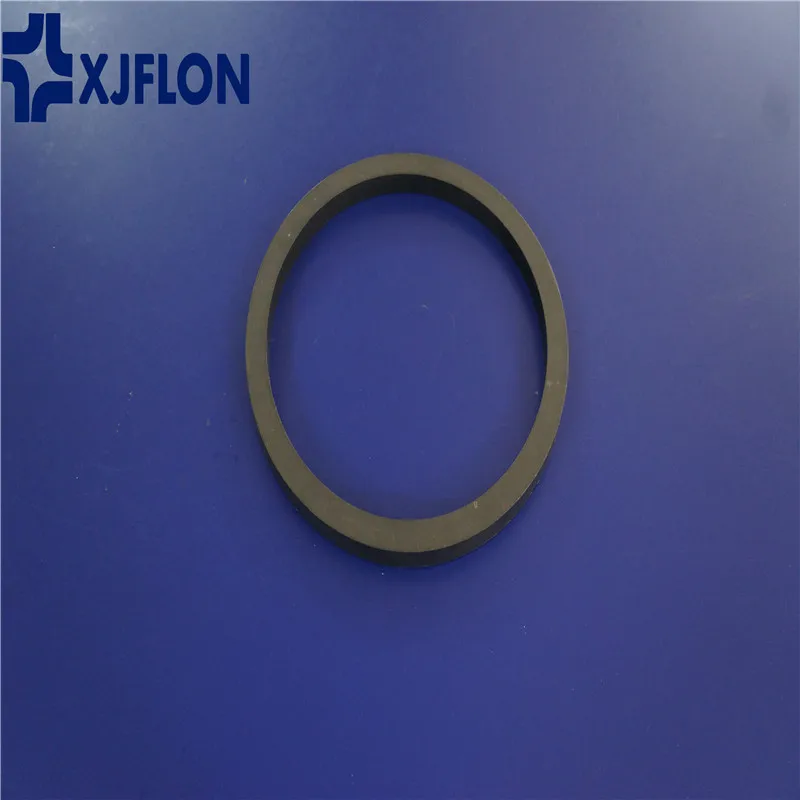

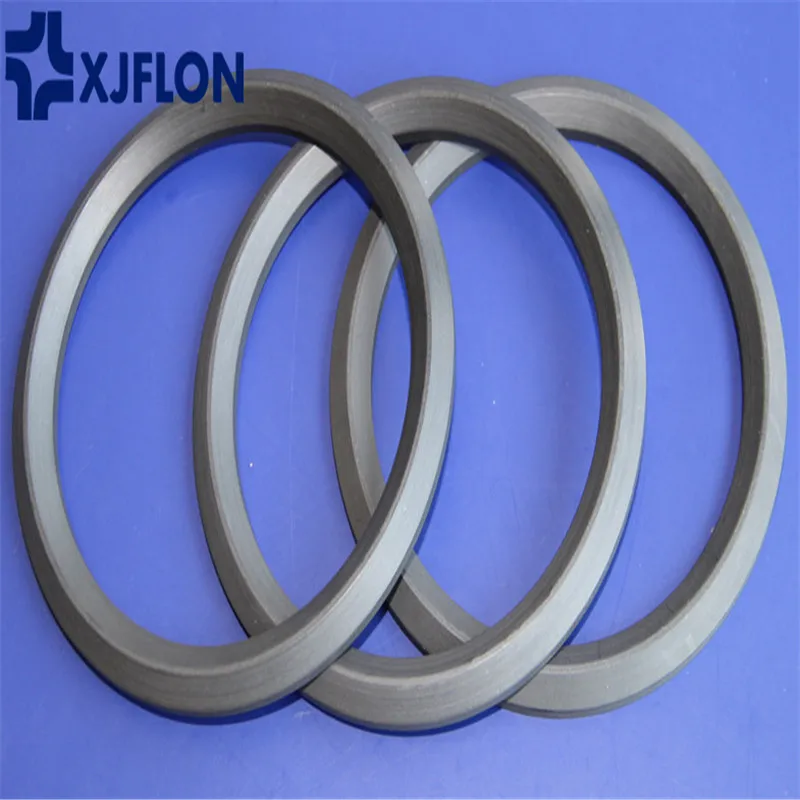

Factory Custom Professional Carbon Graphite Filled PTFE Gasket o Ring Compressor Cylinder Parts Wear Ring seal fittings
- Category: >>>
- Supplier: Wuxi Xiangjian Ptfe Product Co. Ltd.
Share on (1356895493):
Product Overview
Description
Standard Gasket
| ENSI (PN2.0) mm | EU Standard(PN1.6) | JIS (16K) | JIS(10K) | ||||||||||||||||
Nomi- | OD | ID | T | N.W. | Nomi- | OD | ID | T | N.W. | Nomi- | OD | ID | T | N.W. | Nomi- nal Dia | OD | ID | T | N.W. |
| DN15 | 46.5 | 22 | 3 | 0.01 | DN10 | 46 | 18 | 3 | 0.01 | DN10 | 53 | 18 | 3 | 0.014 | DN10 | 53 | 18 | 3 | 0.014 |
| DN20 | 56 | 27 | 3 | 0.015 | DN15 | 51 | 22 | 3 | 0.012 | DN15 | 58 | 22 | 3 | 0.016 | DN15 | 58 | 22 | 3 | 0.016 |
| DN25 | 65.5 | 34 | 3 | 0.02 | DN20 | 61 | 27 | 3 | 0.016 | DN20 | 63 | 28 | 3 | 0.017 | DN20 | 63 | 28 | 3 | 0.017 |
| DN32 | 75 | 43 | 3 | 0.023 | DN25 | 71 | 34 | 3 | 0.021 | DN25 | 74 | 35 | 3 | 0.023 | DN25 | 74 | 35 | 3 | 0.023 |
| DN40 | 84.5 | 49 | 3 | 0.03 | DN32 | 82 | 43 | 3 | 0.027 | DN32 | 84 | 43 | 3 | 0.028 | DN32 | 84 | 43 | 3 | 0.028 |
| DN50 | 104.5 | 61 | 3 | 0.05 | DN40 | 92 | 49 | 3 | 0.033 | DN40 | 89 | 49 | 3 | 0.03 | DN40 | 89 | 49 | 3 | 0.03 |
| DN65 | 123.5 | 77 | 3 | 0.053 | DN50 | 107 | 61 | 3 | 0.042 | DN50 | 104 | 61 | 3 | 0.038 | DN50 | 104 | 61 | 3 | 0.038 |
| DN80 | 136.5 | 89 | 3 | 0.06 | DN65 | 127 | 77 | 3 | 0.055 | DN65 | 124 | 77 | 3 | 0.051 | DN65 | 124 | 77 | 3 | 0.051 |
| DN100 | 174.5 | 115 | 3 | 0.13 | DN80 | 142 | 89 | 3 | 0.066 | DN80 | 140 | 90 | 3 | 0.062 | DN80 | 134 | 90 | 3 | 0.053 |
| DN125 | 196 | 140 | 3 | 0.14 | DN100 | 162 | 115 | 3 | 0.07 | DN90 | 150 | 102 | 3 | 0.066 | DN90 | 144 | 102 | 3 | 0.056 |
| DN150 | 221.5 | 169 | 3 | 0.15 | DN125 | 192 | 141 | 3 | 0.092 | DN100 | 165 | 115 | 3 | 0.076 | DN100 | 159 | 115 | 3 | 0.065 |
| DN200 | 278.5 | 220 | 3 | 0.18 | DN150 | 218 | 169 | 3 | 0.105 | DN125 | 203 | 141 | 3 | 0.116 | DN125 | 190 | 141 | 3 | 0.088 |
| DN250 | 338 | 273 | 3 | 0.25 | DN200 | 273 | 220 | 3 | 0.145 | DN150 | 238 | 167 | 3 | 0.156 | DN150 | 220 | 167 | 3 | 0.111 |
| DN300 | 408 | 324 | 3 | 0.35 | DN250 | 329 | 273 | 3 | 0.182 | DN200 | 283 | 218 | 3 | 0.176 | DN175 | 245 | 192 | 3 | 0.125 |
| DN350 | 449 | 356 | 3 | 0.45 | DN300 | 384 | 325 | 3 | 0.226 | DN250 | 356 | 270 | 3 | 0.291 | DN200 | 270 | 218 | 3 | 0.137 |
| DN400 | 513 | 407 | 3 | 0.55 | DN350 | 444 | 377 | 3 | 0.3 | DN300 | 406 | 321 | 3 | 0.34 | DN225 | 290 | 244 | 3 | 0.133 |
| DN450 | 548 | 458 | 3 | 0.5 | DN400 | 495 | 426 | 3 | 0.343 | DN350 | 450 | 359 | 3 | 0.4 | DN250 | 333 | 270 | 3 | 0.205 |
| DN500 | 605 | 508 | 3 | 0.6 | DN450 | 555 | 480 | 3 | 0.419 | DN400 | 510 | 410 | 3 | 0.5 | DN300 | 378 | 321 | 3 | 0.215 |
| DN550 | 659 | 559 | 3 | 0.7 | DN500 | 617 | 530 | 3 | 0.539 | DN450 | 575 | 460 | 3 | 0.643 | DN350 | 423 | 359 | 3 | 0.27 |
| DN600 | 716.5 | 610 | 3 | 0.8 | DN600 | 734 | 630 | 3 | 0.766 | DN500 | 630 | 513 | 3 | 0.722 | DN400 | 486 | 410 | 3 | 0.368 |
| DN550 | 684 | 564 | 3 | 0.809 | DN450 | 541 | 460 | 3 | 0.438 | ||||||||||
| DN600 | 734 | 615 | 3 | 0.867 | DN500 | 596 | 513 | 3 | 0.497 | ||||||||||
| DN550 | 650 | 564 | 3 | 0.564 | |||||||||||||||
| DN600 | 700 | 615 | 3 | 0.604 | |||||||||||||||
Custom specifications
| Diamater | ≤3000mm |
| Thickness | 0.1-10mm |
PTFE filled with other materials:
| Filled materials | Common filled ratio ( Quantity %) | Main performances |
| Bronze | 40, 60 | Increases hardness and wear resistance; Increases dimensional stability and compressive strength; Not suitable for corrosive or electrical applications |
| Carbon | 5, 10, 15 | Increases compressive strength, hardness, wear, and load properties. Good chemical resistance; Improves electrical properties. |
| Graphite | 5, 10, 15 | Improves the deformation under load; Reduces initial wear; Improves thermal and eletrical conductivity |
| Glass Fiber | 10, 15, 25 | Increases compressive strength, rigidity and wear. Reduces creep and cold flow; Improve Dimensional Stability. |
| Carbon Fiber | 10 , 15, 25 | Increases compressive strength, hardness, wear, and load properties. Reduces creep and cold flow |
| POB (polyphenyl ester) | 5, 10, 15 | Improve the lubrication performance; Enhance the mechanical strength; Increase using temperature |
| BaSO4 | 5, 10, 15 | Increases compressive strength, hardness and wear resistance Reduces creep |
| SiO2 | 5, 10, 15 | Increases hardness and wear resistance; Improve Dimensional Stability. |
| Glass beads | 5, 10, 15 | Reduces creep and cold flow; Lower density Increases hardness and wear resistance; |
| Others materials | PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok | |
| Remarks | Some materials have similar enhancement effect, but degrees of enhancement are different. And they have different prices. More details please contact us. | |
Some Color show:
Chemical Resistance
Temperature Resistance
Minimum Friction Coefficient
Weathering Resistance
It is the most used engineering plastic in the current market. With its good mechanical properties,
abrasion resistance and self-lubricating function, it is widely used in the mechanical structures
and spare parts. We can also fill the glass fiber and some other fillers to improve its properties,
such as impoving its rigidity, abrasion resistance and impact resistance.
Even if PTFE products have excellent properties, like high/low temperature resistance, chemcial resistance, weathering resistance, dielectric superiority and high lubricity, sometimes we still need to improve its hardness, wear resistance, creep resistance and dimensional stability.
Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.
Testing Data Contrast of Some Typical Filled Products
| Item | Pure PTFE | 60% Bronze | 20% Glass Fiber | 15% Glass Fiber 5% Graphite | 20% Caobon Fiber | Unit |
| Density | 2.18 | 3.9 | 2.26 | 2.22 | 2.01 | g/m3 |
| Tensile strength | 276 | 127 | 175 | 158 | 189 | Mpa |
| Elongation at break | 238 | 101 | 207 | 205 | 92 | % |
| ROCKWELL Hardness | 3.2 | 33.8 | 6.4 | 11.3 | 32.1 | - |
| Friction Coefficient | 0.13 | 0.18-0.2 | 0.2-0.24 | 0.15-0.17 | 0.16-0.18 | - |
| Bending Strength | 207 | 280 | 210 | 225 | 320 | °C |
More details, please contact us.
1. Professional PTFE Manufacturer
2. More than 20 years history and experience, 12 years of Alibaba
Gold Supplier.
3. Main products:PTFE / filled PTFE sheet, tube, rod, film, gasket,
special shape articles. We can meet your special demands.
4. Quality assurance: ISO9001, ISO14001, FDA, RoHs certificate
5. Tenet: offering high quality products with competitive price, quick
response and on time delivery
Wuxi Xiangjian PTFE Product Co., Ltd.
+ 86-510-85850388
//www.wxxj.com
//www.ptfefep.com
//wxxj.en.alibaba.com
No.901-1-305,Yinxiu Road,Wuxi City, China
