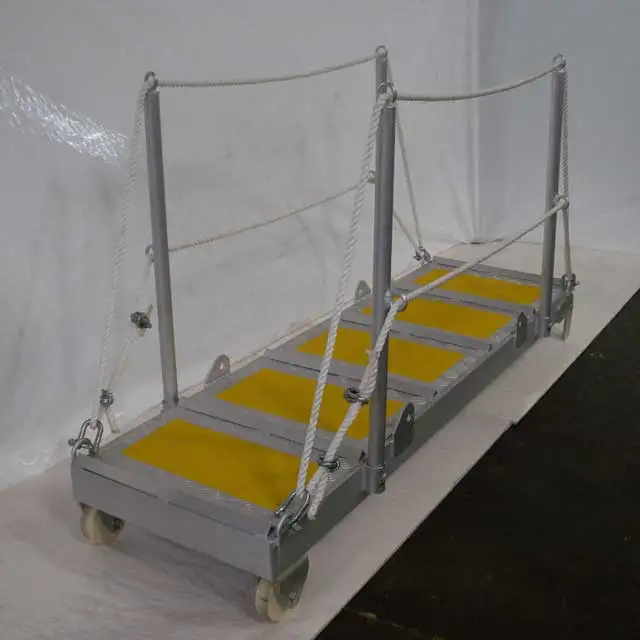

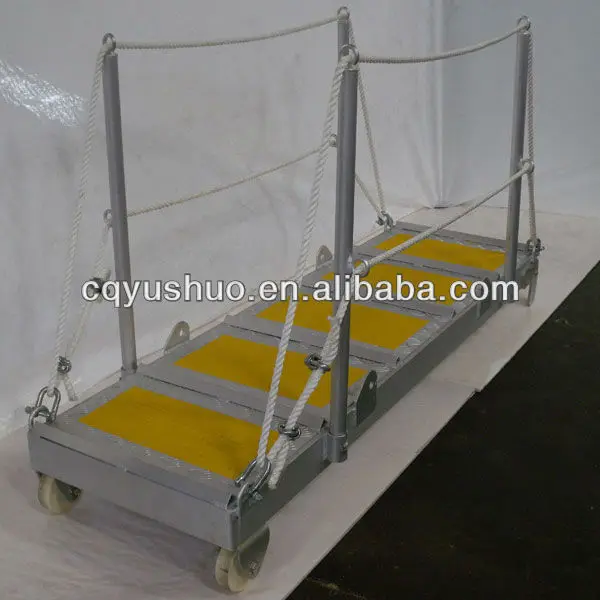

3M Aluminum Gangway Ladder (Beam type)

Product Overview

Description

The aluminum gangway ladder is widely used for the dock or port. It is used to embark or disembark the boat & vessels.

Standard: CB3116-82, JISF2613-1796, ISO7061-1993

Max. use angle: 30 degree

Material list:

    frame, handrail, & hook: aluminum alloy

    Roller: rubber, or nylon

    Handrail rope: nylon rope, manila rope

One side (for the shore side) is with roller, and the other side (for the boat side) is with hook

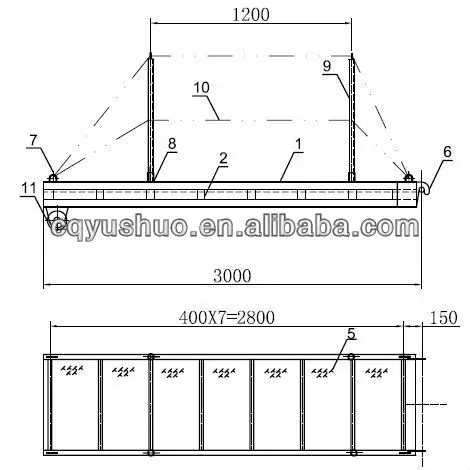

 Technical Parameter for 3M Aluminum Gangway Ladder:



Length: 3M

Width: 0.6M

Handrail qty.: 2

Handrail height: 1M

Total height: 1.12M

Deck type: anti-skid type

Frame type: beam type





Packaging for LCL







Packaging for Container





We can also disign and manufacture other marine ladders, such as aluminum accommodation ladder, pilot ladder, embarkation ladder, wharf ladder/gangway, etc.
