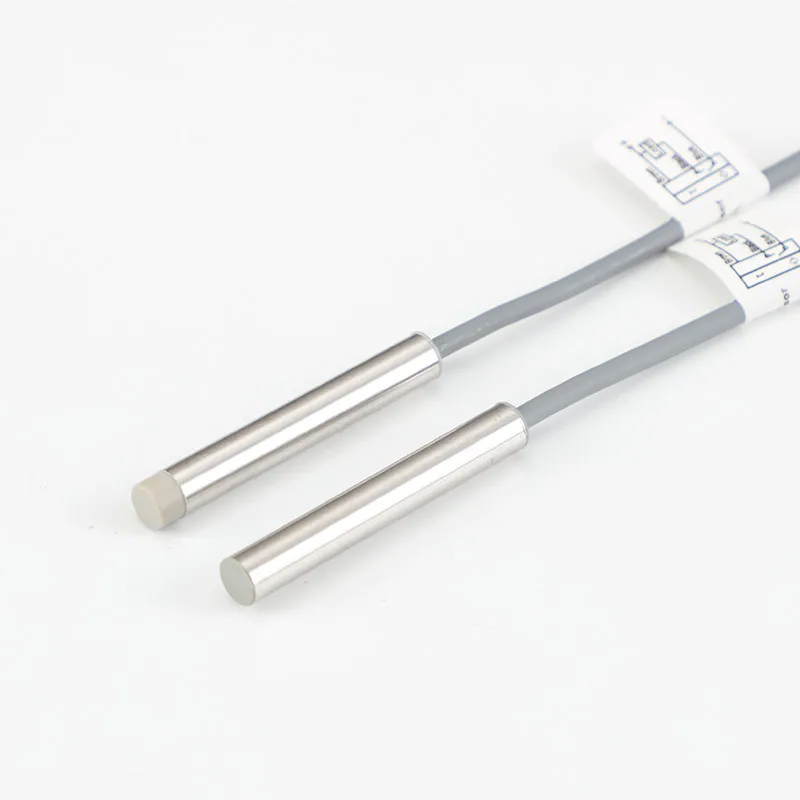

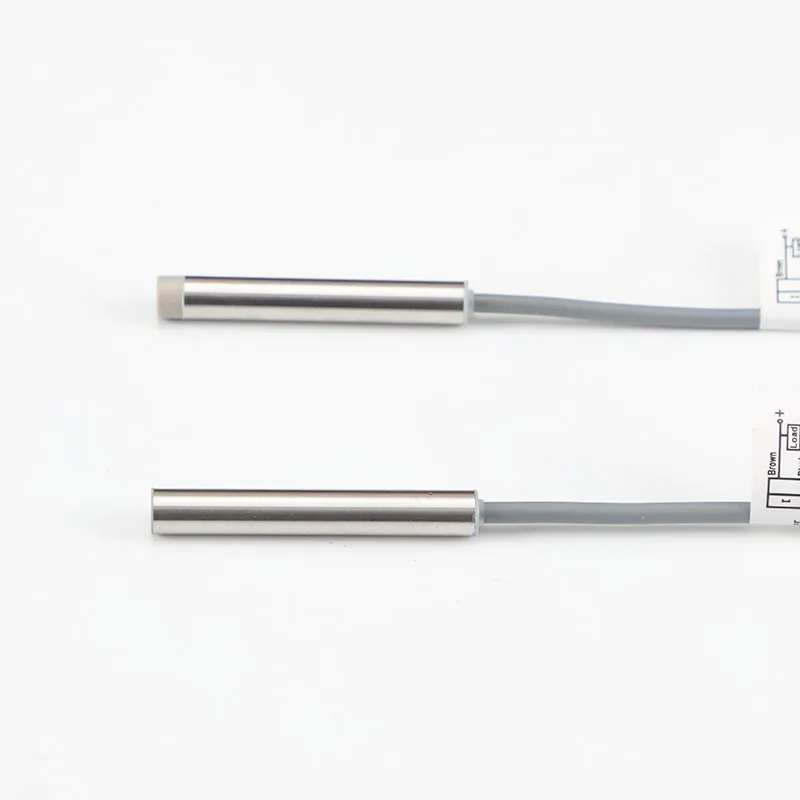

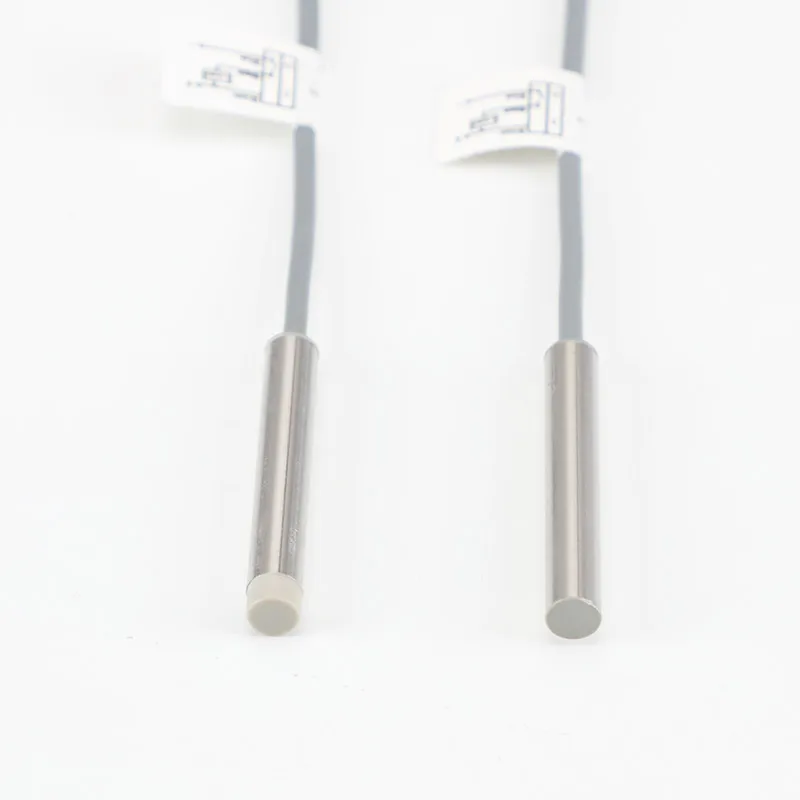

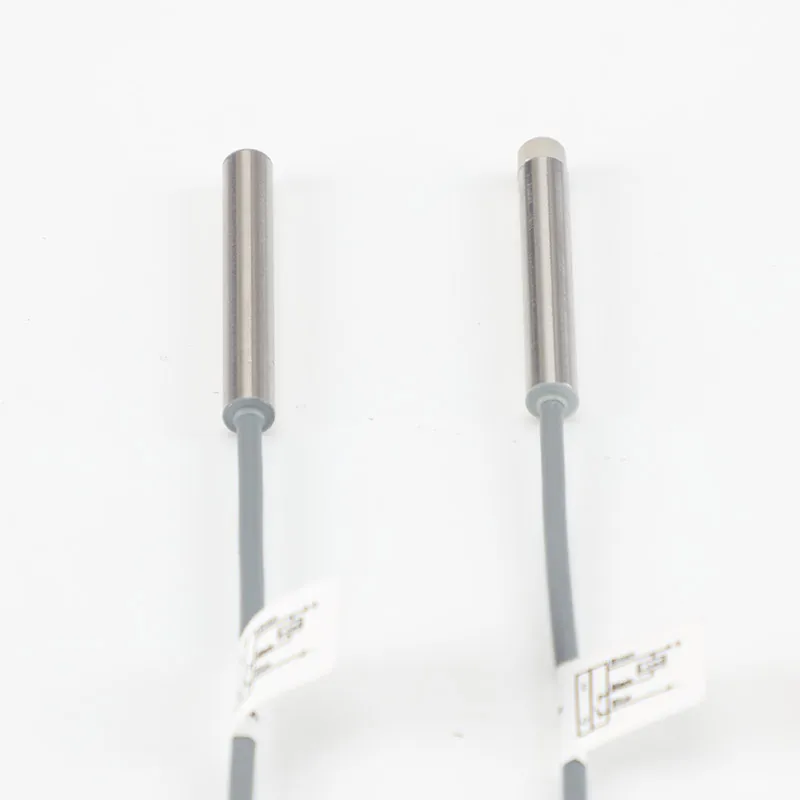

DC Mini Shorter current transducer (D6.5 Pig Tail)(IA1D S6.501P OTR3)

Product Overview

Description



  DC Mini-Shorter current transducer (D6.5 Pig Tail)(IA1D - S6.501P - OTR3)



1.Specification

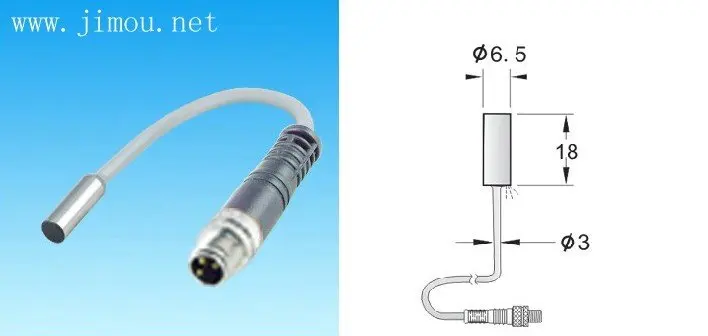

Diameter	Φ6.5
Shielded    Non-shielded	Shielded
Switching Distance Sn:(mm)	1mm / 2mm / 3mm
Housing Material	Stainless steel
With LED    Without LED	With LED
Operating Voltage	10-30V
Ripple	<10%
No Load Current	<10mA
Max.Load Current	150mA
Leakage Current	<0.01mA
Voltage Drop	<1.5V
Switching Frequency	2KHz
Response Time	0.1ms/0.1ms
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<1.0%(Sr)
Protection Category	IP67
Operating Temperature	-25°C - +70°C
Temperature Drift	<10%(Sr)
Short Circuit Protection	YES
Overload Trip Point	180mA
EMC	RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2
Material Active Face	PBT
DC 3wire 10-30V NPN N.O.	IA1D - S6.5 * N - OTR3	25
DC 3wire 10-30V NPN N.O.	IA1D - S6.5 * N - CTR3	25
DC 3wire 10-30V PNP N.O.	IA1D - S6.5 * P - OTR3	26
DC 3wire 10-30V PNP N.C.	IA1D - S6.5 * P - CTR3	26
DC 4wire 10-30V Changeover NPN(N.O.&N.C.)
DC 4wire 10-30V Changeover PNP(N.O.&N.C.)
DC 2wire 10-60V N.O.
DC 2wire 10-60V N.C.
DC 3wire 10-55V NPN N.O.
DC 3wire 10-55V NPN N.C.
DC 3wire 10-55V PNP N.O.
DC 3wire 10-55V PNP N.C.
DC 3wire 5-36V NPN N.O.
DC 3wire 5-36V NPN N.C.
DC 3wire 5-36V PNP N.O.
DC 3wire 5-36V PNP N.C.
DC 4wire 5-36V Changeover NPN(N.O&N.C.)
DC 4wire 5-36V Changeover PNP(N.O&N.C.)
	Wiring diagram No.
Cable2M (PVC)	Cable 0.3m PUR with M8*1 Connect
Weight (g)	Approx.25g





2.Company  Profile









Welcome to visit here,my friend! Glad to introduce our products and our company to you. If you have any questions, it`s my pleasure service you!



JimouSensor Technology Co.,Ltd. Specializes in the development,production,sale services of sensors.Its high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines in industries .





Our company is a professional manufactures of:

1, AC/DC Inductive Proximity Sensor.

2,AC/DC Capacitive proximity sensor .

3, AC/DC Weld Field Immune Proximity Sensor

5,  AC/DC Metal face inductive proximity sensor .

6, DC Analog Inductive   Proximity Sensor.

7,  Photoelectric sensor. .

 8, DC Ultra-Mini Inductive proximity sensor .

9, DC High pressure rated  Inductive  proximity sensor.

10, DC Mini-shorter inductive proximity sensor

11,DC  Namur   Inductive  proximity sensor .





3.Certification













 4.The Features of Proximity Sensor :
1) Multiplicity appearance
2) volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6)Limit upgrade product
7) Wide voltage range
8) Dustproof, vibration-proof, waterproof and oil-proof
9) With short-circuit protection and inverted connecting protection
10) Service life up to one million
11) Adopts envelop glue, temperature resist, oil-proof colophony in it
