Large natural rubber bale cutter

Product Overview

Description

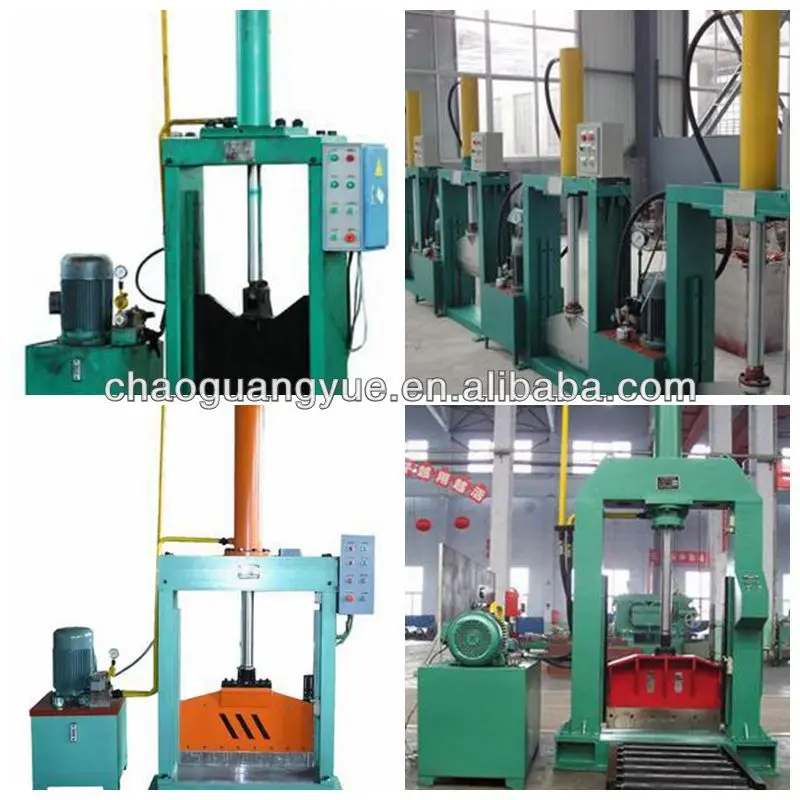

    Large natural rubber bale cutter



Usage



 Single knife rubber cutting machine is suitable for cutting the natural rubber and various other plastics materials.







Features







1. Cutting control by hydraulic system which can also order and move it to cut automatically.


2. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.


3. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.


4. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.







Parameter













Process flow



waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)





1. Ring cutter



Function: will whole tire cutting into tire crown, the side of the tire and inner circle



Power	Blades rotating speed	Adapt tire	Productivity	Dimensions	Weight
3kw	15R/MIN	650-1200	30strips	1150*850*1200	0.5t





2. Strips cutter



Function: various tire, glue, glue board piece cut into long strips



Power	Productivity	diameter	Output size	Equipment size	weight
4kw	20strips/h	650-1200	25-55	1230*650*1580	0.8t





3. Rim cutter



Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.



Power	Productivity	Output size	Equipment size	Weight
7.5kw	0.8-1.0t/h	35*35	780*550*1210	0.8t





4. Steel wire separator



Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation



Power	Blades rotating speed	Adapt tire	Productivity	Dimensions	Weight
11kw	18R/MIN	650-1200	1-2strips/min	1.7*1.2*1.3m	1500kg

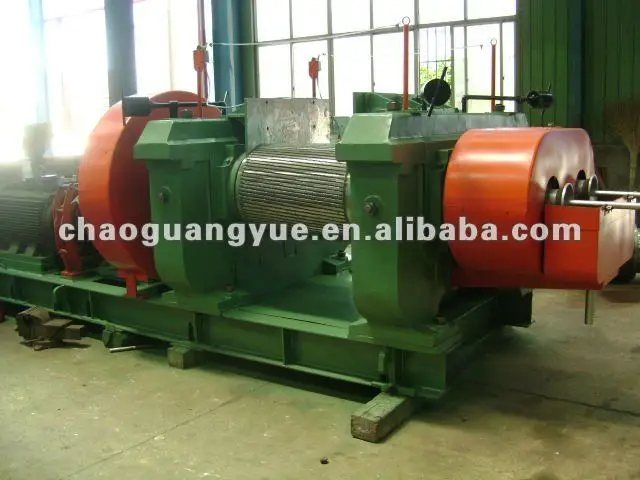

5.Rubber crusher



Type&Specification	XKP-400	XKP-450	XKP-560
Feeding size	3.5CM	3.5CM	3.5CM
Discharging size	10—30 mesh powder	10--30 mesh powder	10--30 mesh powder
Rubber crusher throughput(kg/h)	200-300kg/h	300-400kg/h	400-500kg/h
Motor power(kw)	45	60	75
Outside measurement(m)	4.1×1.8×1.9	4.4×1.9×1.9	5.5×2.2×2.1
Weight(t)	7.5	11	19
