Plastic recycling granule making machine
- Category: Plastic Extruders >>>
- Supplier: Nanjing,KERKE,Extrusion,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Good quality pet pelletizing line
>> SHJ twin screw granules making machine technical parameter:
Model | Screw Diameter D (mm) |
screw L/D |
screw speed N (r/min) | Main motor power P(KW) |
Screw Torque T (N.m) |
Torque Level T/N³ |
Capacity Q(kg/h) |
SHJ20 | 21.7 | 28~40 | 600 | 3/4 | 30 | 4.8 | 3-15 |
SHJ35 | 35.5 | 28~56 | 500 | 11 / 15 | 115 | 4.2 | 20-70 |
SHJ50 | 50.5 | 28~56 | 500 | 45 / 55 / 75 | 425 | 5.1 | 80-150 |
SHJ52B | 51.4 | 28~56 | 400/500/600/800 | 45 / 55 / 75 | 425 | 5.1 | 120-280 |
SHJ65 | 62.4 | 28~56 | 500 / 600 | 55 / 75 / 90 | 675 | 4.8 | 150-300 |
SHJ65B | 62.4 | 28~56 | 400/500/600/800 | 90/110 | 675 | 4.8 | 200-500 |
SHJ75 | 71 | 28~56 | 500 / 600 | 90 /110 /132 | 1005 | 4.6 | 300-550 |
SHJ75B | 71 | 28~56 | 400/500/600/800 | 110 /132/180 | 1005 | 4.6 | 300-700 |
SHJ95 | 93 | 28~56 | 400 / 500 | 250 / 315 | 2815 | 5.9 | 600-1000 |

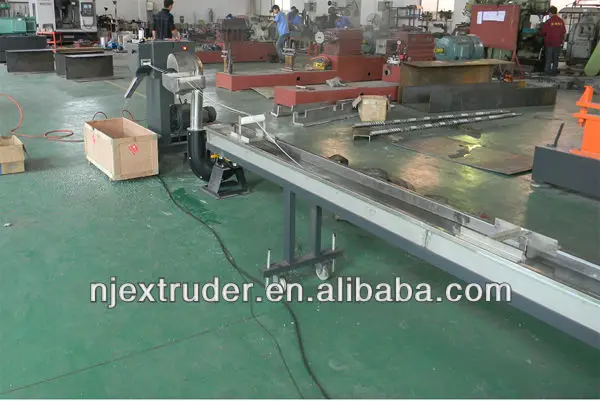

>>The whole production line
The plastic raw materials which have been enhancing, filling and blending should be used for injection or extrusion
molding after granulation. For how to choose the appropriate granulation methods, our professional team will provide you
professional technical support.
>>End products
>>Characteristics:

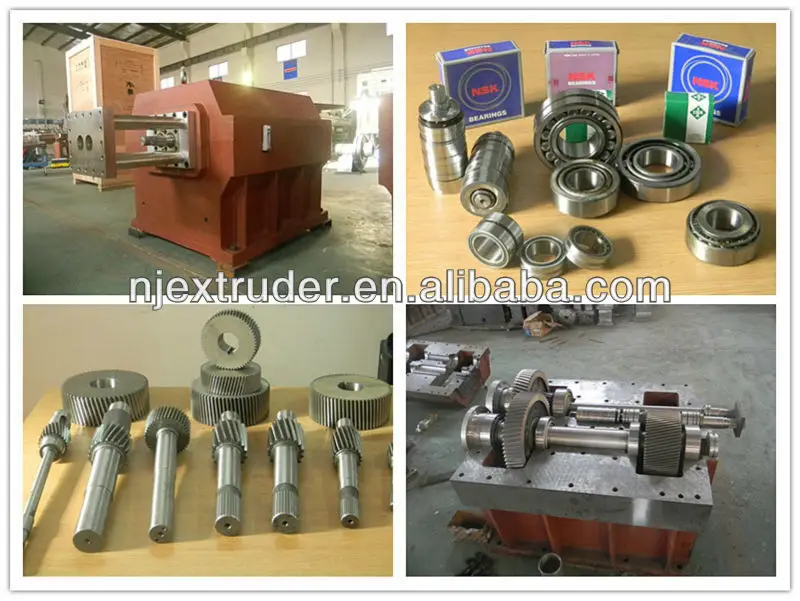

1.the gear box
1)rotating speed:MAX 600~1500RPM
2)combining host transmission box speed reduction and torque distribution part together,using
three axis style design, with compact structure. Speed reduction, torque distribution and two output
shaft radia bearing all use NSK bearings.
3)Gear is 6 grade which is a high precision. High speed overloading hard-tooth surface.
The materials are 20CrNi2MoA or 20CrMnMo, HRC 60/62.
2.the feeding systerm
Various forms of feeding structure and system single screw extruder, twin screw, hollow spring type,
mesh and mesh, can cover the various material status
3.screw and barrels
Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to
suit different material. Screw component made of high speed & wear-resisting steel.
The screw elements are designed accuratly and made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by
special heater treatment.
>>Package and shippment
>>About our workshop
We are Nanjing Kerke Extrusion Equipment Co., Ltd. our company is a professional manufacturer
of high quality pelletizing extruders for coloring /dyeing and masterbatch production, as well as
plastic modification and compounding,plastic recycling. The products have been exported to many
countries. such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly let us know by return email!
We can provide you the most professional advice according to your demands!
Also we can make non-standard plastic machinery as customer’s requirements!
