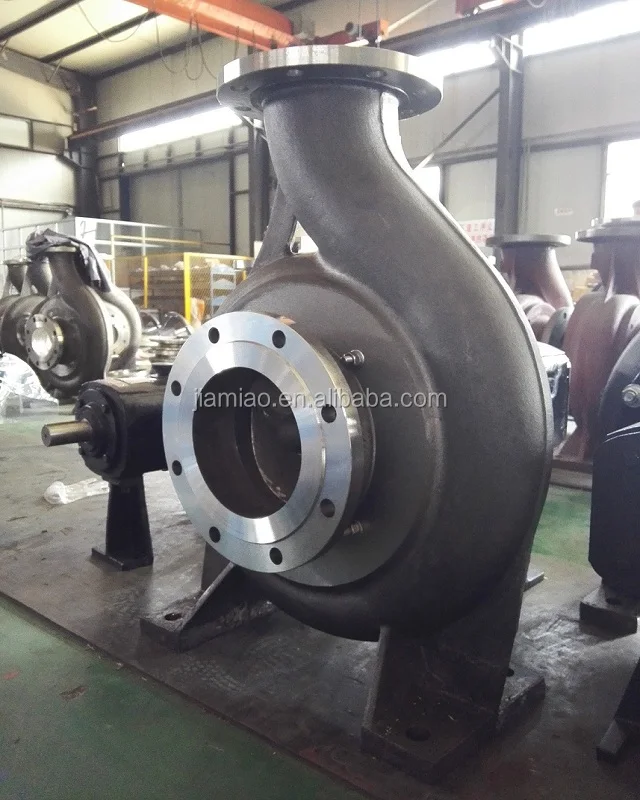

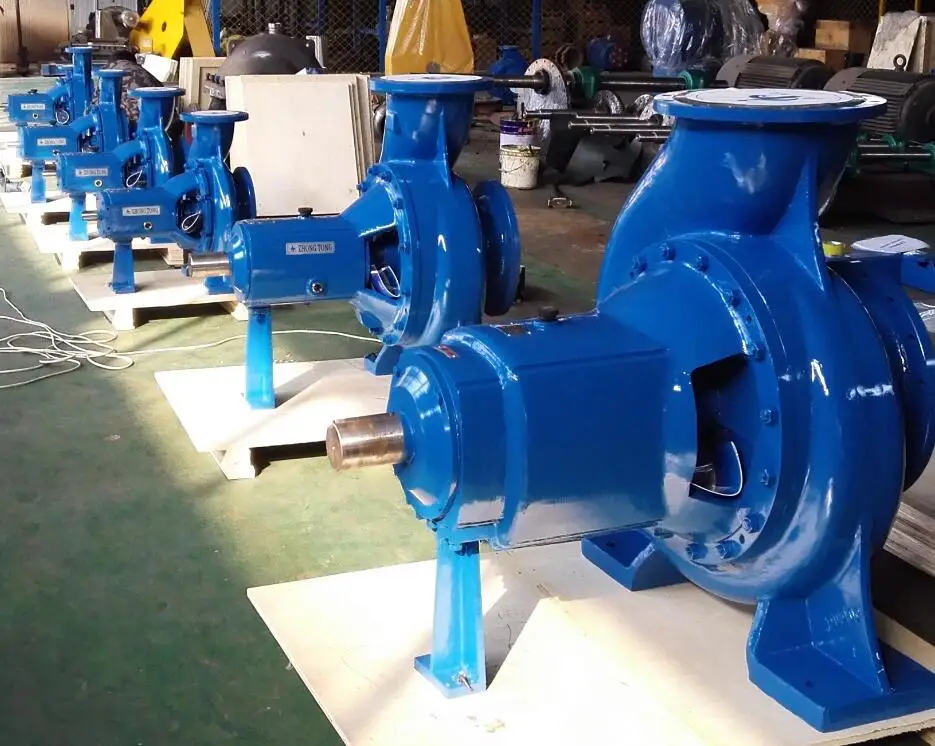

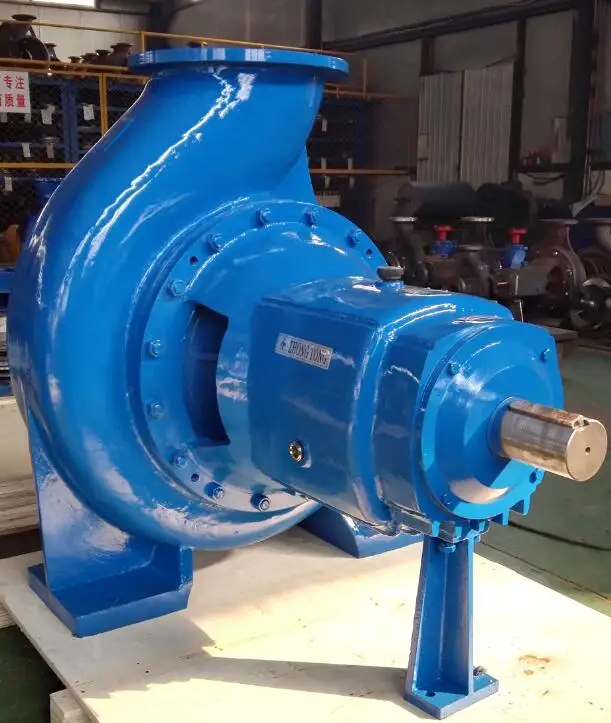

High viscosity sugar cane juice transfer pump

Product Overview

Description

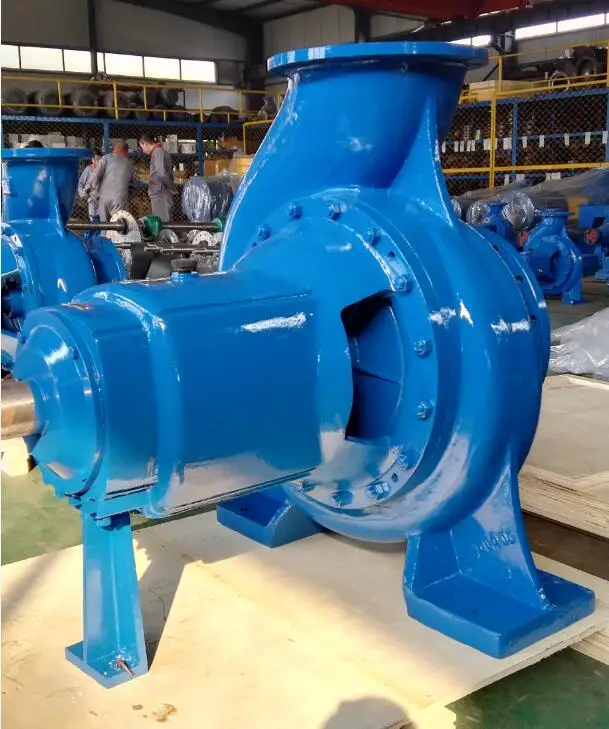

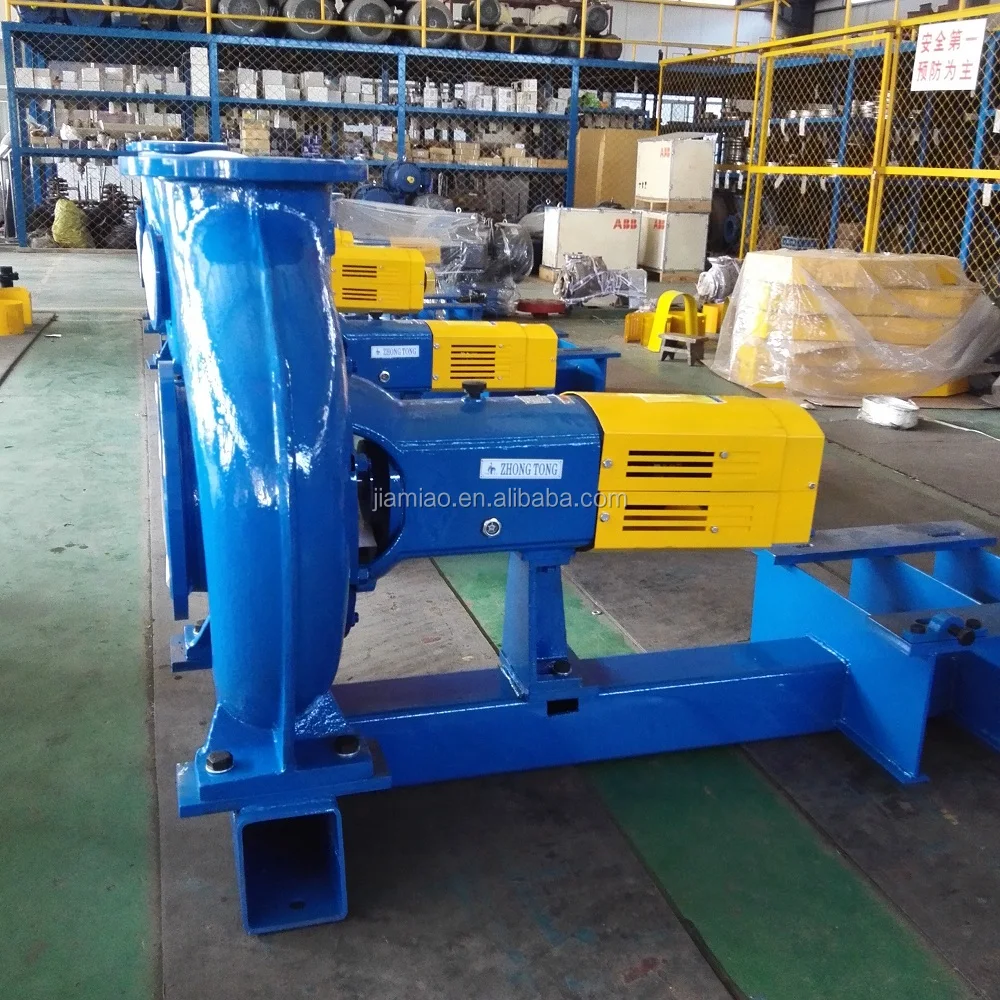

High viscosity sugar cane juice transfer pump

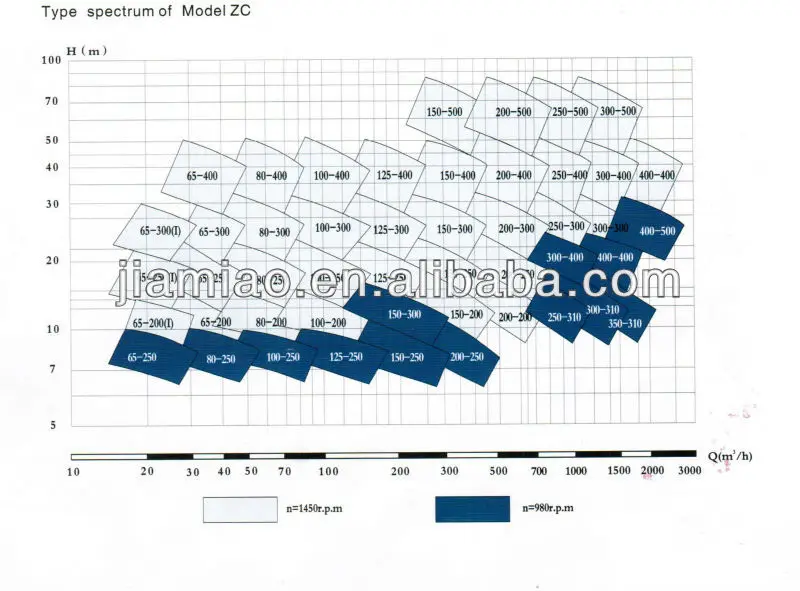

Performance Range:

Capacity:13~2300m³/h

Head range:6~90m

Temperature:≤120 degree

pulp concentration: ≤ 6%

Speed:1450,980r/min

Turning: counter-clockwise







Material configuration:



component  material	common material (Q)	abrasion-resistant material (P)	super abrasion-resistant material (N)	stainless steel (F)	two-phase stainless steel (X)	316L(K)
impeller&lining board	magnesium iron	abrasion-resistant steel	abrasion-resistant steel	304	Two-phase stainless steel	316L
other overflowing components	HT250	QT500-7	abrasion-resistant steel	304	Two-phase stainless steel	316L
shaft sleeve	45	2Cr13	2Cr13	304	304	316L
shaft	40Cr	40Cr	40Cr	3Cr13	3Cr13	316L
bearing body	HT250	HT250	HT250	HT250	HT250	HT250





Product descrption:

1. ZC pulp pump with semi-open impeller helps to get strong and effective trafficability, transferring the pulp with certain amount of gas and impurities.

2.Double large volute design of outlet can decrease the radial force.

3.The outer adjustable lining board can keep in line with the gap between impeller, which makes the pump run continously and effectively.

4.Sub-impeller dynamic sealing ensure no leakage after a long-time of pump operation, meanwhile multi-shaft seals can be configured as per clients' requirements.



1) Packing seal:filled by lub-oil, It is easy to maintain and replace.

2) Single mechaical seal: used for pulp below the concentration of 4.5%.

3) Double mechanical seal:used for harsh media and corrosive media, which prevent the leakage.



5.Transmission components with high strength can keep the pump run stably. The shaft can be lubricated by thin oil.

6.The rotor can drawn out in backwards without dismantling equipments during maintaining.

7.The rear support component keeps the pump operate stably, without influenced by external force.















We have been in pulp pumps and papermaking machine industry for more than 15 years. And leading manufacturer of pulp pumps in China. Our pumps is appcilabe for full line for the processing of papermaking;production of chemical and recycled fiber pulps;recovery and reuse of chemicals in the pulping proecess;stock preparation;paper, cardboard and tissue machine approach flow; production of paper, tissue, and cardboard, our sales volume is 500 million.

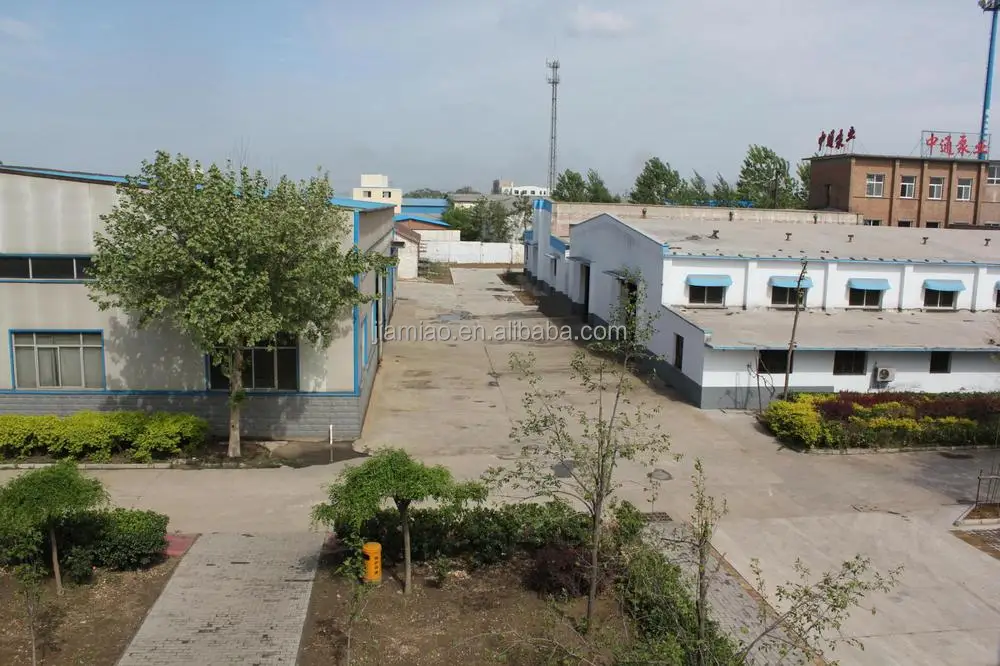

Factroy Area

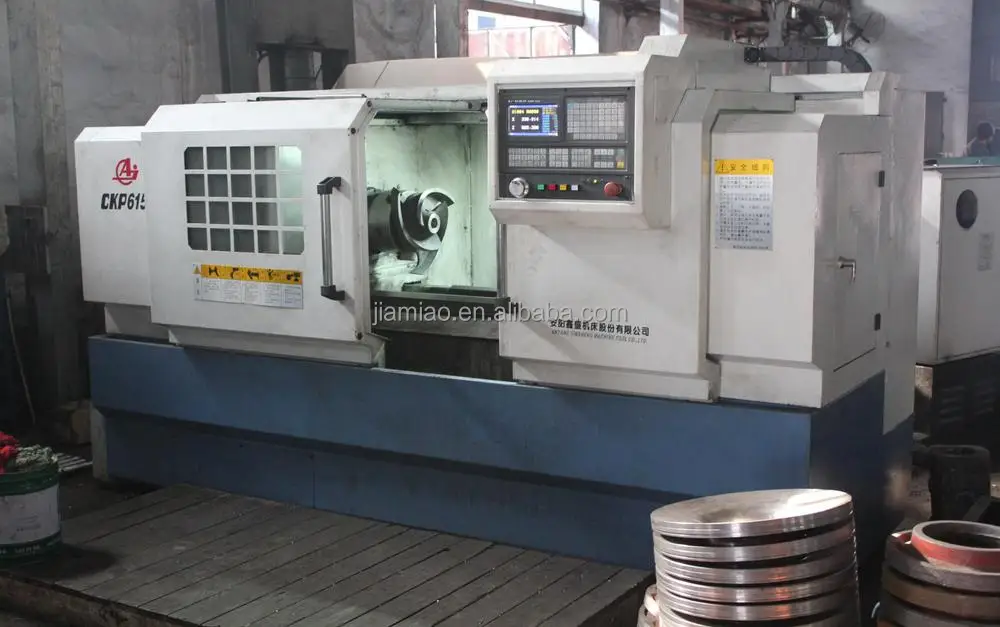

CNC Lathe

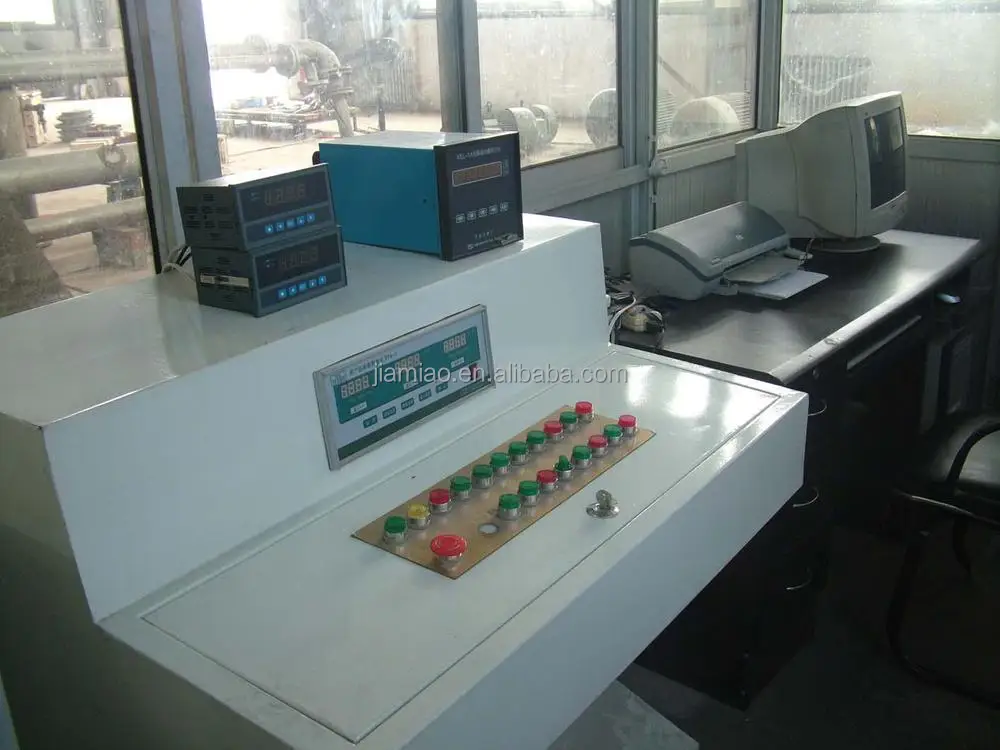

Automatic Testing Station

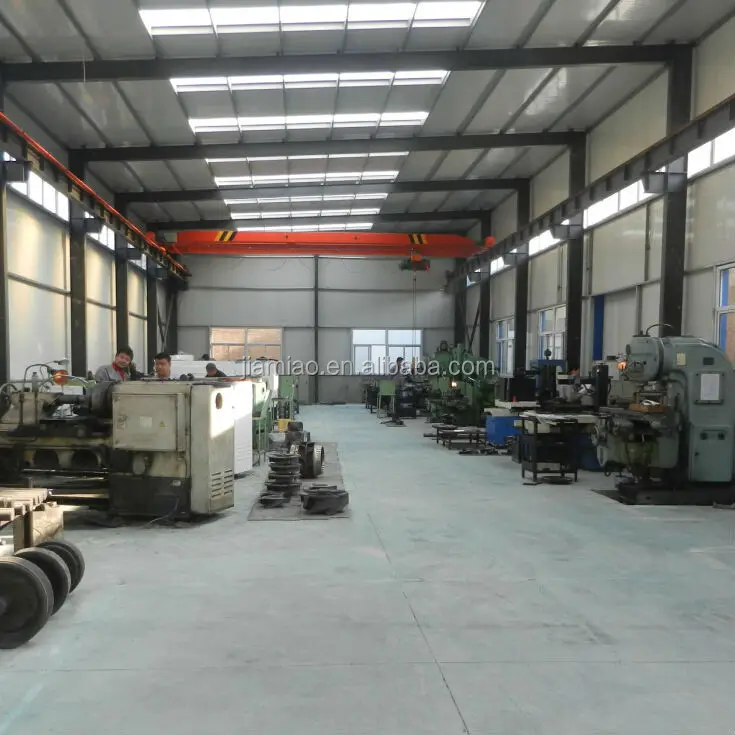

Machining Workshop
