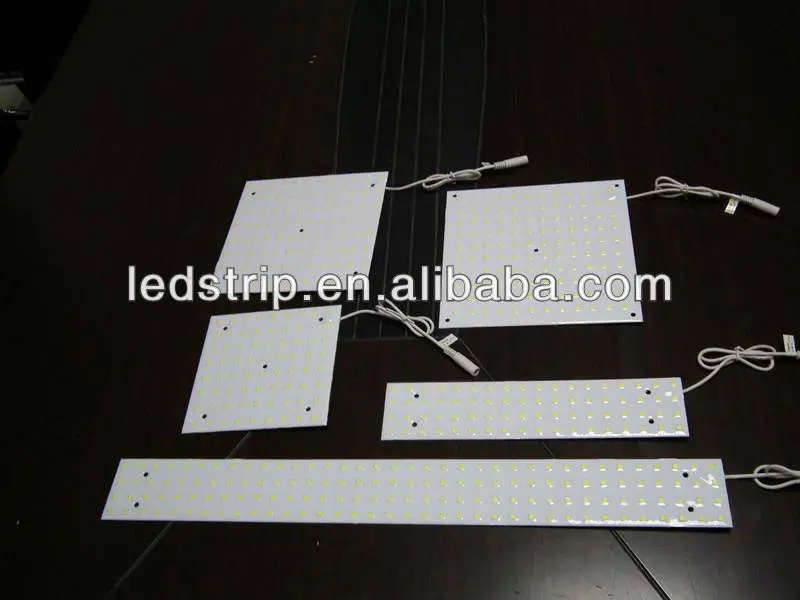

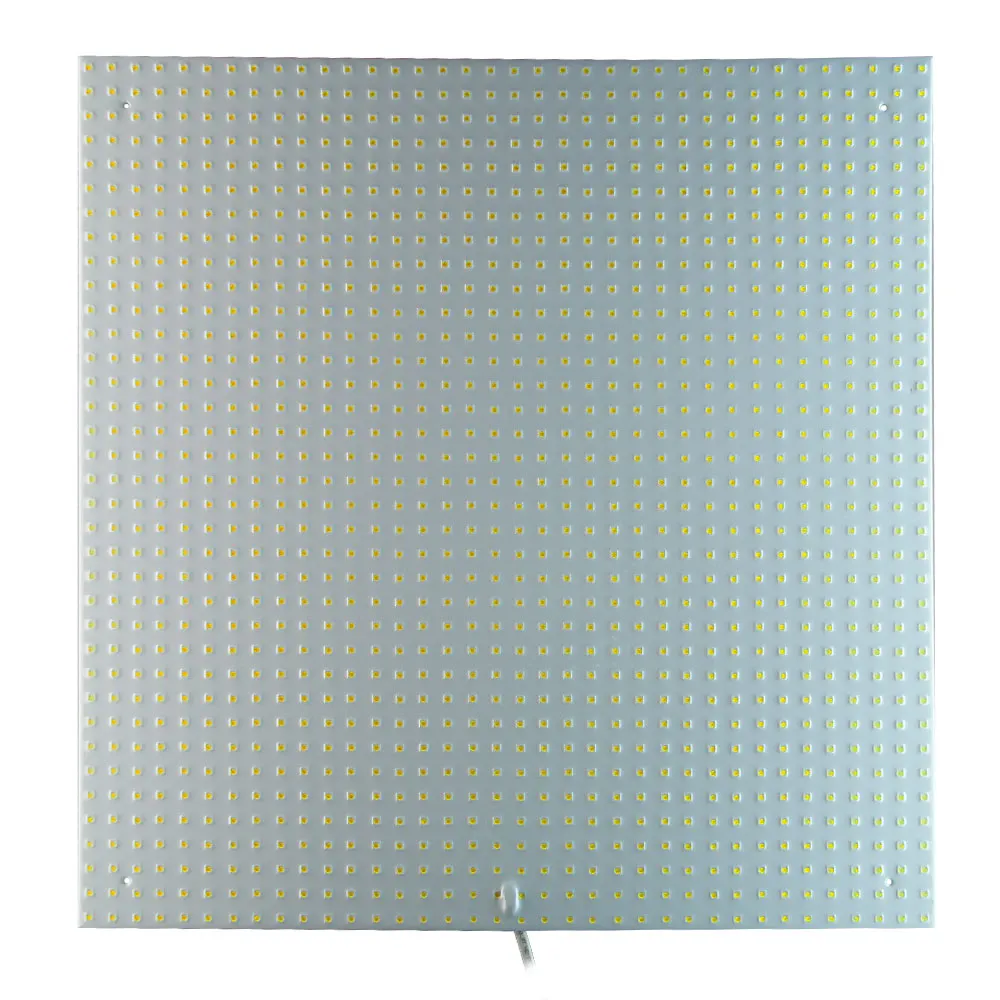

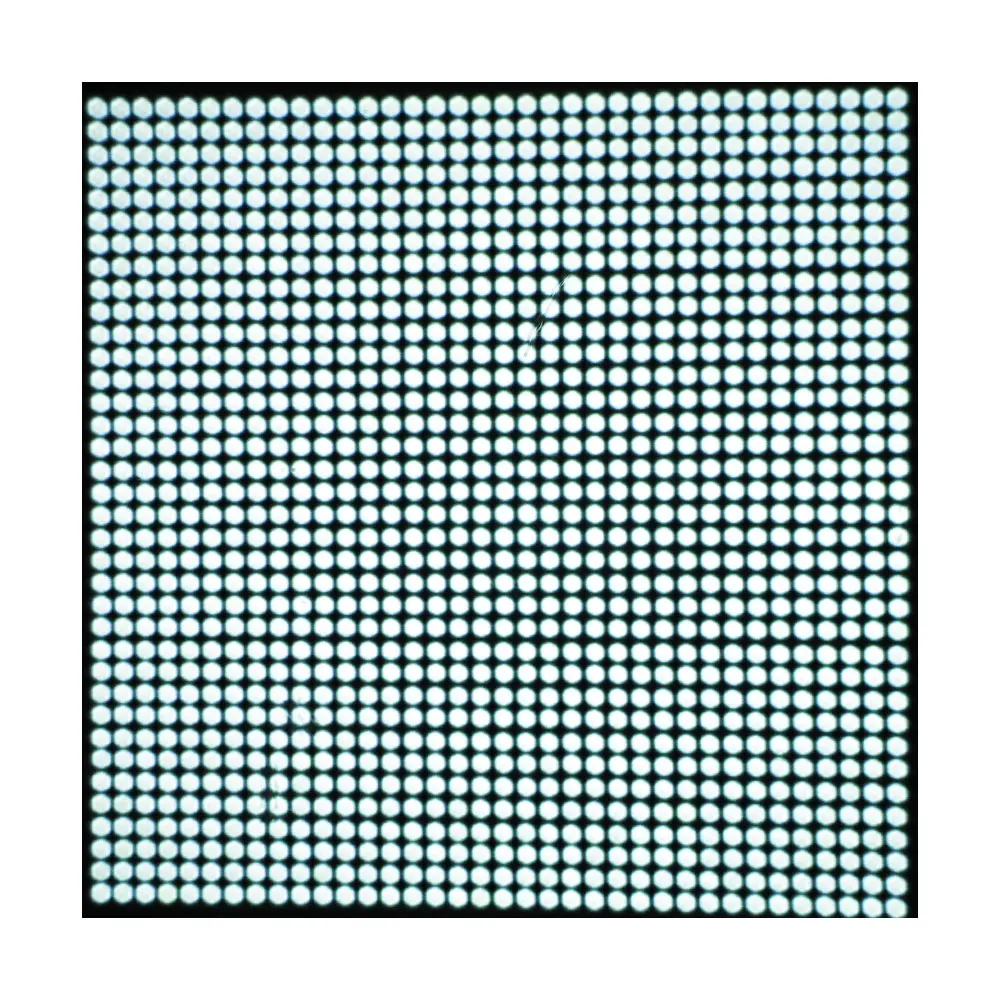

10x10/20x20/30x30/30x60/60x60/50x50 led advertisement backlight board
- Category: >>>
- Supplier: Zhongshan Ruixian Electronics Factory
Share on (1365695359):
Product Overview
Description
10x10/10x30/20x20/30x60/50x50 led advertisement backlight board
1. Top light efficiency 100lm/w with Epistar SMD3528 LEDs
2. Epoxy waterproof design with IP67 approval
3. Common dc 12v input voltage, more reliable, safe and popular
4. Ultra flat appearance and ultra slim at 3mm
5. Full aluminum heat dissipation, low temperature rise, and strictly high and low temperature experiments, higher reliability
6. Long life: ≥ 50000hrs. (Temperature less than 2 °C, effectively guarantee the LED life; 24 hours continuous aging test, more than 3 years)
7. Completely replace the fluorescent tubes backlight systems, energy saving 65%.
8. Special sizes and shapes can be customized as customers’ needed
9. Green LED product with CE, RoHS certifications
10. Warranty: 3 years ( Maintenance / Replacement )
China Patent No.: ZL200820131053,ZL200820132702
Aging test is more powerful,24 hours of continuous work,more than 3 years !
Model LED Chip LED Spacing | Dimension LED QTY | Power | Luminous Flux | Input | Available Color | Minimal Depth (No hot spot ) |
RX-ALF3528-X66 SMD3528LED LED-spacing 47mm | 20×20CM 18LED | 1.4W | 140LM | DC12V | CW 6000-6500K NW 4300-4700K WW 3000-3500K | 7cm |
20×30CM 27LED | 2.8W | 280LM | ||||
30×30CM 40LED | 4.3W | 430LM | ||||
20×60CM 54LED | 4.3W | 430LM | ||||
30×60CM 81LED | 6W | 600LM | ||||
60×60CM 162LED | 12W | 1200LM | ||||
RX-ALF3528-45 SMD3528LED LED-spacing 45mm | 27×27CM 36LED | 2.8W | 280LM | DC12V | CW 6000-6500K NW 4300-4700K WW 3000-3500K | 6.5cm |
27×54CM 72LED | 5.6W | 560LM | ||||
54x54CM 144LED | 11W | 1100LM | ||||
RX-ALF3528-33 SMD3528LED LED-spacing 33.33mm | 30×30CM 81LED | 5.5W | 550LM | DC12V | CW 6000-6500K NW 4300-4700K WW 3000-3500K | 5cm |
30×60CM 162LED | 11W | 1100LM | ||||
50x50CM 225LED | 15W | 1500LM | ||||
60×60CM 324LED | 22W | 2200LM | ||||
RX-ALF3528-30 SMD3528LED LED-spacing 30.5mm | 27×27CM 81LED | 5.5W | 550LM | DC12V | CW 6000-6500K NW 4300-4700K WW 3000-3500K | 4.5cm |
27×54CM 162LED | 11W | 1100LM | ||||
54×54CM 324LED | 22W | 2200LM | ||||
RX-ALF3528-25 SMD3528LED LED-spacing 25mm | 30×30CM 144LED | 11W | 110LM | DC12V | CW 6000-6500K NW 4300-4700K WW 3000-3500K | 4cm |
30×60CM 288LED | 20W | 2000LM | ||||
60×60CM 576LED | 39W | 3900LM | ||||
RX-ALF3528-16 SMD3528LED LED-spacing 16.66mm | 60x60cm 1296LED | 82W | 8200LM | DC12V | CW 6000-6500K NW 4300-4700K WW 3000-3500K | 3.5cm |

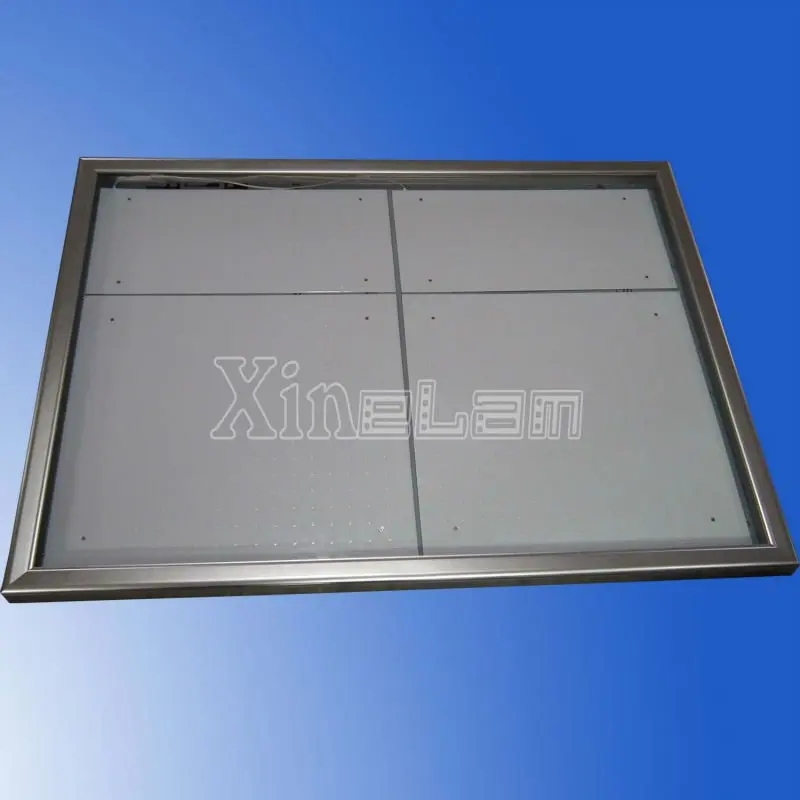

Strongly recommended for advertising backlight: light boxes, signage display,billboard,signs cabinet, menu light boxes etc.
Flexible LED Backlight - LED lattice backlight, Non-waterproof for indoor backlit,large light boxes, sinage display.
