Cnc mitre mortise and tenon wood machine & woodworking machine

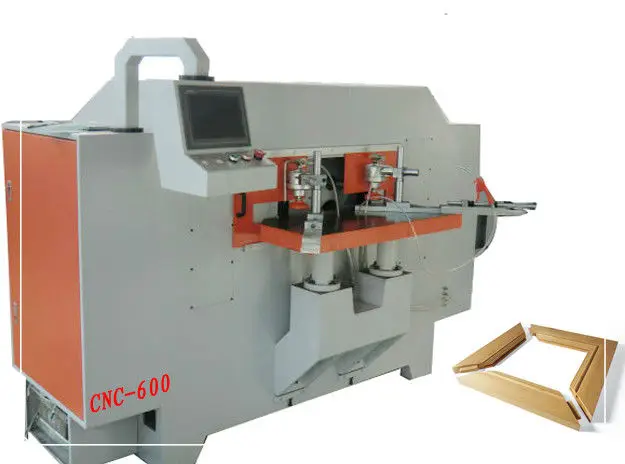

CNC-600
Specifications
Installed power | Tenon motor : 5.5kw |
Mortise motor :3.7kw | |
Total installed power:8.5kw approx | |
Hourly production( theoretical) : up to 160 pcs./hour (40 doors/hour) | |
Cycle time(teno + cut w.slot): 15-20" | |
Cycle speed is variable and can be altered by means of the CNC | |
CNC: | |
Model: mc405 | |
Power supply: 30 24 Vac-50/60HZ | |
Display : LCD mono chrome 10.2" | |
Tenoning Motor: | |
Cutterblock rotation: 9000/12000RPM | |
Shaft dimensions: 30mmφ | |
Tool dimensions hogging cutter:130mmφmax | |
Tenoning tool body: 90mmφmax | |
Mortision Motor: | |
Bit rotation: 9000/12000/18000Rpm | |
Mortision bit shank ER25 collet minφ3mm/maxφ16mm | |
Tenon dimensions(variable ,in function to the size of toll used) | |
Tenon width :0-150mm | |
Tenons depth:10-45mm | |
Table dimension: 880*370mm | |
Fence adjustment: 45° | |

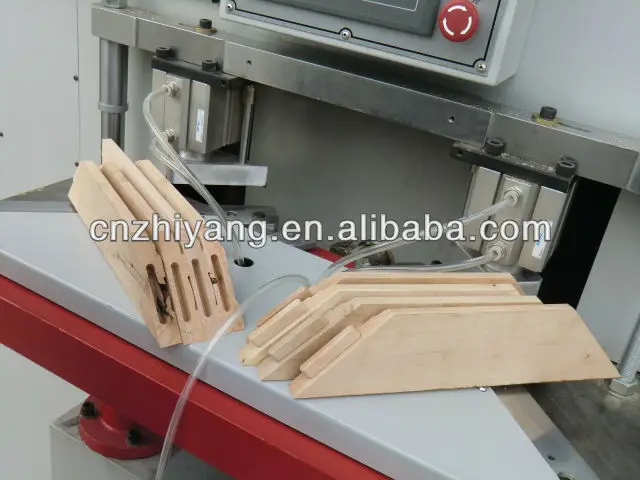

CNC-600 is the lasted design innovation for the production of kitchen cabinet Doors with mortised and tenoned mitered frames. A combination of new features makes operation and se-up fast and simple, and also enables users to manufacture products with mortise and tenon other than 45 degrees, such as table top, window, and mirror frames.
CNC-600 is fully cnc controlled which allows you to mortise ,tenoner or miter in any combination, with one machine, one operator ,infinite adjustments are quick and simple with cnc.
