SPACE 6240A soft ice cream machine with pump feed (CE)

Product Overview

Description

ice cream machine with pump   6240A



Model	Type	Voltage	Power	Capacity	Machine Size	Packing Size	N.W.	G.W.
6240	Gravity fed	220V/50Hz 60Hz	2600W	40L/h	554x654x1520mm	645x800x1665mm	170kg	190kg
6240A	Air pump fed	220V/50Hz 60Hz	2600W	40L/h	554x654x1520mm	645x800x1665mm	175kg	195kg



 Ice cream machine with pump  6240

Soft-Serve Equipment

Twin twist flavor ,Floor,Air pump fed
Feature
Offer all the popular soft serve variations from low or non-fat ice creams to custards,yogurt and sorbet.

FreezingCylinder   Two,2x1.8 Liters

Mix hopper             Two,2x12.5 Liters
Separate hopper refrigeration(Pre-cooling)maintains mix temperature below 4.4°C.

Microprocessor Controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light
The mix low light turns“ON”to alert operator to add mix,Preventing cylinder over freezing.

Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4°C during long no-use periods.
Counter
Records number of dispenses per day and total number of dispenses.

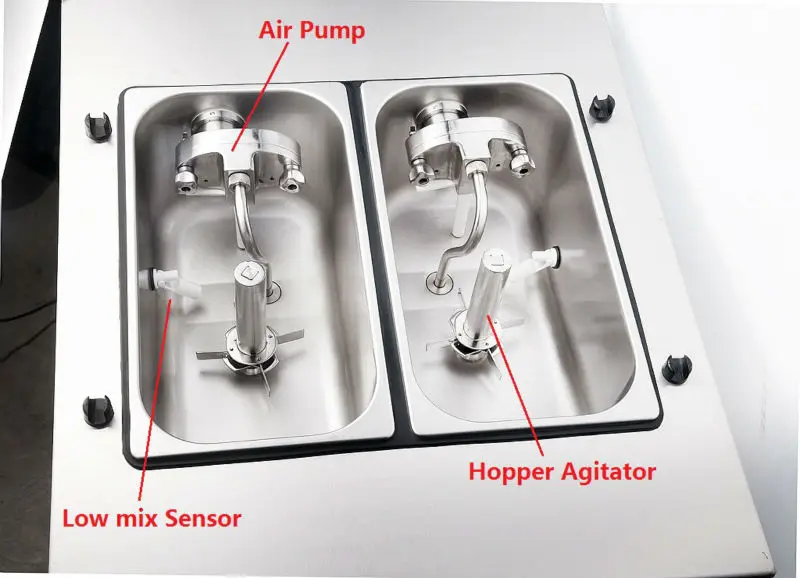

Agitator in the hopper (Optional)
Mixture has better liquidity,the temperature of the mix to be more nuniform
Output
40Liters/Hour  (At 4°C Liquid & 24°C Ambient)

Motor   One,2.0 HP



Refrigeration system

Main Refrigeration:

One compressor:5039 BTU/HR, R404a

Separate hopper cooling compressor:

One, 400 BTU/hr.R134a



Opotinal :

*Water cooling   *Cone dispenser



ice cream machine with pump  6240A



1. Dimensions for  soft ice cream machine with pump

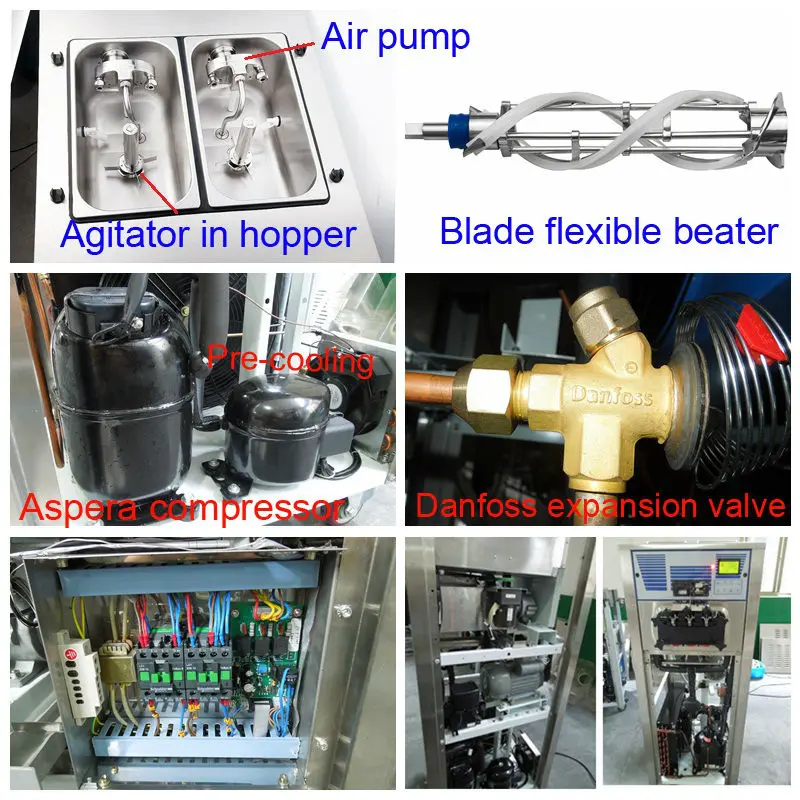

2. Machine detais of  ice cream machine with pump 6240A











3. Assembly workshop







4. Packing details







5.Yummy ice cream /frozon yogurt products
