PPRC Pipe Welding Machine Factory

Product Overview

Description

TAIRONG MACHINERY

   PPRC Pipe Welding Machine Factory

• This machie is maual temperature-control welding machine.
•  we can also offer electronic temperature-control welding machine in the same specification.
•  The die head adopts high quality coating which can avoid to be sticked easily.
• The product structure design is reasonable, small and nice, easy to operate, make working more friendly and efficiently... ...
• we are professional plastic pipe butt fusion welding manufacturer in china.
• we can offer the great quality machine but lower price to service our customers.



Technology parameter



1)temperature rang:0-300degree

2)voltage rang:220±25v

3)power:600w  50HZ

4)specification:20mm-110mm

5)welding material: PPR PE PB

6)Working temperature(°C):240-280,best temperature is 260

7)Working range:20-63(mm)

8)Foot: A special foot  with clamp that enables working at any location

9)Safety indicators: the insulation resistance of not less than 1M
10) Leakage current: ≤ 5mA (AC RMS).



Advantages:

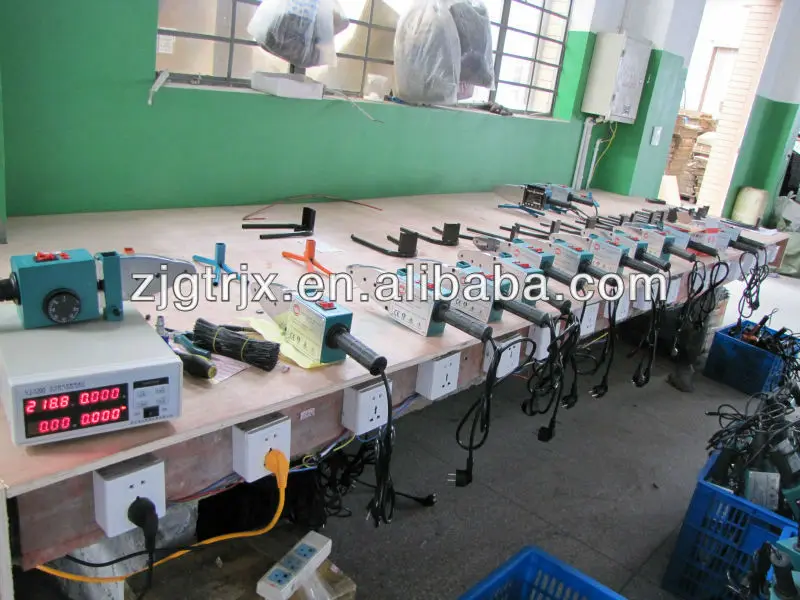

1,100% be test its power, voltage , temperature before packing.

2,We have own CNC machine producing sockets and other spare parts.

3,produce capacity: 20000 pcs /month.

4,Minimum order:500pcs for OEM order(with your logo on goods).

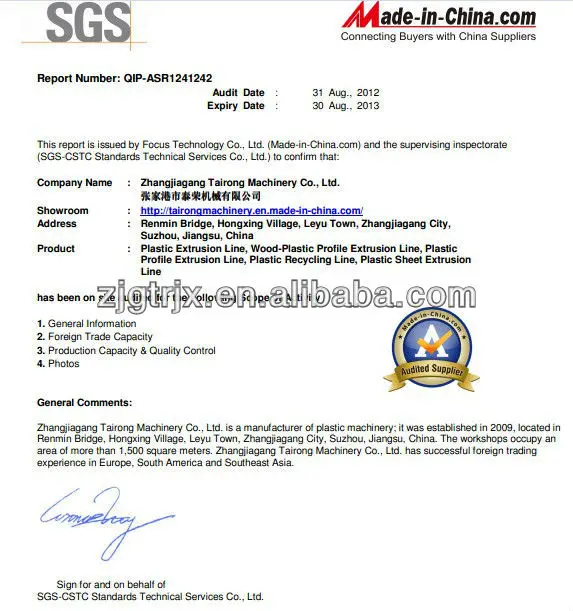

5, CE(sts) Certificate and quality report

6, 1 year guarantee

7, leading brand long time partner



Test and Using

1 Place the machine on the support. Fix and tight the moulds with the wrench .Please set the smaller moulds in front usually.

2 Turn on power . red indicators show the machine is heating. Red indicator does not shine, the machine has stopped heating. And it is the time for working.

Caution: Do not plug in without ground wire

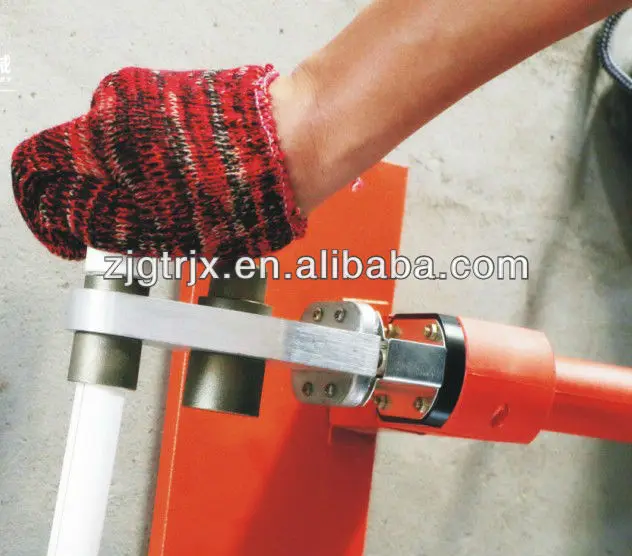

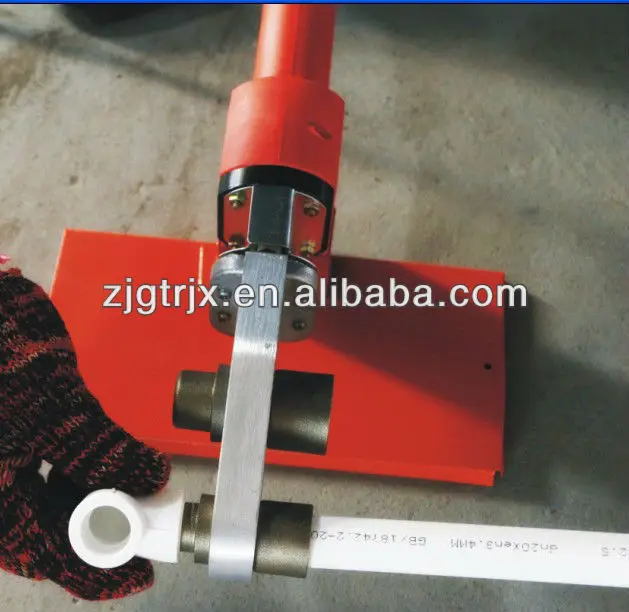

3 Cut the pipe. Push the pipe and fitting into the moulds for some time (See the table). Pull them out and insert the depth needed steadily .Please do not screw the pipes and fittings



OD(mm)	Depth(mm)	Heating time (s)	Cooling time (s)
20	14	5	3
25	16	7	3
32	18.1	8	4
40	20.5	12	4
50	23.5	18	6
63	27.4	24	6
75	32	30	8
90	35.5	40	8
110	41.5	50	10





Further parameters:



Model	BDCC-32	BDCC-63	BDCC-110	BDCC-160
Welding range(mm)	20,25,32	20,25,32, 40,50,63	75,90,110	63,75,90,160
Operating voltage(V/Hz)	220/50	220/50	220/50	220/50
Heating plate Max. temperature(°C)	279	279	279	279
Heating plate surface temperature(°C)	±0.5	±0.5	±0.5	±0.5
Heating time(<min)	10	10	10	10
Total power(W)	600	800	1200	1600
Total Weight(KG)	4.5	6.5	8.5	9.5
Dimension(mm)	425×140×90	440×260×130	440×260×130	—

  Finished Machine

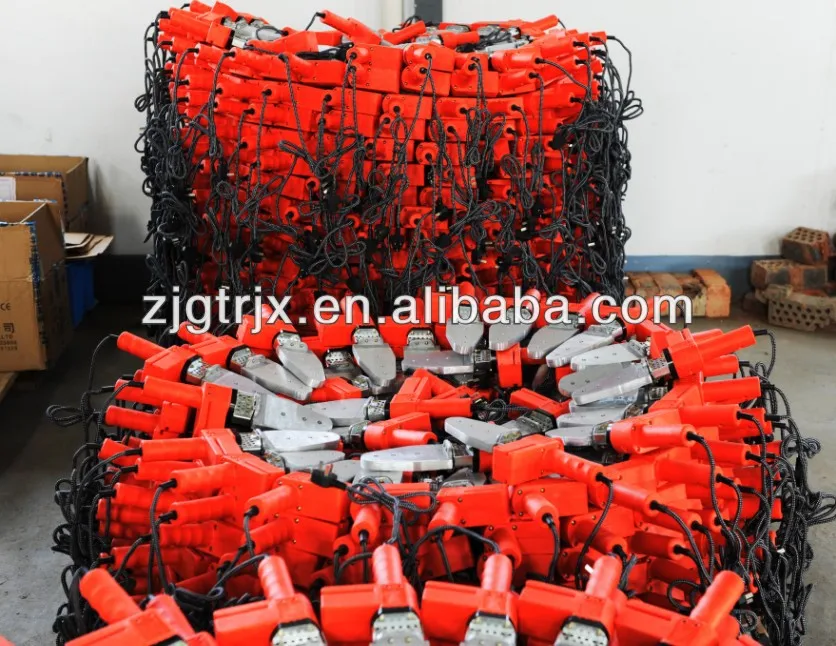

Packing









































































Welcome to contact us Skype:vipjasonwu ,we provide different cable and plug size.
