HDPE Membrane Drainage Sheet

Product Overview

Description



DRAIN-B is high density polyethylene (HDPE) based, plant roots and decay resistance drainage dimple board to protect curtain walls against water and moisture by separated from the earth.

It is used for the protect water and heat insulation systems which applied on foundation and curtain wall of buildings.

<![iProvides uniform distribution of the pressure given by earth.

<![iResistant to plant roots and decay.

<![iPrevents any damage on the waterproofing that occur while the land case.

<![iAllows the breath of buildings.

Weight Tensile Strength Elongation at Break Compressive Strength Roll Weight Roll Height Roll Width Roll Thickness Dimple Height Number of Dimples HS Code

400 g/m2 (largely-lengthy) 200-200 N/5 cm (largely-lengthy) %20-25 N/5 cm TS EN 826 – 120 kN/m2 16 kg 20 or 30 m 2 m 0,55 mm 8 mm 1900 pcs/m2 3925.90.80.00.00

500 g/m2 (largely-lengthy) 250-250 N/5 cm (largely-lengthy) %20-25 N/5 cm TS EN 826 – 200 kN/m2 20 kg 20 or 30 m 2 m 0,65 mm 8 mm 1900 pcs/m2 3925.90.80.00.00

Application Method

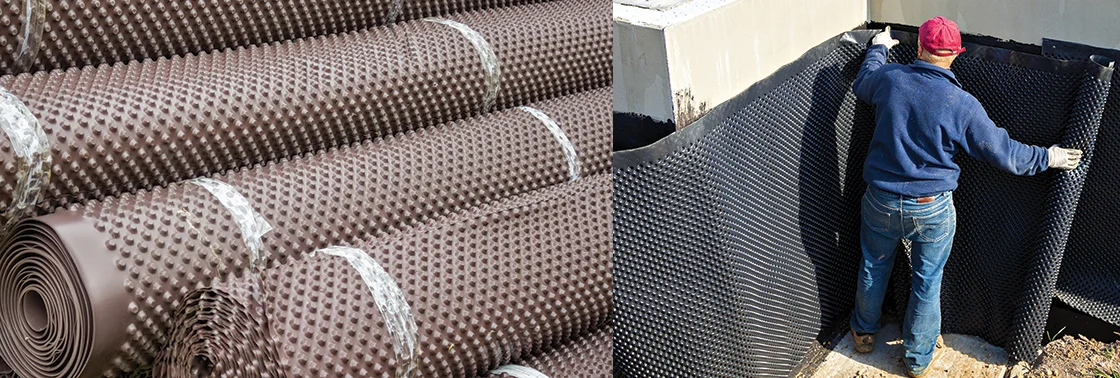

DRAIN-B is inserted as 15 cm above from the waterproofing layer and bubbles it has faced with application surface. DRAIN-B is immobilized on the application surface as 20 cm distance or engaged on the surface with pressure profile. Waterproofing surface must be protected during the montage. At least 20 cm overlapping and additional fastening equipment is need on the plate joint areas.

2m x 20m roll

Unlimited shelf life in proper storage conditions.

The materials must be stored on smooth surface and indoor spaces.
