Steel drywall angle/Galvanized corner bead

Product Overview

Description

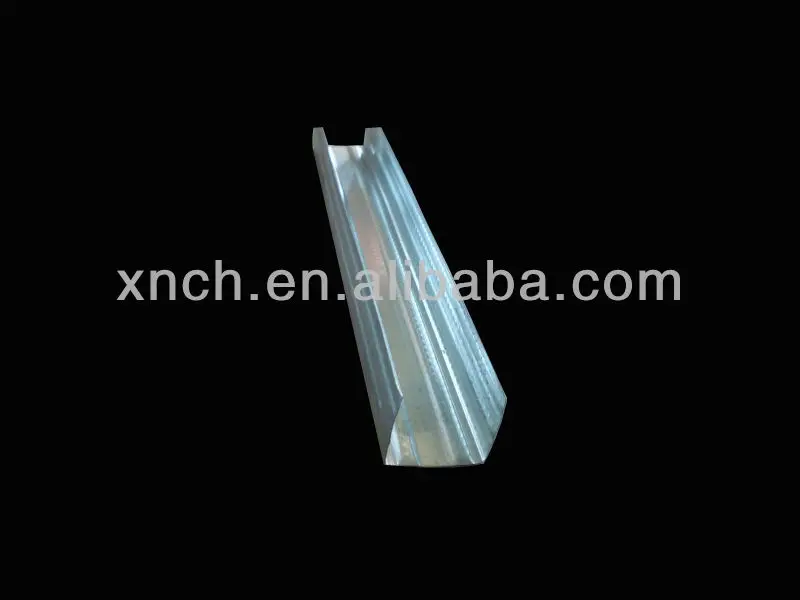

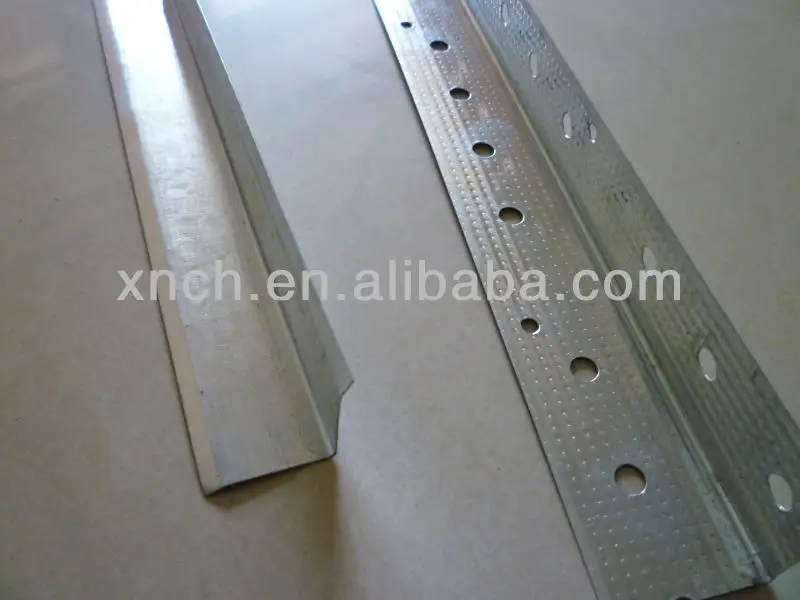

Steel drywall angle/Galvanized corner bead



RAW MATERIAL

Galvanized light steel coil. Q195.



SPECIFICATION

Item name	spec. (mm)	length (mm)	package (pcs/bundle)	weight (g/pcs)
Edge angle	25*25*0.4	3000	50	451
	25*25*0.5	3000	50	562
	25*25*0.6	3000	50	675
	36*36*0.8	3000	50	1245



USAGE

L-edge channel should be installed at the proper height and fixed by using expansion screw with space 400-600mm and the space between two sides of expansion screw in 40mm. It is to note that  new l-edge channel alongside should not be fixed on up layer C keel but should stick to up C keel sides.



APPLICATION

Suspended ceiling or drywall partition of hotels, theaters, emporiums, factories, office, house,airplane-terminal buildings, railway stations, shopping malls, factories, office budiling etc.
