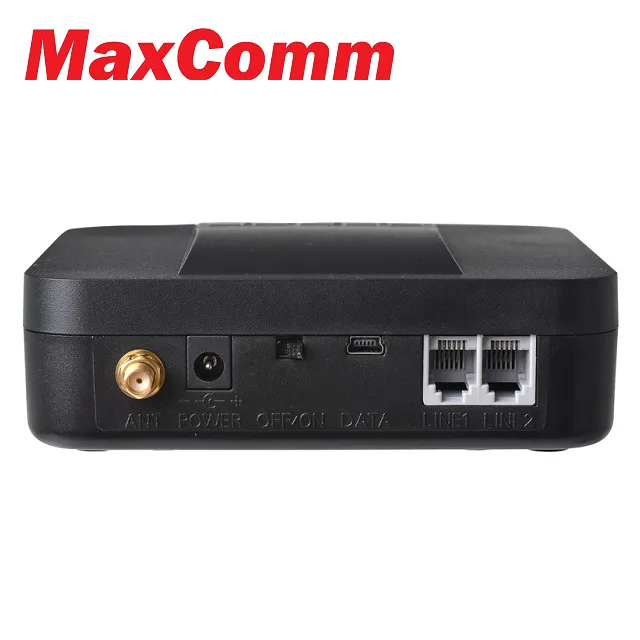

3G GSM Fixed Wireless Dialer FCT 550 3G FWT FWP WCDMA FWT with battery inside

Product Overview

Description

3G Fixed Wireless Dialer WCDMA 3G FWT FWP FCT-550





Main Features



1. Convert phone call from fixed line to 3G Wireless Network



2. 2x RJ-11 phone ports for connecting phone, PABX or VoIP Gateway



3. Support SIM Lock and Network Lock



4. External Antenna connector – SMA Type



5. Optional back-up battery







6. Volume adjustment and echo cancel



7. Support caller ID: DTMF Mode; optional FSK Caller ID



8. Reverse Polarity or 12/16KHz metering signal



9. USB port to connect PC for 3G Data network(HSDPA/UMTS);







Technical specifications



3G/GSM parameters



Support HSDPA/UMTS/EDGE/GPRS/GSM



Triple-band HSDPA(UMTS):  850/1900/2100MHz



Quad-band EDGE/GPRS/GSM: 850/900/1800/1900MHz



HSDPA downlink : 3.6Mbps



WCDMA(UMTS) uplink : 384kbps



EDGE data :  237kbps downlink and 118kbps uplink



GPRS data :  85.6kbps downlink and 42.8kbps uplink







Power supply



AC input voltage           100V~240V AC



Power adaptor output        DC 9V/1.5A



Battery                   6V/4AH Lead-Acid battery(optional)



Maximum charging current   600MA



DC input voltage range      9V~10V DC



Maximum working current   700ma(DC7.5V, Average current, excluding charger current)





dimension : 12.5x12 x3.5cm



weight : 0.8kgs
