Vacuum Pump Mini Air Compressor Small Flow Rate 5l/min 6/12/24v
- Category: >>>
- Supplier: Changsha Tops Industry & Technology Co. Ltd.
Share on (1375069547):
Product Overview
Description

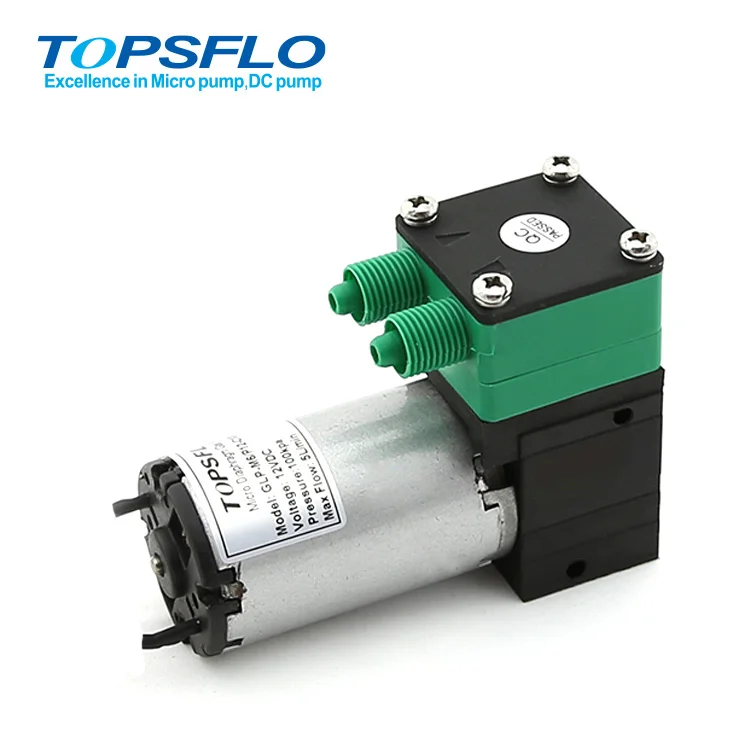

small flow rate 5L/min 6/12/24v vacuum pump mini air compressor
Remarks:
- We are high-end micro DC Diaphragm pumps Manufacturer. Can provide customized services
- If you are interested in our products, pls feel free to contact us
♦ 16000M2 modern factory with its own physical property rights, ESD anti-static control dust free workshop,
100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 50 patents in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
Product Description
You may interest product....

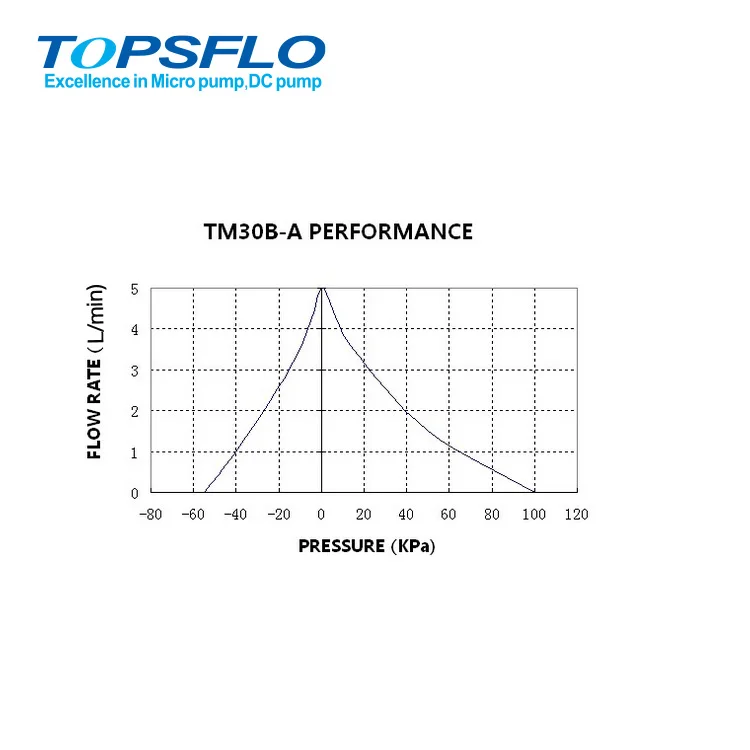

TM30B-A Product Specification
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |
| TM30B-A | TM30B-A12- P10005 | TM30B-A12-V5505 | 6 /12 / 24 | 0.4/0.24/0.15 | 100 | -55 | 5 |
| " P " means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||

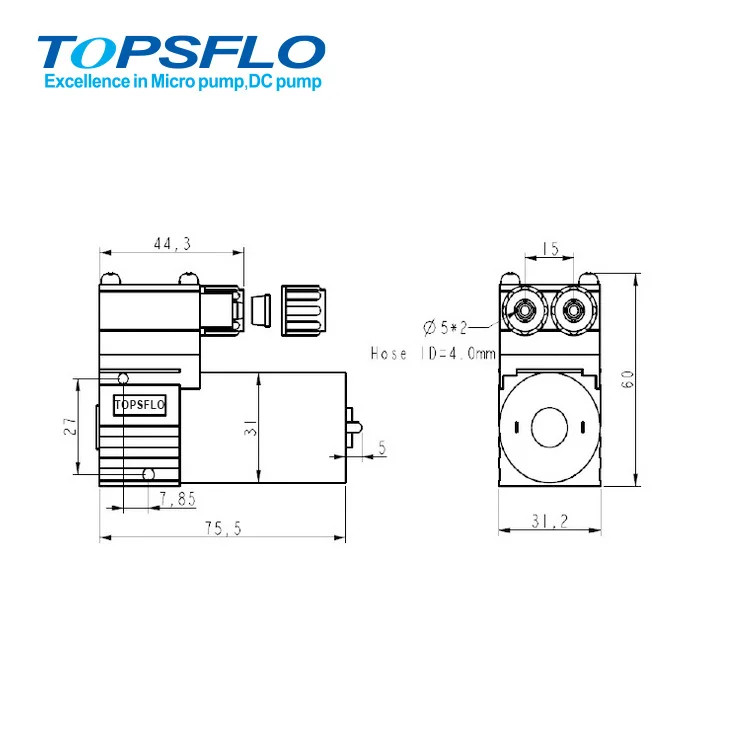

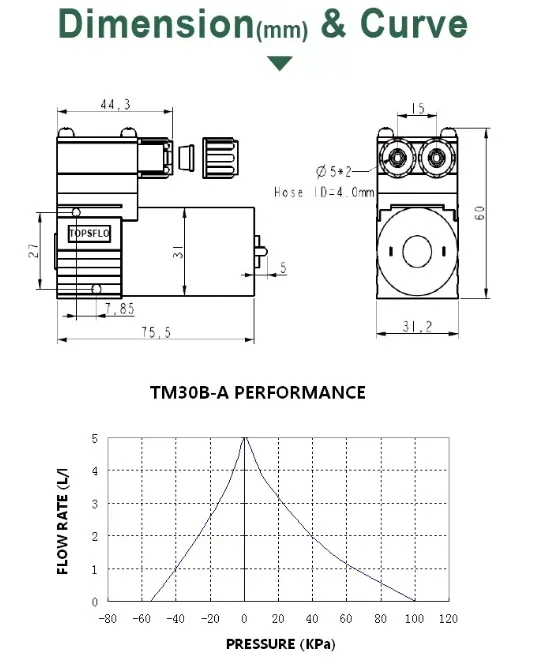

Pump Weight:220g; Pump Size:80mm*31mm*60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | |||||||
Motor type and code:“A”:premium duty brush DC motor (reference lifetime 3,000hours),longer endurance lifetime than other normal DC membrane pump Comparing with the TZ economic series, pump with general more stable and higher performance for it's importing bearing, higher endurance membrane. | |||||||
• Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
• Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
• Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
• Uncontaminated flow
No contamination of the media due to oil-free operation
• Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
• High level of gas tightness
Thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
• Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other material combinations for the parts which allows the corrosive gas to be pumped.
• Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected
1. Industrial pressure and vacuum applications 2. Portable Analytical Instruments 3. Medical Diagnostic Equipment
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..
TOPS INDUSTRY AND TECHNOLOGY CO., LIMITED started in 2005, is the world's leading supplier of micro
pump solutions, and won the "National High-tech Enterprise". The company is mainly engaged in the research and development and manufacture of miniature brushless DC
pumps and miniature diaphragm pumps. 80% of the products are exported to high-end markets in Europe and
America, and are mainly used in water heaters, small household appliances, water heating mattresses, medical
equipment, smart toilets, automobile circulation systems, etc. The company has always been known for its high quality and high batch consistency, and has established solid and good cooperative relations with many world-renowned brands, such as: Tesla, Whirlpool, Flextronics, Kohler, GE, Roca, KTM, Geberit, etc.
