TX 20 TTMC Mini Milling Machine, 1HP Power Milling Machine with MT2 Spindle Taper, 700x180mm Work Table
- Category: >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1377897286):
Product Overview
Description
Product Overview

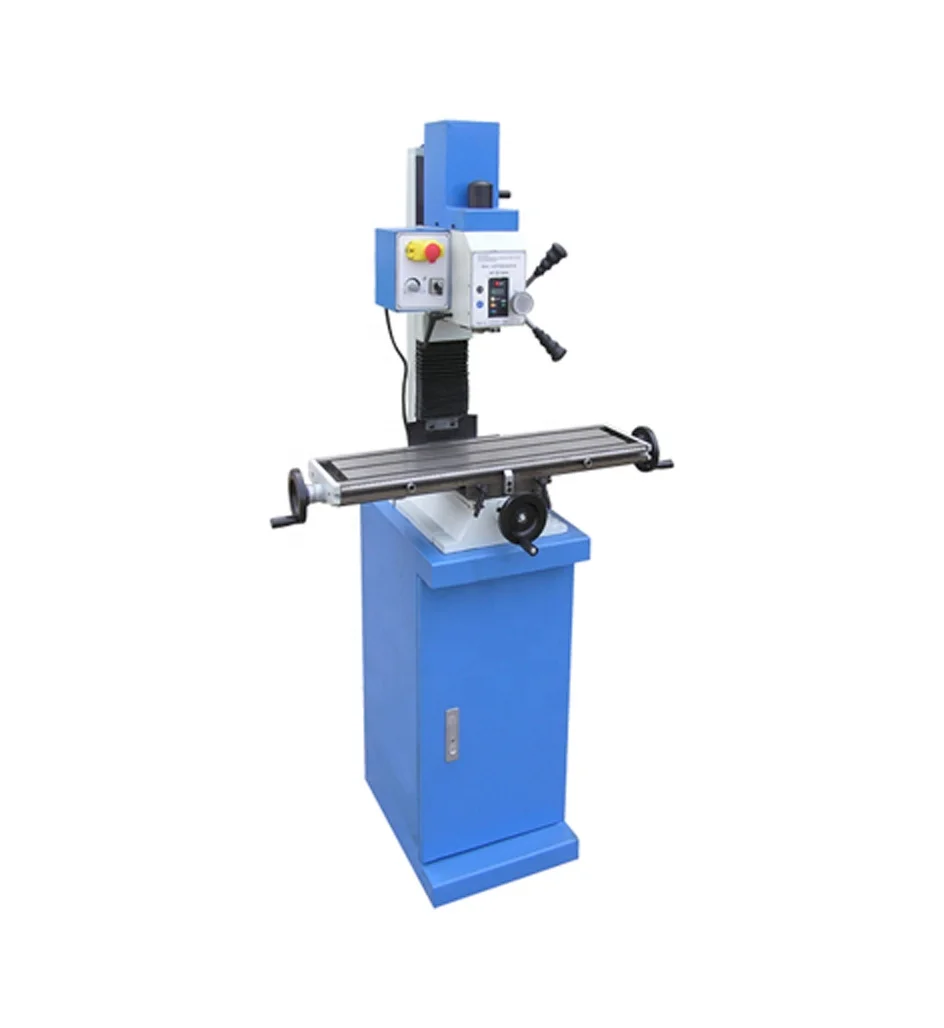

TTMC Variable Speed Mini Milling TX-20
The TTMC TX-20 Mill Drill is the perfect option when operators need to do some light-duty milling that doesn't require a full size milling machine, varible spindle speed
FEATURES AT A GLANCE
Dovetail column ensures positive head location
Adjustable gibs to all slideways
Head tilts +/- 45º
Independent spindle feed with head in locked position
Column securely fixed to base to maintain positive vertical plane
Rack and pinion drill feed direct to spindle with head in locked position
Locks to head, column and slideways
PRODUCT SPECIFICATIONS
Variable Speed Milling Machine
Item No. | 389210 |
Model | TX-20 |
Max. drilling dia. | 20 mm |
Max. face milling | 63 mm |
Max. end milling | 20 mm |
Spindle taper | MT2 |
Sleeve travel | 50 mm |
Spindle speed | 50-2250 rpm |
Head rotation | ±45° |
Table size | 700x180 mm |
Table travel | 280x170 mm |
Head travel | 270 mm |
T-slot | 12mm |
Motor | 0.75 kW |
Packing size | 57x55x86 cm |
N.W./G.W. | 122/147 kg |
