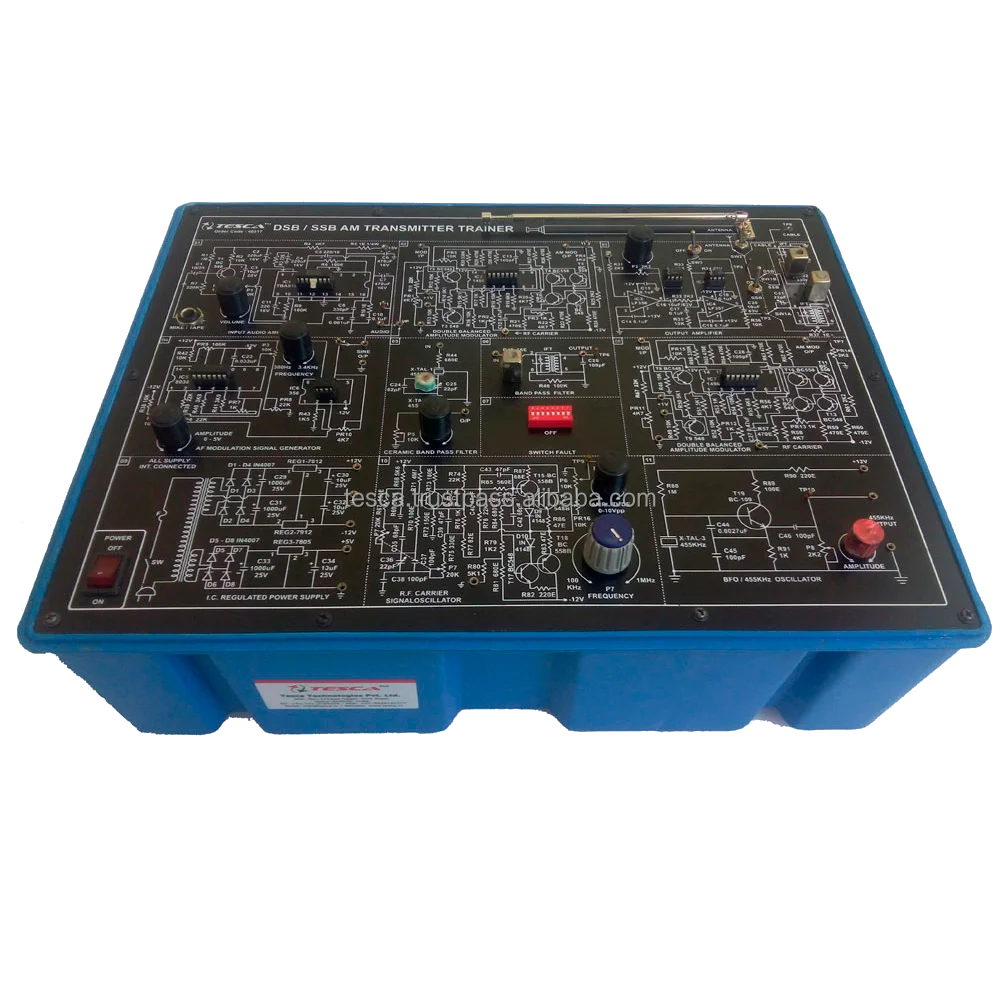

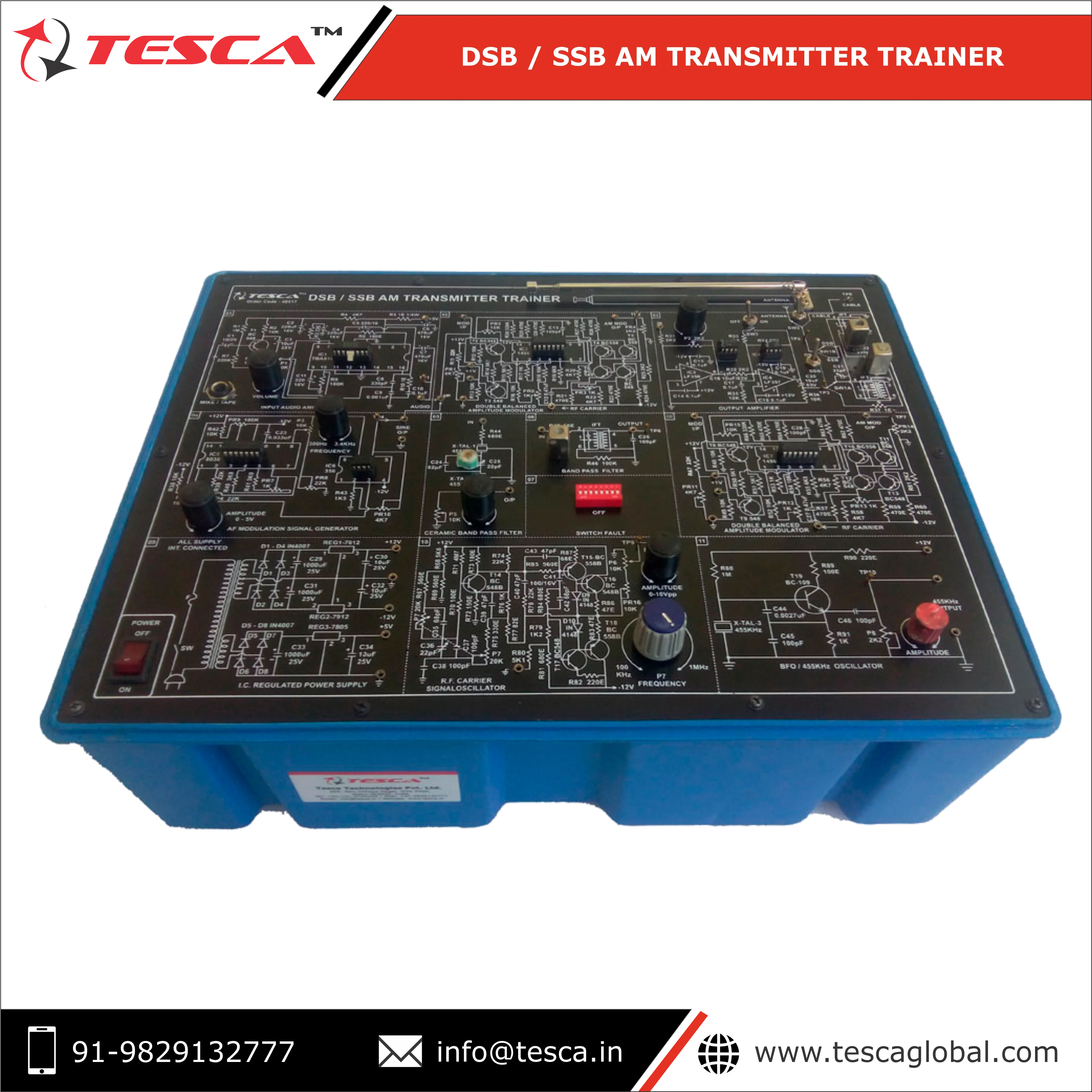

DSB / SSB AM Transmitter Trainer
Specification
This trainer has been designed with a view to provide practical and experimental knowledge of DSB / SSB AM Transmitter technique as practically implemented in Analog Communication system on a signal P.C.B. of size 300x400mm.
Object:
01. Study of carrier frequency generation.
02. Study of DSB / SSB AM Generation & Transmission.
03. Study of Transmitter tuned circuits.
Feature:
The board consists of the following built-in parts:
01. AF Modulating signal generator : Sine wave
Frequency Range : 300 Hz to 3.4 KHz
Amplitude : 0 to 5 Vpp.
02. RF carrier signal oscillator
Frequency Range : 100 KHz to 1 Mhz.
Amplitude : 0 to 10 Vpp.
03. Modulators (Two Nos) : Double Balanced Amplitude modulator
04. Ceramic Band Pass Filter : 452 KHz to 458 KHz.
05. Band Pass Filter : 1 No.
06. Switch faults : 8 Nos.
07. POWER SUPPLY : ± 12DC and 5V DC IC Regulated power supply.
08. Test points : 27 Nos.
09. BFO Oscillator : 455 KHz.
10. Input Audio amplifier with Volume Control for modulating external signal from Mike or Tape recorder.
11. Output Amplifier Transmitter : ( Gain adjustable) DSB (1MHz), SSB (1.445 MHz) connected to Antenna/cable.
12. Mains ON/OFF switch, fuse and jewel light.
13. Power supply requirement 230V AC, 50 Hz.
14. Dynamic Microphone with 4mm Jack Pin.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design Procedures, Report Suggestions and Book References.
Other Apparatus Required:
* Cathode Ray Oscilloscope of 20MHz.
