rubber gasket oil seals vulcanizing press rubber seals molding press

Product Overview

Description

 rubber gasket oil seals vulcanizing press rubber seals molding press

description:

XLB-Y the rubber 5 liquid notes to press to take shape the machine is a kind of advanced rubber to model the  equipments. Using for the production shape prinarily complicated, grow why miscellaneous piece in small rubber. Be applicable to specially every kind of  rubber seal completely connects the Cape.

feature:

• high speed open/close molds, high production efficiency, low locking speed, protect mold


• automatic in/out mold and ejector device, low labor strength


• optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption


• the electric system adopt PLC programming control,   human-machine dialogue by touch screen

parameters of rubber vulcanizer

model		XLB-Y630	XLB-Y1000B	XLB-Y1000A	XLB-Y1600	XLB-Y2000	XLB-Y2500	XLB-Y3500
mold locking force(KN)		630	1000	1000	1600	2000	2500	3500
max. working pressure(Mpa)		21	21	21	23	21	21	23
block stroke(mm)		300	300	300	300	300	400	500
thermo-plate size(mm)	out of the electric hot plate	450×480	450×480	520×540	520×540	600×600	700×750	1050×1000
	out of flat plate/Connecting rod turns over the plank	420×480	420×480	500×540	500×540	550×600	680×750	980×1000
max. distance of thermo-plate(mm)		300	300-480	300-480	300-480	300-480	400	500
motor power(KW)		4	4+2.2	4+2.2	4+2.2	5.5+3	5.5+3	5.5+5.5

3.Details of the rubber vulcanizer

1.Material of steel plate:

We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel

2.Weldment of frame : world technique

Welded together as a whole part,Stewing fire treatment after weldment.

(Carbon dioxide gas shielded welding,alloyed welding wire).submerged arc welding, VSR treatment after weldment.

 3.Piston:

the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.

 4.Heating way&precision temperature control:

 Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity) range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )

 Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C

 Also we can produce the machine with water cooling system.

 5.Hydraulic system: (PLC control)

 the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.

 We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.



factory direct sales, good quality and favorable price :

100% factory manufacture

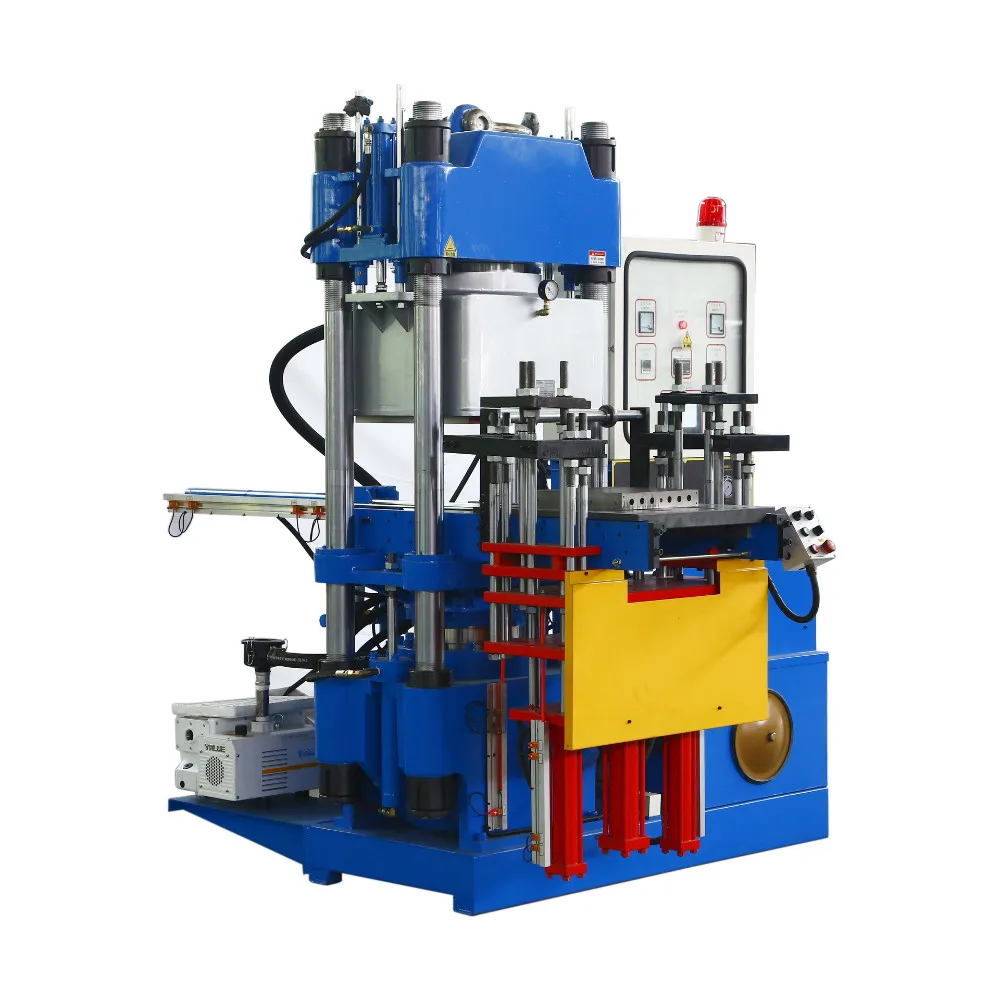

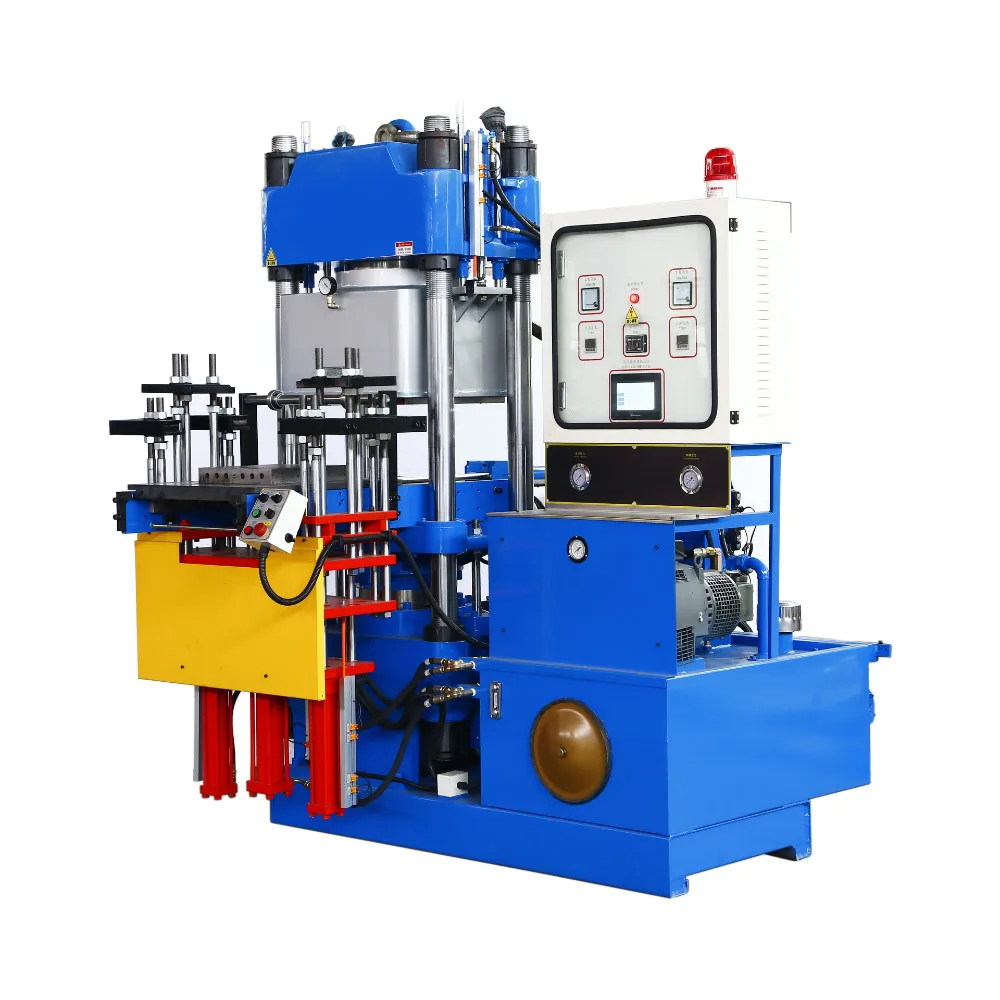

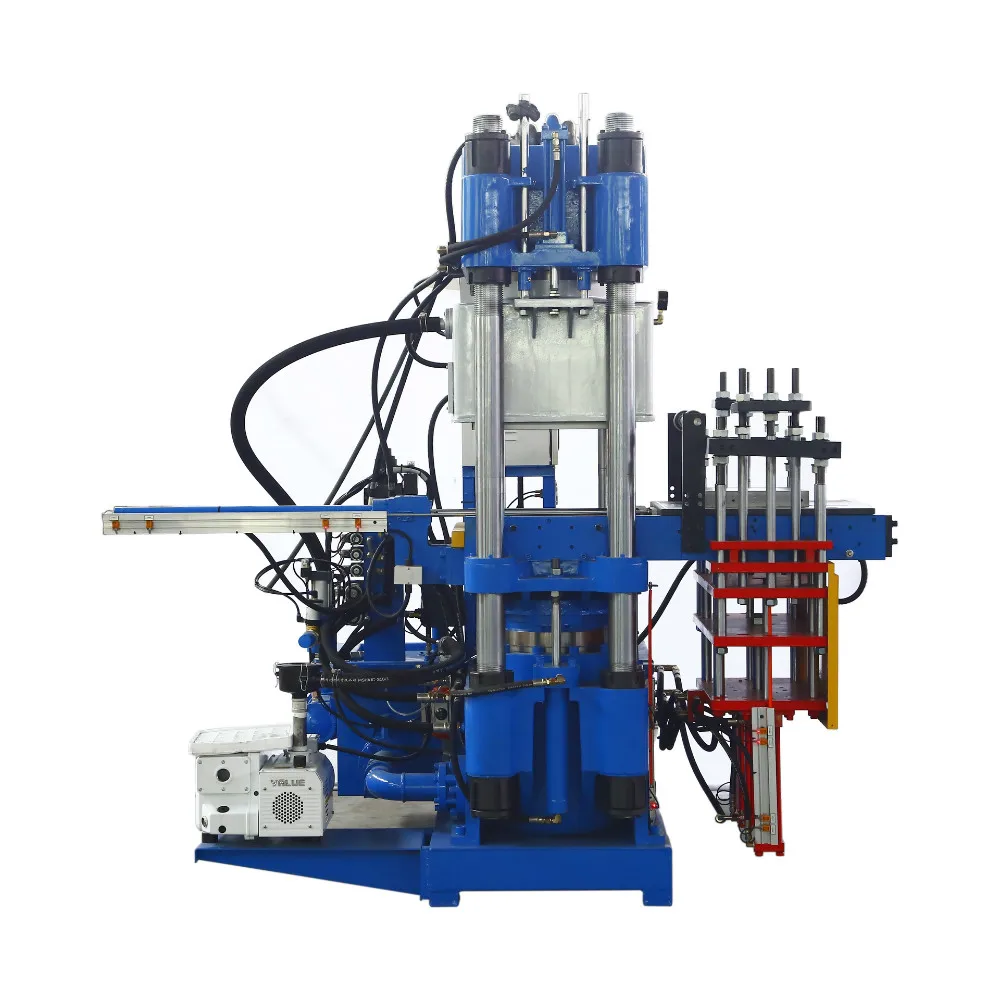

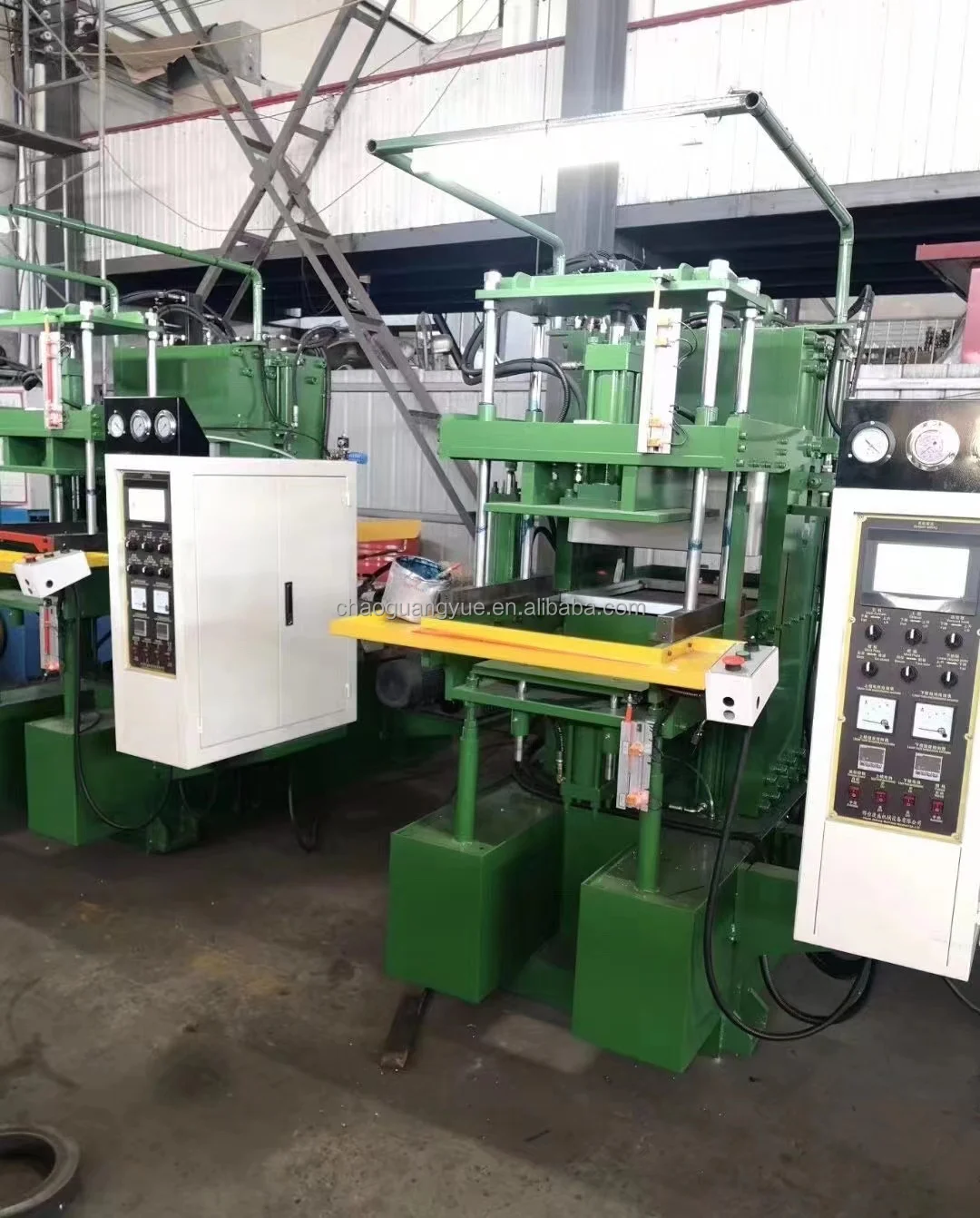

The photos of rubber  machine
