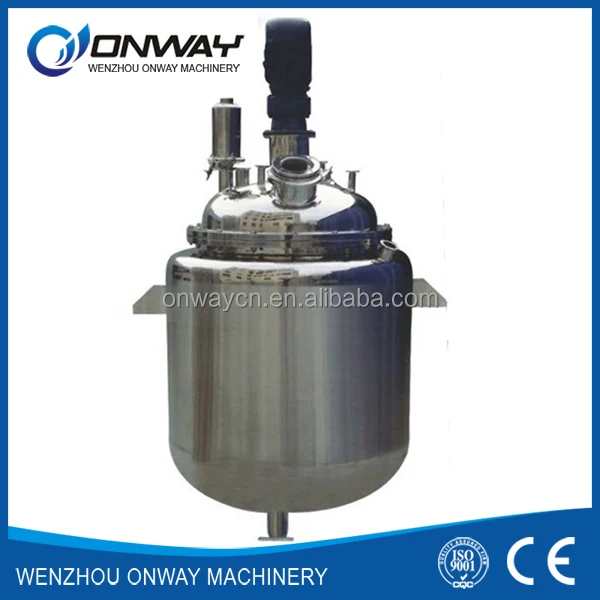

PL stainless steel with agitator mixing tank
- Category: >>>
- Supplier: Wenzhou Aowei Machinery Co. Ltd.
Share on (1380617535):
Product Overview
Description
Product Description
PL series mixing tank(blending tank,agitator tank) is widely used in pharmacy , fine chemical engineering and biological engineering industries. The tank body has interlayer and heat-insulating layer (for heating, cooling or heat insulating). The tank body, upper and lower closure heads( or taper ) all adopt spinning R-angle processing. The internal wallof the tank has got mirror polishing with finish Ra≤4.1μm. It has no sanitary dead corner and its wholly enclosed design ensures that materials are always mixted and ferment at no-pollution state. It is equipped with devicea including air respirator, cleaning ball,sanitation inlet, viewing mirror, and viewing lamp.
Techonolg parmeter
| 100L | 200L | 500L | 1000L | 2000L | 5000L | 10000L | 20000L |
Diameter(mm) | 400 | 500 | 700 | 900 | 1200 | 1500 | 1800 | 2300 |
Heigh(mm) | 2000 | 2300 | 2650 | 2900 | 3800 | 4480 | 5250 | 6550 |
Inner pressure(Mpa) | 0.2 | |||||||
Layer pressure(Mpa) | 0.3 | |||||||
stirring paddle No. | 2 | |||||||
Stirring speed(r/min) | 80 | |||||||
Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 3 | 5.5 | 7.5 | 7.5 |
Cooling method | Layer calandria | |||||||
