Product Overview
Description

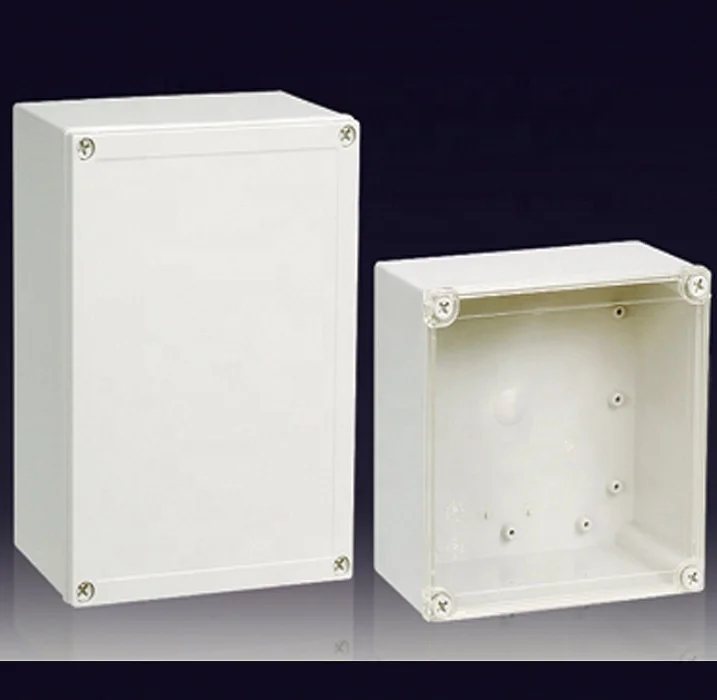

Junction box<S series>-Lift off screw cover type
1. Available 2 plastic type of non-flush handle screw(included) or flush cross screw(optional)
2. Reinforced self-threaded design
3. Type 4X&IP67 for indoor&outdoor application by neoprene gasket seal
4. Available 50 kinds sizes from 50x65x45 mm to 380x560x180 mm
5. Selectable gray or clear cover
6. Available stainless steel wall mounting bracket
Plastic enclosure, Electrical and electronics box, switch box, control box, terminal box, terminal block box, Aluminium enclosure, IP66/67 enclosure, distribution box, junction box, telecommunication box
Model and Size
Size(included cover) | Model | ||||
W×L×H | W×L×H | ABS | ABS | PC | PC |
80×130×35 | 3.15×5.12×1.38 | BC-AGM-081303 | BC-ATM-081303 | BC-CGM-081303 | BC-CTM-081303 |
80×130×60 | 3.15×5.12×2.36 | BC-AGM-081306 | BC-ATM-081306 | BC-CGM-081306 | BC-CTM-081306 |
80×130×75 | 3.15×5.12×2.95 | BC-AGM-081307 | BC-ATM-081307 | BC-CGM-081307 | BC-CTM-081307 |
80×130×85 | 3.15×5.12×3.35 | BC-AGM-081308 | BC-ATM-081308 | BC-CGM-081308 | BC-CTM-081308 |
80×130×100 | 3.15×5.12×3.94 | BC-AGM-081310 | BC-ATM-081310 | BC-CGM-081310 | BC-CTM-081310 |
80×130×125 | 3.15×5.12×4.92 | BC-AGM-081312 | BC-ATM-081312 | BC-CGM-081312 | BC-CTM-081312 |
130×130×35 | 5.12×5.12×1.38 | BC-AGM-131303 | BC-ATM-131303 | BC-CGM-131303 | BC-CTM-131303 |
130×130×60 | 5.12×5.12×2.36 | BC-AGM-131306 | BC-ATM-131306 | BC-CGM-131306 | BC-CTM-131306 |
130×180×35 | 5.12×7.09×1.38 | BC-AGM-131803 | BC-ATM-131803 | BC-CGM-131803 | BC-CTM-131803 |
130×180×60 | 5.12×7.09×2.36 | BC-AGM-131806 | BC-ATM-131806 | BC-CGM-131806 | BC-CTM-131806 |
150×180×60 | 5.91×7.09×2.36 | BC-AGM-151806 | BC-ATM-151806 | BC-CGM-151806 | BC-CTM-151806 |
180×180×60 | 7.09×7.09×2.36 | BC-AGM-181806 | BC-ATM-181806 | BC-CGM-181806 | BC-CTM-181806 |
180×180×75 | 7.09×7.09×2.95 | BC-AGM-181807 | BC-ATM-181807 | BC-CGM-181807 | BC-CTM-181807 |
180×180×100 | 7.09×7.09×3.94 | BC-AGM-181810 | BC-ATM-181810 | BC-CGM-181810 | BC-CTM-181810 |
180×180×125 | 7.09×7.09×4.92 | BC-AGM-181812 | BC-ATM-181812 | BC-CGM-181812 | BC-CTM-181812 |
180×255×75 | 7.09×10.04×2.95 | BC-AGM-182507 | BC-ATM-182507 | BC-CGM-182507 | BC-CTM-182507 |
180×255×100 | 7.09×10.04×3.94 | BC-AGM-182510 | BC-ATM-182510 | BC-CGM-182510 | BC-CTM-182510 |
180×255×125 | 7.09×10.04×4.92 | BC-AGM-182512 | BC-ATM-182512 | BC-CGM-182512 | BC-CTM-182512 |
