Price:$9.20 - $10.00

Quantity:


Product Overview

Description





Product Description


ZIF IC test Socket





We are manufacture of:





 Pin header,female header,terminal blocks,box header(DC3),


shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,


ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,


micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.






























































ZIF SOCKET



Material:



Housing:



30%Glass filled PBT UL94V-0.



Contacts:



Phosphor Bronze.



Plating:



Gold plated:3U'' over 50U'' nickel.







Tin plated:100U'' over 50U'' nickel.



Electrical Characteristics:



Current Rating:



1 AMP.



Insulator Resistance:



5000MΩmin,at DC 500V.



Contact Resistance:



20MΩmax,at DC 110mA.



Operating Temperature:



-55°C~+105°C.



Features:



For DIPs with .100'' lead spacing.



Lever actuated zero insertion force mechanism.



Socket easily disassembles for repairability.



Socket contact point of. 110" below top surface of socket.

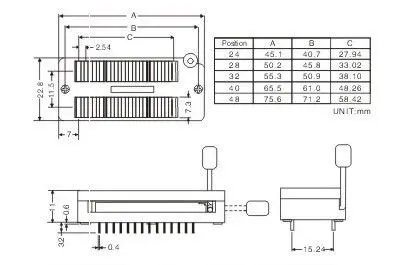

1002 0.3
