wood bandsaw machinery for wood cutting log saw.MJ345C

Product Overview

Description

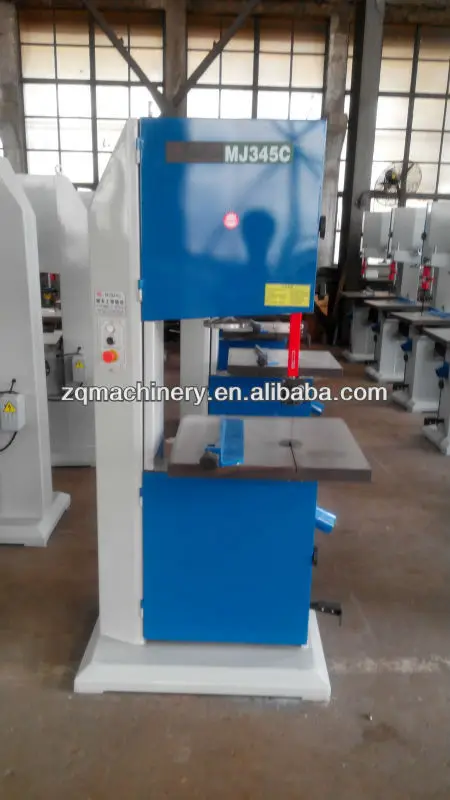

MJ345C WOOD CUTTING BAND SAW MACHINE



WOOD CUTTING BAND SAW MACHINE FEATURES

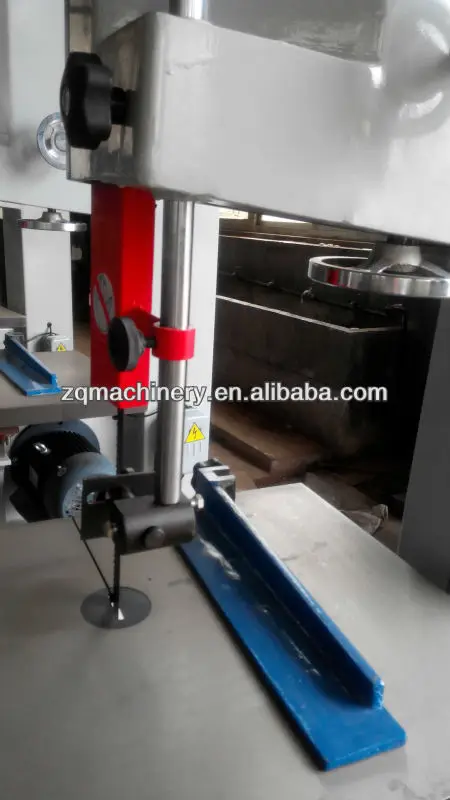

1. Equips with aluminium bearing guide and blade supporting device, cast iron saw wheel
2. Hand wheel adjusting the blade tension.
3. Cast iron rip fence.
4. Used for sawing of wood, plastic and other soft materials.

5. Fit to production of square and curve wood with a tilting saw workbench, also used for cutting the meat in food refrigeration field.

6. Good quality, high efficiency, easy to operate, safe and reliablity.

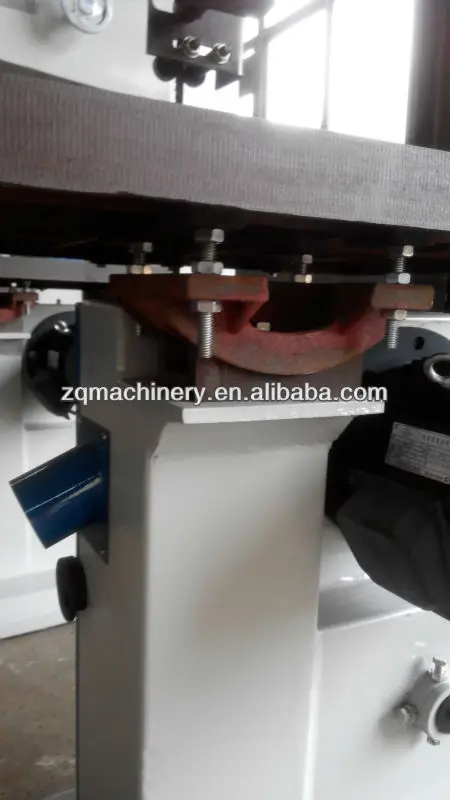

7. Workbench tilt from 0-30degree.



WOOD CUTTING BAND SAW MACHINE SPECIFICATIONS



Model	MJ345C (19”)
Max. Cutting thickness:mm	260/370
Cutting speed:m/min	1230
Length of blade: mm	4000
Wheel diameter: mm	480
Throat: mm	460
Motor power: kw	2.2
Overall dimension :mm	960*750*1870
Net weight: kg	275



 WOOD CUTTING BAND SAW MACHINE CATEGORIES



Model	MJ344(16”)	MJ345D (20”)	MJ347(27”)	MJ396(24”)
Max. Cutting thickness:mm	250	280	420	400
Cutting speed:m/min	988	960	1476	1090
Length of blade: mm	2910	3470	5200	4500
Wheel diameter: mm	400	500	700	600
Throat: mm	380	450	680	575
Motor power: kw	1.5	2.0	4	4
Overall dimension :mm	740*610*1640	1120*660*1845	1350*800*2290	1330*700*2060
Net weight: kg	206	275	470	45







If you have any question, pls feel free to contact with me.
