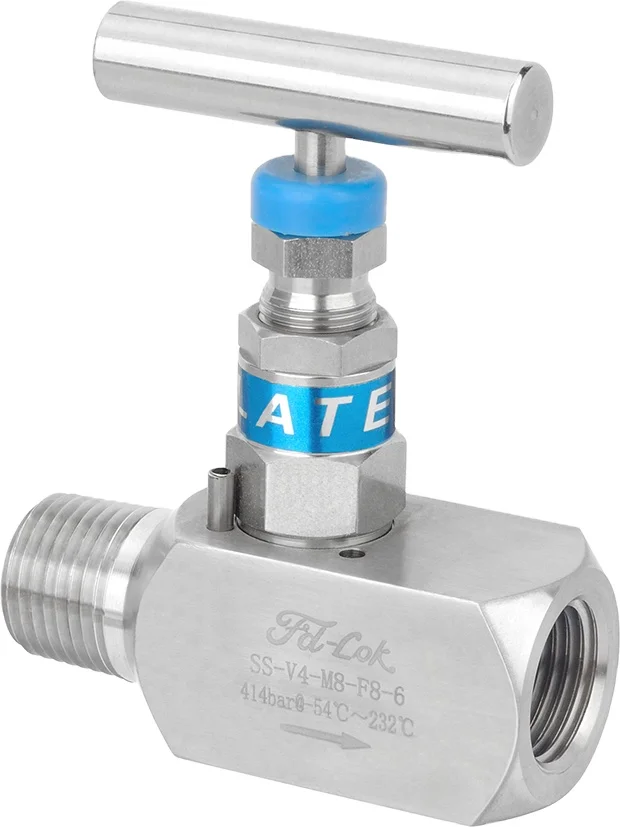

Needle valve swagelok 1/2 npt, needle valve alco same design

Product Overview

Description

Needle valve swagelok 1/2 npt, needle valve alco same design

Feature:



1.Prime,High Quality
2.Standards:NPT,BSP,ISO,DIN
3.Material:ss304,316,316L
4.Certificates:ISO9001:2008, CE

5.Brand Name: FD-LOK

6.Place of Origin: Zhejiang, China (Mainland)



Details:



1.Pressure up to 6000 psig (414 bar) for standard series
  Pressure up to 10000 psig (689 bar) for high pressure series

2.Temperature from -65°F to 450°F ( -54°C to 232°C )
  with PTFE packing
  Temperature from -65°F to 1200°F ( -54°C to 649°C )
  with Grafoil packing

3.Safe union-bonnet constrution

4.Back seating design protects the packing in fully
  open position

5.Panel mountable

6.Packing below stem thread isolates the thread
  lubricants from the media

7Non-rotating stem tip

8.100% factory tested





Product name	Needle valve swagelok 1/2 npt, needle valve alco same design
Material	316SS, 316LSS and other special materials
Size	Fractional Sizes from: 1/8" - 2" Metric sizes from: 3mm - 38mm
Nominal pressure	up to 6000-10000 PSI;
Technics	Forged bar stock
Thread Standard	NPT,BSP,BSPT,G,SAE,PT,RP,ISO and etc
Applicable medium	oil,gas,water or other medium
MOQ	If have stock .unlimited quantity. If no stock , MOQ 100pcs .
Payment term	stock products 100%payment before shipping out . In generally,30%deposit , 70%balance against B/L copy, L/C is also acceptable
Packing	each one in poly bag and small box, then in export wooden case
Other detail	1) .Pressure up to 6000 psig (414 bar) for standard series   Pressure up to 10000 psig (689 bar) for high pressure series  2).Temperature from -65°F to 450°F ( -54°C to 232°C )   with PTFE packing   Temperature from -65°F to 1200°F ( -54°C to 649°C )   with Grafoil packing  3) Specified specification available upon request 4) Quality assurence 5) free sample can be send to test qulity before place on order





Our product is high quality,ensure safe,trouble-free performance.













Our Capacity:

1)Date of foundation:2002

2)Annual Revenue:Above $9 million

3)About QC: Excellence, quality first is our philosophy

4)Sales Market: Europe,North America,Southeast Asia and Brazil

5)Main Products:  Compression Tube Fittings,Pipe Fittings, Needle Valves, Instrument Ball Valves,

2&3&5 way Valve Manifolds, Check Vlaves, Gate Valves, Block&Bleed Valve, Sample Cylinders, Relief Valves,

Syphons, Globe Valves, Plug Valves, Tube
