3008D gynecology chair hydraulic operating table price, operation table medical

Product Overview

Description

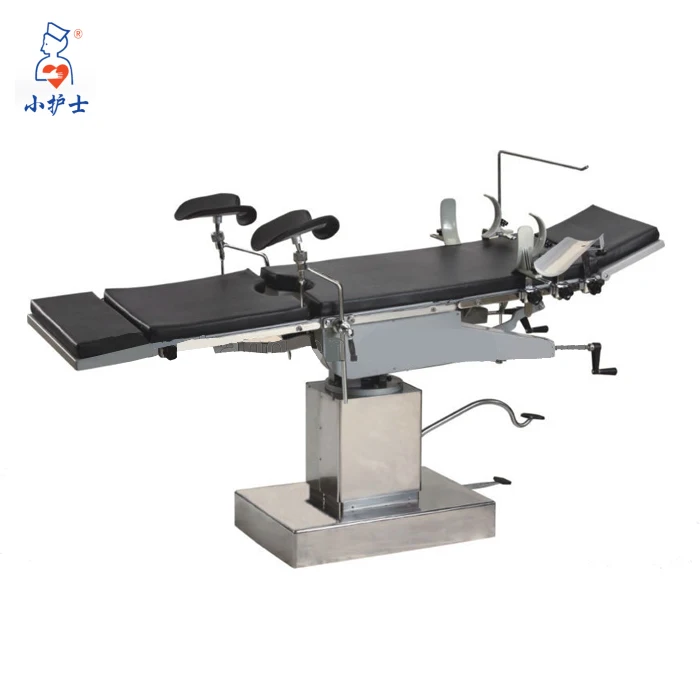

3008D hydraulic medical operating table price



Main Features:





♦  3008D head operating universal operation table is designed for thoracic surgery, abdominal surgery, ophthalmology, otorhinolaryngology, obstetrics and gynecology, urinary surgery and orthopaedics.





♦  The ascending and descending movements of the operation table is controlled by hydraulic pump, the other various movements are controlled by the mechanical transmission device through the crank handle in the head end.



Basic parameters:





Length and width fo the platform	2000*480mm
Maximun height of the platform	1000mm
Minimun height of the platform	800mm
Headboard fold range	upboard: 60° downward:90°
Backboard fold range	upboard: 75° downward: 10°
Seatboard	there is a round cavity between the seat board and leg board.
Leg board fold range	downward: 90° horizontal extension: 90°
Footboard	can be horizontal or vertical to the leg board, and detachable.
Platform tilt forward	28°
Platform tilt backward	28°
Platform tilt leftward	20°
Platform tilt rightward	20°
Waste board lifting	120mm
Oil pump vertical of oil pump	200mm



 Accessories:



Mandatory Accessories	Numbers
Screen frame	1 set
Body restraint	1 set
Body and shoulder support	1 set
Single-sheet arm rest	1 set
Knee crutches	1 set
