POE RJ45 surge protector in door

Product Overview

Description

RJ45 surge protector SY3158



RJ45 surge protector is special used in the network system and its different types can satisfy different defence thunder areas. The connector of its input and output is RJ45 male/female connector, which is easily connected and installed. It is main used in service equipment, inner LAS and HuB, and boardband RJ45 interface protection for protecting the equipment which will be damaged by the over voltage of the earth or the line inductance.

SY3158 POE RJ45 surge protector is one of the surge protector using in protection for network.



1.Specification details



Model	SY3158
Interface	Ethernet, RJ45 Cat6, with POE
Data rate	10/100Mb/s
Line voltage	POE 48V DC
Max operating voltage	POE 90V
Max surge discharge current	5KA (8-20 μ s)
Protected pins	All pins

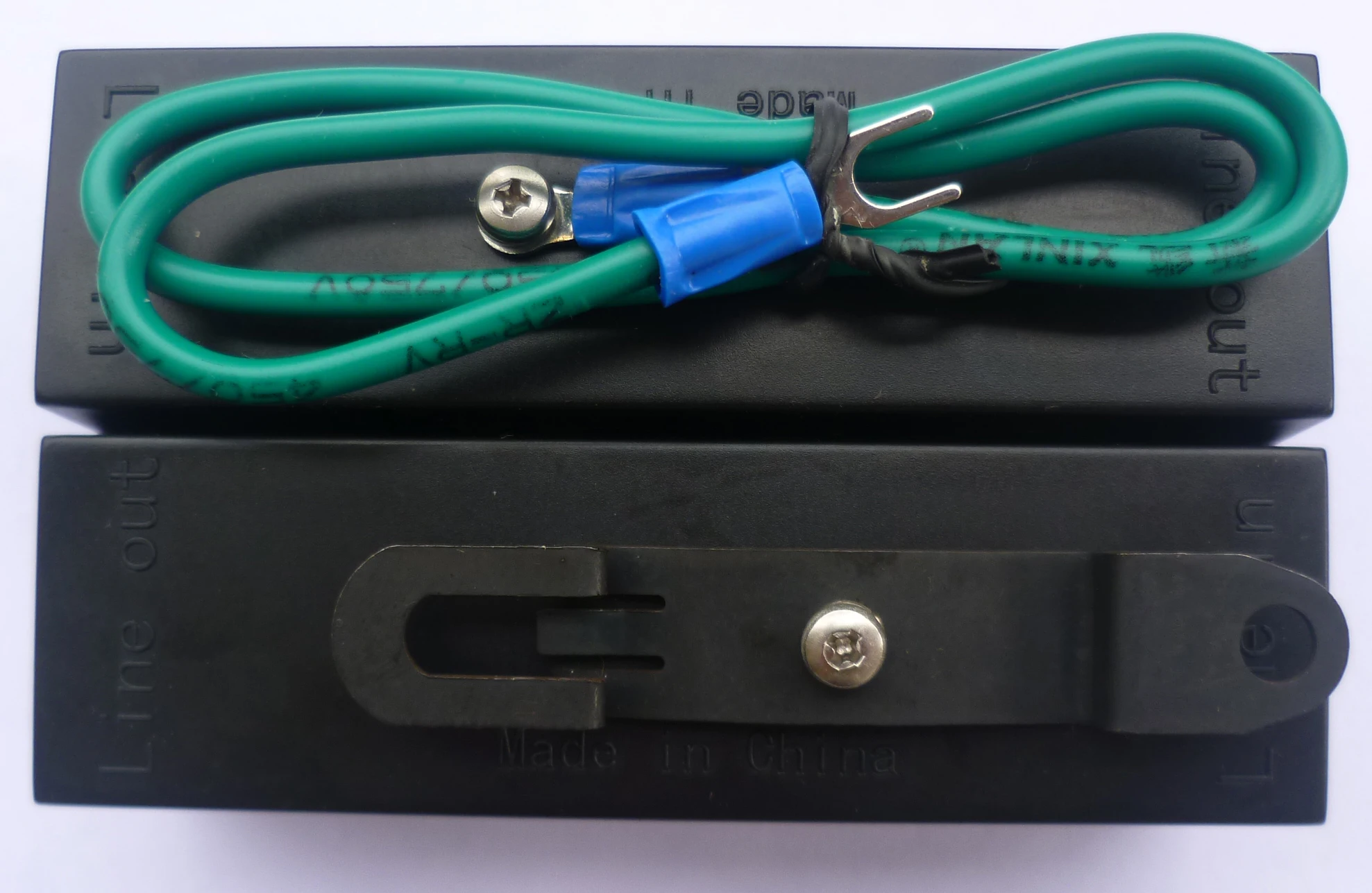

Mounting	Grounding clip & Grounding terminal
Shell material	ABS
Weight	52g
Size	26*26*95mm
Package inch	40*27*105mm





2. Dimensions



 3.Main feature:

1.ABS material profile shell, attractive and durable, good shielding effect;

2.RJ 45 convenient to use, reliable connection;

3.Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.

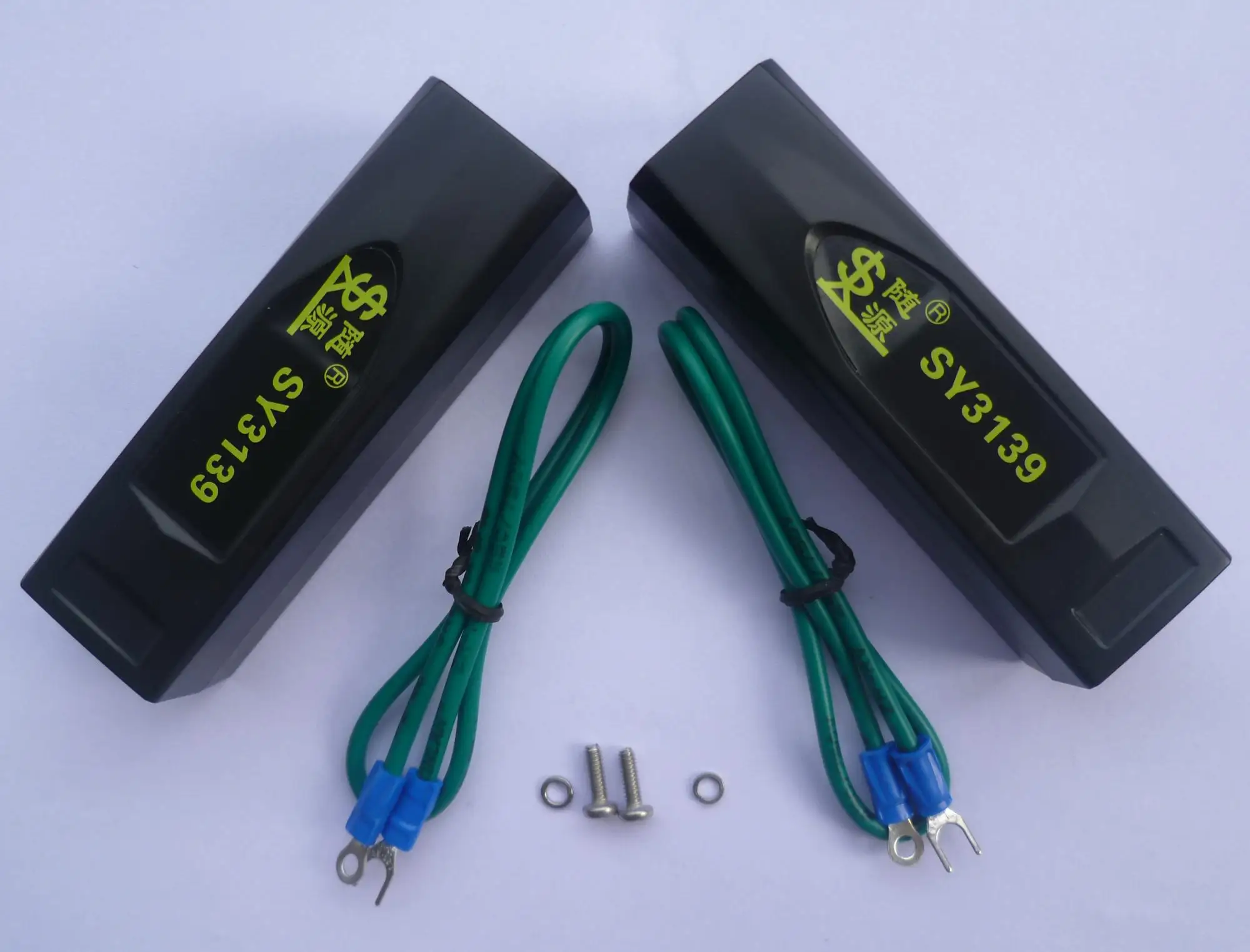

4. Package

Surge protector x 1

Grounding terminal/ Grounding clip x 1

Manuals/ Instructions x 1



5.Certificates

 CE certificate

  Compliant to ROHS

  Lead-free



6.Service

  A. OEM

  B. If there is other requirements, pls send your specs, we will design for you.



Welcome your inquiry, we will do our best to support you!
