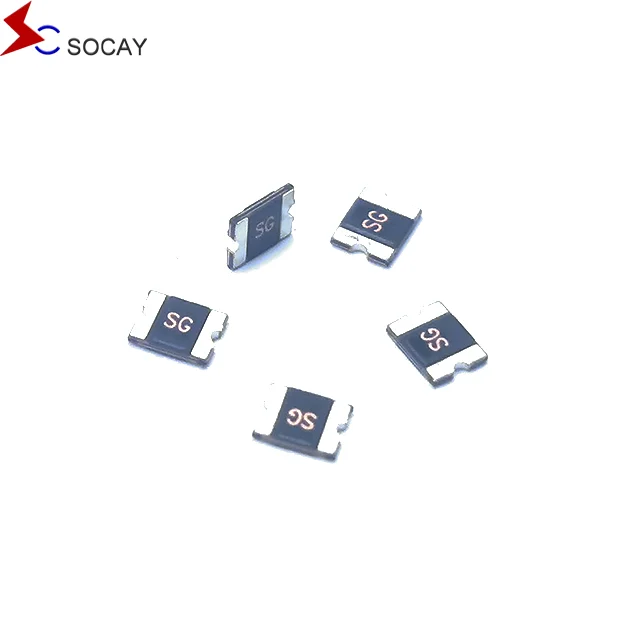

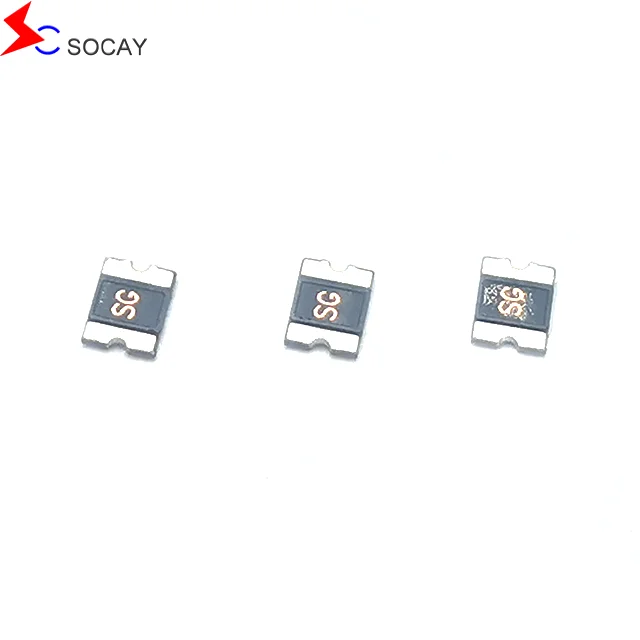

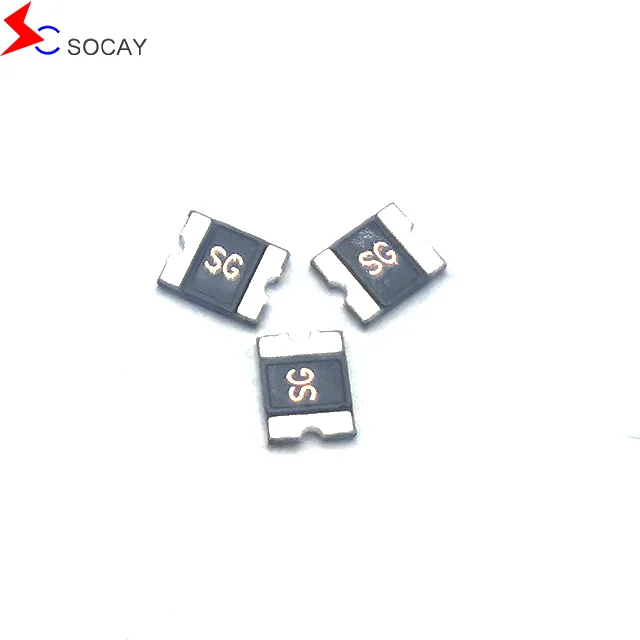

Resettable Thermal Fuse with Surface mountable
- Category: >>>
- Supplier: Shenzhen Socay Electronics Co. Ltd.
Share on (1388676147):
Product Overview
Description
Features | RoHS Compliant & Halogen Free Faster tripping, 1210 Dimension, Surface mountable, Solid state Operation Current: 0.05A ~ 2.00A Maximum Voltage: 6V ~ 60Vdc Operating Temperature: -40℃ ~ + 85℃ |
Terminal Materials | Tin-Plated Nickle-copper |
Soldering Zone | Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. |
Please feel free to contact us if you have any question.
Contact Person: Alice Xu
Phone Number/WhatsApp/Wechat: +8618775040331
Email Address: socay122@socay.com
Factory Address: Floor 4, Building C, Hengxing Science park, No.19 Minqing Road, Longhua District, Shenzhen
Website: www.socay.com / www.socay.en.alibaba.com

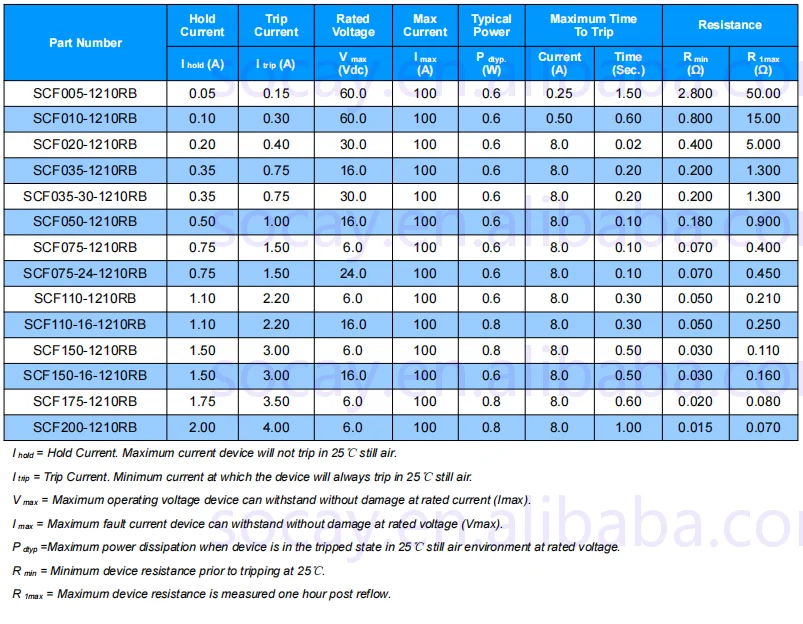

Electrical Parameters

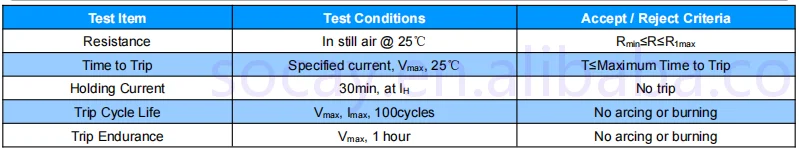

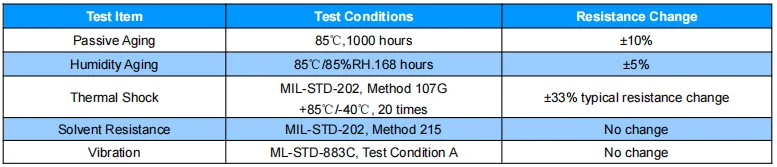

Test Procedures and Requirements
Environmental Specifications

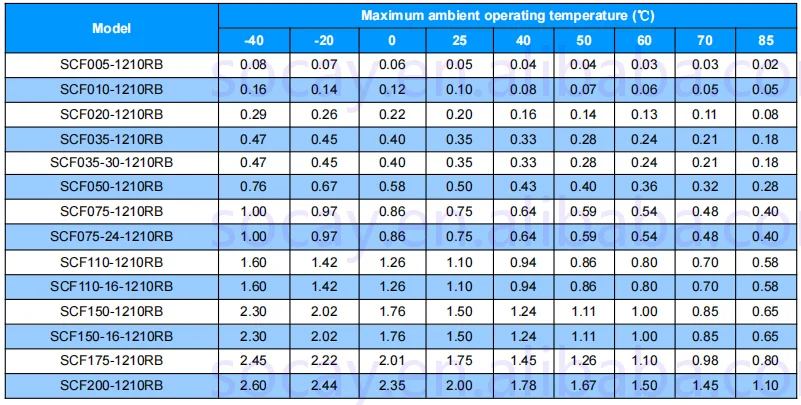

Thermal Derating Chart - IH (A)

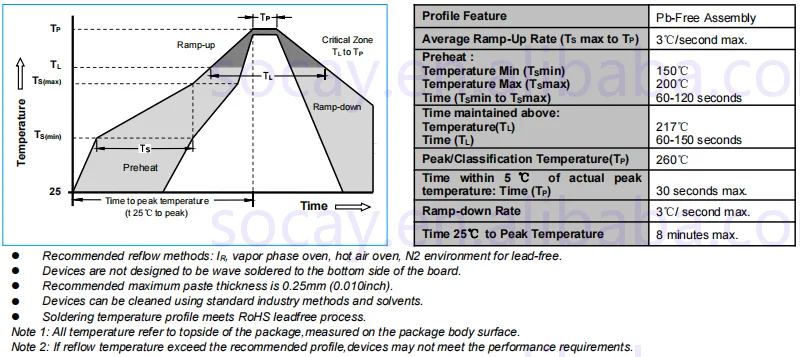

Soldering Parameters

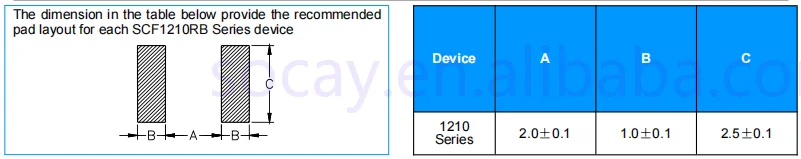

Recommended Solder Pad Layout Dimensions (Unit: mm)

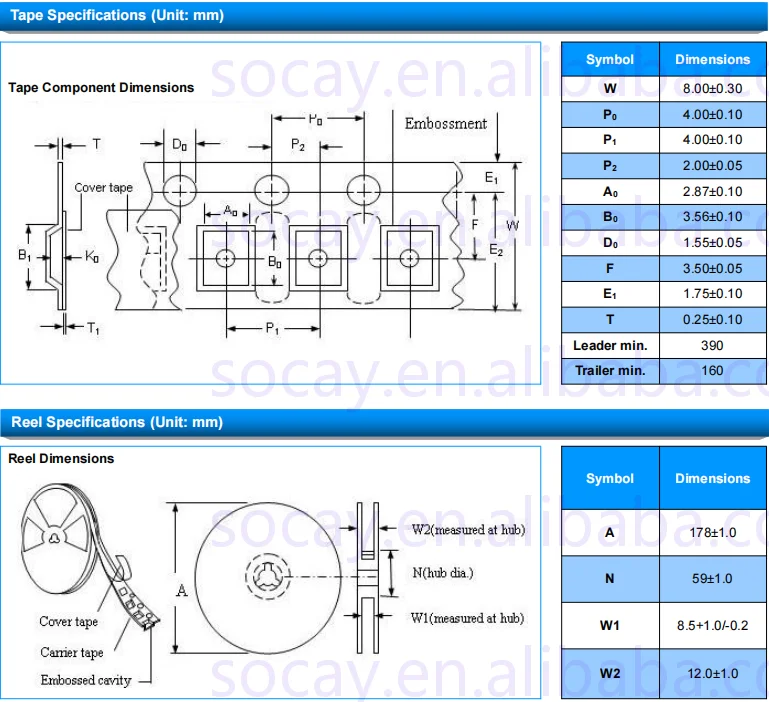

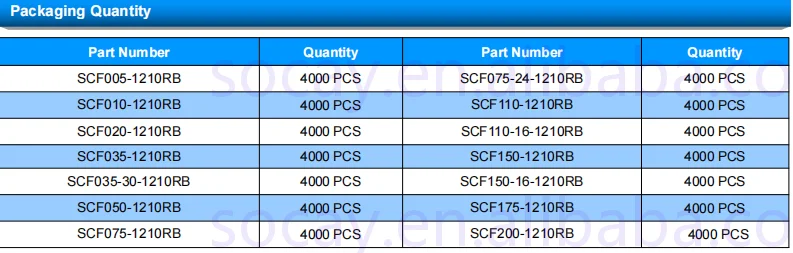

Packaging Information
Warning
Operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and/or flame. PPTC device are intended for occasional over-current protection. Application for repeated over-current condition and/or
prolonged trip are not anticipated.
Avoid contact of PPTC device with chemical solvent. Prolonged contact will damage the device performance.
FAQ
Q: May we get some samples?
A: Of course,samples are available.
Q: What is product lead time?
A: For GDT,TVS and ESD,lead time will take 3-4 weeks.For TSS,MOV,MLV,NTC,and PPTC,lead time will take 4-6 weeks.Accurate lead time will be further confirmed when we know your specific requirement.
Q: Do you support customization?
A: Yes,we do.
Q: What is product lead time?
A: For GDT,TVS and ESD,lead time will take 3-4 weeks.For TSS,MOV,MLV,NTC,and PPTC,lead time will take 4-6 weeks.Accurate lead time will be further confirmed when we know your specific requirement.
Q: Do you support customization?
A: Yes,we do.
