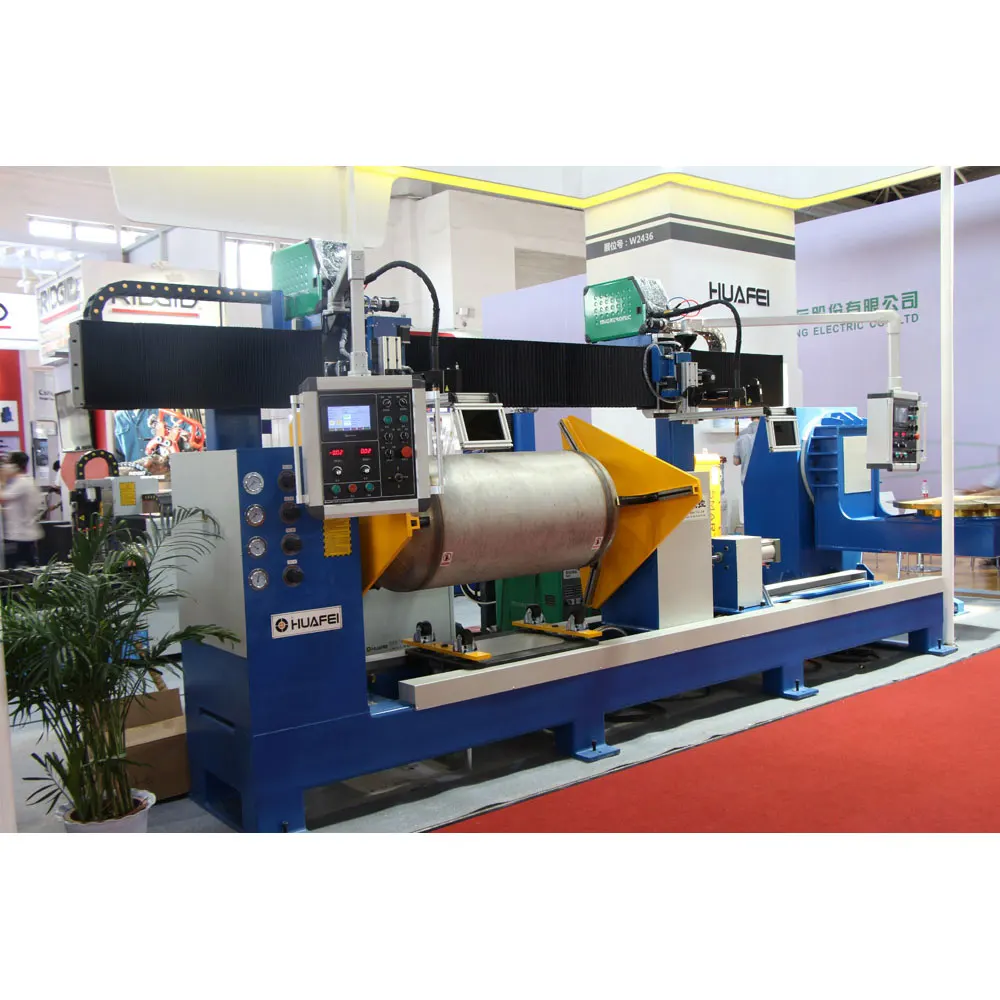

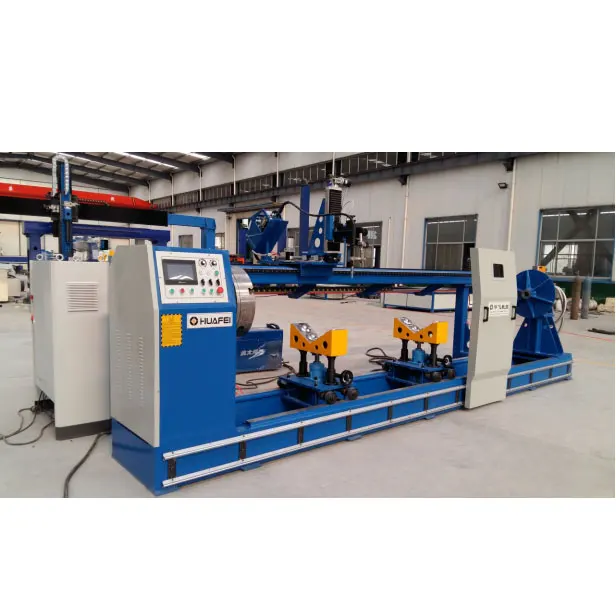

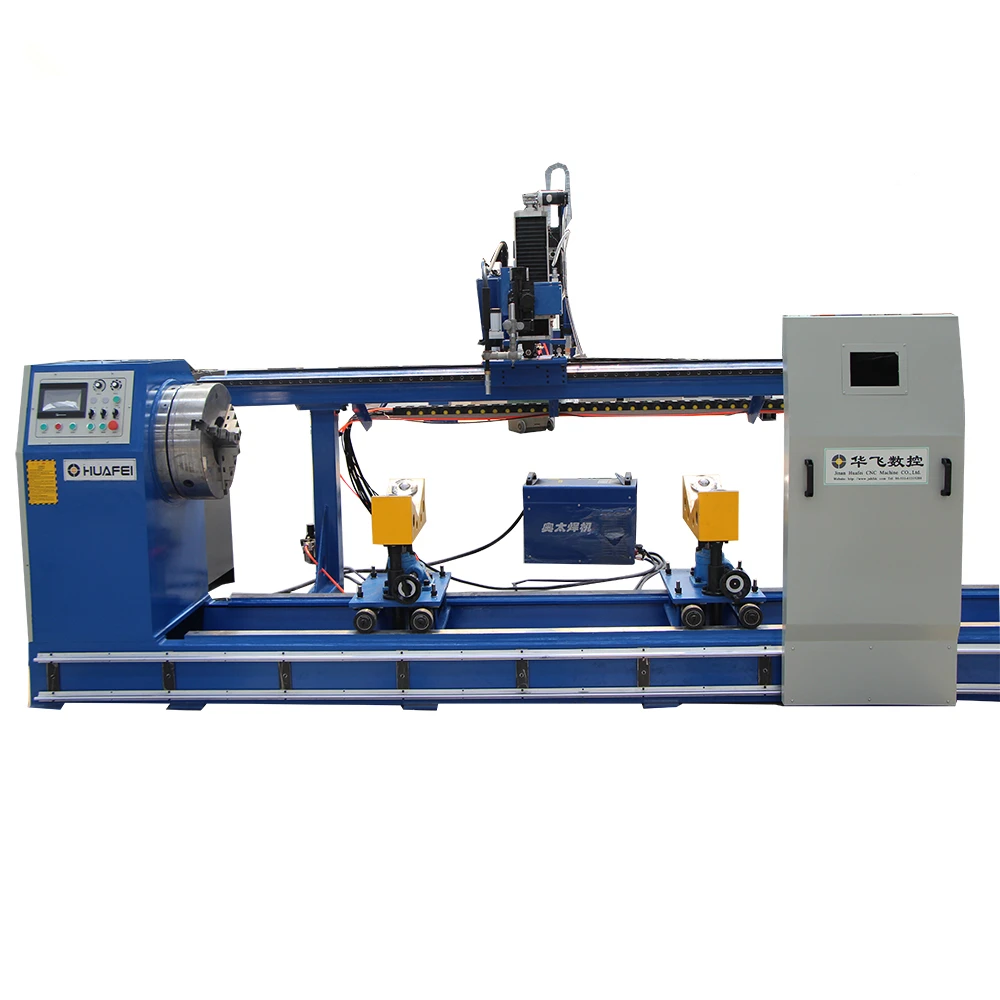

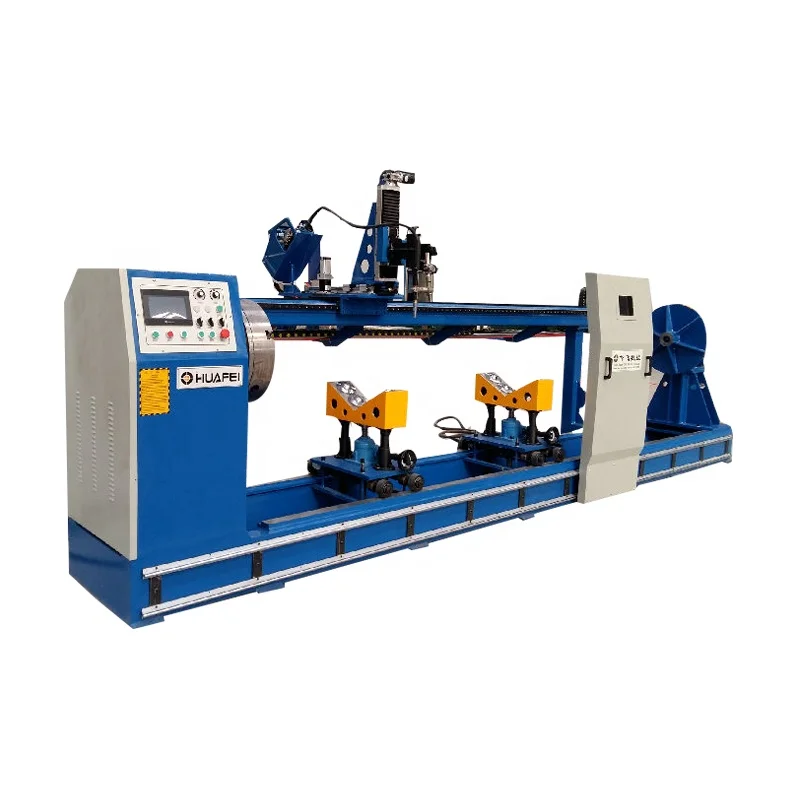

High Quality Circular Seam Orbital Welding Machine For Pipe And Flange Welding (circular/longitudial seams)
- Category: >>>
- Supplier: Jinan Huafei Cnc Machine Co. Ltd.
Share on (1388911407):
Product Overview
Description

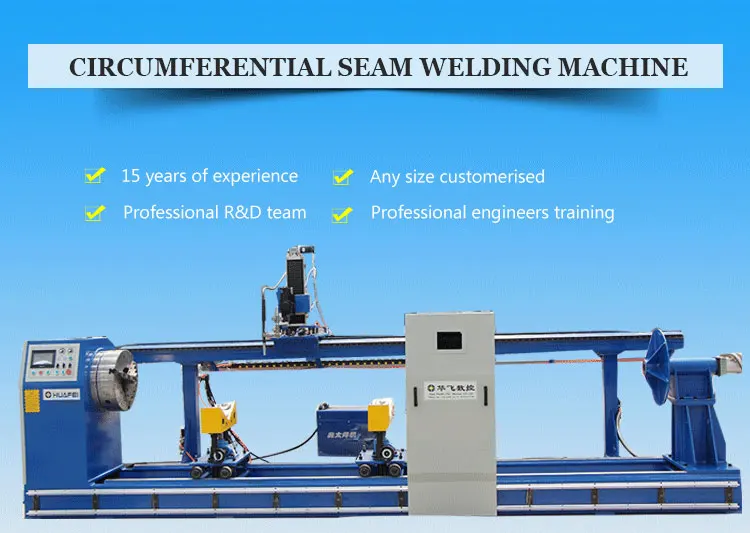

Automatic Circular/Circumferential Seam Pipe Welding Machine
Products Description
Complete cylinder girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration, and weld width meet the technological requirements, the clamping is convenient. SAW/MIG/MAG welding process; complete in one-time welding.
Mainly use for tank, cylinder, pipe and flange welding
Mainly use for tank, cylinder, pipe and flange welding
Item | Parameter | ||||
welding material | carbon steel, stainless steel, aluminum alloyed | ||||
welding thickness | 2-6mm | ||||
welding diameter | 100-400mm; 400-1200mm | ||||
welding length | 300-6000mm | ||||
work piece weight | maximum 6000kg | ||||
Product Paramenters

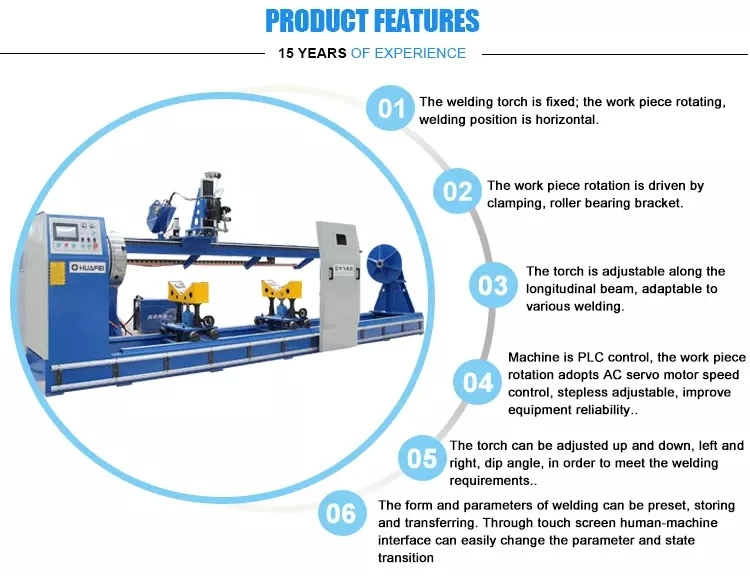

Feature：
♦The welding torch is fixed; the work piece rotating, welding position is horizontal
♦The work piece rotation is driven by clamping, roller bearing bracket
♦The torch is adjustable along the longitudinal beam, adaptable to various welding
♦Machine is PLC control, the work piece rotation adopts AC servo motor speed control, stepless adjustable, improve equipment
reliability.
♦The form and parameters of welding can be preset, storing and transferring. Through touch screen human-machine interface can
easily change the parameter and state transition.
♦The torch can be adjusted up and down, left and right, dip angle, in order to meet the welding requirements.
♦The work piece rotation is driven by clamping, roller bearing bracket
♦The torch is adjustable along the longitudinal beam, adaptable to various welding
♦Machine is PLC control, the work piece rotation adopts AC servo motor speed control, stepless adjustable, improve equipment
reliability.
♦The form and parameters of welding can be preset, storing and transferring. Through touch screen human-machine interface can
easily change the parameter and state transition.
♦The torch can be adjusted up and down, left and right, dip angle, in order to meet the welding requirements.
Input voltage | three-phase five-wire system AC 380V /220V 50Hz | ||||
Input capacity | 35.8KVA | ||||
Welding speed | 0.2～2r/min | ||||
Rated output voltage range | 15～50V | ||||
Rated output current range | 60～500A | ||||
Output no-load voltage | 70V | ||||
Rated input current | 54A | ||||
Total motor power | 3KW | ||||
Welding gun angle | adjustable | ||||
Up and down adjustment of welding gun | 100mm | ||||
Left and right adjustment of welding gun | 100mm | ||||
Welding wire diameter | φ1.0～φ1.6mm | ||||
Workpiece diameter range | φ100-φ500mm | ||||
Workpiece length range | less than 4000mm | ||||
Welding method | multilayer swing or multilayer stepping, spiral | ||||
CO2 consumption | 15～25L/min | ||||
Compressed air pressure | >0.5MPa | ||||

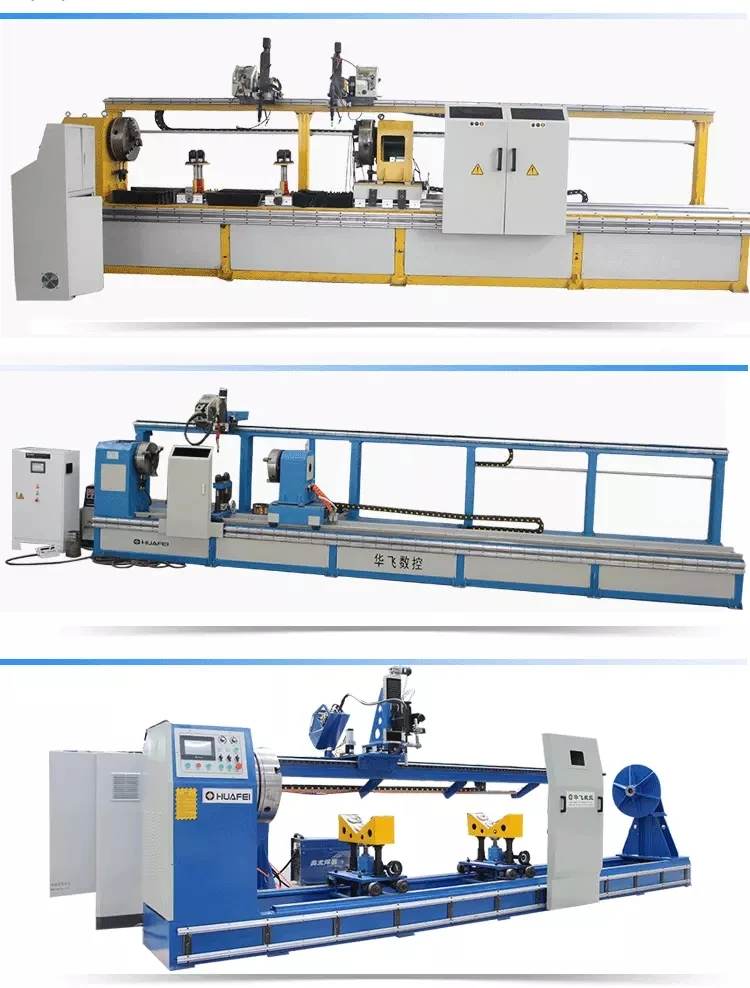

Related Products
If the above machines can not meet your needs, please contact us, professional engineers to provide you with the best solutions and quotations!.

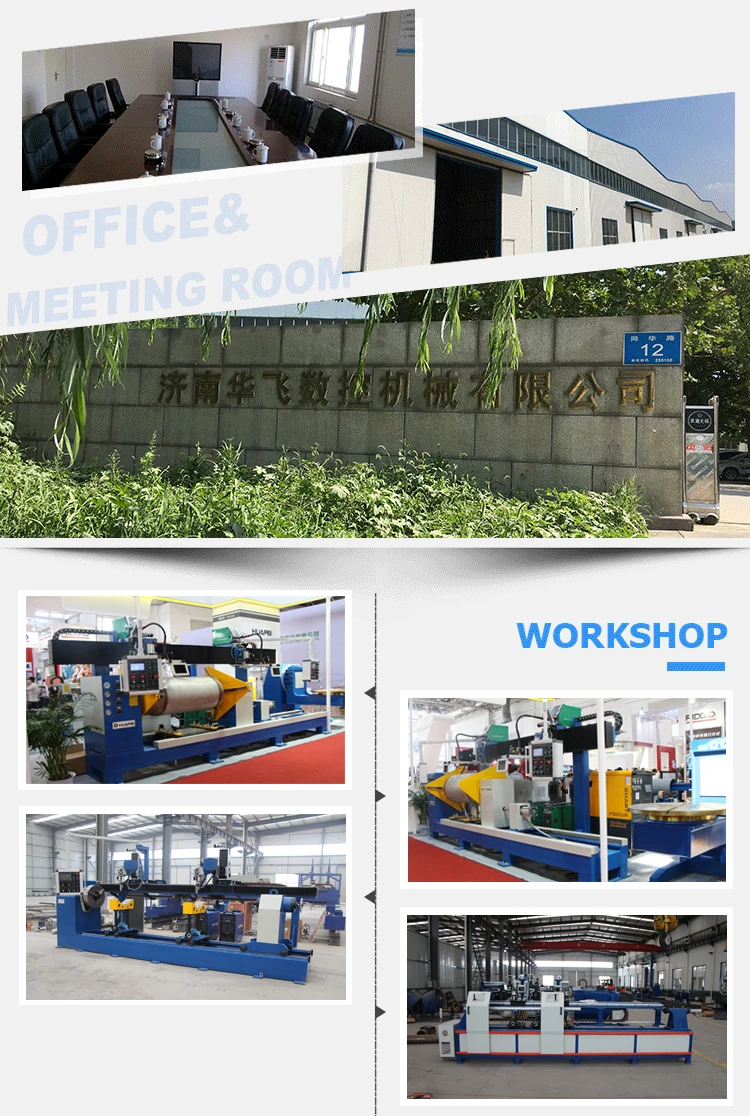

Company Profile
Since established, Jinan Huafei CnC Machine Co.,Ltd. has focused on introducing and cultivating high-tech talents and takes it as development strategy. at present, many professionals have been brought together who specialize in researching and developing of uncoiling and leveling machines, CnC welding and cutting equipments. technical strength is always cherished as core competitiveness of our company.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in the world, including Australia, Indonesia, India, Burma, Spain, Brasil, Peru, Russia, Azerbaijan, KZ, uZ, Sri Lanka, etc. During establishing the national brand of Huafei, we always hold the responsibility of culture communication between china and the world.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in the world, including Australia, Indonesia, India, Burma, Spain, Brasil, Peru, Russia, Azerbaijan, KZ, uZ, Sri Lanka, etc. During establishing the national brand of Huafei, we always hold the responsibility of culture communication between china and the world.
Product packaging
FAQ
1.Does your company accept customized offer, we have special need.
HUAFEI CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
2.What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
3.Does your company accept CIF price?
CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.
4.What’s your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.
5.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
6.Does MC have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
